Ball Screws
THK

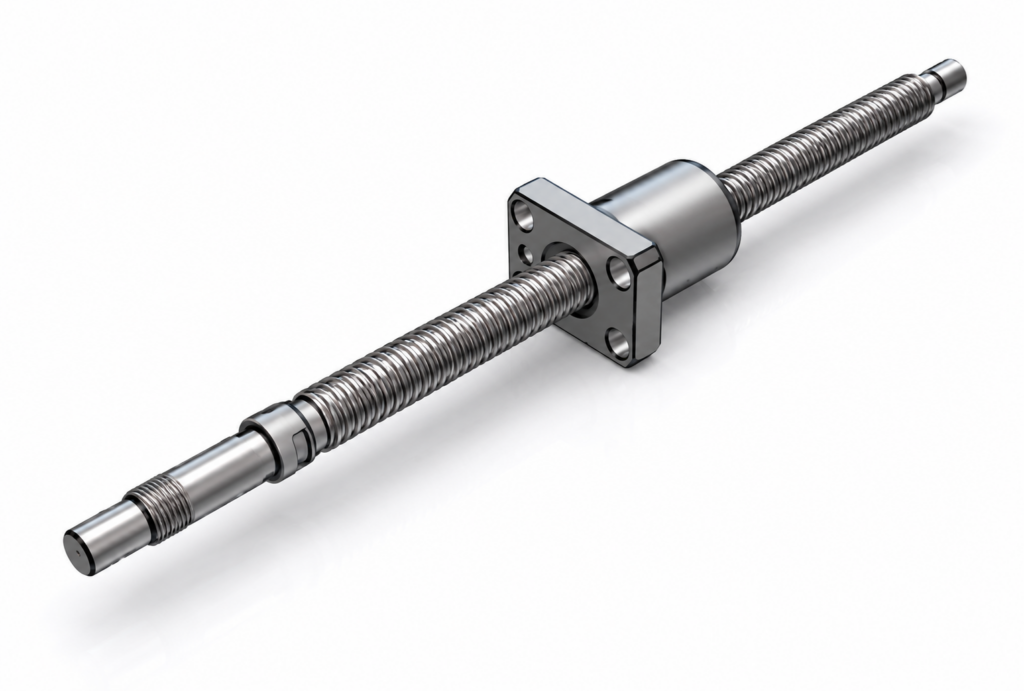

[THK] — BNK1402-3 Ball Screw (Shaft φ14, Lead 2mm)
Family ID: THK-BNK1402-3
THK BNK Series Precision Ground Ball Screw, shaft diameter φ14mm, lead 2mm. 1 turn × 3 rows ball circuit, Deflector return type. Available in G0 (zero clearance) and G2 (standard) with C5/C7 lead accuracy grade. Flanged nut with pre-machined shaft end (BNK finished type).
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BNK1402-3RRG0+166LC5K | THK BNK1402-3, φ14 Lead2, Stroke 50mm, G0 (Zero), 5K (C5 Grade) | THK | Shaft Diameter: φ14mm | Lead: 2mm | Stroke: 50mm | Screw Length L3: 166mm | L2: 99mm | L1: 85mm | Clearance: G0 (Zero) | Nut Grade: 5K (C5 Grade) | Ball Circuit: 1 turn × 3 rows | Return Type: Deflector | ||
| BNK1402-3RRG2+166LC7K | THK BNK1402-3, φ14 Lead2, Stroke 50mm, G2 (Standard), 7K (C7 Grade) | THK | Shaft Diameter: φ14mm | Lead: 2mm | Stroke: 50mm | Screw Length L3: 166mm | L2: 99mm | L1: 85mm | Clearance: G2 (Standard) | Nut Grade: 7K (C7 Grade) | Ball Circuit: 1 turn × 3 rows | Return Type: Deflector | ||
| BNK1402-3RRG0+216LC5K | THK BNK1402-3, φ14 Lead2, Stroke 100mm, G0 (Zero), 5K (C5 Grade) | THK | Shaft Diameter: φ14mm | Lead: 2mm | Stroke: 100mm | Screw Length L3: 216mm | L2: 149mm | L1: 135mm | Clearance: G0 (Zero) | Nut Grade: 5K (C5 Grade) | Ball Circuit: 1 turn × 3 rows | Return Type: Deflector | ||
| BNK1402-3RRG2+216LC7K | THK BNK1402-3, φ14 Lead2, Stroke 100mm, G2 (Standard), 7K (C7 Grade) | THK | Shaft Diameter: φ14mm | Lead: 2mm | Stroke: 100mm | Screw Length L3: 216mm | L2: 149mm | L1: 135mm | Clearance: G2 (Standard) | Nut Grade: 7K (C7 Grade) | Ball Circuit: 1 turn × 3 rows | Return Type: Deflector | ||
| BNK1402-3RRG0+266LC5K | THK BNK1402-3, φ14 Lead2, Stroke 150mm, G0 (Zero), 5K (C5 Grade) | THK | Shaft Diameter: φ14mm | Lead: 2mm | Stroke: 150mm | Screw Length L3: 266mm | L2: 199mm | L1: 185mm | Clearance: G0 (Zero) | Nut Grade: 5K (C5 Grade) | Ball Circuit: 1 turn × 3 rows | Return Type: Deflector | ||
| BNK1402-3RRG2+266LC7K | THK BNK1402-3, φ14 Lead2, Stroke 150mm, G2 (Standard), 7K (C7 Grade) | THK | Shaft Diameter: φ14mm | Lead: 2mm | Stroke: 150mm | Screw Length L3: 266mm | L2: 199mm | L1: 185mm | Clearance: G2 (Standard) | Nut Grade: 7K (C7 Grade) | Ball Circuit: 1 turn × 3 rows | Return Type: Deflector | ||
| BNK1402-3RRG0+316LC5K | THK BNK1402-3, φ14 Lead2, Stroke 200mm, G0 (Zero), 5K (C5 Grade) | THK | Shaft Diameter: φ14mm | Lead: 2mm | Stroke: 200mm | Screw Length L3: 316mm | L2: 249mm | L1: 235mm | Clearance: G0 (Zero) | Nut Grade: 5K (C5 Grade) | Ball Circuit: 1 turn × 3 rows | Return Type: Deflector | ||
| BNK1402-3RRG2+316LC7K | THK BNK1402-3, φ14 Lead2, Stroke 200mm, G2 (Standard), 7K (C7 Grade) | THK | Shaft Diameter: φ14mm | Lead: 2mm | Stroke: 200mm | Screw Length L3: 316mm | L2: 249mm | L1: 235mm | Clearance: G2 (Standard) | Nut Grade: 7K (C7 Grade) | Ball Circuit: 1 turn × 3 rows | Return Type: Deflector | ||
| BNK1402-3RRG0+416LC5K | THK BNK1402-3, φ14 Lead2, Stroke 300mm, G0 (Zero), 5K (C5 Grade) | THK | Shaft Diameter: φ14mm | Lead: 2mm | Stroke: 300mm | Screw Length L3: 416mm | L2: 349mm | L1: 335mm | Clearance: G0 (Zero) | Nut Grade: 5K (C5 Grade) | Ball Circuit: 1 turn × 3 rows | Return Type: Deflector | ||
| BNK1402-3RRG2+416LC7K | THK BNK1402-3, φ14 Lead2, Stroke 300mm, G2 (Standard), 7K (C7 Grade) | THK | Shaft Diameter: φ14mm | Lead: 2mm | Stroke: 300mm | Screw Length L3: 416mm | L2: 349mm | L1: 335mm | Clearance: G2 (Standard) | Nut Grade: 7K (C7 Grade) | Ball Circuit: 1 turn × 3 rows | Return Type: Deflector |
