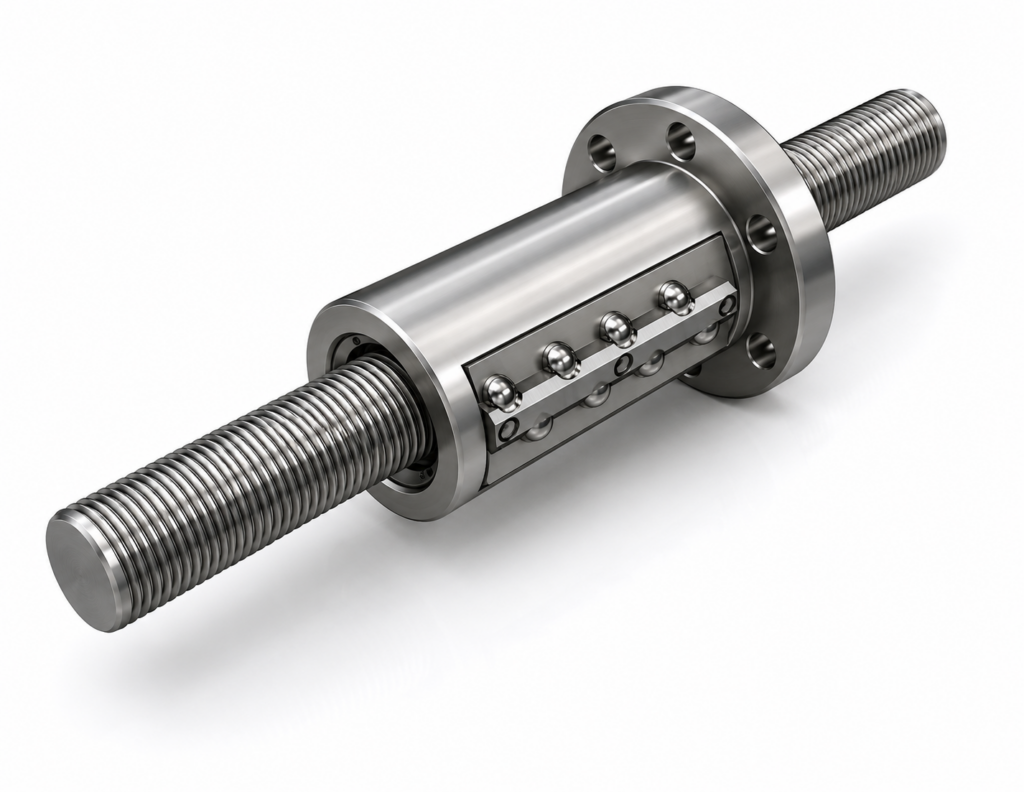

![[THK] — BIF3212V-5 Ball Screw Nut Unit (Medium, Shaft φ32, Lead 12mm)](https://img.prosourcemro.com/2026/05/001-842-1024x792.png)
Ball Screws
THK
[THK] — BIF3212V-5 Ball Screw Nut Unit (Medium, Shaft φ32, Lead 12mm)
Family ID: THK-BIF3212V-5
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Medium type, preloaded). Shaft diameter φ32mm, lead 12mm. 1×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 130,000. Flanged nut, basic dynamic load rating Ca=30.2kN, static C0a=63.2kN, rigidity K=644N/μm.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF3212V-5+930 | THK BIF3212V-5, φ32 Lead12, L=930mm | THK | Shaft Diameter: φ32mm | Lead: 12mm | Shaft Total Length L: 930mm | Nut Length L1: 117mm | Ball Circuit: 1×2.5 | Ca: 30.2kN | C0a: 63.2kN | K: 644N/μm | Nut OD D: 76mm | Flange D1: 121mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3212V-5+1430 | THK BIF3212V-5, φ32 Lead12, L=1430mm | THK | Shaft Diameter: φ32mm | Lead: 12mm | Shaft Total Length L: 1430mm | Nut Length L1: 117mm | Ball Circuit: 1×2.5 | Ca: 30.2kN | C0a: 63.2kN | K: 644N/μm | Nut OD D: 76mm | Flange D1: 121mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3212V-5+1830 | THK BIF3212V-5, φ32 Lead12, L=1830mm | THK | Shaft Diameter: φ32mm | Lead: 12mm | Shaft Total Length L: 1830mm | Nut Length L1: 117mm | Ball Circuit: 1×2.5 | Ca: 30.2kN | C0a: 63.2kN | K: 644N/μm | Nut OD D: 76mm | Flange D1: 121mm | Type: Preloaded, Unfinished Shaft End |
