Linear Bushings
THK

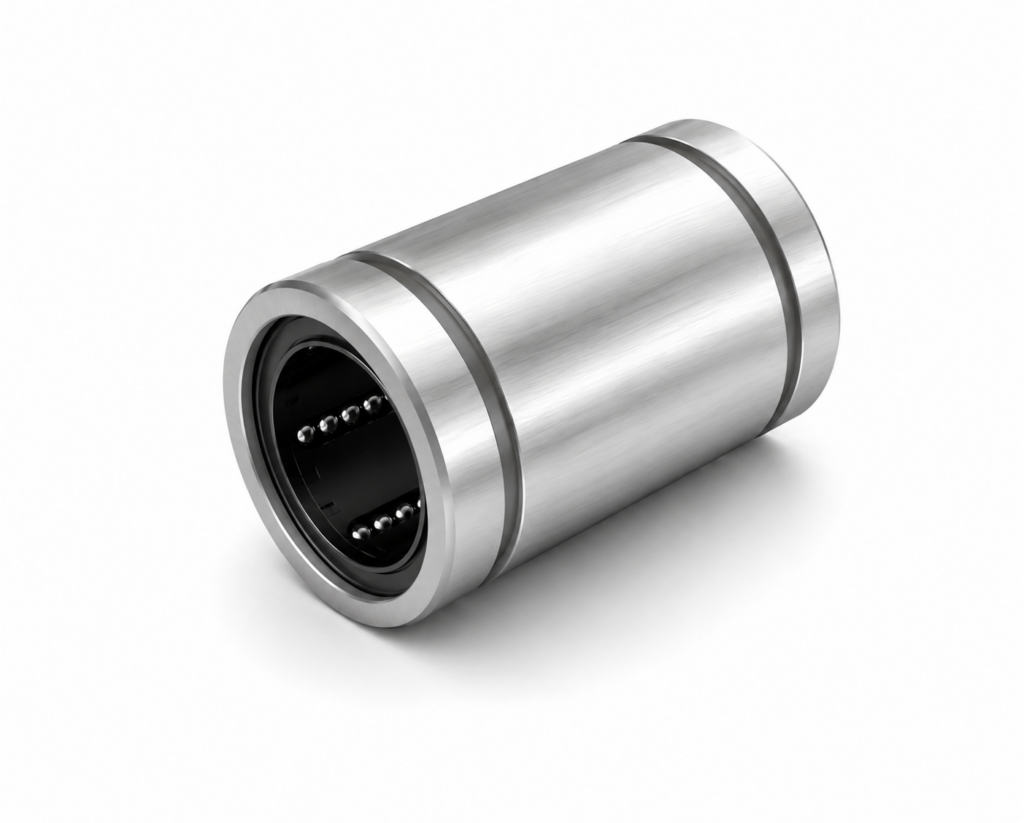

[THK] — LME-AJ Linear Bush European Metric Clearance Adjustable (LME5-AJ~LME80GA-AJ)
Family ID: THK-LME-AJ
LME-AJ type Linear Bush — European metric series, clearance adjustable. Slotted outer shell allows inner diameter adjustment via housing. Shaft diameters: 5~80mm. LME5-AJ~LME60-AJ: synthetic resin retainer (max 80°C). LME80GA-AJ: metal retainer type.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LME5-AJ | THK Linear Bush European metric AJ, shaft φ5mm, OD φ12mm, L=22mm | THK | Shaft Dia.: D0=5mm | Outer Dia.: D=12mm | Length: L=22mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Synthetic resin (max 80°C) | Oil Hole: Add suffix OH on order | ||
| LME8-AJ | THK Linear Bush European metric AJ, shaft φ8mm, OD φ16mm, L=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=16mm | Length: L=25mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Synthetic resin (max 80°C) | Oil Hole: Add suffix OH on order | ||
| LME12-AJ | THK Linear Bush European metric AJ, shaft φ12mm, OD φ22mm, L=32mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=22mm | Length: L=32mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Synthetic resin (max 80°C) | Oil Hole: Add suffix OH on order | ||
| LME16-AJ | THK Linear Bush European metric AJ, shaft φ16mm, OD φ26mm, L=36mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=26mm | Length: L=36mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Synthetic resin (max 80°C) | Oil Hole: Add suffix OH on order | ||
| LME20-AJ | THK Linear Bush European metric AJ, shaft φ20mm, OD φ32mm, L=45mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=45mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Synthetic resin (max 80°C) | Oil Hole: Add suffix OH on order | ||
| LME25-AJ | THK Linear Bush European metric AJ, shaft φ25mm, OD φ40mm, L=58mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=58mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Synthetic resin (max 80°C) | Oil Hole: Add suffix OH on order | ||
| LME30-AJ | THK Linear Bush European metric AJ, shaft φ30mm, OD φ47mm, L=68mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=47mm | Length: L=68mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Synthetic resin (max 80°C) | Oil Hole: Add suffix OH on order | ||
| LME40-AJ | THK Linear Bush European metric AJ, shaft φ40mm, OD φ62mm, L=80mm | THK | Shaft Dia.: D0=40mm | Outer Dia.: D=62mm | Length: L=80mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Synthetic resin (max 80°C) | Oil Hole: Add suffix OH on order | ||
| LME50-AJ | THK Linear Bush European metric AJ, shaft φ50mm, OD φ75mm, L=100mm | THK | Shaft Dia.: D0=50mm | Outer Dia.: D=75mm | Length: L=100mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Synthetic resin (max 80°C) | Oil Hole: Add suffix OH on order | ||
| LME60-AJ | THK Linear Bush European metric AJ, shaft φ60mm, OD φ90mm, L=125mm | THK | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=125mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Synthetic resin (max 80°C) | Oil Hole: Add suffix OH on order | ||
| LME80GA-AJ | THK Linear Bush European metric AJ, shaft φ80mm, OD φ120mm, L=165mm | THK | Shaft Dia.: D0=80mm | Outer Dia.: D=120mm | Length: L=165mm | Type: Clearance adjustable (slotted outer shell) | Retainer: Metal | Oil Hole: Add suffix OH on order |
