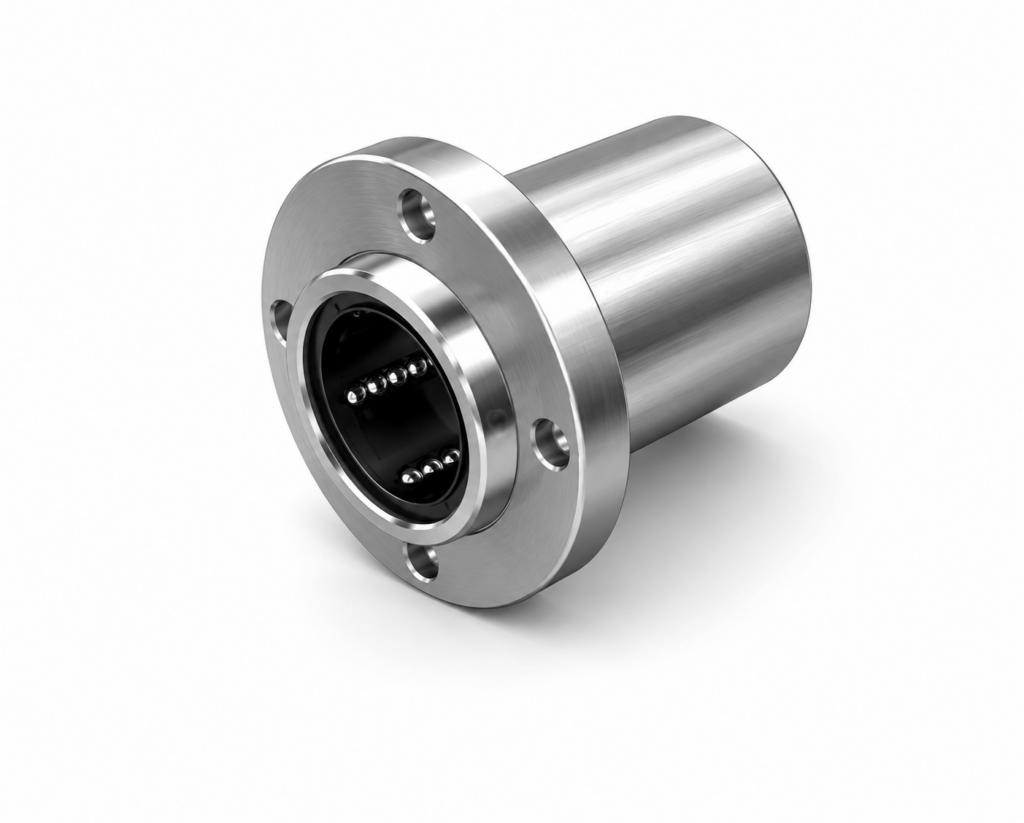

[THK] — LMIF Linear Bush Inlaid Flange Type Round (LMIF6~LMIF25)
Family ID: THK-LMIF
LMIF type Linear Bush — inlaid (spigot) flange type, round. Short spigot prevents bush from protruding to the opposite side. Direct bolt mount to housing. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LMIF6 | THK Linear Bush inlaid flange, shaft φ6mm, OD φ12mm, L=19mm, flange φ28mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Flange OD: D1=28mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMIF8 | THK Linear Bush inlaid flange, shaft φ8mm, OD φ15mm, L=24mm, flange φ32mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Flange OD: D1=32mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMIF10 | THK Linear Bush inlaid flange, shaft φ10mm, OD φ19mm, L=29mm, flange φ39mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Flange OD: D1=39mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMIF12 | THK Linear Bush inlaid flange, shaft φ12mm, OD φ21mm, L=30mm, flange φ42mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Flange OD: D1=42mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMIF13 | THK Linear Bush inlaid flange, shaft φ13mm, OD φ23mm, L=32mm, flange φ43mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Flange OD: D1=43mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMIF16 | THK Linear Bush inlaid flange, shaft φ16mm, OD φ28mm, L=37mm, flange φ48mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Flange OD: D1=48mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMIF20 | THK Linear Bush inlaid flange, shaft φ20mm, OD φ32mm, L=42mm, flange φ54mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Flange OD: D1=54mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMIF25 | THK Linear Bush inlaid flange, shaft φ25mm, OD φ40mm, L=59mm, flange φ62mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Flange OD: D1=62mm | Type: Inlaid flange (spigot, round) | Feature: Short spigot; no protrusion to opposite side | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |
