Linear Bushings
THK

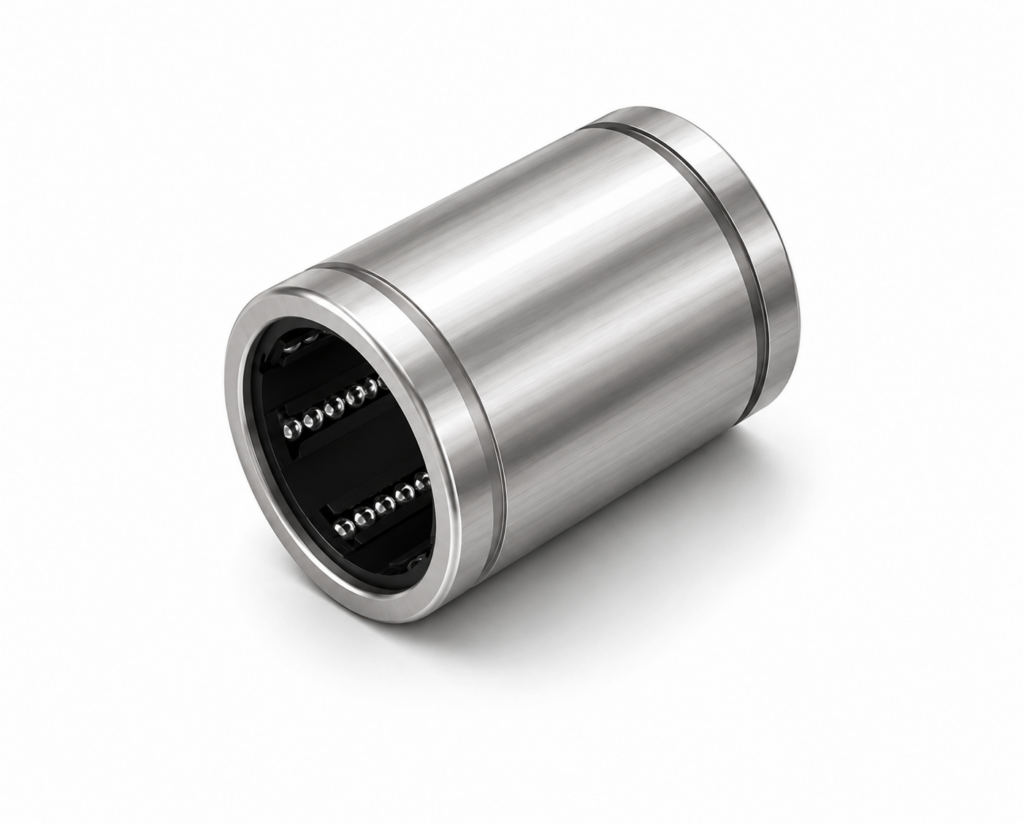

[THK] — LME Linear Bush European Metric Series (LME5~LME80GA)
Family ID: THK-LME
LME type Linear Bush — European metric dimension series. High-precision cylindrical outer diameter for broad application. Shaft diameters: 5~80mm. LME5~LME60: synthetic resin retainer (max 80°C). LME80GA: metal retainer type. Clearance-adjustable (-AJ) and open type (-OP) variants available from LME16. Metal retainer option available (suffix A). Oil hole option (suffix OH).
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LME5 | THK Linear Bush European metric, shaft φ5mm, OD φ12mm, L=22mm | THK | Shaft Dia.: D0=5mm | Outer Dia.: D=12mm | Length: L=22mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ | Oil Hole: Add suffix OH on order | ||
| LME8 | THK Linear Bush European metric, shaft φ8mm, OD φ16mm, L=25mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=16mm | Length: L=25mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ | Oil Hole: Add suffix OH on order | ||
| LME12 | THK Linear Bush European metric, shaft φ12mm, OD φ22mm, L=32mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=22mm | Length: L=32mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ | Oil Hole: Add suffix OH on order | ||
| LME16 | THK Linear Bush European metric, shaft φ16mm, OD φ26mm, L=36mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=26mm | Length: L=36mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order | ||
| LME20 | THK Linear Bush European metric, shaft φ20mm, OD φ32mm, L=45mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=45mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order | ||
| LME25 | THK Linear Bush European metric, shaft φ25mm, OD φ40mm, L=58mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=58mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order | ||
| LME30 | THK Linear Bush European metric, shaft φ30mm, OD φ47mm, L=68mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=47mm | Length: L=68mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order | ||
| LME40 | THK Linear Bush European metric, shaft φ40mm, OD φ62mm, L=80mm | THK | Shaft Dia.: D0=40mm | Outer Dia.: D=62mm | Length: L=80mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order | ||
| LME50 | THK Linear Bush European metric, shaft φ50mm, OD φ75mm, L=100mm | THK | Shaft Dia.: D0=50mm | Outer Dia.: D=75mm | Length: L=100mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order | ||
| LME60 | THK Linear Bush European metric, shaft φ60mm, OD φ90mm, L=125mm | THK | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=125mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order | ||
| LME80GA | THK Linear Bush European metric, shaft φ80mm, OD φ120mm, L=165mm | THK | Shaft Dia.: D0=80mm | Outer Dia.: D=120mm | Length: L=165mm | Retainer: Metal | Variants: Standard / -AJ / -OP (metal retainer) | Oil Hole: Add suffix OH on order |
