![[THK] — LM-L Linear Bush Long Type (LM3L~LM60L)](https://prosourcemro.com/wp-content/uploads/2026/05/001-984-1024x823.png)
Linear Bushings
THK

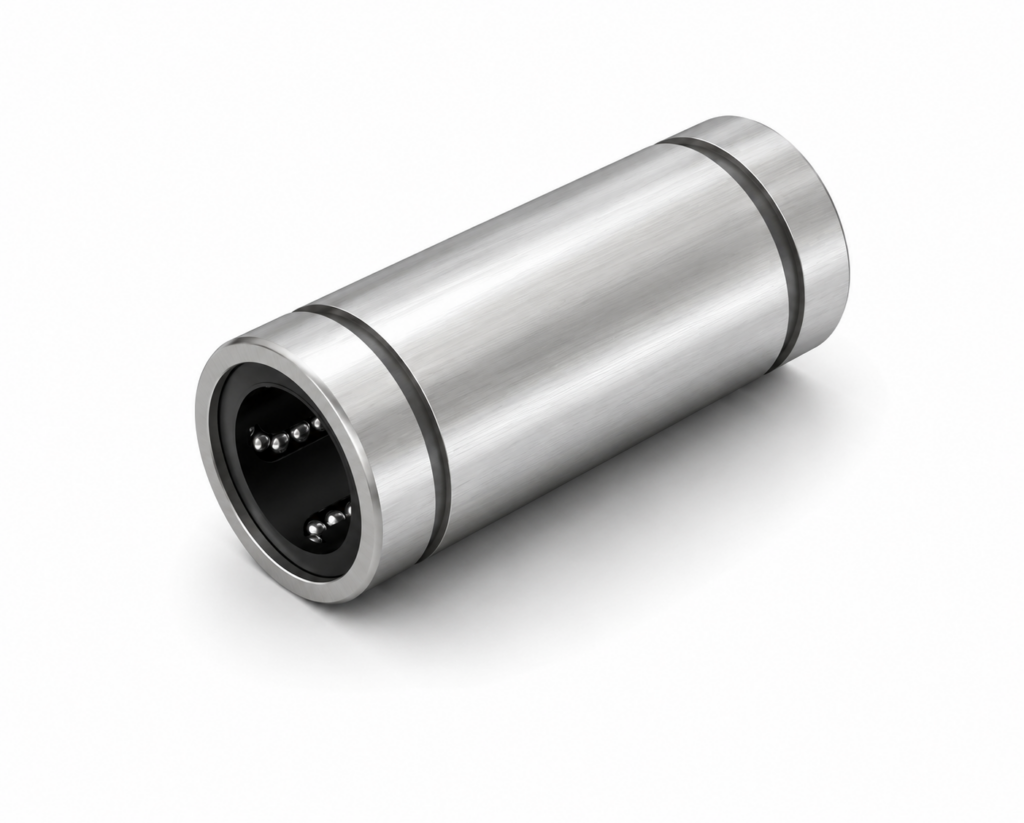

[THK] — LM-L Linear Bush Long Type (LM3L~LM60L)
Family ID: THK-LM-L
LM-L type Linear Bush — long type with two retainers. Optimal for moment load applications. Reduces assembly man-hours. Shaft diameters: 3~60mm. Stainless steel type (LM3ML~LM30ML) available on request. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LM3L | THK Linear Bush long type, shaft φ3mm, OD φ7mm, L=19mm | THK | Shaft Dia.: D0=3mm | Outer Dia.: D=7mm | Length: L=19mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM4L | THK Linear Bush long type, shaft φ4mm, OD φ8mm, L=23mm | THK | Shaft Dia.: D0=4mm | Outer Dia.: D=8mm | Length: L=23mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM5L | THK Linear Bush long type, shaft φ5mm, OD φ10mm, L=29mm | THK | Shaft Dia.: D0=5mm | Outer Dia.: D=10mm | Length: L=29mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM6L | THK Linear Bush long type, shaft φ6mm, OD φ12mm, L=35mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM8L | THK Linear Bush long type, shaft φ8mm, OD φ15mm, L=45mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM10L | THK Linear Bush long type, shaft φ10mm, OD φ19mm, L=55mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM12L | THK Linear Bush long type, shaft φ12mm, OD φ21mm, L=57mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM13L | THK Linear Bush long type, shaft φ13mm, OD φ23mm, L=61mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM16L | THK Linear Bush long type, shaft φ16mm, OD φ28mm, L=70mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM20L | THK Linear Bush long type, shaft φ20mm, OD φ32mm, L=80mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM25L | THK Linear Bush long type, shaft φ25mm, OD φ40mm, L=112mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM30L | THK Linear Bush long type, shaft φ30mm, OD φ45mm, L=123mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=123mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM35L | THK Linear Bush long type, shaft φ35mm, OD φ52mm, L=135mm | THK | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=135mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM40L | THK Linear Bush long type, shaft φ40mm, OD φ60mm, L=154mm | THK | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=154mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM50L | THK Linear Bush long type, shaft φ50mm, OD φ80mm, L=192mm | THK | Shaft Dia.: D0=50mm | Outer Dia.: D=80mm | Length: L=192mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order | ||
| LM60L | THK Linear Bush long type, shaft φ60mm, OD φ90mm, L=211mm | THK | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=211mm | Type: Long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Stainless Option: LM3ML~LM30ML available on request | Oil Hole: Add suffix OH on order |
