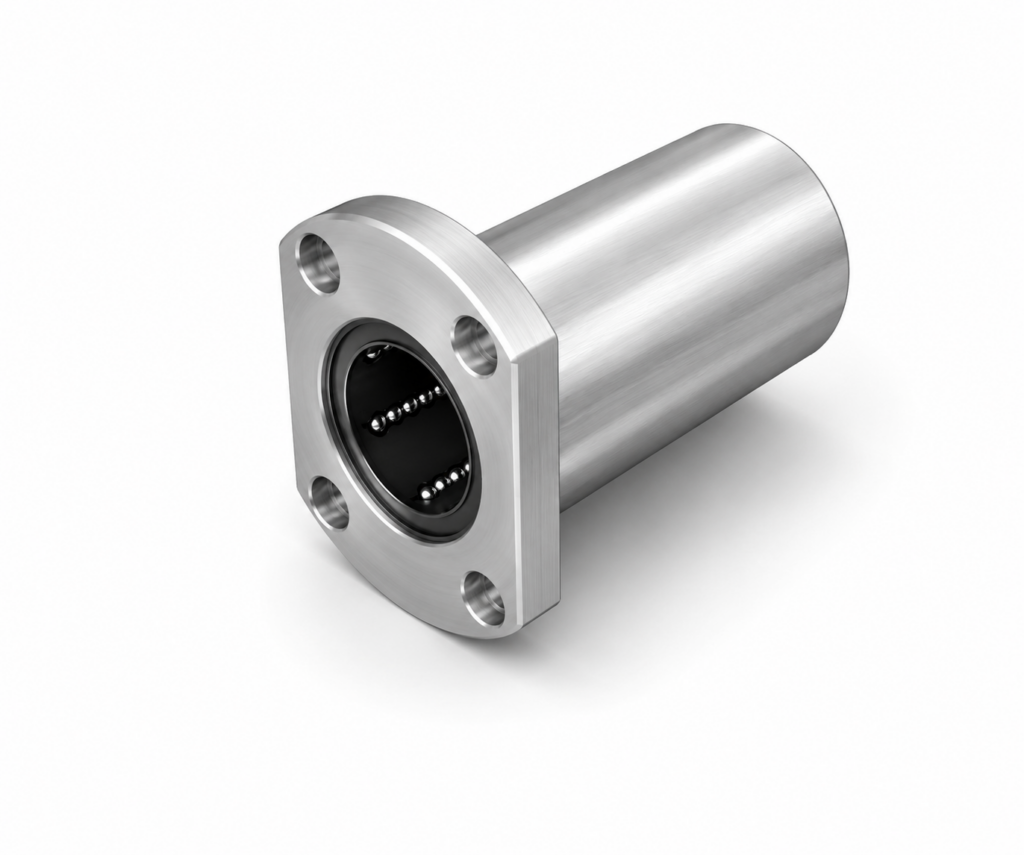

[THK] — LMH-L Linear Bush Small Plate Flange Long Type (LMH6L~LMH30L)
Family ID: THK-LMH-L
LMH-L type Linear Bush — small plate flange, long type. Lower center height than LMK-L type for ultra-compact design. Two retainers for optimal moment load performance. 2 ball circuits in flat direction for improved service life. Shaft diameters: 6~30mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
9 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LMH6L | THK Linear Bush small plate flange long, shaft φ6mm, OD φ12mm, L=35mm, K=18mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Square Width: K=18mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMH8L | THK Linear Bush small plate flange long, shaft φ8mm, OD φ15mm, L=45mm, K=21mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Square Width: K=21mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMH10L | THK Linear Bush small plate flange long, shaft φ10mm, OD φ19mm, L=55mm, K=25mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Square Width: K=25mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMH12L | THK Linear Bush small plate flange long, shaft φ12mm, OD φ21mm, L=57mm, K=27mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Square Width: K=27mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMH13L | THK Linear Bush small plate flange long, shaft φ13mm, OD φ23mm, L=61mm, K=29mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Square Width: K=29mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMH16L | THK Linear Bush small plate flange long, shaft φ16mm, OD φ28mm, L=70mm, K=34mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Square Width: K=34mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMH20L | THK Linear Bush small plate flange long, shaft φ20mm, OD φ32mm, L=80mm, K=38mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Square Width: K=38mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMH25L | THK Linear Bush small plate flange long, shaft φ25mm, OD φ40mm, L=112mm, K=46mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Square Width: K=46mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMH30L | THK Linear Bush small plate flange long, shaft φ30mm, OD φ45mm, L=123mm, K=51mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=123mm | Flange OD: D1=74mm | Square Width: K=51mm | Type: Small plate flange long type (2 retainers) | Feature: Lower center height than LMK-L; 2 circuits in flat direction | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |
