Ball Screws
THK

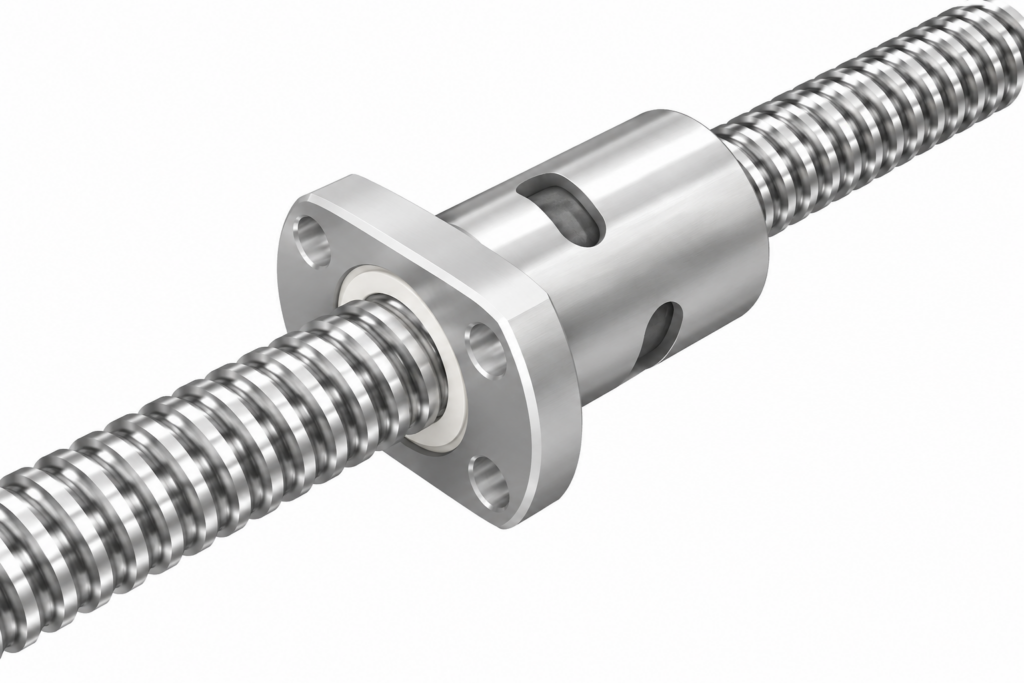

[THK] — DK Ball Screw (Compact Single Nut, Shaft φ63)
Family ID: THK-DK-63
THK DK Series Compact Precision Ball Screw. Most compact design — nut OD is 70~80% of return pipe type. Deflector return type for space-saving installation. Shaft diameter φ63mm.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| DK6310-4 | THK DK6310-4, φ63 Lead10, Ca=49.5kN | THK | Shaft Diameter: φ63mm | Lead: 10mm | Ca: 49.5kN | C0a: 160.7kN | Nut OD D: 85mm | Flange D1: 146mm | Nut Length L1: 97mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK) | ||
| DK6310-6 | THK DK6310-6, φ63 Lead10, Ca=70.3kN | THK | Shaft Diameter: φ63mm | Lead: 10mm | Ca: 70.3kN | C0a: 242.1kN | Nut OD D: 85mm | Flange D1: 146mm | Nut Length L1: 118mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK) | ||
| DK6312-3 | THK DK6312-3, φ63 Lead12, Ca=51.9kN | THK | Shaft Diameter: φ63mm | Lead: 12mm | Ca: 51.9kN | C0a: 147.4kN | Nut OD D: 90mm | Flange D1: 146mm | Nut Length L1: 98mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK) | ||
| DK6312-4 | THK DK6312-4, φ63 Lead12, Ca=66.4kN | THK | Shaft Diameter: φ63mm | Lead: 12mm | Ca: 66.4kN | C0a: 196.6kN | Nut OD D: 90mm | Flange D1: 146mm | Nut Length L1: 111mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK) | ||
| DK6320-3 | THK DK6320-3, φ63 Lead20, Ca=83.5kN | THK | Shaft Diameter: φ63mm | Lead: 20mm | Ca: 83.5kN | C0a: 229.3kN | Nut OD D: 95mm | Flange D1: 159mm | Nut Length L1: 136mm | PCD: 129mm | Type: Compact Single Nut, Deflector Return (DK) |
