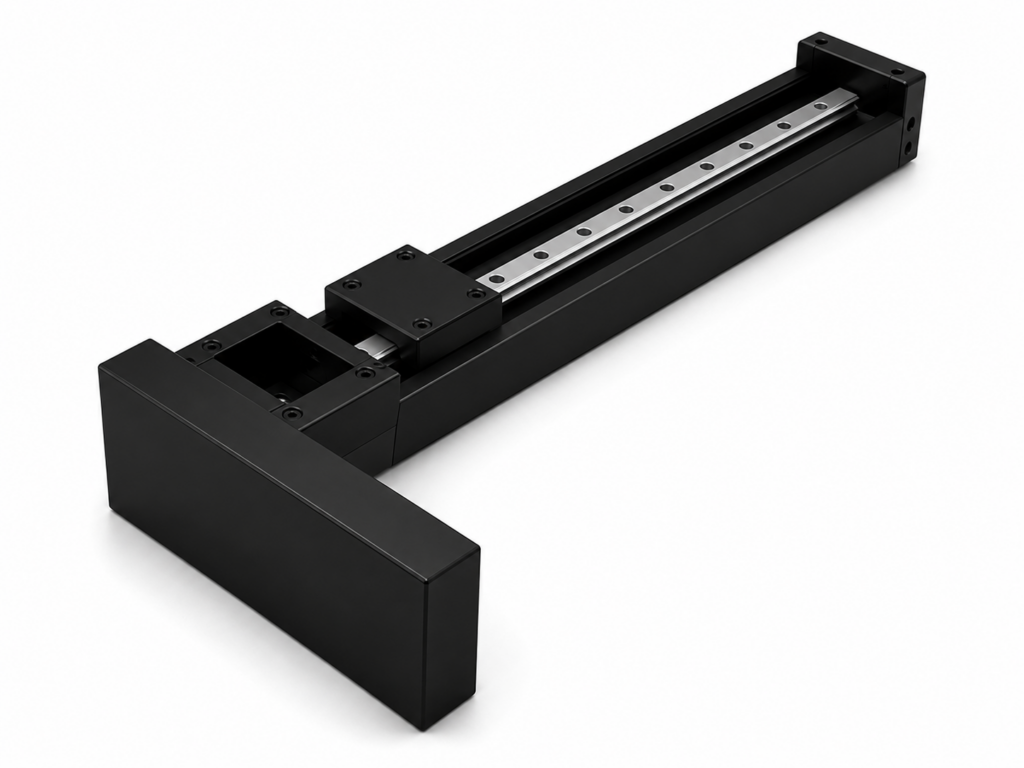

[THK] — SKR65 LM Guide Actuator, With Cover, Motor Parallel (Long Block ×2)
Family ID: THK-SKR65-C_PAR-B
THK SKR65 LM Guide Actuator. With Cover, motor parallel configuration. Long Block ×2 (long type). Integrated LM block and ball screw nut for compact design. Equal load capacity in 4 directions. Stroke range: 640–1340 mm. See model number configuration guide A2-28.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SKR6531B-0640 | SKR65 With Cover Parallel, Long Block ×2, Stroke 640mm | THK | Model: SKR65, Long Block ×2 | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️COVER_CODE_UNCONFIRMED) | Stroke: 640 mm | Outer Rail Length: 980 mm | Overall Length L1: 1078 mm | C: 900 mm | G: 40 mm | F: 800 mm | H: 90 mm | Mounting Holes n: 7 | Sensor Rail Holes n1: 5 | Mass: 41.8 kg | ||
| SKR6531B-0840 | SKR65 With Cover Parallel, Long Block ×2, Stroke 840mm | THK | Model: SKR65, Long Block ×2 | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️COVER_CODE_UNCONFIRMED) | Stroke: 840 mm | Outer Rail Length: 1180 mm | Overall Length L1: 1278 mm | C: 1050 mm | G: 65 mm | F: 1000 mm | H: 90 mm | Mounting Holes n: 8 | Sensor Rail Holes n1: 6 | Mass: 47.2 kg | ||
| SKR6531B-1040 | SKR65 With Cover Parallel, Long Block ×2, Stroke 1040mm | THK | Model: SKR65, Long Block ×2 | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️COVER_CODE_UNCONFIRMED) | Stroke: 1040 mm | Outer Rail Length: 1380 mm | Overall Length L1: 1478 mm | C: 1200 mm | G: 90 mm | F: 1200 mm | H: 90 mm | Mounting Holes n: 9 | Sensor Rail Holes n1: 7 | Mass: 52.6 kg | ||
| SKR6531B-1340 | SKR65 With Cover Parallel, Long Block ×2, Stroke 1340mm | THK | Model: SKR65, Long Block ×2 | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️COVER_CODE_UNCONFIRMED) | Stroke: 1340 mm | Outer Rail Length: 1680 mm | Overall Length L1: 1778 mm | C: 1500 mm | G: 90 mm | F: 1600 mm | H: 40 mm | Mounting Holes n: 11 | Sensor Rail Holes n1: 9 | Mass: 60.7 kg |
