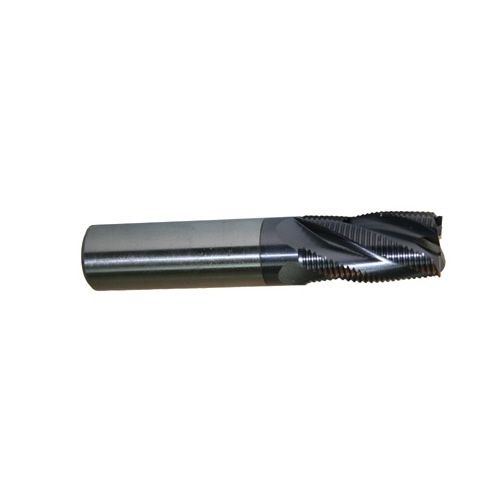

[YG-1] — EQ753100K End Mill HSS Lapping End Mill (Fine Pitch)
End Mills YG-1

[YG-1] — EQ753100K End Mill HSS Lapping End Mill (Fine Pitch)

Family ID: 303-7962

HSS Lapping End Mill (Fine Pitch) from YG-1, sourced from Korea.

14 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
303-7962 EQ753100K YG-1 10*10*22*72MM TIALN (EQ753100K) | Spec: 10.0 | Flute Length: 22 | Overall Length: 72 | Product Name: TIALN Coated | Shank Diameter: 10
303-7980 EQ753120K YG-1 12*12*26*83MM TIALN (EQ753120K) | Spec: 12.0 | Flute Length: 26 | Overall Length: 83 | Description: TIALN Coating | Shank Diameter: 12
303-8004 EQ753130K YG-1 13*12*26*83MM TIALN (EQ753130K) | Spec: 13.0 | Flute Length: 26 | Overall Length: 83 | Product Name: TIALN Coating | Shank Diameter: 12
303-8022 EQ753140K YG-1 14*12*26*83MM TIALN (EQ753140K) | Spec: 14.0 | Flute Length: 26 | Overall Length: 83 | Product Name: TIALN Coated | Shank Diameter: 12
303-8031 EQ753160K YG-1 16*16*32*92MM TIALN (EQ753160K) | Spec: 16.0 | Flute Length: 32 | Overall Length: 92 | Product Name: TIALN Coated | Shank Diameter: 16
303-8040 EQ753180K YG-1 18*16*32*92MM TIALN (EQ753180K) | Spec: 18.0 | Flute Length: 32 | Overall Length: 92 | Product Name: TIALN Coating | Shank Diameter: 16
303-8059 EQ753200K YG-1 20*20*38*104MM TIALN (EQ753200K) | Spec: 20.0 | Flute Length: 38 | Overall Length: 104 | Product Name: TIALN Coating | Shank Diameter: 20
303-8086 EQ753250K YG-1 25*25*45*121MM TiAlN (EQ753250K) | Spec: 25.0 | Flute Length: 45 | Overall Length: 121 | Product Name: TiAlN Coated | Shank Diameter: 25
303-8095 EQ753300K YG-1 30*25*45*121MM TIALN (EQ753300K) | Spec: 30.0 | Flute Length: 45 | Overall Length: 121 | Product Name: TIALN Coating | Shank Diameter: 25
303-8101 EQ753060K YG-1 6*6*13*57MM TIALN (EQ753060K) | Spec: 6.0 | Flute Length: 13 | Overall Length: 57 | Product Name: TiALN Coated | Shank Diameter: 6
303-8138 EQ753070K YG-1 7*10*16*66MM TIALN (EQ753070K) | Spec: 7.0 | Flute Length: 16 | Overall Length: 66 | Product Name: TIALN Coating | Shank Diameter: 10
303-8147 EQ753080K YG-1 8*10*19*69MM TIALN (EQ753080K) | Spec: 8.0 | Flute Length: 19 | Overall Length: 69 | Product Name: TiALN Coating | Shank Diameter: 10
305-8053 EQ753150K YG-1 15*12*26*83MM TIALN (EQ753150K) | Spec: 15.0 | Flute Length: 26 | Overall Length: 83 | Product Name: TIALN Coating | Shank d: 12
307-3353 EQ753110K YG-1 11*12*22*79MM TIALN (EQ753110K) | Spec: 11.0 | Flute Length: 22 | Overall Length: 79 | Product Name: TIALN Coated | Shank Diameter: 12
