![[YG-1] — SEM81910003 Carbide End Mill Carbide Radius End Mill (X-POWER S)](https://img.prosourcemro.com/2026/05/1262798-1-1.jpg)
End Mills
YG-1

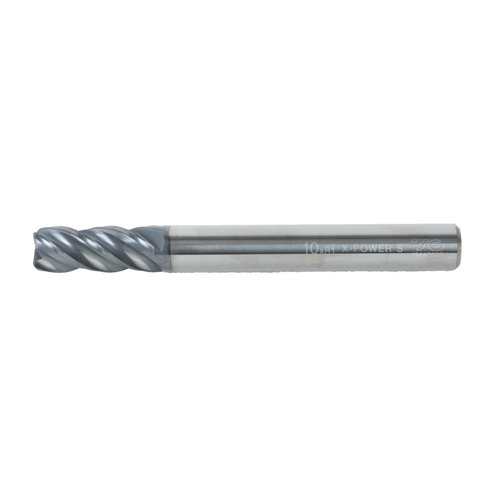

[YG-1] — SEM81910003 Carbide End Mill Carbide Radius End Mill (X-POWER S)
Family ID: 304-6049
Carbide Radius End Mill (X-POWER S) from YG-1, sourced from Korea.
35 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 304-6049 | SEM81910003 | YG-1 | 4F-10(R0.3)*10*25*90MM(SEM81910003) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank D: 10 | Corner R: 0.3 | ||
| 304-9143 | SEM81910005 | YG-1 | 4F-10(R0.5)*10*25*90MM(SEM81910005) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank Diameter: 10 | Corner Radius: 0.5 | ||
| 304-9152 | SEM81910010 | YG-1 | 4F-10(R1)*10*25*90MM(SEM81910010) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank Diameter: 10 | Corner Radius: 1.0 | ||
| 304-9161 | SEM81910020 | YG-1 | 4F-10(R2)*10*25*90MM(SEM81910020) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank D: 10 | Corner R: 2.0 | ||
| 305-6514 | SEM81906010 | YG-1 | 4F-6(R1)*6*15*60MM(SEM81906010) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 1.0 | ||
| 305-6985 | SEM81904003 | YG-1 | 4F-4(R0.3)*10*50MM(SEM81904003) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3 | ||
| 305-6994 | SEM81905003 | YG-1 | 4F-5(R0.3)*13*50MM(SEM81905003) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner R: 0.3 | ||
| 305-7063 | SEM81903005 | YG-1 | 4F-3(R0.5)*6*8*50MM(SEM81903005) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.5 | ||
| 305-7072 | SEM81905005 | YG-1 | 4F-5(R0.5)*6*13*50MM(SEM81905005) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.5 | ||
| 305-7081 | SEM81906003 | YG-1 | 4F-6(R0.3)*6*15*60MM(SEM81906003) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 0.3 | ||
| 305-7106 | SEM81908010 | YG-1 | 4F-8(R1)*8*20*70MM(SEM81908010) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 1.0 | ||
| 305-7115 | SEM81905010 | YG-1 | 4F-5(R1)*6*13*50MM(SEM81905010) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner R: 1.0 | ||
| 305-7920 | SEM81904005 | YG-1 | 4F-4(R0.5)*6*10*50MM(SEM81904005) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.5 | ||
| 305-9186 | SEM81903003 | YG-1 | 4F-3(R0.3)*6*8*50MM(SEM81903003) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3 | ||
| 305-9450 | SEM81916010 | YG-1 | 4F-16(R1)*16*40*110MM(SEM81916010) | Spec: 16.0 | Flute Length: 40 | Overall Length: 110 | Shank Diameter: 16 | Corner Radius: 1.0 | ||
| 306-1109 | SEM81906005 | YG-1 | 4F-6(R0.5)*6*15*60MM(SEM81906005) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Dia: 6 | Corner R: 0.5 | ||
| 306-3994 | SEM81905002 | YG-1 | 4F-5(R0.2)*6*13*50MM(SEM81905002) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 306-4027 | SEM81908005 | YG-1 | 4F-8(R0.5)*8*20*70MM(SEM81908005) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 0.5 | ||
| 306-4355 | SEM81904002 | YG-1 | 4F-4(R0.2)*6*10*50MM(SEM81904002) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 306-6982 | SEM81908003 | YG-1 | 4F-8(R0.3)*8*20*70MM(SEM81908003) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank d: 8 | Corner R: 0.3 | ||
| 307-1452 | SEM81912005 | YG-1 | 4F-12(R0.5)*12*30*100MM(SEM81912005) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank Diameter: 12 | Corner Radius: 0.5 | ||
| 307-1461 | SEM81912010 | YG-1 | 4F-12(R1)*12*30*100MM(SEM81912010) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank d: 12 | Corner R: 1.0 | ||
| 307-1470 | SEM81912020 | YG-1 | 4F-12(R2)*12*30*100MM(SEM81912020) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank Diameter: 12 | Corner R: 2.0 | ||
| 307-2442 | SEM81912003 | YG-1 | 4F-12(R0.3)*12*30*100MM(SEM81912003) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank Diameter: 12 | Corner Radius: 0.3 | ||
| 307-4398 | SEM81908002 | YG-1 | 4F-8(R0.2)*8*20*70MM(SEM81908002) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 0.2 | ||
| 307-4857 | SEM81912002 | YG-1 | 4F-12(R0.2)*12*30*100MM(SEM81912002) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank d: 12 | Corner R: 0.2 | ||
| 307-5324 | SEM81916005 | YG-1 | 4F-16(R0.5)*16*40*110MM(SEM81916005) | Spec: 16.0 | Flute Length: 40 | Overall Length: 110 | Shank d: 16 | Corner R: 0.5 | ||
| 307-5388 | SEM81912001 | YG-1 | 4F-12(R0.1)*12*30*100MM(SEM81912001) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank Diameter: 12 | Corner Radius: 0.1 | ||
| 307-9737 | SEM81904010 | YG-1 | 4F-4(R1)*6*10*50MM(SEM81904010) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 1.0 | ||
| 308-1608 | SEM81916020 | YG-1 | 4F-16(R2)*16*40*110MM(SEM81916020) | Spec: 16.0 | Flute Length: 40 | Overall Length: 110 | Shank Diameter: 16 | Corner Radius: 2.0 | ||
| 308-3536 | SEM81920020 | YG-1 | 4F-20(R2)*20*45*110MM(SEM81920020) | Spec: 20.0 | Flute Length: 45 | Overall Length: 110 | Shank Diameter: 20 | Corner Radius: 2.0 | ||
| 308-3873 | SEM81906002 | YG-1 | 4F-6(R0.2)*6*15*60MM(SEM81906002) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Dia: 6 | Corner R: 0.2 | ||
| 308-4526 | SEM81910002 | YG-1 | 4F-10(R0.2)*10*25*90MM(SEM81910002) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank Diameter: 10 | Corner Radius: 0.2 | ||
| 322-4230 | SEM81903001 | YG-1 | 4F-3(R0.1)*6*8*50MM(SEM81903001) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank d: 6 | Corner R: 0.1 | ||
| 322-4249 | SEM81903002 | YG-1 | 4F-3(R0.2)*6*8*50MM(SEM81903002) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 |
