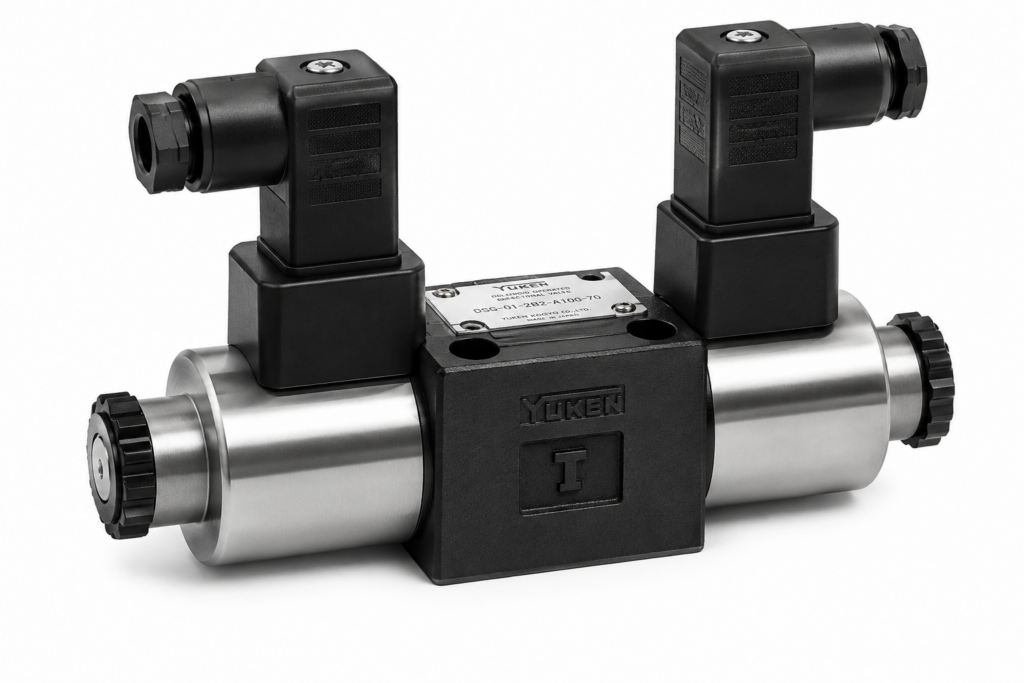

Yuken — DSG-005 Solenoid Operated Directional Valve
Family ID: YUK-DSG005
Solenoid Operated Directional Valves, DSG-005 Series. Compact mini series: max. operating pressure 25 MPa, max. flow 15 L/min, tank back pressure 7 MPa, max. switching frequency 120 min-1. Wet-type solenoid, low-noise. Subplate mounting.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| DSG-005-3C2-*-40 | DSG-005 solenoid directional valve, spool 3C2 (3-position, spring centered) | Yuken | Type: General (Solenoid Operated) | Valve Size: 005 (sub-mini) | Max Pressure: 25 MPa | Max Flow: 15 L/min | Tank Back Pressure: 7 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO) | Spool Form: 3C2 | Spring: 3-position, spring centered | Coil: AC A100/A200, DC D12/D24 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 40 | ||
| DSG-005-3C3-*-40 | DSG-005 solenoid directional valve, spool 3C3 (3-position, spring centered) | Yuken | Type: General (Solenoid Operated) | Valve Size: 005 (sub-mini) | Max Pressure: 25 MPa | Max Flow: 15 L/min | Tank Back Pressure: 7 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO) | Spool Form: 3C3 | Spring: 3-position, spring centered | Coil: AC A100/A200, DC D12/D24 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 40 | ||
| DSG-005-3C40-*-40 | DSG-005 solenoid directional valve, spool 3C40 (3-position, spring centered) | Yuken | Type: General (Solenoid Operated) | Valve Size: 005 (sub-mini) | Max Pressure: 25 MPa | Max Flow: 15 L/min | Tank Back Pressure: 7 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO) | Spool Form: 3C40 | Spring: 3-position, spring centered | Coil: AC A100/A200, DC D12/D24 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 40 | ||
| DSG-005-2B2-*-40 | DSG-005 solenoid directional valve, spool 2B2 (2-position, spring offset) | Yuken | Type: General (Solenoid Operated) | Valve Size: 005 (sub-mini) | Max Pressure: 25 MPa | Max Flow: 15 L/min | Tank Back Pressure: 7 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO) | Spool Form: 2B2 | Spring: 2-position, spring offset | Coil: AC A100/A200, DC D12/D24 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 40 | ||
| DSG-005-2B3-*-40 | DSG-005 solenoid directional valve, spool 2B3 (2-position, spring offset) | Yuken | Type: General (Solenoid Operated) | Valve Size: 005 (sub-mini) | Max Pressure: 25 MPa | Max Flow: 15 L/min | Tank Back Pressure: 7 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO) | Spool Form: 2B3 | Spring: 2-position, spring offset | Coil: AC A100/A200, DC D12/D24 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 40 |
