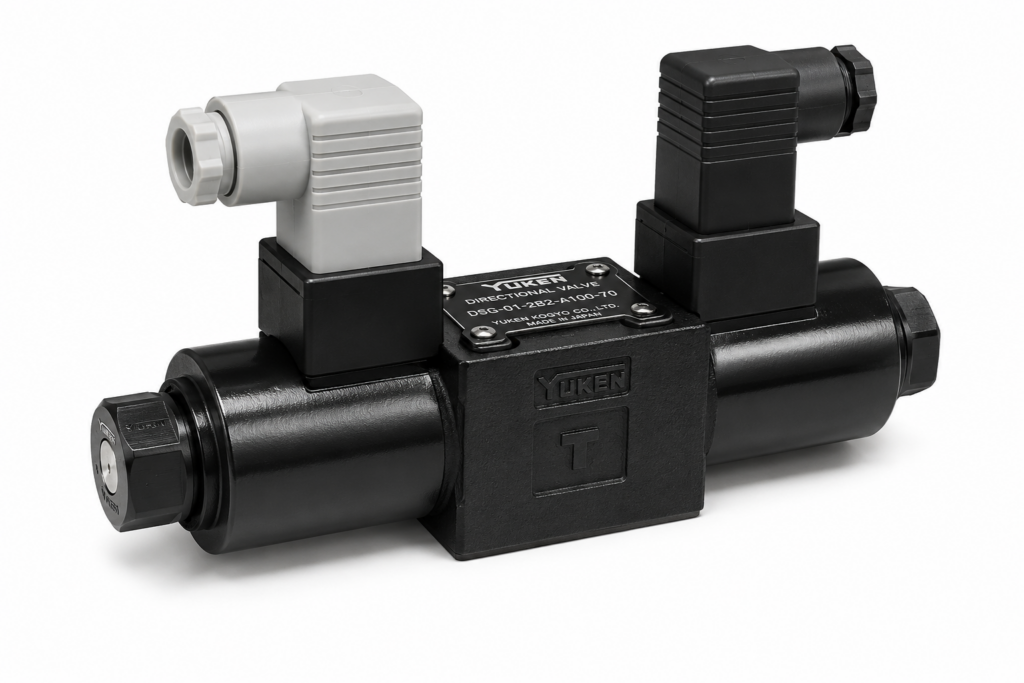

Yuken — E-DSG-03 Low-Wattage (5W) Solenoid Operated Directional Valve
Family ID: YUK-EDSG03
Low Wattage (5W) Type Solenoid Operated Directional Valves, E-DSG-03. DC solenoid reduced to 5W (vs DSG-03 38W) for direct drive from PLC/sequence-controller output: max. operating pressure 16 MPa, max. flow 63 L/min, tank back pressure 16 MPa, max. switching frequency 240 min-1. Subplate mounting.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E-DSG-03-3C2-*-50 | E-DSG-03 solenoid directional valve, spool 3C2 (3-position, spring centered) | Yuken | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 16 MPa | Max Flow: 63 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C2 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50 | ||
| E-DSG-03-3C4-*-50 | E-DSG-03 solenoid directional valve, spool 3C4 (3-position, spring centered) | Yuken | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 16 MPa | Max Flow: 63 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 3C4 | Spring: 3-position, spring centered | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50 | ||
| E-DSG-03-2D2-*-50 | E-DSG-03 solenoid directional valve, spool 2D2 (2-position, no-spring detented) | Yuken | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 16 MPa | Max Flow: 63 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 2D2 | Spring: 2-position, no-spring detented | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50 | ||
| E-DSG-03-2B2-*-50 | E-DSG-03 solenoid directional valve, spool 2B2 (2-position, spring offset) | Yuken | Type: Low-wattage 5W (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 16 MPa | Max Flow: 63 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 240 min-1 | Coil Power: 5W | Mounting: Subplate (ISO 4401) | Standard: CE | Spool Form: 2B2 | Spring: 2-position, spring offset | Coil: DC D12/D24 only (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50 |
