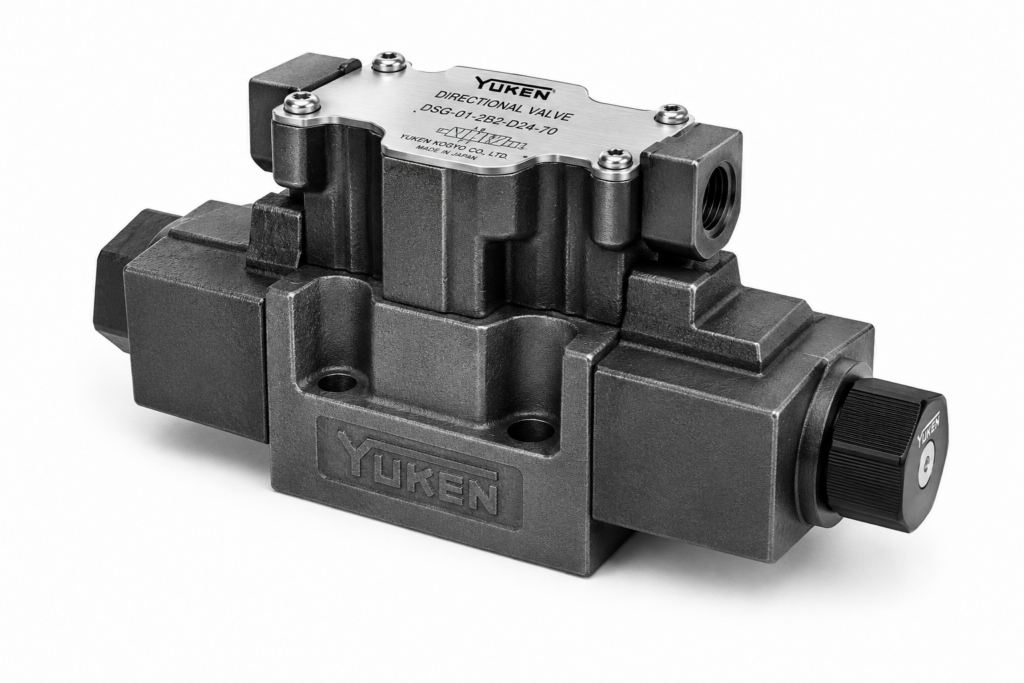

Yuken — S-DSG-03 Shockless Solenoid Operated Directional Valve
Family ID: YUK-SDSG03
3/8 Solenoid Operated Directional Valves, DSG-03 Series — Shockless type. Max. operating pressure 25 MPa, max. flow 120 L/min, tank back pressure 16 MPa, max. switching frequency 120 min-1. Subplate mounting.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| S-DSG-03-3C2-*-50 | S-DSG-03 solenoid directional valve, spool 3C2 (3-position, spring centered) | Yuken | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 3C2 | Spring: 3-position, spring centered | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50 | ||
| S-DSG-03-3C4-*-50 | S-DSG-03 solenoid directional valve, spool 3C4 (3-position, spring centered) | Yuken | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 3C4 | Spring: 3-position, spring centered | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50 | ||
| S-DSG-03-2B2-*-50 | S-DSG-03 solenoid directional valve, spool 2B2 (2-position, spring offset) | Yuken | Type: Shockless (Solenoid Operated) | Valve Size: 03 (Rc 3/8) | Max Pressure: 25 MPa | Max Flow: 120 L/min | Tank Back Pressure: 16 MPa | Max Switching Freq: 120 min-1 | Mounting: Subplate (ISO 4401) | Spool Form: 2B2 | Spring: 2-position, spring offset | Coil: DC D12/D24/D48, rectified R / quick-return RQ100 (RFQ) | Wiring: Terminal box / DIN connector / N1 lamp DIN (RFQ) | Manual Override: Push pin std / button-lock C (RFQ) | Design No.: 50 |
