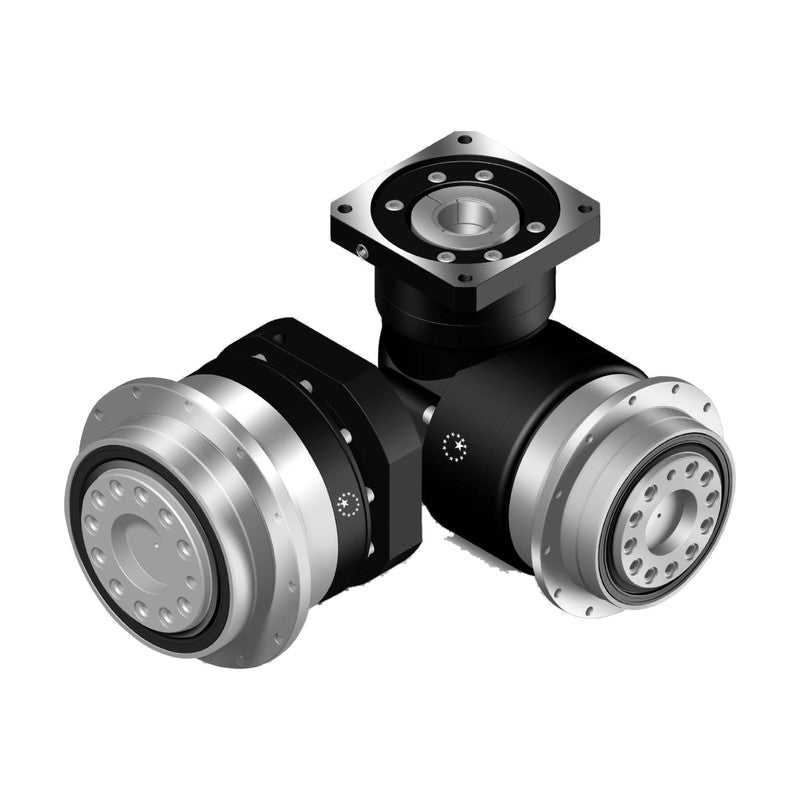

Apex Dynamics ADR Right-Angle Precision Planetary Gearboxes (047-255)

Apex Dynamics ADR Right-Angle Precision Planetary Gearboxes (047-255)

APEX Dynamics ADR series right-angle high-precision planetary gearboxes with ISO 9409 flange output, in seven frame sizes from 047 to 255 and ratios 4 to 200.

Key features

  • Right-angle version of the AD series: frame sizes ADR047, ADR064, ADR090, ADR110, ADR140, ADR200, ADR255
  • 1-stage ratios 4, 5, 7, 10, 14, 20 (14 and 20 from ADR064); 2-stage ratios 20 (ADR047 only), 25-100, 140 and 200 (ADR090 and up)
  • Backlash classes P0 micro (<=2/<=4 arcmin, ADR090-ADR255), P1 reduced (<=4/<=7), P2 standard (<=6/<=9)
  • Nominal output torque 14 to 2,000 Nm; emergency stop torque 3 times nominal
  • Efficiency >=95% (1-stage), >=92% (2-stage); max. input speed up to 10,000 rpm
  • Order code ends with the motor designation, e.g. ADR047-010-P1 / SIEMENS 1FT5 034-OAK71

Specifications

Type Right-angle planetary gearbox, flange output
Code format ADR<size>-<ratio>-<backlash> / motor
Torsional rigidity 7 to 1,006 Nm/arcmin (047-255)
Max. tilting moment M2K 55 to 5,500 Nm
Max. axial load F2aB 990 to 29,430 N
Weight 1.1 to 85.9 kg
Noise <=61 to <=74 dB(A)
Lubrication Synthetic lubrication oil, lubricated for life
Protection / mounting IP65, any mounting position
Operating temperature -10 to +90 C
Motor adapter Specify motor make and model when ordering
Source APEX Dynamics AD catalog, p. 3, 8-10, 14-16
ADR047-004-P1 Frame: 047 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 19 Nm
ADR047-004-P2 Frame: 047 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 19 Nm
ADR047-005-P1 Frame: 047 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 22 Nm
ADR047-005-P2 Frame: 047 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 22 Nm
ADR047-007-P1 Frame: 047 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 19 Nm
ADR047-007-P2 Frame: 047 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 19 Nm
ADR047-010-P1 Frame: 047 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 14 Nm
ADR047-010-P2 Frame: 047 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 14 Nm
ADR047-020-P1 Frame: 047 | Ratio i: 20 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 19 Nm
ADR047-020-P2 Frame: 047 | Ratio i: 20 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 19 Nm
ADR047-025-P1 Frame: 047 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 22 Nm
ADR047-025-P2 Frame: 047 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 22 Nm
ADR047-035-P1 Frame: 047 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 19 Nm
ADR047-035-P2 Frame: 047 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 19 Nm
ADR047-040-P1 Frame: 047 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 19 Nm
ADR047-040-P2 Frame: 047 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 19 Nm
ADR047-050-P1 Frame: 047 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 22 Nm
ADR047-050-P2 Frame: 047 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 22 Nm
ADR047-070-P1 Frame: 047 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 19 Nm
ADR047-070-P2 Frame: 047 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 19 Nm
ADR047-100-P1 Frame: 047 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 14 Nm
ADR047-100-P2 Frame: 047 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 14 Nm
ADR064-004-P1 Frame: 064 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 48 Nm
ADR064-004-P2 Frame: 064 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 48 Nm
ADR064-005-P1 Frame: 064 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 60 Nm
ADR064-005-P2 Frame: 064 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 60 Nm
ADR064-007-P1 Frame: 064 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 50 Nm
ADR064-007-P2 Frame: 064 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 50 Nm
ADR064-010-P1 Frame: 064 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 60 Nm
ADR064-010-P2 Frame: 064 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 60 Nm
ADR064-014-P1 Frame: 064 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 42 Nm
ADR064-014-P2 Frame: 064 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 42 Nm
ADR064-020-P1 Frame: 064 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 40 Nm
ADR064-020-P2 Frame: 064 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 40 Nm
ADR064-025-P1 Frame: 064 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 60 Nm
ADR064-025-P2 Frame: 064 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 60 Nm
ADR064-035-P1 Frame: 064 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 50 Nm
ADR064-035-P2 Frame: 064 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 50 Nm
ADR064-040-P1 Frame: 064 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 48 Nm
ADR064-040-P2 Frame: 064 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 48 Nm
ADR064-050-P1 Frame: 064 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 60 Nm
ADR064-050-P2 Frame: 064 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 60 Nm
ADR064-070-P1 Frame: 064 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 50 Nm
ADR064-070-P2 Frame: 064 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 50 Nm
ADR064-100-P1 Frame: 064 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 40 Nm
ADR064-100-P2 Frame: 064 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 40 Nm
ADR090-004-P0 Frame: 090 | Ratio i: 4 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 130 Nm
ADR090-004-P1 Frame: 090 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 130 Nm
ADR090-004-P2 Frame: 090 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 130 Nm
ADR090-005-P0 Frame: 090 | Ratio i: 5 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 160 Nm
ADR090-005-P1 Frame: 090 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 160 Nm
ADR090-005-P2 Frame: 090 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 160 Nm
ADR090-007-P0 Frame: 090 | Ratio i: 7 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 140 Nm
ADR090-007-P1 Frame: 090 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 140 Nm
ADR090-007-P2 Frame: 090 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 140 Nm
ADR090-010-P0 Frame: 090 | Ratio i: 10 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 160 Nm
ADR090-010-P1 Frame: 090 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 160 Nm
ADR090-010-P2 Frame: 090 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 160 Nm
ADR090-014-P0 Frame: 090 | Ratio i: 14 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 140 Nm
ADR090-014-P1 Frame: 090 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 140 Nm
ADR090-014-P2 Frame: 090 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 140 Nm
ADR090-020-P0 Frame: 090 | Ratio i: 20 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 100 Nm
ADR090-020-P1 Frame: 090 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 100 Nm
ADR090-020-P2 Frame: 090 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 100 Nm
ADR090-025-P0 Frame: 090 | Ratio i: 25 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 160 Nm
ADR090-025-P1 Frame: 090 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 160 Nm
ADR090-025-P2 Frame: 090 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 160 Nm
ADR090-035-P0 Frame: 090 | Ratio i: 35 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 140 Nm
ADR090-035-P1 Frame: 090 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 140 Nm
ADR090-035-P2 Frame: 090 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 140 Nm
ADR090-040-P0 Frame: 090 | Ratio i: 40 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 130 Nm
ADR090-040-P1 Frame: 090 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 130 Nm
ADR090-040-P2 Frame: 090 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 130 Nm
ADR090-050-P0 Frame: 090 | Ratio i: 50 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 160 Nm
ADR090-050-P1 Frame: 090 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 160 Nm
ADR090-050-P2 Frame: 090 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 160 Nm
ADR090-070-P0 Frame: 090 | Ratio i: 70 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 140 Nm
ADR090-070-P1 Frame: 090 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 140 Nm
ADR090-070-P2 Frame: 090 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 140 Nm
ADR090-100-P0 Frame: 090 | Ratio i: 100 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 100 Nm
ADR090-100-P1 Frame: 090 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 100 Nm
ADR090-100-P2 Frame: 090 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 100 Nm
ADR090-140-P0 Frame: 090 | Ratio i: 140 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 140 Nm
ADR090-140-P1 Frame: 090 | Ratio i: 140 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 140 Nm
ADR090-140-P2 Frame: 090 | Ratio i: 140 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 140 Nm
ADR090-200-P0 Frame: 090 | Ratio i: 200 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 100 Nm
ADR090-200-P1 Frame: 090 | Ratio i: 200 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 100 Nm
ADR090-200-P2 Frame: 090 | Ratio i: 200 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 100 Nm
ADR110-004-P0 Frame: 110 | Ratio i: 4 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 270 Nm
ADR110-004-P1 Frame: 110 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 270 Nm
ADR110-004-P2 Frame: 110 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 270 Nm
ADR110-005-P0 Frame: 110 | Ratio i: 5 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 330 Nm
ADR110-005-P1 Frame: 110 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 330 Nm
ADR110-005-P2 Frame: 110 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 330 Nm
ADR110-007-P0 Frame: 110 | Ratio i: 7 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 300 Nm
ADR110-007-P1 Frame: 110 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 300 Nm
ADR110-007-P2 Frame: 110 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 300 Nm
ADR110-010-P0 Frame: 110 | Ratio i: 10 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 325 Nm
ADR110-010-P1 Frame: 110 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 325 Nm
ADR110-010-P2 Frame: 110 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 325 Nm
ADR110-014-P0 Frame: 110 | Ratio i: 14 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 300 Nm
ADR110-014-P1 Frame: 110 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 300 Nm
ADR110-014-P2 Frame: 110 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 300 Nm
ADR110-020-P0 Frame: 110 | Ratio i: 20 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 230 Nm
ADR110-020-P1 Frame: 110 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 230 Nm
ADR110-020-P2 Frame: 110 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 230 Nm
ADR110-025-P0 Frame: 110 | Ratio i: 25 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 330 Nm
ADR110-025-P1 Frame: 110 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 330 Nm
ADR110-025-P2 Frame: 110 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 330 Nm
ADR110-035-P0 Frame: 110 | Ratio i: 35 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 300 Nm
ADR110-035-P1 Frame: 110 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 300 Nm
ADR110-035-P2 Frame: 110 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 300 Nm
ADR110-040-P0 Frame: 110 | Ratio i: 40 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 270 Nm
ADR110-040-P1 Frame: 110 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 270 Nm
ADR110-040-P2 Frame: 110 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 270 Nm
ADR110-050-P0 Frame: 110 | Ratio i: 50 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 330 Nm
ADR110-050-P1 Frame: 110 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 330 Nm
ADR110-050-P2 Frame: 110 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 330 Nm
ADR110-070-P0 Frame: 110 | Ratio i: 70 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 300 Nm
ADR110-070-P1 Frame: 110 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 300 Nm
ADR110-070-P2 Frame: 110 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 300 Nm
ADR110-100-P0 Frame: 110 | Ratio i: 100 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 230 Nm
ADR110-100-P1 Frame: 110 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 230 Nm
ADR110-100-P2 Frame: 110 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 230 Nm
ADR110-140-P0 Frame: 110 | Ratio i: 140 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 300 Nm
ADR110-140-P1 Frame: 110 | Ratio i: 140 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 300 Nm
ADR110-140-P2 Frame: 110 | Ratio i: 140 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 300 Nm
ADR110-200-P0 Frame: 110 | Ratio i: 200 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 230 Nm
ADR110-200-P1 Frame: 110 | Ratio i: 200 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 230 Nm
ADR110-200-P2 Frame: 110 | Ratio i: 200 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 230 Nm
ADR140-004-P0 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 560 Nm
ADR140-004-P1 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 560 Nm
ADR140-004-P2 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 560 Nm
ADR140-005-P0 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 650 Nm
ADR140-005-P1 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 650 Nm
ADR140-005-P2 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 650 Nm
ADR140-007-P0 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 550 Nm
ADR140-007-P1 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 550 Nm
ADR140-007-P2 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 550 Nm
ADR140-010-P0 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 650 Nm
ADR140-010-P1 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 650 Nm
ADR140-010-P2 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 650 Nm
ADR140-014-P0 Frame: 140 | Ratio i: 14 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 550 Nm
ADR140-014-P1 Frame: 140 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 550 Nm
ADR140-014-P2 Frame: 140 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 550 Nm
ADR140-020-P0 Frame: 140 | Ratio i: 20 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 450 Nm
ADR140-020-P1 Frame: 140 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 450 Nm
ADR140-020-P2 Frame: 140 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 450 Nm
ADR140-025-P0 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 650 Nm
ADR140-025-P1 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 650 Nm
ADR140-025-P2 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 650 Nm
ADR140-035-P0 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 550 Nm
ADR140-035-P1 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 550 Nm
ADR140-035-P2 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 550 Nm
ADR140-040-P0 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 560 Nm
ADR140-040-P1 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 560 Nm
ADR140-040-P2 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 560 Nm
ADR140-050-P0 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 650 Nm
ADR140-050-P1 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 650 Nm
ADR140-050-P2 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 650 Nm
ADR140-070-P0 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 550 Nm
ADR140-070-P1 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 550 Nm
ADR140-070-P2 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 550 Nm
ADR140-100-P0 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 450 Nm
ADR140-100-P1 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 450 Nm
ADR140-100-P2 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 450 Nm
ADR140-140-P0 Frame: 140 | Ratio i: 140 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 550 Nm
ADR140-140-P1 Frame: 140 | Ratio i: 140 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 550 Nm
ADR140-140-P2 Frame: 140 | Ratio i: 140 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 550 Nm
ADR140-200-P0 Frame: 140 | Ratio i: 200 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 450 Nm
ADR140-200-P1 Frame: 140 | Ratio i: 200 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 450 Nm
ADR140-200-P2 Frame: 140 | Ratio i: 200 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 450 Nm
ADR200-004-P0 Frame: 200 | Ratio i: 4 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-004-P1 Frame: 200 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-004-P2 Frame: 200 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-005-P0 Frame: 200 | Ratio i: 5 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-005-P1 Frame: 200 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-005-P2 Frame: 200 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-007-P0 Frame: 200 | Ratio i: 7 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-007-P1 Frame: 200 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-007-P2 Frame: 200 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-010-P0 Frame: 200 | Ratio i: 10 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-010-P1 Frame: 200 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-010-P2 Frame: 200 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-014-P0 Frame: 200 | Ratio i: 14 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-014-P1 Frame: 200 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-014-P2 Frame: 200 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-020-P0 Frame: 200 | Ratio i: 20 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 900 Nm
ADR200-020-P1 Frame: 200 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 900 Nm
ADR200-020-P2 Frame: 200 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 900 Nm
ADR200-025-P0 Frame: 200 | Ratio i: 25 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-025-P1 Frame: 200 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-025-P2 Frame: 200 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-035-P0 Frame: 200 | Ratio i: 35 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-035-P1 Frame: 200 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-035-P2 Frame: 200 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-040-P0 Frame: 200 | Ratio i: 40 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-040-P1 Frame: 200 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-040-P2 Frame: 200 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-050-P0 Frame: 200 | Ratio i: 50 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-050-P1 Frame: 200 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-050-P2 Frame: 200 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-070-P0 Frame: 200 | Ratio i: 70 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-070-P1 Frame: 200 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-070-P2 Frame: 200 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-100-P0 Frame: 200 | Ratio i: 100 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 900 Nm
ADR200-100-P1 Frame: 200 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 900 Nm
ADR200-100-P2 Frame: 200 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 900 Nm
ADR200-140-P0 Frame: 200 | Ratio i: 140 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-140-P1 Frame: 200 | Ratio i: 140 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-140-P2 Frame: 200 | Ratio i: 140 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-200-P0 Frame: 200 | Ratio i: 200 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 900 Nm
ADR200-200-P1 Frame: 200 | Ratio i: 200 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 900 Nm
ADR200-200-P2 Frame: 200 | Ratio i: 200 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 900 Nm
ADR255-004-P0 Frame: 255 | Ratio i: 4 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-004-P1 Frame: 255 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-004-P2 Frame: 255 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-005-P0 Frame: 255 | Ratio i: 5 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-005-P1 Frame: 255 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-005-P2 Frame: 255 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-007-P0 Frame: 255 | Ratio i: 7 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-007-P1 Frame: 255 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-007-P2 Frame: 255 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-010-P0 Frame: 255 | Ratio i: 10 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-010-P1 Frame: 255 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-010-P2 Frame: 255 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-014-P0 Frame: 255 | Ratio i: 14 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-014-P1 Frame: 255 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-014-P2 Frame: 255 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-020-P0 Frame: 255 | Ratio i: 20 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-020-P1 Frame: 255 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-020-P2 Frame: 255 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-025-P0 Frame: 255 | Ratio i: 25 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-025-P1 Frame: 255 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-025-P2 Frame: 255 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-035-P0 Frame: 255 | Ratio i: 35 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-035-P1 Frame: 255 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-035-P2 Frame: 255 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-040-P0 Frame: 255 | Ratio i: 40 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-040-P1 Frame: 255 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-040-P2 Frame: 255 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-050-P0 Frame: 255 | Ratio i: 50 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-050-P1 Frame: 255 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-050-P2 Frame: 255 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-070-P0 Frame: 255 | Ratio i: 70 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-070-P1 Frame: 255 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-070-P2 Frame: 255 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-100-P0 Frame: 255 | Ratio i: 100 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-100-P1 Frame: 255 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-100-P2 Frame: 255 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-140-P0 Frame: 255 | Ratio i: 140 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-140-P1 Frame: 255 | Ratio i: 140 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-140-P2 Frame: 255 | Ratio i: 140 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-200-P0 Frame: 255 | Ratio i: 200 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-200-P1 Frame: 255 | Ratio i: 200 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-200-P2 Frame: 255 | Ratio i: 200 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,500 Nm
Planetary GearboxesApex Dynamics
256 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics ADR Right-Angle Precision Planetary Gearboxes (047-255)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (256)

ADR047-004-P1, ADR047-004-P2, ADR047-005-P1, ADR047-005-P2, ADR047-007-P1, ADR047-007-P2, ADR047-010-P1, ADR047-010-P2, ADR047-020-P1, ADR047-020-P2 + 246 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ADR047-004-P1Frame: 047 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 19 Nm
ADR047-004-P2Frame: 047 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 19 Nm
ADR047-005-P1Frame: 047 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 22 Nm
ADR047-005-P2Frame: 047 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 22 Nm
ADR047-007-P1Frame: 047 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 19 Nm
ADR047-007-P2Frame: 047 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 19 Nm
ADR047-010-P1Frame: 047 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 14 Nm
ADR047-010-P2Frame: 047 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 14 Nm
ADR047-020-P1Frame: 047 | Ratio i: 20 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 19 Nm
ADR047-020-P2Frame: 047 | Ratio i: 20 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 19 Nm
ADR047-025-P1Frame: 047 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 22 Nm
ADR047-025-P2Frame: 047 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 22 Nm
ADR047-035-P1Frame: 047 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 19 Nm
ADR047-035-P2Frame: 047 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 19 Nm
ADR047-040-P1Frame: 047 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 19 Nm
ADR047-040-P2Frame: 047 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 19 Nm
ADR047-050-P1Frame: 047 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 22 Nm
ADR047-050-P2Frame: 047 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 22 Nm
ADR047-070-P1Frame: 047 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 19 Nm
ADR047-070-P2Frame: 047 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 19 Nm
ADR047-100-P1Frame: 047 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 14 Nm
ADR047-100-P2Frame: 047 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 14 Nm
ADR064-004-P1Frame: 064 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 48 Nm
ADR064-004-P2Frame: 064 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 48 Nm
ADR064-005-P1Frame: 064 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 60 Nm
ADR064-005-P2Frame: 064 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 60 Nm
ADR064-007-P1Frame: 064 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 50 Nm
ADR064-007-P2Frame: 064 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 50 Nm
ADR064-010-P1Frame: 064 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 60 Nm
ADR064-010-P2Frame: 064 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 60 Nm
ADR064-014-P1Frame: 064 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 42 Nm
ADR064-014-P2Frame: 064 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 42 Nm
ADR064-020-P1Frame: 064 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 40 Nm
ADR064-020-P2Frame: 064 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 40 Nm
ADR064-025-P1Frame: 064 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 60 Nm
ADR064-025-P2Frame: 064 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 60 Nm
ADR064-035-P1Frame: 064 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 50 Nm
ADR064-035-P2Frame: 064 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 50 Nm
ADR064-040-P1Frame: 064 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 48 Nm
ADR064-040-P2Frame: 064 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 48 Nm
ADR064-050-P1Frame: 064 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 60 Nm
ADR064-050-P2Frame: 064 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 60 Nm
ADR064-070-P1Frame: 064 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 50 Nm
ADR064-070-P2Frame: 064 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 50 Nm
ADR064-100-P1Frame: 064 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 40 Nm
ADR064-100-P2Frame: 064 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 40 Nm
ADR090-004-P0Frame: 090 | Ratio i: 4 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 130 Nm
ADR090-004-P1Frame: 090 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 130 Nm
ADR090-004-P2Frame: 090 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 130 Nm
ADR090-005-P0Frame: 090 | Ratio i: 5 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 160 Nm
ADR090-005-P1Frame: 090 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 160 Nm
ADR090-005-P2Frame: 090 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 160 Nm
ADR090-007-P0Frame: 090 | Ratio i: 7 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 140 Nm
ADR090-007-P1Frame: 090 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 140 Nm
ADR090-007-P2Frame: 090 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 140 Nm
ADR090-010-P0Frame: 090 | Ratio i: 10 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 160 Nm
ADR090-010-P1Frame: 090 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 160 Nm
ADR090-010-P2Frame: 090 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 160 Nm
ADR090-014-P0Frame: 090 | Ratio i: 14 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 140 Nm
ADR090-014-P1Frame: 090 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 140 Nm
ADR090-014-P2Frame: 090 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 140 Nm
ADR090-020-P0Frame: 090 | Ratio i: 20 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 100 Nm
ADR090-020-P1Frame: 090 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 100 Nm
ADR090-020-P2Frame: 090 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 100 Nm
ADR090-025-P0Frame: 090 | Ratio i: 25 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 160 Nm
ADR090-025-P1Frame: 090 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 160 Nm
ADR090-025-P2Frame: 090 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 160 Nm
ADR090-035-P0Frame: 090 | Ratio i: 35 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 140 Nm
ADR090-035-P1Frame: 090 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 140 Nm
ADR090-035-P2Frame: 090 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 140 Nm
ADR090-040-P0Frame: 090 | Ratio i: 40 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 130 Nm
ADR090-040-P1Frame: 090 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 130 Nm
ADR090-040-P2Frame: 090 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 130 Nm
ADR090-050-P0Frame: 090 | Ratio i: 50 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 160 Nm
ADR090-050-P1Frame: 090 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 160 Nm
ADR090-050-P2Frame: 090 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 160 Nm
ADR090-070-P0Frame: 090 | Ratio i: 70 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 140 Nm
ADR090-070-P1Frame: 090 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 140 Nm
ADR090-070-P2Frame: 090 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 140 Nm
ADR090-100-P0Frame: 090 | Ratio i: 100 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 100 Nm
ADR090-100-P1Frame: 090 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 100 Nm
ADR090-100-P2Frame: 090 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 100 Nm
ADR090-140-P0Frame: 090 | Ratio i: 140 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 140 Nm
ADR090-140-P1Frame: 090 | Ratio i: 140 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 140 Nm
ADR090-140-P2Frame: 090 | Ratio i: 140 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 140 Nm
ADR090-200-P0Frame: 090 | Ratio i: 200 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 100 Nm
ADR090-200-P1Frame: 090 | Ratio i: 200 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 100 Nm
ADR090-200-P2Frame: 090 | Ratio i: 200 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 100 Nm
ADR110-004-P0Frame: 110 | Ratio i: 4 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 270 Nm
ADR110-004-P1Frame: 110 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 270 Nm
ADR110-004-P2Frame: 110 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 270 Nm
ADR110-005-P0Frame: 110 | Ratio i: 5 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 330 Nm
ADR110-005-P1Frame: 110 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 330 Nm
ADR110-005-P2Frame: 110 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 330 Nm
ADR110-007-P0Frame: 110 | Ratio i: 7 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 300 Nm
ADR110-007-P1Frame: 110 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 300 Nm
ADR110-007-P2Frame: 110 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 300 Nm
ADR110-010-P0Frame: 110 | Ratio i: 10 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 325 Nm
ADR110-010-P1Frame: 110 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 325 Nm
ADR110-010-P2Frame: 110 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 325 Nm
ADR110-014-P0Frame: 110 | Ratio i: 14 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 300 Nm
ADR110-014-P1Frame: 110 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 300 Nm
ADR110-014-P2Frame: 110 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 300 Nm
ADR110-020-P0Frame: 110 | Ratio i: 20 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 230 Nm
ADR110-020-P1Frame: 110 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 230 Nm
ADR110-020-P2Frame: 110 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 230 Nm
ADR110-025-P0Frame: 110 | Ratio i: 25 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 330 Nm
ADR110-025-P1Frame: 110 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 330 Nm
ADR110-025-P2Frame: 110 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 330 Nm
ADR110-035-P0Frame: 110 | Ratio i: 35 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 300 Nm
ADR110-035-P1Frame: 110 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 300 Nm
ADR110-035-P2Frame: 110 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 300 Nm
ADR110-040-P0Frame: 110 | Ratio i: 40 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 270 Nm
ADR110-040-P1Frame: 110 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 270 Nm
ADR110-040-P2Frame: 110 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 270 Nm
ADR110-050-P0Frame: 110 | Ratio i: 50 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 330 Nm
ADR110-050-P1Frame: 110 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 330 Nm
ADR110-050-P2Frame: 110 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 330 Nm
ADR110-070-P0Frame: 110 | Ratio i: 70 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 300 Nm
ADR110-070-P1Frame: 110 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 300 Nm
ADR110-070-P2Frame: 110 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 300 Nm
ADR110-100-P0Frame: 110 | Ratio i: 100 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 230 Nm
ADR110-100-P1Frame: 110 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 230 Nm
ADR110-100-P2Frame: 110 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 230 Nm
ADR110-140-P0Frame: 110 | Ratio i: 140 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 300 Nm
ADR110-140-P1Frame: 110 | Ratio i: 140 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 300 Nm
ADR110-140-P2Frame: 110 | Ratio i: 140 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 300 Nm
ADR110-200-P0Frame: 110 | Ratio i: 200 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 230 Nm
ADR110-200-P1Frame: 110 | Ratio i: 200 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 230 Nm
ADR110-200-P2Frame: 110 | Ratio i: 200 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 230 Nm
ADR140-004-P0Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 560 Nm
ADR140-004-P1Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 560 Nm
ADR140-004-P2Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 560 Nm
ADR140-005-P0Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 650 Nm
ADR140-005-P1Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 650 Nm
ADR140-005-P2Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 650 Nm
ADR140-007-P0Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 550 Nm
ADR140-007-P1Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 550 Nm
ADR140-007-P2Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 550 Nm
ADR140-010-P0Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 650 Nm
ADR140-010-P1Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 650 Nm
ADR140-010-P2Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 650 Nm
ADR140-014-P0Frame: 140 | Ratio i: 14 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 550 Nm
ADR140-014-P1Frame: 140 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 550 Nm
ADR140-014-P2Frame: 140 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 550 Nm
ADR140-020-P0Frame: 140 | Ratio i: 20 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 450 Nm
ADR140-020-P1Frame: 140 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 450 Nm
ADR140-020-P2Frame: 140 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 450 Nm
ADR140-025-P0Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 650 Nm
ADR140-025-P1Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 650 Nm
ADR140-025-P2Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 650 Nm
ADR140-035-P0Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 550 Nm
ADR140-035-P1Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 550 Nm
ADR140-035-P2Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 550 Nm
ADR140-040-P0Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 560 Nm
ADR140-040-P1Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 560 Nm
ADR140-040-P2Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 560 Nm
ADR140-050-P0Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 650 Nm
ADR140-050-P1Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 650 Nm
ADR140-050-P2Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 650 Nm
ADR140-070-P0Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 550 Nm
ADR140-070-P1Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 550 Nm
ADR140-070-P2Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 550 Nm
ADR140-100-P0Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 450 Nm
ADR140-100-P1Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 450 Nm
ADR140-100-P2Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 450 Nm
ADR140-140-P0Frame: 140 | Ratio i: 140 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 550 Nm
ADR140-140-P1Frame: 140 | Ratio i: 140 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 550 Nm
ADR140-140-P2Frame: 140 | Ratio i: 140 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 550 Nm
ADR140-200-P0Frame: 140 | Ratio i: 200 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 450 Nm
ADR140-200-P1Frame: 140 | Ratio i: 200 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 450 Nm
ADR140-200-P2Frame: 140 | Ratio i: 200 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 450 Nm
ADR200-004-P0Frame: 200 | Ratio i: 4 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-004-P1Frame: 200 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-004-P2Frame: 200 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-005-P0Frame: 200 | Ratio i: 5 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-005-P1Frame: 200 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-005-P2Frame: 200 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-007-P0Frame: 200 | Ratio i: 7 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-007-P1Frame: 200 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-007-P2Frame: 200 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-010-P0Frame: 200 | Ratio i: 10 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-010-P1Frame: 200 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-010-P2Frame: 200 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-014-P0Frame: 200 | Ratio i: 14 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-014-P1Frame: 200 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-014-P2Frame: 200 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-020-P0Frame: 200 | Ratio i: 20 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 900 Nm
ADR200-020-P1Frame: 200 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 900 Nm
ADR200-020-P2Frame: 200 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 900 Nm
ADR200-025-P0Frame: 200 | Ratio i: 25 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-025-P1Frame: 200 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-025-P2Frame: 200 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-035-P0Frame: 200 | Ratio i: 35 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-035-P1Frame: 200 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-035-P2Frame: 200 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-040-P0Frame: 200 | Ratio i: 40 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-040-P1Frame: 200 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-040-P2Frame: 200 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-050-P0Frame: 200 | Ratio i: 50 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-050-P1Frame: 200 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-050-P2Frame: 200 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,200 Nm
ADR200-070-P0Frame: 200 | Ratio i: 70 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-070-P1Frame: 200 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-070-P2Frame: 200 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-100-P0Frame: 200 | Ratio i: 100 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 900 Nm
ADR200-100-P1Frame: 200 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 900 Nm
ADR200-100-P2Frame: 200 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 900 Nm
ADR200-140-P0Frame: 200 | Ratio i: 140 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-140-P1Frame: 200 | Ratio i: 140 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-140-P2Frame: 200 | Ratio i: 140 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,100 Nm
ADR200-200-P0Frame: 200 | Ratio i: 200 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 900 Nm
ADR200-200-P1Frame: 200 | Ratio i: 200 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 900 Nm
ADR200-200-P2Frame: 200 | Ratio i: 200 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 900 Nm
ADR255-004-P0Frame: 255 | Ratio i: 4 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-004-P1Frame: 255 | Ratio i: 4 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-004-P2Frame: 255 | Ratio i: 4 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-005-P0Frame: 255 | Ratio i: 5 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-005-P1Frame: 255 | Ratio i: 5 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-005-P2Frame: 255 | Ratio i: 5 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-007-P0Frame: 255 | Ratio i: 7 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-007-P1Frame: 255 | Ratio i: 7 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-007-P2Frame: 255 | Ratio i: 7 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-010-P0Frame: 255 | Ratio i: 10 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-010-P1Frame: 255 | Ratio i: 10 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-010-P2Frame: 255 | Ratio i: 10 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-014-P0Frame: 255 | Ratio i: 14 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-014-P1Frame: 255 | Ratio i: 14 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-014-P2Frame: 255 | Ratio i: 14 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-020-P0Frame: 255 | Ratio i: 20 | Stages: 1 | Backlash: P0 Micro <=2 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-020-P1Frame: 255 | Ratio i: 20 | Stages: 1 | Backlash: P1 Reduced <=4 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-020-P2Frame: 255 | Ratio i: 20 | Stages: 1 | Backlash: P2 Standard <=6 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-025-P0Frame: 255 | Ratio i: 25 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-025-P1Frame: 255 | Ratio i: 25 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-025-P2Frame: 255 | Ratio i: 25 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-035-P0Frame: 255 | Ratio i: 35 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-035-P1Frame: 255 | Ratio i: 35 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-035-P2Frame: 255 | Ratio i: 35 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-040-P0Frame: 255 | Ratio i: 40 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-040-P1Frame: 255 | Ratio i: 40 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-040-P2Frame: 255 | Ratio i: 40 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,700 Nm
ADR255-050-P0Frame: 255 | Ratio i: 50 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-050-P1Frame: 255 | Ratio i: 50 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-050-P2Frame: 255 | Ratio i: 50 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 2,000 Nm
ADR255-070-P0Frame: 255 | Ratio i: 70 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-070-P1Frame: 255 | Ratio i: 70 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-070-P2Frame: 255 | Ratio i: 70 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-100-P0Frame: 255 | Ratio i: 100 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-100-P1Frame: 255 | Ratio i: 100 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-100-P2Frame: 255 | Ratio i: 100 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-140-P0Frame: 255 | Ratio i: 140 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-140-P1Frame: 255 | Ratio i: 140 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-140-P2Frame: 255 | Ratio i: 140 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,800 Nm
ADR255-200-P0Frame: 255 | Ratio i: 200 | Stages: 2 | Backlash: P0 Micro <=4 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-200-P1Frame: 255 | Ratio i: 200 | Stages: 2 | Backlash: P1 Reduced <=7 arcmin | Nominal torque T2N: 1,500 Nm
ADR255-200-P2Frame: 255 | Ratio i: 200 | Stages: 2 | Backlash: P2 Standard <=9 arcmin | Nominal torque T2N: 1,500 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
