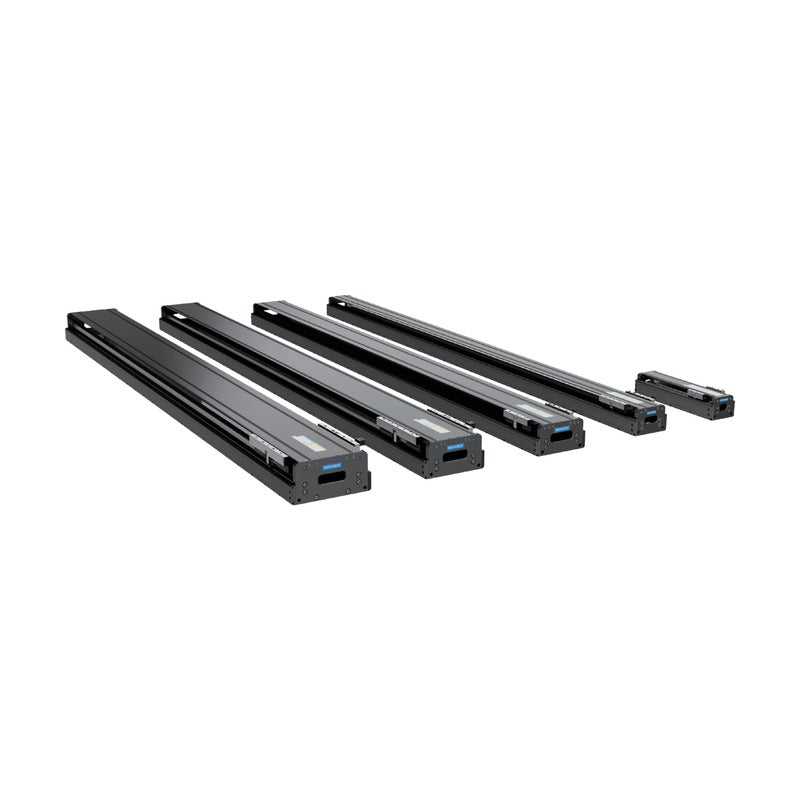

Inovance LMC Series Direct Drive Linear Motors (DDL, 51-1235 N)

Inovance LMC Series Direct Drive Linear Motors (DDL, 51-1235 N)

LMC iron-core direct-drive linear motors used in Inovance LMC linear motor stages, driven by SV680-GINT.

Key features

  • Continuous force 51 N to 1235 N, peak force up to 2717 N
  • Up to 3 g to 5 g acceleration and 3-5 m/s velocity in LMC stages
  • +/-2 um positioning repeatability with optical scale feedback
  • Flange sizes 88, 118, 168, 188 and 228 mm
  • One-key tuning with SV680-GINT and ELOI optical encoder

Specifications

Product family LMC direct drive linear motor
Magnetic pole pitch 28 mm
Max coil temperature 120 C
Matching drive SV680-GINT
Feedback Optical scale / Inovance magnetic scale
Source Inovance Direct Drive Motor Platform 19120355 A00, p. 3-14
LMC88-100Y1 Series: LMC88 | Motor code: D111 | Continuous force: 51 N | Peak force: 99 N | Winding: Y1
LMC88-130Y1 Series: LMC88 | Motor code: D121 | Continuous force: 96 N | Peak force: 187 N | Winding: Y1
LMC88-185Y1 Series: LMC88 | Motor code: D131 | Continuous force: 141 N | Peak force: 275 N | Winding: Y1
LMC88-240Y1 Series: LMC88 | Motor code: D141 | Continuous force: 186 N | Peak force: 363 N | Winding: Y1
LMC118-130Y1 Series: LMC118 | Motor code: D221 | Continuous force: 170 N | Peak force: 374 N | Winding: Y1
LMC118-185Y1 Series: LMC118 | Motor code: D231 | Continuous force: 250 N | Peak force: 550 N | Winding: Y1
LMC118-185Y3 Series: LMC118 | Motor code: D233 | Continuous force: 250 N | Peak force: 550 N | Winding: Y3
LMC118-240Y2 Series: LMC118 | Motor code: D242 | Continuous force: 345 N | Peak force: 759 N | Winding: Y2
LMC118-355Y3 Series: LMC118 | Motor code: D263 | Continuous force: 490 N | Peak force: 1078 N | Winding: Y3
LMC168-130Y2 Series: LMC168 | Motor code: D322 | Continuous force: 330 N | Peak force: 726 N | Winding: Y2
LMC168-185Y3 Series: LMC168 | Motor code: D333 | Continuous force: 495 N | Peak force: 1089 N | Winding: Y3
LMC168-240Y2 Series: LMC168 | Motor code: D342 | Continuous force: 660 N | Peak force: 1452 N | Winding: Y2
LMC168-240Y4 Series: LMC168 | Motor code: D344 | Continuous force: 619 N | Peak force: 1210 N | Winding: Y4
LMC188-240Y2 Series: LMC188 | Motor code: D442 | Continuous force: 660 N | Peak force: 1452 N | Winding: Y2
LMC188-240Y4 Series: LMC188 | Motor code: D444 | Continuous force: 619 N | Peak force: 1210 N | Winding: Y4
LMC188-355Y3 Series: LMC188 | Motor code: D463 | Continuous force: 990 N | Peak force: 2178 N | Winding: Y3
LMC188-355Y6 Series: LMC188 | Motor code: D466 | Continuous force: 990 N | Peak force: 2080 N | Winding: Y6
LMC228-240Y4 Series: LMC228 | Motor code: D544 | Continuous force: 938 N | Peak force: 1833 N | Winding: Y4
LMC228-290Y5 Series: LMC228 | Motor code: D555 | Continuous force: 1235 N | Peak force: 2547 N | Winding: Y5
Servo MotorsInovance
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance LMC Series Direct Drive Linear Motors (DDL, 51-1235 N)

Brand Inovance·Servo Motors

Available part numbers (19)

LMC88-100Y1, LMC88-130Y1, LMC88-185Y1, LMC88-240Y1, LMC118-130Y1, LMC118-185Y1, LMC118-185Y3, LMC118-240Y2, LMC118-355Y3, LMC168-130Y2 + 9 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LMC88-100Y1Series: LMC88 | Motor code: D111 | Continuous force: 51 N | Peak force: 99 N | Winding: Y1
LMC88-130Y1Series: LMC88 | Motor code: D121 | Continuous force: 96 N | Peak force: 187 N | Winding: Y1
LMC88-185Y1Series: LMC88 | Motor code: D131 | Continuous force: 141 N | Peak force: 275 N | Winding: Y1
LMC88-240Y1Series: LMC88 | Motor code: D141 | Continuous force: 186 N | Peak force: 363 N | Winding: Y1
LMC118-130Y1Series: LMC118 | Motor code: D221 | Continuous force: 170 N | Peak force: 374 N | Winding: Y1
LMC118-185Y1Series: LMC118 | Motor code: D231 | Continuous force: 250 N | Peak force: 550 N | Winding: Y1
LMC118-185Y3Series: LMC118 | Motor code: D233 | Continuous force: 250 N | Peak force: 550 N | Winding: Y3
LMC118-240Y2Series: LMC118 | Motor code: D242 | Continuous force: 345 N | Peak force: 759 N | Winding: Y2
LMC118-355Y3Series: LMC118 | Motor code: D263 | Continuous force: 490 N | Peak force: 1078 N | Winding: Y3
LMC168-130Y2Series: LMC168 | Motor code: D322 | Continuous force: 330 N | Peak force: 726 N | Winding: Y2
LMC168-185Y3Series: LMC168 | Motor code: D333 | Continuous force: 495 N | Peak force: 1089 N | Winding: Y3
LMC168-240Y2Series: LMC168 | Motor code: D342 | Continuous force: 660 N | Peak force: 1452 N | Winding: Y2
LMC168-240Y4Series: LMC168 | Motor code: D344 | Continuous force: 619 N | Peak force: 1210 N | Winding: Y4
LMC188-240Y2Series: LMC188 | Motor code: D442 | Continuous force: 660 N | Peak force: 1452 N | Winding: Y2
LMC188-240Y4Series: LMC188 | Motor code: D444 | Continuous force: 619 N | Peak force: 1210 N | Winding: Y4
LMC188-355Y3Series: LMC188 | Motor code: D463 | Continuous force: 990 N | Peak force: 2178 N | Winding: Y3
LMC188-355Y6Series: LMC188 | Motor code: D466 | Continuous force: 990 N | Peak force: 2080 N | Winding: Y6
LMC228-240Y4Series: LMC228 | Motor code: D544 | Continuous force: 938 N | Peak force: 1833 N | Winding: Y4
LMC228-290Y5Series: LMC228 | Motor code: D555 | Continuous force: 1235 N | Peak force: 2547 N | Winding: Y5
