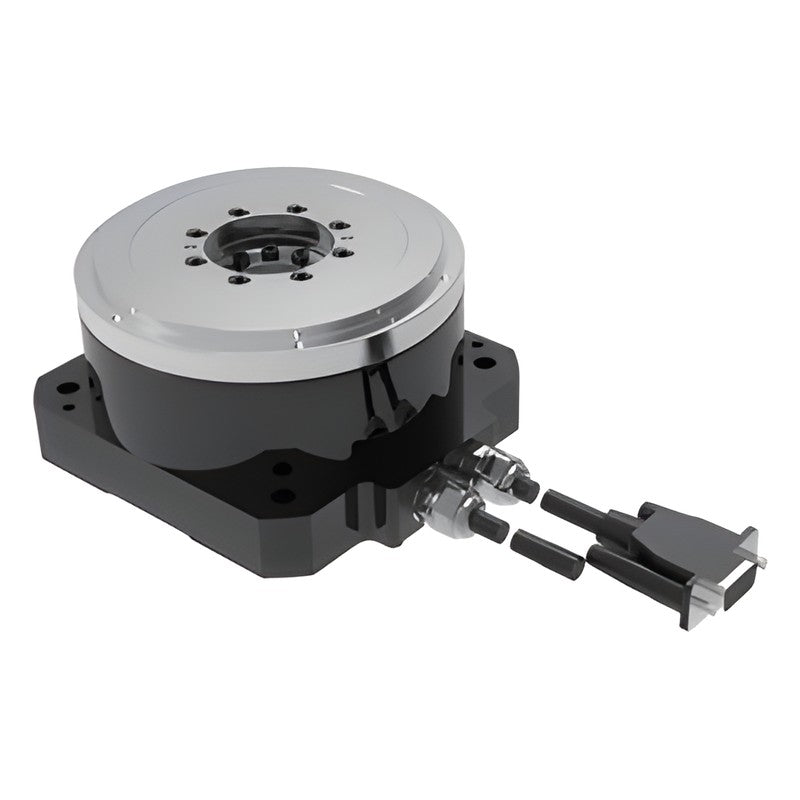

Inovance MP1 / ISMT1 Precision Direct Drive Torque Motors (DDR)

Inovance MP1 / ISMT1 Precision Direct Drive Torque Motors (DDR)

Precision direct-drive rotary torque motors with 23-bit encoder, driven by SV680-GINT servo drives.

Key features

  • Direct drive with no gear backlash for rotary tables and indexers
  • 23-bit single-turn absolute encoder (8,388,608 pulses/rev)
  • Positioning repeatability down to +/-1.2 arcsec
  • 220 V class, natural cooling, 0.3 m lead wires
  • Matching SV680N/SV680P-GINT drives and S6-L-M110 / S6-L-PD cables

Specifications

Product family Precision torque motor (DDR)
Voltage class B: 220 V
Cooling X: natural cooling
Connection 3: 0.3 m lead wire from cable gland
Version -INT global
Source Inovance Direct Drive Motor Platform 19120355 A00, p. 14-19
MP1-112F10AB-U313X-INT Cont torque: 4.2 Nm | Max torque: 10.5 Nm | Frame: 112 mm, F flange | Encoder: 23-bit single-turn | Drive: SV680*S2R8I-GINT
MP1-140S10BB-U323X-INT Cont torque: 36 Nm | Max torque: 108 Nm | Frame: 140 mm, S flange | Encoder: 23-bit single-turn | Drive: SV680*S012I-GINT
MP1-140S10BB-U323X-CD-INT Cont torque: 36 Nm | Max torque: 108 Nm | Frame: 140 mm, S flange | Encoder: 23-bit, compensated | Drive: SV680*S012I-GINT
MP1-175S11BB-U333X-INT Cont torque: 36 Nm | Max torque: 108 Nm | Frame: 175 mm, S flange | Encoder: 23-bit single-turn | Drive: SV680*S012I-GINT
ISMT1-160F12AB-A113X-INT Cont torque: 4 Nm | Max torque: 12 Nm | Frame: 160 mm, F flange | Encoder: 23-bit single-turn | Drive: SV680*S2R8I-GINT
ISMT1-160F12AB-A133X-INT Cont torque: 4 Nm | Max torque: 12 Nm | Frame: 160 mm, F flange | Encoder: 23-bit single-turn | Drive: SV680*S2R8I-GINT
ISMT1-160F45AB-A133X-INT Cont torque: 15 Nm | Max torque: 45 Nm | Frame: 160 mm, F flange | Encoder: 23-bit single-turn | Drive: SV680*S2R8I-GINT
Servo MotorsInovance
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance MP1 / ISMT1 Precision Direct Drive Torque Motors (DDR)

Brand Inovance·Servo Motors

Available part numbers (7)

MP1-112F10AB-U313X-INT, MP1-140S10BB-U323X-INT, MP1-140S10BB-U323X-CD-INT, MP1-175S11BB-U333X-INT, ISMT1-160F12AB-A113X-INT, ISMT1-160F12AB-A133X-INT, ISMT1-160F45AB-A133X-INT

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MP1-112F10AB-U313X-INTCont torque: 4.2 Nm | Max torque: 10.5 Nm | Frame: 112 mm, F flange | Encoder: 23-bit single-turn | Drive: SV680*S2R8I-GINT
MP1-140S10BB-U323X-INTCont torque: 36 Nm | Max torque: 108 Nm | Frame: 140 mm, S flange | Encoder: 23-bit single-turn | Drive: SV680*S012I-GINT
MP1-140S10BB-U323X-CD-INTCont torque: 36 Nm | Max torque: 108 Nm | Frame: 140 mm, S flange | Encoder: 23-bit, compensated | Drive: SV680*S012I-GINT
MP1-175S11BB-U333X-INTCont torque: 36 Nm | Max torque: 108 Nm | Frame: 175 mm, S flange | Encoder: 23-bit single-turn | Drive: SV680*S012I-GINT
ISMT1-160F12AB-A113X-INTCont torque: 4 Nm | Max torque: 12 Nm | Frame: 160 mm, F flange | Encoder: 23-bit single-turn | Drive: SV680*S2R8I-GINT
ISMT1-160F12AB-A133X-INTCont torque: 4 Nm | Max torque: 12 Nm | Frame: 160 mm, F flange | Encoder: 23-bit single-turn | Drive: SV680*S2R8I-GINT
ISMT1-160F45AB-A133X-INTCont torque: 15 Nm | Max torque: 45 Nm | Frame: 160 mm, F flange | Encoder: 23-bit single-turn | Drive: SV680*S2R8I-GINT
