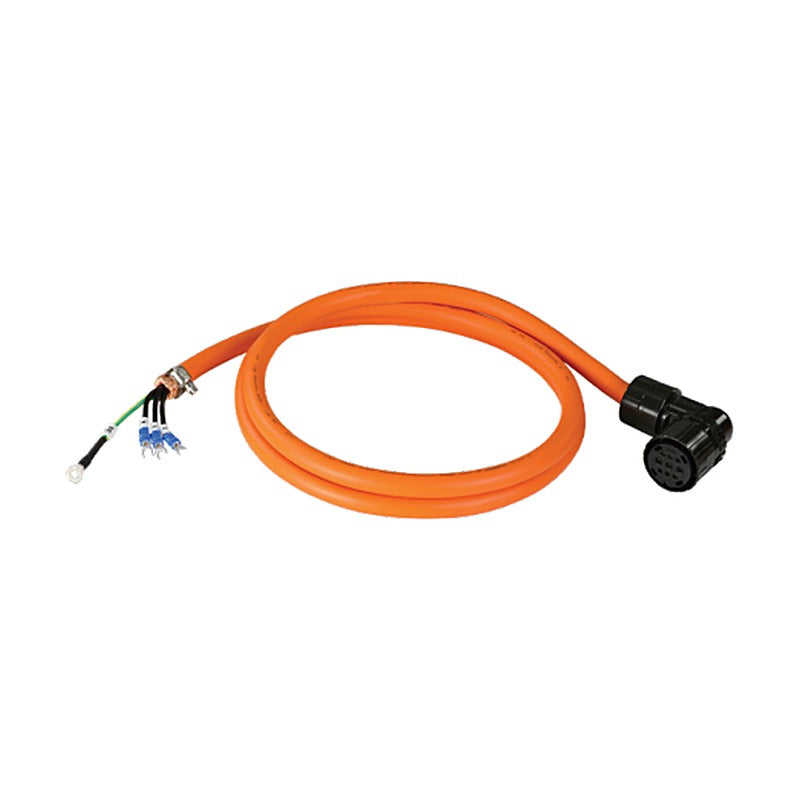

Inovance S6-L Cables for Direct Drive Motors (LMC / MP1 / ISMT1)

Inovance S6-L Cables for Direct Drive Motors (LMC / MP1 / ISMT1)

Power and encoder extension cables connecting LMC linear motor stages and DDR torque motors to SV680-GINT drives.

Key features

  • Power cables for LMC stages by motor winding (M160, M150, M040)
  • Encoder cables for pulse optical scales (P23A) and Inovance communication scales (P24D)
  • Versions with or without Hall sensor lines (-H)
  • DDR torque motor power (M110) and encoder (PD) extension cables
  • Lengths 3/5/8/10/12 m (LMC) and 3/5/10 m (DDR)

Specifications

Product family S6-L servo cable
Application Direct drive linear and torque motors
Matching drive SV680-GINT
Cable type Flexible (T)
Lengths 3-12 m (LMC), 3-10 m (DDR)
Source Inovance Direct Drive Motor Platform 19120355 A00, p. 5-19
S6-L-M160-3.0-TTS-2-INT Cable: LMC power, Y1/Y2 | Length: 3.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M160-5.0-TTS-2-INT Cable: LMC power, Y1/Y2 | Length: 5.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M160-8.0-TTS-2-INT Cable: LMC power, Y1/Y2 | Length: 8.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M160-10.0-TTS-2-INT Cable: LMC power, Y1/Y2 | Length: 10.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M160-12.0-TTS-2-INT Cable: LMC power, Y1/Y2 | Length: 12.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M150-3.0-TTS-2-INT Cable: LMC power, Y3/Y4 | Length: 3.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M150-5.0-TTS-2-INT Cable: LMC power, Y3/Y4 | Length: 5.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M150-8.0-TTS-2-INT Cable: LMC power, Y3/Y4 | Length: 8.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M150-10.0-TTS-2-INT Cable: LMC power, Y3/Y4 | Length: 10.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M150-12.0-TTS-2-INT Cable: LMC power, Y3/Y4 | Length: 12.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M040-3.0-TTS-2-INT Cable: LMC power, Y5/Y6 | Length: 3.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M040-5.0-TTS-2-INT Cable: LMC power, Y5/Y6 | Length: 5.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M040-8.0-TTS-2-INT Cable: LMC power, Y5/Y6 | Length: 8.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M040-10.0-TTS-2-INT Cable: LMC power, Y5/Y6 | Length: 10.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M040-12.0-TTS-2-INT Cable: LMC power, Y5/Y6 | Length: 12.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-P23A-3.0-TTS-2 Cable: LMC encoder, pulse scale | Length: 3.0 m | Hall sensor: Without Hall | Drive: SV680-GINT
S6-L-P23A-3.0-TTS-2-H Cable: LMC encoder, pulse scale | Length: 3.0 m | Hall sensor: With Hall | Drive: SV680-GINT
S6-L-P23A-5.0-TTS-2 Cable: LMC encoder, pulse scale | Length: 5.0 m | Hall sensor: Without Hall | Drive: SV680-GINT
S6-L-P23A-5.0-TTS-2-H Cable: LMC encoder, pulse scale | Length: 5.0 m | Hall sensor: With Hall | Drive: SV680-GINT
S6-L-P23A-8.0-TTS-2 Cable: LMC encoder, pulse scale | Length: 8.0 m | Hall sensor: Without Hall | Drive: SV680-GINT
S6-L-P23A-8.0-TTS-2-H Cable: LMC encoder, pulse scale | Length: 8.0 m | Hall sensor: With Hall | Drive: SV680-GINT
S6-L-P23A-10.0-TTS-2 Cable: LMC encoder, pulse scale | Length: 10.0 m | Hall sensor: Without Hall | Drive: SV680-GINT
S6-L-P23A-10.0-TTS-2-H Cable: LMC encoder, pulse scale | Length: 10.0 m | Hall sensor: With Hall | Drive: SV680-GINT
S6-L-P23A-12.0-TTS-2 Cable: LMC encoder, pulse scale | Length: 12.0 m | Hall sensor: Without Hall | Drive: SV680-GINT
S6-L-P23A-12.0-TTS-2-H Cable: LMC encoder, pulse scale | Length: 12.0 m | Hall sensor: With Hall | Drive: SV680-GINT
S6-L-P24D-3.0-TTS-2 Cable: LMC encoder, comm. scale | Length: 3.0 m | Hall sensor: Without Hall | Drive: SV680-GINT
S6-L-P24D-3.0-TTS-2-H Cable: LMC encoder, comm. scale | Length: 3.0 m | Hall sensor: With Hall | Drive: SV680-GINT
S6-L-P24D-5.0-TTS-2 Cable: LMC encoder, comm. scale | Length: 5.0 m | Hall sensor: Without Hall | Drive: SV680-GINT
S6-L-P24D-5.0-TTS-2-H Cable: LMC encoder, comm. scale | Length: 5.0 m | Hall sensor: With Hall | Drive: SV680-GINT
S6-L-P24D-8.0-TTS-2 Cable: LMC encoder, comm. scale | Length: 8.0 m | Hall sensor: Without Hall | Drive: SV680-GINT
S6-L-P24D-8.0-TTS-2-H Cable: LMC encoder, comm. scale | Length: 8.0 m | Hall sensor: With Hall | Drive: SV680-GINT
S6-L-P24D-10.0-TTS-2 Cable: LMC encoder, comm. scale | Length: 10.0 m | Hall sensor: Without Hall | Drive: SV680-GINT
S6-L-P24D-10.0-TTS-2-H Cable: LMC encoder, comm. scale | Length: 10.0 m | Hall sensor: With Hall | Drive: SV680-GINT
S6-L-P24D-12.0-TTS-2 Cable: LMC encoder, comm. scale | Length: 12.0 m | Hall sensor: Without Hall | Drive: SV680-GINT
S6-L-P24D-12.0-TTS-2-H Cable: LMC encoder, comm. scale | Length: 12.0 m | Hall sensor: With Hall | Drive: SV680-GINT
S6-L-M110-3.0-T-INT Cable: DDR power | Length: 3.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M110-5.0-T-INT Cable: DDR power | Length: 5.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-M110-10.0-T-INT Cable: DDR power | Length: 10.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-PD-3.0-TTS Cable: DDR encoder | Length: 3.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-PD-5.0-TTS Cable: DDR encoder | Length: 5.0 m | Hall sensor: n/a | Drive: SV680-GINT
S6-L-PD-10.0-TTS Cable: DDR encoder | Length: 10.0 m | Hall sensor: n/a | Drive: SV680-GINT
Servo CablesInovance
41 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance S6-L Cables for Direct Drive Motors (LMC / MP1 / ISMT1)

Brand Inovance·Servo Cables

Available part numbers (41)

S6-L-M160-3.0-TTS-2-INT, S6-L-M160-5.0-TTS-2-INT, S6-L-M160-8.0-TTS-2-INT, S6-L-M160-10.0-TTS-2-INT, S6-L-M160-12.0-TTS-2-INT, S6-L-M150-3.0-TTS-2-INT, S6-L-M150-5.0-TTS-2-INT, S6-L-M150-8.0-TTS-2-INT, S6-L-M150-10.0-TTS-2-INT, S6-L-M150-12.0-TTS-2-INT + 31 more — see full table ↓
