• Inovance MS1-R Servo Motors, 18-bit Encoder, for SV630 (0.05-7.5 kW)
1 1

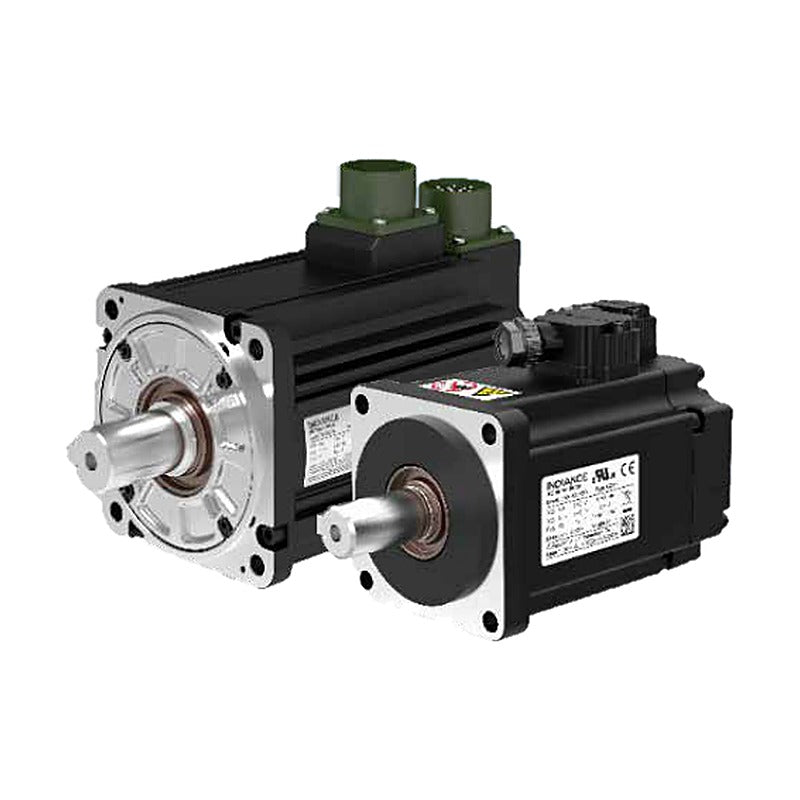

Inovance MS1-R Servo Motors, 18-bit Encoder, for SV630 (0.05-7.5 kW)

Inovance MS1-R Servo Motors, 18-bit Encoder, for SV630 (0.05-7.5 kW)

MS1-R servo motors with 18-bit multi-turn absolute encoder (T3) matched to SV630 economy servo drives.

Key features

  • 18-bit multi-turn absolute encoder (T3)
  • H1, H2, H3 and H4 inertia lines, 50 W to 7.5 kW
  • With or without holding brake as listed per model
  • Uses standard S6-L power and encoder cables
  • Matching drive: SV630P / SV630N

Specifications

Series MS1-R servo motor (T3 encoder)
Encoder 18-bit multi-turn absolute
Shaft 3: solid, keyed, threaded centre hole
Protection IP67
Matching drive SV630 series
Source Inovance Servo System Overview 19120627 A00, p. 6, 28
MS1H1-05B30CB-T330R-INT Rated power: 0.05 kW | Inertia: H1 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: None
MS1H1-05B30CB-T332R-INT Rated power: 0.05 kW | Inertia: H1 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake
MS1H1-10B30CB-T330R-INT Rated power: 0.1 kW | Inertia: H1 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: None
MS1H1-10B30CB-T332R-INT Rated power: 0.1 kW | Inertia: H1 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake
MS1H4-05B30CB-T331R-INT Rated power: 0.05 kW | Inertia: H4 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-05B30CB-T334R-INT Rated power: 0.05 kW | Inertia: H4 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H4-10B30CB-T331R-INT Rated power: 0.1 kW | Inertia: H4 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-10B30CB-T334R-INT Rated power: 0.1 kW | Inertia: H4 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H4-20B30CB-T331R-INT Rated power: 0.2 kW | Inertia: H4 | Flange: 60 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-20B30CB-T334R-INT Rated power: 0.2 kW | Inertia: H4 | Flange: 60 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H4-40B30CB-T331R-INT Rated power: 0.4 kW | Inertia: H4 | Flange: 60 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-40B30CB-T334R-INT Rated power: 0.4 kW | Inertia: H4 | Flange: 60 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H4-55B30CB-T331R-INT Rated power: 0.55 kW | Inertia: H4 | Flange: 80 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-75B30CB-T331R-INT Rated power: 0.75 kW | Inertia: H4 | Flange: 80 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-75B30CB-T334R-INT Rated power: 0.75 kW | Inertia: H4 | Flange: 80 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H4-10C30CB-T331R-INT Rated power: 1.0 kW | Inertia: H4 | Flange: 80 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-10C30CB-T334R-INT Rated power: 1.0 kW | Inertia: H4 | Flange: 80 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-10C30CB-T331R-INT Rated power: 1.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-10C30CB-T334R-INT Rated power: 1.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-15C30CB-T331R-INT Rated power: 1.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-15C30CB-T334R-INT Rated power: 1.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-20C30CB-T331R-INT Rated power: 2.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-20C30CB-T334R-INT Rated power: 2.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-85B15CB-T331R-INT Rated power: 0.85 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-85B15CB-T334R-INT Rated power: 0.85 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-13C15CB-T331R-INT Rated power: 1.3 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-13C15CB-T334R-INT Rated power: 1.3 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-18C15CB-T331R-INT Rated power: 1.8 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-18C15CB-T334R-INT Rated power: 1.8 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-10C30CD-T331R-INT Rated power: 1.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-10C30CD-T334R-INT Rated power: 1.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-15C30CD-T331R-INT Rated power: 1.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-15C30CD-T334R-INT Rated power: 1.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-20C30CD-T331R-INT Rated power: 2.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-20C30CD-T334R-INT Rated power: 2.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-25C30CD-T331R-INT Rated power: 2.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-25C30CD-T334R-INT Rated power: 2.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-30C30CD-T331R-INT Rated power: 3.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-30C30CD-T334R-INT Rated power: 3.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-40C30CD-T331R-INT Rated power: 4.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-40C30CD-T334R-INT Rated power: 4.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-50C30CD-T331R-INT Rated power: 5.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-50C30CD-T334R-INT Rated power: 5.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-85B15CD-T331R-INT Rated power: 0.85 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-85B15CD-T334R-INT Rated power: 0.85 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-13C15CD-T331R-INT Rated power: 1.3 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-13C15CD-T334R-INT Rated power: 1.3 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-18C15CD-T331R-INT Rated power: 1.8 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-18C15CD-T334R-INT Rated power: 1.8 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-29C15CD-T331R-INT Rated power: 2.9 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-29C15CD-T334R-INT Rated power: 2.9 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-44C15CD-T331R-INT Rated power: 4.4 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-44C15CD-T334R-INT Rated power: 4.4 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-55C15CD-T331R-INT Rated power: 5.5 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-55C15CD-T334R-INT Rated power: 5.5 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-75C15CD-T331R-INT Rated power: 7.5 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-75C15CD-T334R-INT Rated power: 7.5 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
Servo MotorsInovance
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance MS1-R Servo Motors, 18-bit Encoder, for SV630 (0.05-7.5 kW)

Brand Inovance·Servo Motors

Available part numbers (57)

MS1H1-05B30CB-T330R-INT, MS1H1-05B30CB-T332R-INT, MS1H1-10B30CB-T330R-INT, MS1H1-10B30CB-T332R-INT, MS1H4-05B30CB-T331R-INT, MS1H4-05B30CB-T334R-INT, MS1H4-10B30CB-T331R-INT, MS1H4-10B30CB-T334R-INT, MS1H4-20B30CB-T331R-INT, MS1H4-20B30CB-T334R-INT + 47 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MS1H1-05B30CB-T330R-INTRated power: 0.05 kW | Inertia: H1 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: None
MS1H1-05B30CB-T332R-INTRated power: 0.05 kW | Inertia: H1 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake
MS1H1-10B30CB-T330R-INTRated power: 0.1 kW | Inertia: H1 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: None
MS1H1-10B30CB-T332R-INTRated power: 0.1 kW | Inertia: H1 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake
MS1H4-05B30CB-T331R-INTRated power: 0.05 kW | Inertia: H4 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-05B30CB-T334R-INTRated power: 0.05 kW | Inertia: H4 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H4-10B30CB-T331R-INTRated power: 0.1 kW | Inertia: H4 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-10B30CB-T334R-INTRated power: 0.1 kW | Inertia: H4 | Flange: 40 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H4-20B30CB-T331R-INTRated power: 0.2 kW | Inertia: H4 | Flange: 60 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-20B30CB-T334R-INTRated power: 0.2 kW | Inertia: H4 | Flange: 60 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H4-40B30CB-T331R-INTRated power: 0.4 kW | Inertia: H4 | Flange: 60 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-40B30CB-T334R-INTRated power: 0.4 kW | Inertia: H4 | Flange: 60 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H4-55B30CB-T331R-INTRated power: 0.55 kW | Inertia: H4 | Flange: 80 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-75B30CB-T331R-INTRated power: 0.75 kW | Inertia: H4 | Flange: 80 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-75B30CB-T334R-INTRated power: 0.75 kW | Inertia: H4 | Flange: 80 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H4-10C30CB-T331R-INTRated power: 1.0 kW | Inertia: H4 | Flange: 80 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H4-10C30CB-T334R-INTRated power: 1.0 kW | Inertia: H4 | Flange: 80 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-10C30CB-T331R-INTRated power: 1.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-10C30CB-T334R-INTRated power: 1.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-15C30CB-T331R-INTRated power: 1.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-15C30CB-T334R-INTRated power: 1.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-20C30CB-T331R-INTRated power: 2.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-20C30CB-T334R-INTRated power: 2.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-85B15CB-T331R-INTRated power: 0.85 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-85B15CB-T334R-INTRated power: 0.85 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-13C15CB-T331R-INTRated power: 1.3 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-13C15CB-T334R-INTRated power: 1.3 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-18C15CB-T331R-INTRated power: 1.8 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-18C15CB-T334R-INTRated power: 1.8 kW | Inertia: H3 | Flange: 130 mm | Voltage: 220 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-10C30CD-T331R-INTRated power: 1.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-10C30CD-T334R-INTRated power: 1.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-15C30CD-T331R-INTRated power: 1.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-15C30CD-T334R-INTRated power: 1.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-20C30CD-T331R-INTRated power: 2.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-20C30CD-T334R-INTRated power: 2.0 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-25C30CD-T331R-INTRated power: 2.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-25C30CD-T334R-INTRated power: 2.5 kW | Inertia: H2 | Flange: 100 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-30C30CD-T331R-INTRated power: 3.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-30C30CD-T334R-INTRated power: 3.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-40C30CD-T331R-INTRated power: 4.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-40C30CD-T334R-INTRated power: 4.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H2-50C30CD-T331R-INTRated power: 5.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H2-50C30CD-T334R-INTRated power: 5.0 kW | Inertia: H2 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-85B15CD-T331R-INTRated power: 0.85 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-85B15CD-T334R-INTRated power: 0.85 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-13C15CD-T331R-INTRated power: 1.3 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-13C15CD-T334R-INTRated power: 1.3 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-18C15CD-T331R-INTRated power: 1.8 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-18C15CD-T334R-INTRated power: 1.8 kW | Inertia: H3 | Flange: 130 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-29C15CD-T331R-INTRated power: 2.9 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-29C15CD-T334R-INTRated power: 2.9 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-44C15CD-T331R-INTRated power: 4.4 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-44C15CD-T334R-INTRated power: 4.4 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-55C15CD-T331R-INTRated power: 5.5 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-55C15CD-T334R-INTRated power: 5.5 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
MS1H3-75C15CD-T331R-INTRated power: 7.5 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Oil seal
MS1H3-75C15CD-T334R-INTRated power: 7.5 kW | Inertia: H3 | Flange: 180 mm | Voltage: 380 V | Encoder: 18-bit multi-turn abs. | Brake oil seal: Brake + oil seal
