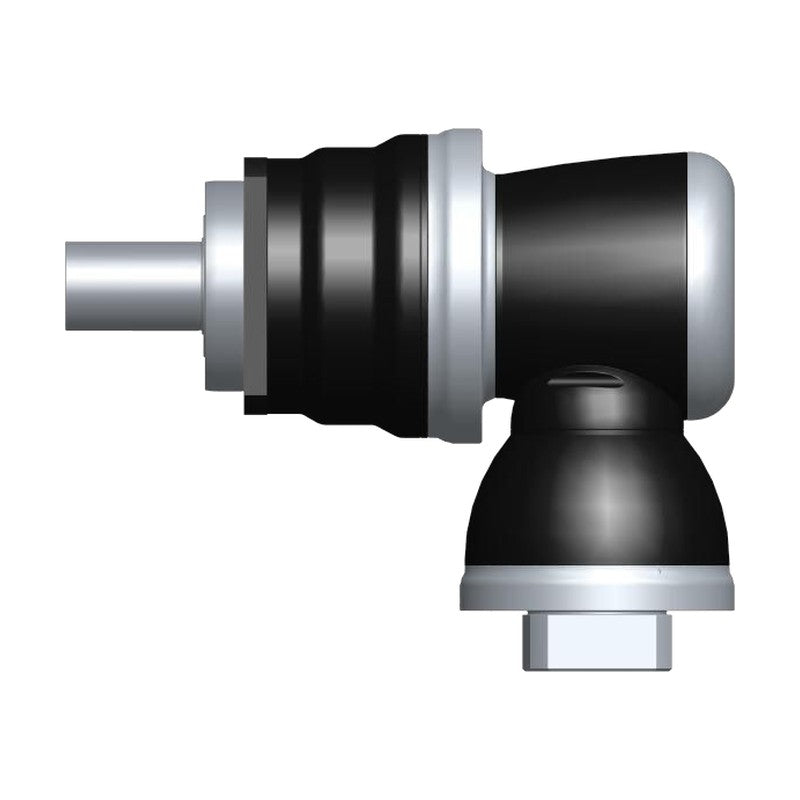

Apex Dynamics AFHK Right-Angle Planetary Gearboxes (AFHK/A/B/C)

APEX Dynamics AFHK right-angle new-generation planetary gearboxes in 2-, 3- and 4-stage versions (AFHK, AFHKA, AFHKB, AFHKC), frame sizes 060-240, ratios 4 to 10,000.

Key features

Ordering code: model+size - ratio - output shaft / motor, e.g. AFHK075-012-S1
AFHKC 2-stage i=4-10, AFHK 2-stage i=12-100, AFHKB 3-stage i=48-1,000
AFHKA 3-stage i=100-1,000 and AFHK 4-stage i=1,225-10,000 in frame 240
Output shaft S1 smooth, S2 keyed, S3 DIN 5480; S4 hollow on frames 060-180 (AFHK/AFHKB/AFHKC)
Backlash <=2 arcmin (frame 060: <=3 arcmin) measured at 2% of T2N
Synthetic grease lubrication, IP65, any mounting position

Specifications

Gear type	Planetary with right-angle input stage
Efficiency	>=95% AFHKC, >=94% AFHK 2-stg, >=92% 3-stg, >=90% 4-stg
Emergency stop torque T2NOT	2 x T2N
Max. acceleration torque T2B	1.5 x T2N
Torsional rigidity	4.6 (060) to 510 (240) Nm/arcmin
Protection class	IP65
Operating temperature	-10 to +90 C
Lubrication	Synthetic lubrication grease, all directions
Motor adapter	Specify motor make and model when ordering (code suffix / MOTOR)
Source	APEX Dynamics AFH/AFHK catalog, p. 3, 8-18

AFHKC060-004-S1		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHKC060-004-S2		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHKC060-004-S3		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHKC060-004-S4		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 4 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHKC060-005-S1		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
AFHKC060-005-S2		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
AFHKC060-005-S3		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
AFHKC060-005-S4		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 5 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
AFHKC060-007-S1		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
AFHKC060-007-S2		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
AFHKC060-007-S3		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
AFHKC060-007-S4		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 7 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
AFHKC060-008-S1		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 96 Nm
AFHKC060-008-S2		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 96 Nm
AFHKC060-008-S3		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 96 Nm
AFHKC060-008-S4		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 8 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 96 Nm
AFHKC060-010-S1		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
AFHKC060-010-S2		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
AFHKC060-010-S3		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
AFHKC060-010-S4		Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 10 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
AFHKC075-004-S1		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKC075-004-S2		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKC075-004-S3		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKC075-004-S4		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 4 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKC075-005-S1		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 185 Nm
AFHKC075-005-S2		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 185 Nm
AFHKC075-005-S3		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 185 Nm
AFHKC075-005-S4		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 5 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 185 Nm
AFHKC075-007-S1		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHKC075-007-S2		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHKC075-007-S3		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHKC075-007-S4		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 7 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHKC075-008-S1		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKC075-008-S2		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKC075-008-S3		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKC075-008-S4		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 8 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKC075-010-S1		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 190 Nm
AFHKC075-010-S2		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 190 Nm
AFHKC075-010-S3		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 190 Nm
AFHKC075-010-S4		Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 10 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 190 Nm
AFHKC100-004-S1		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKC100-004-S2		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKC100-004-S3		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKC100-004-S4		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 4 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKC100-005-S1		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 330 Nm
AFHKC100-005-S2		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 330 Nm
AFHKC100-005-S3		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 330 Nm
AFHKC100-005-S4		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 5 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 330 Nm
AFHKC100-007-S1		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 260 Nm
AFHKC100-007-S2		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 260 Nm
AFHKC100-007-S3		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 260 Nm
AFHKC100-007-S4		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 7 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 260 Nm
AFHKC100-008-S1		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 395 Nm
AFHKC100-008-S2		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 395 Nm
AFHKC100-008-S3		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 395 Nm
AFHKC100-008-S4		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 8 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 395 Nm
AFHKC100-010-S1		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHKC100-010-S2		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHKC100-010-S3		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHKC100-010-S4		Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 10 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHKC140-004-S1		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 775 Nm
AFHKC140-004-S2		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 775 Nm
AFHKC140-004-S3		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 775 Nm
AFHKC140-004-S4		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 4 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 775 Nm
AFHKC140-005-S1		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
AFHKC140-005-S2		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
AFHKC140-005-S3		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
AFHKC140-005-S4		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 5 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
AFHKC140-007-S1		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 525 Nm
AFHKC140-007-S2		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 525 Nm
AFHKC140-007-S3		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 525 Nm
AFHKC140-007-S4		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 7 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 525 Nm
AFHKC140-008-S1		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHKC140-008-S2		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHKC140-008-S3		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHKC140-008-S4		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 8 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHKC140-010-S1		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 690 Nm
AFHKC140-010-S2		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 690 Nm
AFHKC140-010-S3		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 690 Nm
AFHKC140-010-S4		Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 10 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 690 Nm
AFHKC180-004-S1		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKC180-004-S2		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKC180-004-S3		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKC180-004-S4		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 4 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKC180-005-S1		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,250 Nm
AFHKC180-005-S2		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,250 Nm
AFHKC180-005-S3		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,250 Nm
AFHKC180-005-S4		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 5 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,250 Nm
AFHKC180-007-S1		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,000 Nm
AFHKC180-007-S2		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,000 Nm
AFHKC180-007-S3		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,000 Nm
AFHKC180-007-S4		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 7 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,000 Nm
AFHKC180-008-S1		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
AFHKC180-008-S2		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
AFHKC180-008-S3		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
AFHKC180-008-S4		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 8 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
AFHKC180-010-S1		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,290 Nm
AFHKC180-010-S2		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,290 Nm
AFHKC180-010-S3		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,290 Nm
AFHKC180-010-S4		Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 10 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,290 Nm
AFHKC210-004-S1		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
AFHKC210-004-S2		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
AFHKC210-004-S3		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
AFHKC210-005-S1		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,930 Nm
AFHKC210-005-S2		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,930 Nm
AFHKC210-005-S3		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,930 Nm
AFHKC210-007-S1		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,750 Nm
AFHKC210-007-S2		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,750 Nm
AFHKC210-007-S3		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,750 Nm
AFHKC210-008-S1		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,300 Nm
AFHKC210-008-S2		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,300 Nm
AFHKC210-008-S3		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,300 Nm
AFHKC210-010-S1		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,000 Nm
AFHKC210-010-S2		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,000 Nm
AFHKC210-010-S3		Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,000 Nm
AFHKC240-004-S1		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,160 Nm
AFHKC240-004-S2		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,160 Nm
AFHKC240-004-S3		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,160 Nm
AFHKC240-005-S1		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,610 Nm
AFHKC240-005-S2		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,610 Nm
AFHKC240-005-S3		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,610 Nm
AFHKC240-007-S1		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,535 Nm
AFHKC240-007-S2		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,535 Nm
AFHKC240-007-S3		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,535 Nm
AFHKC240-008-S1		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,260 Nm
AFHKC240-008-S2		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,260 Nm
AFHKC240-008-S3		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,260 Nm
AFHKC240-010-S1		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,700 Nm
AFHKC240-010-S2		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,700 Nm
AFHKC240-010-S3		Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,700 Nm
AFHK060-012-S1		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-012-S2		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-012-S3		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-012-S4		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 12 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-016-S1		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-016-S2		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-016-S3		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-016-S4		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 16 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-020-S1		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-020-S2		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-020-S3		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-020-S4		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 20 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AFHK060-025-S1		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
AFHK060-025-S2		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
AFHK060-025-S3		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
AFHK060-025-S4		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 25 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
AFHK060-028-S1		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 92 Nm
AFHK060-028-S2		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 92 Nm
AFHK060-028-S3		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 92 Nm
AFHK060-028-S4		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 28 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 92 Nm
AFHK060-035-S1		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
AFHK060-035-S2		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
AFHK060-035-S3		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
AFHK060-035-S4		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 35 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
AFHK060-040-S1		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 72 Nm
AFHK060-040-S2		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 72 Nm
AFHK060-040-S3		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 72 Nm
AFHK060-040-S4		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 40 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 72 Nm
AFHK060-050-S1		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
AFHK060-050-S2		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
AFHK060-050-S3		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
AFHK060-050-S4		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 50 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
AFHK060-070-S1		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
AFHK060-070-S2		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
AFHK060-070-S3		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
AFHK060-070-S4		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 70 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
AFHK060-100-S1		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
AFHK060-100-S2		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
AFHK060-100-S3		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
AFHK060-100-S4		Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
AFHK075-012-S1		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-012-S2		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-012-S3		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-012-S4		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 12 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-016-S1		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 225 Nm
AFHK075-016-S2		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 225 Nm
AFHK075-016-S3		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 225 Nm
AFHK075-016-S4		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 16 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 225 Nm
AFHK075-020-S1		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 230 Nm
AFHK075-020-S2		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 230 Nm
AFHK075-020-S3		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 230 Nm
AFHK075-020-S4		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 20 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 230 Nm
AFHK075-025-S1		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
AFHK075-025-S2		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
AFHK075-025-S3		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
AFHK075-025-S4		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 25 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
AFHK075-028-S1		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-028-S2		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-028-S3		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-028-S4		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 28 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-035-S1		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-035-S2		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-035-S3		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-035-S4		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 35 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-040-S1		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHK075-040-S2		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHK075-040-S3		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHK075-040-S4		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 40 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHK075-050-S1		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-050-S2		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-050-S3		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-050-S4		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 50 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHK075-070-S1		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHK075-070-S2		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHK075-070-S3		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHK075-070-S4		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 70 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHK075-100-S1		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
AFHK075-100-S2		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
AFHK075-100-S3		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
AFHK075-100-S4		Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
AFHK100-012-S1		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHK100-012-S2		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHK100-012-S3		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHK100-012-S4		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 12 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHK100-016-S1		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
AFHK100-016-S2		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
AFHK100-016-S3		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
AFHK100-016-S4		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 16 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
AFHK100-020-S1		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
AFHK100-020-S2		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
AFHK100-020-S3		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
AFHK100-020-S4		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 20 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
AFHK100-025-S1		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AFHK100-025-S2		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AFHK100-025-S3		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AFHK100-025-S4		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 25 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AFHK100-028-S1		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHK100-028-S2		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHK100-028-S3		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHK100-028-S4		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 28 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHK100-035-S1		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 355 Nm
AFHK100-035-S2		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 355 Nm
AFHK100-035-S3		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 355 Nm
AFHK100-035-S4		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 35 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 355 Nm
AFHK100-040-S1		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHK100-040-S2		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHK100-040-S3		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHK100-040-S4		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 40 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHK100-050-S1		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 360 Nm
AFHK100-050-S2		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 360 Nm
AFHK100-050-S3		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 360 Nm
AFHK100-050-S4		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 50 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 360 Nm
AFHK100-070-S1		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 295 Nm
AFHK100-070-S2		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 295 Nm
AFHK100-070-S3		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 295 Nm
AFHK100-070-S4		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 70 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 295 Nm
AFHK100-100-S1		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHK100-100-S2		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHK100-100-S3		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHK100-100-S4		Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHK140-012-S1		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 805 Nm
AFHK140-012-S2		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 805 Nm
AFHK140-012-S3		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 805 Nm
AFHK140-012-S4		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 12 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 805 Nm
AFHK140-016-S1		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 815 Nm
AFHK140-016-S2		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 815 Nm
AFHK140-016-S3		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 815 Nm
AFHK140-016-S4		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 16 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 815 Nm
AFHK140-020-S1		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 820 Nm
AFHK140-020-S2		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 820 Nm
AFHK140-020-S3		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 820 Nm
AFHK140-020-S4		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 20 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 820 Nm
AFHK140-025-S1		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 710 Nm
AFHK140-025-S2		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 710 Nm
AFHK140-025-S3		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 710 Nm
AFHK140-025-S4		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 25 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 710 Nm
AFHK140-028-S1		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHK140-028-S2		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHK140-028-S3		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHK140-028-S4		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 28 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHK140-035-S1		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 715 Nm
AFHK140-035-S2		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 715 Nm
AFHK140-035-S3		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 715 Nm
AFHK140-035-S4		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 35 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 715 Nm
AFHK140-040-S1		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
AFHK140-040-S2		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
AFHK140-040-S3		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
AFHK140-040-S4		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 40 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
AFHK140-050-S1		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 725 Nm
AFHK140-050-S2		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 725 Nm
AFHK140-050-S3		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 725 Nm
AFHK140-050-S4		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 50 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 725 Nm
AFHK140-070-S1		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 600 Nm
AFHK140-070-S2		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 600 Nm
AFHK140-070-S3		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 600 Nm
AFHK140-070-S4		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 70 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 600 Nm
AFHK140-100-S1		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AFHK140-100-S2		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AFHK140-100-S3		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AFHK140-100-S4		Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AFHK180-012-S1		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,495 Nm
AFHK180-012-S2		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,495 Nm
AFHK180-012-S3		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,495 Nm
AFHK180-012-S4		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 12 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,495 Nm
AFHK180-016-S1		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,510 Nm
AFHK180-016-S2		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,510 Nm
AFHK180-016-S3		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,510 Nm
AFHK180-016-S4		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 16 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,510 Nm
AFHK180-020-S1		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,520 Nm
AFHK180-020-S2		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,520 Nm
AFHK180-020-S3		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,520 Nm
AFHK180-020-S4		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 20 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,520 Nm
AFHK180-025-S1		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
AFHK180-025-S2		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
AFHK180-025-S3		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
AFHK180-025-S4		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 25 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
AFHK180-028-S1		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,535 Nm
AFHK180-028-S2		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,535 Nm
AFHK180-028-S3		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,535 Nm
AFHK180-028-S4		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 28 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,535 Nm
AFHK180-035-S1		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,330 Nm
AFHK180-035-S2		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,330 Nm
AFHK180-035-S3		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,330 Nm
AFHK180-035-S4		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 35 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,330 Nm
AFHK180-040-S1		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHK180-040-S2		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHK180-040-S3		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHK180-040-S4		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 40 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHK180-050-S1		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,345 Nm
AFHK180-050-S2		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,345 Nm
AFHK180-050-S3		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,345 Nm
AFHK180-050-S4		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 50 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,345 Nm
AFHK180-070-S1		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,130 Nm
AFHK180-070-S2		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,130 Nm
AFHK180-070-S3		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,130 Nm
AFHK180-070-S4		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 70 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,130 Nm
AFHK180-100-S1		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 655 Nm
AFHK180-100-S2		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 655 Nm
AFHK180-100-S3		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 655 Nm
AFHK180-100-S4		Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 655 Nm
AFHK210-012-S1		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHK210-012-S2		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHK210-012-S3		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHK210-016-S1		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHK210-016-S2		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHK210-016-S3		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHK210-020-S1		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,780 Nm
AFHK210-020-S2		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,780 Nm
AFHK210-020-S3		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,780 Nm
AFHK210-025-S1		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,775 Nm
AFHK210-025-S2		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,775 Nm
AFHK210-025-S3		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,775 Nm
AFHK210-028-S1		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AFHK210-028-S2		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AFHK210-028-S3		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AFHK210-035-S1		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
AFHK210-035-S2		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
AFHK210-035-S3		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
AFHK210-040-S1		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHK210-040-S2		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHK210-040-S3		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHK210-050-S1		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
AFHK210-050-S2		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
AFHK210-050-S3		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
AFHK210-070-S1		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,710 Nm
AFHK210-070-S2		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,710 Nm
AFHK210-070-S3		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,710 Nm
AFHK210-100-S1		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,005 Nm
AFHK210-100-S2		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,005 Nm
AFHK210-100-S3		Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,005 Nm
AFHK240-012-S1		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHK240-012-S2		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHK240-012-S3		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHK240-016-S1		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHK240-016-S2		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHK240-016-S3		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHK240-020-S1		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,710 Nm
AFHK240-020-S2		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,710 Nm
AFHK240-020-S3		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,710 Nm
AFHK240-025-S1		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,735 Nm
AFHK240-025-S2		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,735 Nm
AFHK240-025-S3		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,735 Nm
AFHK240-028-S1		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHK240-028-S2		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHK240-028-S3		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHK240-035-S1		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
AFHK240-035-S2		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
AFHK240-035-S3		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
AFHK240-040-S1		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
AFHK240-040-S2		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
AFHK240-040-S3		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
AFHK240-050-S1		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHK240-050-S2		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHK240-050-S3		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHK240-070-S1		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,730 Nm
AFHK240-070-S2		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,730 Nm
AFHK240-070-S3		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,730 Nm
AFHK240-100-S1		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,685 Nm
AFHK240-100-S2		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,685 Nm
AFHK240-100-S3		Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,685 Nm
AFHKB075-064-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-064-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-064-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-064-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 64 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-084-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 84 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-084-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 84 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-084-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 84 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-084-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 84 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-100-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-100-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-100-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-100-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-125-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-125-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-125-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-125-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 125 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-140-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-140-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-140-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-140-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 140 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-175-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-175-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-175-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-175-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 175 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-200-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-200-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-200-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-200-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 200 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-250-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-250-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-250-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-250-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 250 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AFHKB075-280-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-280-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-280-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-280-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 280 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-350-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 210 Nm
AFHKB075-350-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 210 Nm
AFHKB075-350-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 210 Nm
AFHKB075-350-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 350 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 210 Nm
AFHKB075-400-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHKB075-400-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHKB075-400-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHKB075-400-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 400 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHKB075-500-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-500-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-500-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-500-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 500 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AFHKB075-700-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHKB075-700-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHKB075-700-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHKB075-700-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 700 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AFHKB075-1000-S1		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 55 Nm
AFHKB075-1000-S2		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 55 Nm
AFHKB075-1000-S3		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 55 Nm
AFHKB075-1000-S4		Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 1,000 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 55 Nm
AFHKB100-064-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 415 Nm
AFHKB100-064-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 415 Nm
AFHKB100-064-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 415 Nm
AFHKB100-064-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 64 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 415 Nm
AFHKB100-084-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 84 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
AFHKB100-084-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 84 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
AFHKB100-084-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 84 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
AFHKB100-084-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 84 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
AFHKB100-100-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
AFHKB100-100-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
AFHKB100-100-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
AFHKB100-100-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
AFHKB100-125-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
AFHKB100-125-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
AFHKB100-125-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
AFHKB100-125-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 125 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
AFHKB100-140-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 425 Nm
AFHKB100-140-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 425 Nm
AFHKB100-140-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 425 Nm
AFHKB100-140-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 140 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 425 Nm
AFHKB100-175-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
AFHKB100-175-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
AFHKB100-175-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
AFHKB100-175-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 175 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
AFHKB100-200-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 430 Nm
AFHKB100-200-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 430 Nm
AFHKB100-200-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 430 Nm
AFHKB100-200-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 200 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 430 Nm
AFHKB100-250-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 370 Nm
AFHKB100-250-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 370 Nm
AFHKB100-250-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 370 Nm
AFHKB100-250-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 250 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 370 Nm
AFHKB100-280-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHKB100-280-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHKB100-280-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHKB100-280-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 280 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AFHKB100-350-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 375 Nm
AFHKB100-350-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 375 Nm
AFHKB100-350-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 375 Nm
AFHKB100-350-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 350 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 375 Nm
AFHKB100-400-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHKB100-400-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHKB100-400-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHKB100-400-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 400 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AFHKB100-500-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKB100-500-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKB100-500-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKB100-500-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 500 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKB100-700-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 325 Nm
AFHKB100-700-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 325 Nm
AFHKB100-700-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 325 Nm
AFHKB100-700-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 700 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 325 Nm
AFHKB100-1000-S1		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHKB100-1000-S2		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHKB100-1000-S3		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHKB100-1000-S4		Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 1,000 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AFHKB140-064-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 840 Nm
AFHKB140-064-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 840 Nm
AFHKB140-064-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 840 Nm
AFHKB140-064-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 64 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 840 Nm
AFHKB140-084-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 84 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-084-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 84 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-084-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 84 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-084-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 84 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-100-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-100-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-100-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-100-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-125-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 730 Nm
AFHKB140-125-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 730 Nm
AFHKB140-125-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 730 Nm
AFHKB140-125-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 125 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 730 Nm
AFHKB140-140-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-140-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-140-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-140-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 140 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-175-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 740 Nm
AFHKB140-175-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 740 Nm
AFHKB140-175-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 740 Nm
AFHKB140-175-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 175 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 740 Nm
AFHKB140-200-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-200-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-200-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-200-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 200 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AFHKB140-250-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 745 Nm
AFHKB140-250-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 745 Nm
AFHKB140-250-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 745 Nm
AFHKB140-250-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 250 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 745 Nm
AFHKB140-280-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHKB140-280-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHKB140-280-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHKB140-280-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 280 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AFHKB140-350-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 755 Nm
AFHKB140-350-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 755 Nm
AFHKB140-350-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 755 Nm
AFHKB140-350-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 350 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 755 Nm
AFHKB140-400-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
AFHKB140-400-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
AFHKB140-400-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
AFHKB140-400-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 400 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
AFHKB140-500-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 760 Nm
AFHKB140-500-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 760 Nm
AFHKB140-500-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 760 Nm
AFHKB140-500-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 500 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 760 Nm
AFHKB140-700-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
AFHKB140-700-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
AFHKB140-700-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
AFHKB140-700-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 700 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
AFHKB140-1000-S1		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKB140-1000-S2		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKB140-1000-S3		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKB140-1000-S4		Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 1,000 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AFHKB180-064-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,545 Nm
AFHKB180-064-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,545 Nm
AFHKB180-064-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,545 Nm
AFHKB180-064-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 64 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,545 Nm
AFHKB180-084-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 84 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,555 Nm
AFHKB180-084-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 84 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,555 Nm
AFHKB180-084-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 84 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,555 Nm
AFHKB180-084-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 84 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,555 Nm
AFHKB180-100-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,565 Nm
AFHKB180-100-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,565 Nm
AFHKB180-100-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,565 Nm
AFHKB180-100-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,565 Nm
AFHKB180-125-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,355 Nm
AFHKB180-125-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,355 Nm
AFHKB180-125-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,355 Nm
AFHKB180-125-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 125 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,355 Nm
AFHKB180-140-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,580 Nm
AFHKB180-140-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,580 Nm
AFHKB180-140-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,580 Nm
AFHKB180-140-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 140 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,580 Nm
AFHKB180-175-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,370 Nm
AFHKB180-175-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,370 Nm
AFHKB180-175-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,370 Nm
AFHKB180-175-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 175 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,370 Nm
AFHKB180-200-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,590 Nm
AFHKB180-200-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,590 Nm
AFHKB180-200-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,590 Nm
AFHKB180-200-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 200 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,590 Nm
AFHKB180-250-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,380 Nm
AFHKB180-250-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,380 Nm
AFHKB180-250-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,380 Nm
AFHKB180-250-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 250 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,380 Nm
AFHKB180-280-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AFHKB180-280-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AFHKB180-280-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AFHKB180-280-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 280 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AFHKB180-350-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,395 Nm
AFHKB180-350-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,395 Nm
AFHKB180-350-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,395 Nm
AFHKB180-350-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 350 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,395 Nm
AFHKB180-400-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKB180-400-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKB180-400-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKB180-400-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 400 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKB180-500-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,405 Nm
AFHKB180-500-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,405 Nm
AFHKB180-500-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,405 Nm
AFHKB180-500-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 500 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,405 Nm
AFHKB180-700-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,240 Nm
AFHKB180-700-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,240 Nm
AFHKB180-700-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,240 Nm
AFHKB180-700-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 700 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,240 Nm
AFHKB180-1000-S1		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 660 Nm
AFHKB180-1000-S2		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 660 Nm
AFHKB180-1000-S3		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 660 Nm
AFHKB180-1000-S4		Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 1,000 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 660 Nm
AFHKB210-064-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHKB210-064-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHKB210-064-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHKB210-084-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 84 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHKB210-084-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 84 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHKB210-084-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 84 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AFHKB210-100-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,085 Nm
AFHKB210-100-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,085 Nm
AFHKB210-100-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,085 Nm
AFHKB210-125-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,095 Nm
AFHKB210-125-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,095 Nm
AFHKB210-125-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,095 Nm
AFHKB210-140-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,100 Nm
AFHKB210-140-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,100 Nm
AFHKB210-140-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,100 Nm
AFHKB210-175-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,115 Nm
AFHKB210-175-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,115 Nm
AFHKB210-175-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,115 Nm
AFHKB210-200-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
AFHKB210-200-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
AFHKB210-200-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
AFHKB210-250-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
AFHKB210-250-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
AFHKB210-250-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
AFHKB210-280-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AFHKB210-280-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AFHKB210-280-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AFHKB210-350-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
AFHKB210-350-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
AFHKB210-350-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
AFHKB210-400-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKB210-400-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKB210-400-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AFHKB210-500-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
AFHKB210-500-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
AFHKB210-500-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
AFHKB210-700-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,875 Nm
AFHKB210-700-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,875 Nm
AFHKB210-700-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,875 Nm
AFHKB210-1000-S1		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,065 Nm
AFHKB210-1000-S2		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,065 Nm
AFHKB210-1000-S3		Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,065 Nm
AFHKB240-048-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 48 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHKB240-048-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 48 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHKB240-048-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 48 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHKB240-064-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHKB240-064-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHKB240-064-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AFHKB240-100-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,830 Nm
AFHKB240-100-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,830 Nm
AFHKB240-100-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,830 Nm
AFHKB240-125-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,850 Nm
AFHKB240-125-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,850 Nm
AFHKB240-125-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,850 Nm
AFHKB240-140-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,860 Nm
AFHKB240-140-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,860 Nm
AFHKB240-140-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,860 Nm
AFHKB240-175-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,885 Nm
AFHKB240-175-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,885 Nm
AFHKB240-175-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,885 Nm
AFHKB240-200-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
AFHKB240-200-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
AFHKB240-200-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
AFHKB240-250-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,920 Nm
AFHKB240-250-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,920 Nm
AFHKB240-250-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,920 Nm
AFHKB240-280-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHKB240-280-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHKB240-280-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHKB240-350-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
AFHKB240-350-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
AFHKB240-350-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
AFHKB240-400-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
AFHKB240-400-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
AFHKB240-400-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
AFHKB240-500-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHKB240-500-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHKB240-500-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AFHKB240-700-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,005 Nm
AFHKB240-700-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,005 Nm
AFHKB240-700-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,005 Nm
AFHKB240-1000-S1		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,725 Nm
AFHKB240-1000-S2		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,725 Nm
AFHKB240-1000-S3		Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,725 Nm
AFHKA240-100-S1		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,490 Nm
AFHKA240-100-S2		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,490 Nm
AFHKA240-100-S3		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,490 Nm
AFHKA240-125-S1		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
AFHKA240-125-S2		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
AFHKA240-125-S3		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
AFHKA240-140-S1		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,525 Nm
AFHKA240-140-S2		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,525 Nm
AFHKA240-140-S3		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,525 Nm
AFHKA240-175-S1		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,930 Nm
AFHKA240-175-S2		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,930 Nm
AFHKA240-175-S3		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,930 Nm
AFHKA240-200-S1		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,565 Nm
AFHKA240-200-S2		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,565 Nm
AFHKA240-200-S3		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,565 Nm
AFHKA240-250-S1		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,970 Nm
AFHKA240-250-S2		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,970 Nm
AFHKA240-250-S3		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,970 Nm
AFHKA240-350-S1		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,000 Nm
AFHKA240-350-S2		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,000 Nm
AFHKA240-350-S3		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,000 Nm
AFHKA240-500-S1		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,035 Nm
AFHKA240-500-S2		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,035 Nm
AFHKA240-500-S3		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,035 Nm
AFHKA240-700-S1		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,090 Nm
AFHKA240-700-S2		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,090 Nm
AFHKA240-700-S3		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,090 Nm
AFHKA240-1000-S1		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,770 Nm
AFHKA240-1000-S2		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,770 Nm
AFHKA240-1000-S3		Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,770 Nm
AFHK240-1225-S1		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,225 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,070 Nm
AFHK240-1225-S2		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,225 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,070 Nm
AFHK240-1225-S3		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,225 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,070 Nm
AFHK240-1400-S1		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,725 Nm
AFHK240-1400-S2		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,725 Nm
AFHK240-1400-S3		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,725 Nm
AFHK240-1750-S1		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,750 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,100 Nm
AFHK240-1750-S2		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,750 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,100 Nm
AFHK240-1750-S3		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,750 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,100 Nm
AFHK240-2000-S1		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,765 Nm
AFHK240-2000-S2		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,765 Nm
AFHK240-2000-S3		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,765 Nm
AFHK240-2800-S1		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,800 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,165 Nm
AFHK240-2800-S2		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,800 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,165 Nm
AFHK240-2800-S3		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,800 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,165 Nm
AFHK240-3500-S1		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 3,500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,180 Nm
AFHK240-3500-S2		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 3,500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,180 Nm
AFHK240-3500-S3		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 3,500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,180 Nm
AFHK240-5000-S1		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 5,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,285 Nm
AFHK240-5000-S2		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 5,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,285 Nm
AFHK240-5000-S3		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 5,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,285 Nm
AFHK240-7000-S1		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 7,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,445 Nm
AFHK240-7000-S2		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 7,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,445 Nm
AFHK240-7000-S3		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 7,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,445 Nm
AFHK240-10000-S1		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 10,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
AFHK240-10000-S2		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 10,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
AFHK240-10000-S3		Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 10,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm

Planetary GearboxesApex Dynamics

755 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics AFHK Right-Angle Planetary Gearboxes (AFHK/A/B/C)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (755)

AFHKC060-004-S1, AFHKC060-004-S2, AFHKC060-004-S3, AFHKC060-004-S4, AFHKC060-005-S1, AFHKC060-005-S2, AFHKC060-005-S3, AFHKC060-005-S4, AFHKC060-007-S1, AFHKC060-007-S2 + 745 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AFHKC060-004-S1	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHKC060-004-S2	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHKC060-004-S3	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHKC060-004-S4	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 4 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHKC060-005-S1	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
	AFHKC060-005-S2	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
	AFHKC060-005-S3	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
	AFHKC060-005-S4	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 5 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
	AFHKC060-007-S1	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
	AFHKC060-007-S2	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
	AFHKC060-007-S3	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
	AFHKC060-007-S4	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 7 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
	AFHKC060-008-S1	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 96 Nm
	AFHKC060-008-S2	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 96 Nm
	AFHKC060-008-S3	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 96 Nm
	AFHKC060-008-S4	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 8 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 96 Nm
	AFHKC060-010-S1	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
	AFHKC060-010-S2	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
	AFHKC060-010-S3	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
	AFHKC060-010-S4	Model: AFHKC 2-stage \| Frame: 060 \| Ratio i: 10 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
	AFHKC075-004-S1	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKC075-004-S2	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKC075-004-S3	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKC075-004-S4	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 4 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKC075-005-S1	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 185 Nm
	AFHKC075-005-S2	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 185 Nm
	AFHKC075-005-S3	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 185 Nm
	AFHKC075-005-S4	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 5 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 185 Nm
	AFHKC075-007-S1	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHKC075-007-S2	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHKC075-007-S3	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHKC075-007-S4	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 7 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHKC075-008-S1	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKC075-008-S2	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKC075-008-S3	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKC075-008-S4	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 8 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKC075-010-S1	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 190 Nm
	AFHKC075-010-S2	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 190 Nm
	AFHKC075-010-S3	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 190 Nm
	AFHKC075-010-S4	Model: AFHKC 2-stage \| Frame: 075 \| Ratio i: 10 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 190 Nm
	AFHKC100-004-S1	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKC100-004-S2	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKC100-004-S3	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKC100-004-S4	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 4 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKC100-005-S1	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 330 Nm
	AFHKC100-005-S2	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 330 Nm
	AFHKC100-005-S3	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 330 Nm
	AFHKC100-005-S4	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 5 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 330 Nm
	AFHKC100-007-S1	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 260 Nm
	AFHKC100-007-S2	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 260 Nm
	AFHKC100-007-S3	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 260 Nm
	AFHKC100-007-S4	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 7 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 260 Nm
	AFHKC100-008-S1	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 395 Nm
	AFHKC100-008-S2	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 395 Nm
	AFHKC100-008-S3	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 395 Nm
	AFHKC100-008-S4	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 8 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 395 Nm
	AFHKC100-010-S1	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHKC100-010-S2	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHKC100-010-S3	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHKC100-010-S4	Model: AFHKC 2-stage \| Frame: 100 \| Ratio i: 10 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHKC140-004-S1	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 775 Nm
	AFHKC140-004-S2	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 775 Nm
	AFHKC140-004-S3	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 775 Nm
	AFHKC140-004-S4	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 4 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 775 Nm
	AFHKC140-005-S1	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
	AFHKC140-005-S2	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
	AFHKC140-005-S3	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
	AFHKC140-005-S4	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 5 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
	AFHKC140-007-S1	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 525 Nm
	AFHKC140-007-S2	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 525 Nm
	AFHKC140-007-S3	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 525 Nm
	AFHKC140-007-S4	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 7 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 525 Nm
	AFHKC140-008-S1	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHKC140-008-S2	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHKC140-008-S3	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHKC140-008-S4	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 8 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHKC140-010-S1	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 690 Nm
	AFHKC140-010-S2	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 690 Nm
	AFHKC140-010-S3	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 690 Nm
	AFHKC140-010-S4	Model: AFHKC 2-stage \| Frame: 140 \| Ratio i: 10 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 690 Nm
	AFHKC180-004-S1	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKC180-004-S2	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKC180-004-S3	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKC180-004-S4	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 4 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKC180-005-S1	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,250 Nm
	AFHKC180-005-S2	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,250 Nm
	AFHKC180-005-S3	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,250 Nm
	AFHKC180-005-S4	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 5 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,250 Nm
	AFHKC180-007-S1	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,000 Nm
	AFHKC180-007-S2	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,000 Nm
	AFHKC180-007-S3	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,000 Nm
	AFHKC180-007-S4	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 7 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,000 Nm
	AFHKC180-008-S1	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
	AFHKC180-008-S2	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
	AFHKC180-008-S3	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
	AFHKC180-008-S4	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 8 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
	AFHKC180-010-S1	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,290 Nm
	AFHKC180-010-S2	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,290 Nm
	AFHKC180-010-S3	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,290 Nm
	AFHKC180-010-S4	Model: AFHKC 2-stage \| Frame: 180 \| Ratio i: 10 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,290 Nm
	AFHKC210-004-S1	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
	AFHKC210-004-S2	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
	AFHKC210-004-S3	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
	AFHKC210-005-S1	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,930 Nm
	AFHKC210-005-S2	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,930 Nm
	AFHKC210-005-S3	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,930 Nm
	AFHKC210-007-S1	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,750 Nm
	AFHKC210-007-S2	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,750 Nm
	AFHKC210-007-S3	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,750 Nm
	AFHKC210-008-S1	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,300 Nm
	AFHKC210-008-S2	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,300 Nm
	AFHKC210-008-S3	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,300 Nm
	AFHKC210-010-S1	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,000 Nm
	AFHKC210-010-S2	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,000 Nm
	AFHKC210-010-S3	Model: AFHKC 2-stage \| Frame: 210 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,000 Nm
	AFHKC240-004-S1	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 4 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,160 Nm
	AFHKC240-004-S2	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 4 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,160 Nm
	AFHKC240-004-S3	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 4 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,160 Nm
	AFHKC240-005-S1	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 5 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,610 Nm
	AFHKC240-005-S2	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 5 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,610 Nm
	AFHKC240-005-S3	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 5 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,610 Nm
	AFHKC240-007-S1	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 7 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,535 Nm
	AFHKC240-007-S2	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 7 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,535 Nm
	AFHKC240-007-S3	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 7 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,535 Nm
	AFHKC240-008-S1	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 8 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,260 Nm
	AFHKC240-008-S2	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 8 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,260 Nm
	AFHKC240-008-S3	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 8 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,260 Nm
	AFHKC240-010-S1	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 10 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,700 Nm
	AFHKC240-010-S2	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 10 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,700 Nm
	AFHKC240-010-S3	Model: AFHKC 2-stage \| Frame: 240 \| Ratio i: 10 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,700 Nm
	AFHK060-012-S1	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-012-S2	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-012-S3	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-012-S4	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 12 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-016-S1	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-016-S2	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-016-S3	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-016-S4	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 16 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-020-S1	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-020-S2	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-020-S3	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-020-S4	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 20 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFHK060-025-S1	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
	AFHK060-025-S2	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
	AFHK060-025-S3	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
	AFHK060-025-S4	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 25 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
	AFHK060-028-S1	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 92 Nm
	AFHK060-028-S2	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 92 Nm
	AFHK060-028-S3	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 92 Nm
	AFHK060-028-S4	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 28 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 92 Nm
	AFHK060-035-S1	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
	AFHK060-035-S2	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
	AFHK060-035-S3	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
	AFHK060-035-S4	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 35 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
	AFHK060-040-S1	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 72 Nm
	AFHK060-040-S2	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 72 Nm
	AFHK060-040-S3	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 72 Nm
	AFHK060-040-S4	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 40 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 72 Nm
	AFHK060-050-S1	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
	AFHK060-050-S2	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
	AFHK060-050-S3	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
	AFHK060-050-S4	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 50 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
	AFHK060-070-S1	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
	AFHK060-070-S2	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
	AFHK060-070-S3	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
	AFHK060-070-S4	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 70 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
	AFHK060-100-S1	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
	AFHK060-100-S2	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
	AFHK060-100-S3	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
	AFHK060-100-S4	Model: AFHK 2-stage \| Frame: 060 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
	AFHK075-012-S1	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-012-S2	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-012-S3	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-012-S4	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 12 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-016-S1	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 225 Nm
	AFHK075-016-S2	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 225 Nm
	AFHK075-016-S3	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 225 Nm
	AFHK075-016-S4	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 16 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 225 Nm
	AFHK075-020-S1	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 230 Nm
	AFHK075-020-S2	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 230 Nm
	AFHK075-020-S3	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 230 Nm
	AFHK075-020-S4	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 20 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 230 Nm
	AFHK075-025-S1	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
	AFHK075-025-S2	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
	AFHK075-025-S3	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
	AFHK075-025-S4	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 25 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
	AFHK075-028-S1	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-028-S2	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-028-S3	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-028-S4	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 28 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-035-S1	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-035-S2	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-035-S3	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-035-S4	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 35 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-040-S1	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHK075-040-S2	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHK075-040-S3	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHK075-040-S4	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 40 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHK075-050-S1	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-050-S2	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-050-S3	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-050-S4	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 50 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHK075-070-S1	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHK075-070-S2	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHK075-070-S3	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHK075-070-S4	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 70 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHK075-100-S1	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
	AFHK075-100-S2	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
	AFHK075-100-S3	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
	AFHK075-100-S4	Model: AFHK 2-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
	AFHK100-012-S1	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHK100-012-S2	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHK100-012-S3	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHK100-012-S4	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 12 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHK100-016-S1	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
	AFHK100-016-S2	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
	AFHK100-016-S3	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
	AFHK100-016-S4	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 16 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
	AFHK100-020-S1	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
	AFHK100-020-S2	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
	AFHK100-020-S3	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
	AFHK100-020-S4	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 20 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
	AFHK100-025-S1	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AFHK100-025-S2	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AFHK100-025-S3	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AFHK100-025-S4	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 25 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AFHK100-028-S1	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHK100-028-S2	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHK100-028-S3	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHK100-028-S4	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 28 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHK100-035-S1	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 355 Nm
	AFHK100-035-S2	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 355 Nm
	AFHK100-035-S3	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 355 Nm
	AFHK100-035-S4	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 35 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 355 Nm
	AFHK100-040-S1	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHK100-040-S2	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHK100-040-S3	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHK100-040-S4	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 40 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHK100-050-S1	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 360 Nm
	AFHK100-050-S2	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 360 Nm
	AFHK100-050-S3	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 360 Nm
	AFHK100-050-S4	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 50 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 360 Nm
	AFHK100-070-S1	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 295 Nm
	AFHK100-070-S2	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 295 Nm
	AFHK100-070-S3	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 295 Nm
	AFHK100-070-S4	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 70 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 295 Nm
	AFHK100-100-S1	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHK100-100-S2	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHK100-100-S3	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHK100-100-S4	Model: AFHK 2-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHK140-012-S1	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 805 Nm
	AFHK140-012-S2	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 805 Nm
	AFHK140-012-S3	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 805 Nm
	AFHK140-012-S4	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 12 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 805 Nm
	AFHK140-016-S1	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 815 Nm
	AFHK140-016-S2	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 815 Nm
	AFHK140-016-S3	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 815 Nm
	AFHK140-016-S4	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 16 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 815 Nm
	AFHK140-020-S1	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 820 Nm
	AFHK140-020-S2	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 820 Nm
	AFHK140-020-S3	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 820 Nm
	AFHK140-020-S4	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 20 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 820 Nm
	AFHK140-025-S1	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 710 Nm
	AFHK140-025-S2	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 710 Nm
	AFHK140-025-S3	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 710 Nm
	AFHK140-025-S4	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 25 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 710 Nm
	AFHK140-028-S1	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHK140-028-S2	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHK140-028-S3	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHK140-028-S4	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 28 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHK140-035-S1	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 715 Nm
	AFHK140-035-S2	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 715 Nm
	AFHK140-035-S3	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 715 Nm
	AFHK140-035-S4	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 35 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 715 Nm
	AFHK140-040-S1	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
	AFHK140-040-S2	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
	AFHK140-040-S3	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
	AFHK140-040-S4	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 40 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
	AFHK140-050-S1	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 725 Nm
	AFHK140-050-S2	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 725 Nm
	AFHK140-050-S3	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 725 Nm
	AFHK140-050-S4	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 50 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 725 Nm
	AFHK140-070-S1	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 600 Nm
	AFHK140-070-S2	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 600 Nm
	AFHK140-070-S3	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 600 Nm
	AFHK140-070-S4	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 70 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 600 Nm
	AFHK140-100-S1	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AFHK140-100-S2	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AFHK140-100-S3	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AFHK140-100-S4	Model: AFHK 2-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AFHK180-012-S1	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,495 Nm
	AFHK180-012-S2	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,495 Nm
	AFHK180-012-S3	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,495 Nm
	AFHK180-012-S4	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 12 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,495 Nm
	AFHK180-016-S1	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,510 Nm
	AFHK180-016-S2	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,510 Nm
	AFHK180-016-S3	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,510 Nm
	AFHK180-016-S4	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 16 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,510 Nm
	AFHK180-020-S1	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,520 Nm
	AFHK180-020-S2	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,520 Nm
	AFHK180-020-S3	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,520 Nm
	AFHK180-020-S4	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 20 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,520 Nm
	AFHK180-025-S1	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
	AFHK180-025-S2	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
	AFHK180-025-S3	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
	AFHK180-025-S4	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 25 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
	AFHK180-028-S1	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,535 Nm
	AFHK180-028-S2	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,535 Nm
	AFHK180-028-S3	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,535 Nm
	AFHK180-028-S4	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 28 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,535 Nm
	AFHK180-035-S1	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,330 Nm
	AFHK180-035-S2	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,330 Nm
	AFHK180-035-S3	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,330 Nm
	AFHK180-035-S4	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 35 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,330 Nm
	AFHK180-040-S1	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHK180-040-S2	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHK180-040-S3	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHK180-040-S4	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 40 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHK180-050-S1	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,345 Nm
	AFHK180-050-S2	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,345 Nm
	AFHK180-050-S3	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,345 Nm
	AFHK180-050-S4	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 50 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,345 Nm
	AFHK180-070-S1	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,130 Nm
	AFHK180-070-S2	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,130 Nm
	AFHK180-070-S3	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,130 Nm
	AFHK180-070-S4	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 70 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,130 Nm
	AFHK180-100-S1	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 655 Nm
	AFHK180-100-S2	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 655 Nm
	AFHK180-100-S3	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 655 Nm
	AFHK180-100-S4	Model: AFHK 2-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 655 Nm
	AFHK210-012-S1	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHK210-012-S2	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHK210-012-S3	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHK210-016-S1	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHK210-016-S2	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHK210-016-S3	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHK210-020-S1	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,780 Nm
	AFHK210-020-S2	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,780 Nm
	AFHK210-020-S3	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,780 Nm
	AFHK210-025-S1	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,775 Nm
	AFHK210-025-S2	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,775 Nm
	AFHK210-025-S3	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,775 Nm
	AFHK210-028-S1	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AFHK210-028-S2	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AFHK210-028-S3	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AFHK210-035-S1	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
	AFHK210-035-S2	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
	AFHK210-035-S3	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
	AFHK210-040-S1	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHK210-040-S2	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHK210-040-S3	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHK210-050-S1	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
	AFHK210-050-S2	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
	AFHK210-050-S3	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
	AFHK210-070-S1	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,710 Nm
	AFHK210-070-S2	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,710 Nm
	AFHK210-070-S3	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,710 Nm
	AFHK210-100-S1	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,005 Nm
	AFHK210-100-S2	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,005 Nm
	AFHK210-100-S3	Model: AFHK 2-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,005 Nm
	AFHK240-012-S1	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 12 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHK240-012-S2	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 12 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHK240-012-S3	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 12 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHK240-016-S1	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 16 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHK240-016-S2	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 16 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHK240-016-S3	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 16 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHK240-020-S1	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 20 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,710 Nm
	AFHK240-020-S2	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 20 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,710 Nm
	AFHK240-020-S3	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 20 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,710 Nm
	AFHK240-025-S1	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 25 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,735 Nm
	AFHK240-025-S2	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 25 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,735 Nm
	AFHK240-025-S3	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 25 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,735 Nm
	AFHK240-028-S1	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 28 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHK240-028-S2	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 28 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHK240-028-S3	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 28 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHK240-035-S1	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 35 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
	AFHK240-035-S2	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 35 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
	AFHK240-035-S3	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 35 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
	AFHK240-040-S1	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 40 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
	AFHK240-040-S2	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 40 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
	AFHK240-040-S3	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 40 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
	AFHK240-050-S1	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 50 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHK240-050-S2	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 50 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHK240-050-S3	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 50 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHK240-070-S1	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 70 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,730 Nm
	AFHK240-070-S2	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 70 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,730 Nm
	AFHK240-070-S3	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 70 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,730 Nm
	AFHK240-100-S1	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,685 Nm
	AFHK240-100-S2	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,685 Nm
	AFHK240-100-S3	Model: AFHK 2-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,685 Nm
	AFHKB075-064-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-064-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-064-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-064-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 64 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-084-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 84 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-084-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 84 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-084-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 84 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-084-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 84 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-100-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-100-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-100-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-100-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-125-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-125-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-125-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-125-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 125 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-140-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-140-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-140-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-140-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 140 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-175-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-175-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-175-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-175-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 175 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-200-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-200-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-200-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-200-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 200 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-250-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-250-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-250-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-250-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 250 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AFHKB075-280-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-280-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-280-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-280-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 280 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-350-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 210 Nm
	AFHKB075-350-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 210 Nm
	AFHKB075-350-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 210 Nm
	AFHKB075-350-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 350 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 210 Nm
	AFHKB075-400-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHKB075-400-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHKB075-400-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHKB075-400-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 400 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHKB075-500-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-500-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-500-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-500-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 500 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AFHKB075-700-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHKB075-700-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHKB075-700-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHKB075-700-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 700 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AFHKB075-1000-S1	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 55 Nm
	AFHKB075-1000-S2	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 55 Nm
	AFHKB075-1000-S3	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 55 Nm
	AFHKB075-1000-S4	Model: AFHKB 3-stage \| Frame: 075 \| Ratio i: 1,000 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 55 Nm
	AFHKB100-064-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 415 Nm
	AFHKB100-064-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 415 Nm
	AFHKB100-064-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 415 Nm
	AFHKB100-064-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 64 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 415 Nm
	AFHKB100-084-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 84 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
	AFHKB100-084-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 84 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
	AFHKB100-084-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 84 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
	AFHKB100-084-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 84 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
	AFHKB100-100-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
	AFHKB100-100-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
	AFHKB100-100-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
	AFHKB100-100-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
	AFHKB100-125-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
	AFHKB100-125-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
	AFHKB100-125-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
	AFHKB100-125-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 125 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
	AFHKB100-140-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 425 Nm
	AFHKB100-140-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 425 Nm
	AFHKB100-140-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 425 Nm
	AFHKB100-140-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 140 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 425 Nm
	AFHKB100-175-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
	AFHKB100-175-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
	AFHKB100-175-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
	AFHKB100-175-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 175 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
	AFHKB100-200-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 430 Nm
	AFHKB100-200-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 430 Nm
	AFHKB100-200-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 430 Nm
	AFHKB100-200-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 200 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 430 Nm
	AFHKB100-250-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 370 Nm
	AFHKB100-250-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 370 Nm
	AFHKB100-250-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 370 Nm
	AFHKB100-250-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 250 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 370 Nm
	AFHKB100-280-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHKB100-280-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHKB100-280-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHKB100-280-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 280 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AFHKB100-350-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 375 Nm
	AFHKB100-350-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 375 Nm
	AFHKB100-350-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 375 Nm
	AFHKB100-350-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 350 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 375 Nm
	AFHKB100-400-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHKB100-400-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHKB100-400-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHKB100-400-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 400 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AFHKB100-500-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKB100-500-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKB100-500-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKB100-500-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 500 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKB100-700-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 325 Nm
	AFHKB100-700-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 325 Nm
	AFHKB100-700-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 325 Nm
	AFHKB100-700-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 700 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 325 Nm
	AFHKB100-1000-S1	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHKB100-1000-S2	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHKB100-1000-S3	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHKB100-1000-S4	Model: AFHKB 3-stage \| Frame: 100 \| Ratio i: 1,000 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AFHKB140-064-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 840 Nm
	AFHKB140-064-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 840 Nm
	AFHKB140-064-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 840 Nm
	AFHKB140-064-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 64 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 840 Nm
	AFHKB140-084-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 84 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-084-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 84 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-084-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 84 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-084-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 84 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-100-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-100-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-100-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-100-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-125-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 730 Nm
	AFHKB140-125-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 730 Nm
	AFHKB140-125-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 730 Nm
	AFHKB140-125-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 125 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 730 Nm
	AFHKB140-140-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-140-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-140-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-140-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 140 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-175-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 740 Nm
	AFHKB140-175-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 740 Nm
	AFHKB140-175-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 740 Nm
	AFHKB140-175-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 175 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 740 Nm
	AFHKB140-200-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-200-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-200-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-200-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 200 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AFHKB140-250-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 745 Nm
	AFHKB140-250-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 745 Nm
	AFHKB140-250-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 745 Nm
	AFHKB140-250-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 250 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 745 Nm
	AFHKB140-280-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHKB140-280-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHKB140-280-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHKB140-280-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 280 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AFHKB140-350-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 755 Nm
	AFHKB140-350-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 755 Nm
	AFHKB140-350-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 755 Nm
	AFHKB140-350-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 350 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 755 Nm
	AFHKB140-400-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
	AFHKB140-400-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
	AFHKB140-400-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
	AFHKB140-400-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 400 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
	AFHKB140-500-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 760 Nm
	AFHKB140-500-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 760 Nm
	AFHKB140-500-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 760 Nm
	AFHKB140-500-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 500 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 760 Nm
	AFHKB140-700-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
	AFHKB140-700-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
	AFHKB140-700-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
	AFHKB140-700-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 700 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
	AFHKB140-1000-S1	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKB140-1000-S2	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKB140-1000-S3	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKB140-1000-S4	Model: AFHKB 3-stage \| Frame: 140 \| Ratio i: 1,000 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AFHKB180-064-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,545 Nm
	AFHKB180-064-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,545 Nm
	AFHKB180-064-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,545 Nm
	AFHKB180-064-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 64 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,545 Nm
	AFHKB180-084-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 84 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,555 Nm
	AFHKB180-084-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 84 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,555 Nm
	AFHKB180-084-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 84 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,555 Nm
	AFHKB180-084-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 84 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,555 Nm
	AFHKB180-100-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,565 Nm
	AFHKB180-100-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,565 Nm
	AFHKB180-100-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,565 Nm
	AFHKB180-100-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 100 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,565 Nm
	AFHKB180-125-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,355 Nm
	AFHKB180-125-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,355 Nm
	AFHKB180-125-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,355 Nm
	AFHKB180-125-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 125 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,355 Nm
	AFHKB180-140-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,580 Nm
	AFHKB180-140-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,580 Nm
	AFHKB180-140-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,580 Nm
	AFHKB180-140-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 140 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,580 Nm
	AFHKB180-175-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,370 Nm
	AFHKB180-175-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,370 Nm
	AFHKB180-175-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,370 Nm
	AFHKB180-175-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 175 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,370 Nm
	AFHKB180-200-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,590 Nm
	AFHKB180-200-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,590 Nm
	AFHKB180-200-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,590 Nm
	AFHKB180-200-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 200 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,590 Nm
	AFHKB180-250-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,380 Nm
	AFHKB180-250-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,380 Nm
	AFHKB180-250-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,380 Nm
	AFHKB180-250-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 250 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,380 Nm
	AFHKB180-280-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AFHKB180-280-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AFHKB180-280-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AFHKB180-280-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 280 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AFHKB180-350-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,395 Nm
	AFHKB180-350-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,395 Nm
	AFHKB180-350-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,395 Nm
	AFHKB180-350-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 350 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,395 Nm
	AFHKB180-400-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKB180-400-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKB180-400-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKB180-400-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 400 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKB180-500-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,405 Nm
	AFHKB180-500-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,405 Nm
	AFHKB180-500-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,405 Nm
	AFHKB180-500-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 500 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,405 Nm
	AFHKB180-700-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,240 Nm
	AFHKB180-700-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,240 Nm
	AFHKB180-700-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,240 Nm
	AFHKB180-700-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 700 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,240 Nm
	AFHKB180-1000-S1	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 660 Nm
	AFHKB180-1000-S2	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 660 Nm
	AFHKB180-1000-S3	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 660 Nm
	AFHKB180-1000-S4	Model: AFHKB 3-stage \| Frame: 180 \| Ratio i: 1,000 \| Output shaft: S4 hollow (shrink disc) \| Backlash: <=2 arcmin \| Nominal torque T2N: 660 Nm
	AFHKB210-064-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHKB210-064-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHKB210-064-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHKB210-084-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 84 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHKB210-084-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 84 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHKB210-084-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 84 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AFHKB210-100-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,085 Nm
	AFHKB210-100-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,085 Nm
	AFHKB210-100-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,085 Nm
	AFHKB210-125-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,095 Nm
	AFHKB210-125-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,095 Nm
	AFHKB210-125-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,095 Nm
	AFHKB210-140-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,100 Nm
	AFHKB210-140-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,100 Nm
	AFHKB210-140-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,100 Nm
	AFHKB210-175-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,115 Nm
	AFHKB210-175-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,115 Nm
	AFHKB210-175-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,115 Nm
	AFHKB210-200-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
	AFHKB210-200-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
	AFHKB210-200-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
	AFHKB210-250-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
	AFHKB210-250-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
	AFHKB210-250-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
	AFHKB210-280-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AFHKB210-280-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AFHKB210-280-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AFHKB210-350-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
	AFHKB210-350-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
	AFHKB210-350-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
	AFHKB210-400-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKB210-400-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKB210-400-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AFHKB210-500-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
	AFHKB210-500-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
	AFHKB210-500-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
	AFHKB210-700-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,875 Nm
	AFHKB210-700-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,875 Nm
	AFHKB210-700-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,875 Nm
	AFHKB210-1000-S1	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,065 Nm
	AFHKB210-1000-S2	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,065 Nm
	AFHKB210-1000-S3	Model: AFHKB 3-stage \| Frame: 210 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,065 Nm
	AFHKB240-048-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 48 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHKB240-048-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 48 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHKB240-048-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 48 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHKB240-064-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 64 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHKB240-064-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 64 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHKB240-064-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 64 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AFHKB240-100-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,830 Nm
	AFHKB240-100-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,830 Nm
	AFHKB240-100-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,830 Nm
	AFHKB240-125-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,850 Nm
	AFHKB240-125-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,850 Nm
	AFHKB240-125-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,850 Nm
	AFHKB240-140-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,860 Nm
	AFHKB240-140-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,860 Nm
	AFHKB240-140-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,860 Nm
	AFHKB240-175-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,885 Nm
	AFHKB240-175-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,885 Nm
	AFHKB240-175-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,885 Nm
	AFHKB240-200-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
	AFHKB240-200-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
	AFHKB240-200-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
	AFHKB240-250-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,920 Nm
	AFHKB240-250-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,920 Nm
	AFHKB240-250-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,920 Nm
	AFHKB240-280-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 280 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHKB240-280-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 280 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHKB240-280-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 280 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHKB240-350-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
	AFHKB240-350-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
	AFHKB240-350-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
	AFHKB240-400-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
	AFHKB240-400-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
	AFHKB240-400-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
	AFHKB240-500-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHKB240-500-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHKB240-500-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AFHKB240-700-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,005 Nm
	AFHKB240-700-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,005 Nm
	AFHKB240-700-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,005 Nm
	AFHKB240-1000-S1	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,725 Nm
	AFHKB240-1000-S2	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,725 Nm
	AFHKB240-1000-S3	Model: AFHKB 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,725 Nm
	AFHKA240-100-S1	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,490 Nm
	AFHKA240-100-S2	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,490 Nm
	AFHKA240-100-S3	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 100 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,490 Nm
	AFHKA240-125-S1	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
	AFHKA240-125-S2	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
	AFHKA240-125-S3	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 125 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
	AFHKA240-140-S1	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,525 Nm
	AFHKA240-140-S2	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,525 Nm
	AFHKA240-140-S3	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 140 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,525 Nm
	AFHKA240-175-S1	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,930 Nm
	AFHKA240-175-S2	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,930 Nm
	AFHKA240-175-S3	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 175 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,930 Nm
	AFHKA240-200-S1	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,565 Nm
	AFHKA240-200-S2	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,565 Nm
	AFHKA240-200-S3	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 200 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,565 Nm
	AFHKA240-250-S1	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,970 Nm
	AFHKA240-250-S2	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,970 Nm
	AFHKA240-250-S3	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 250 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,970 Nm
	AFHKA240-350-S1	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,000 Nm
	AFHKA240-350-S2	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,000 Nm
	AFHKA240-350-S3	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 350 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,000 Nm
	AFHKA240-500-S1	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,035 Nm
	AFHKA240-500-S2	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,035 Nm
	AFHKA240-500-S3	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,035 Nm
	AFHKA240-700-S1	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,090 Nm
	AFHKA240-700-S2	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,090 Nm
	AFHKA240-700-S3	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 700 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,090 Nm
	AFHKA240-1000-S1	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,770 Nm
	AFHKA240-1000-S2	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,770 Nm
	AFHKA240-1000-S3	Model: AFHKA 3-stage \| Frame: 240 \| Ratio i: 1,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,770 Nm
	AFHK240-1225-S1	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,225 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,070 Nm
	AFHK240-1225-S2	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,225 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,070 Nm
	AFHK240-1225-S3	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,225 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,070 Nm
	AFHK240-1400-S1	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,400 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,725 Nm
	AFHK240-1400-S2	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,400 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,725 Nm
	AFHK240-1400-S3	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,400 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,725 Nm
	AFHK240-1750-S1	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,750 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,100 Nm
	AFHK240-1750-S2	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,750 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,100 Nm
	AFHK240-1750-S3	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 1,750 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,100 Nm
	AFHK240-2000-S1	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,765 Nm
	AFHK240-2000-S2	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,765 Nm
	AFHK240-2000-S3	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,765 Nm
	AFHK240-2800-S1	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,800 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,165 Nm
	AFHK240-2800-S2	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,800 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,165 Nm
	AFHK240-2800-S3	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 2,800 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,165 Nm
	AFHK240-3500-S1	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 3,500 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,180 Nm
	AFHK240-3500-S2	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 3,500 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,180 Nm
	AFHK240-3500-S3	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 3,500 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,180 Nm
	AFHK240-5000-S1	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 5,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,285 Nm
	AFHK240-5000-S2	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 5,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,285 Nm
	AFHK240-5000-S3	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 5,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,285 Nm
	AFHK240-7000-S1	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 7,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,445 Nm
	AFHK240-7000-S2	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 7,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,445 Nm
	AFHK240-7000-S3	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 7,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,445 Nm
	AFHK240-10000-S1	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 10,000 \| Output shaft: S1 smooth \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
	AFHK240-10000-S2	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 10,000 \| Output shaft: S2 keyed \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
	AFHK240-10000-S3	Model: AFHK 4-stage \| Frame: 240 \| Ratio i: 10,000 \| Output shaft: S3 DIN 5480 spline \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Apex Dynamics AFHK Right-Angle Planetary Gearboxes (AFHK/A/B/C)
