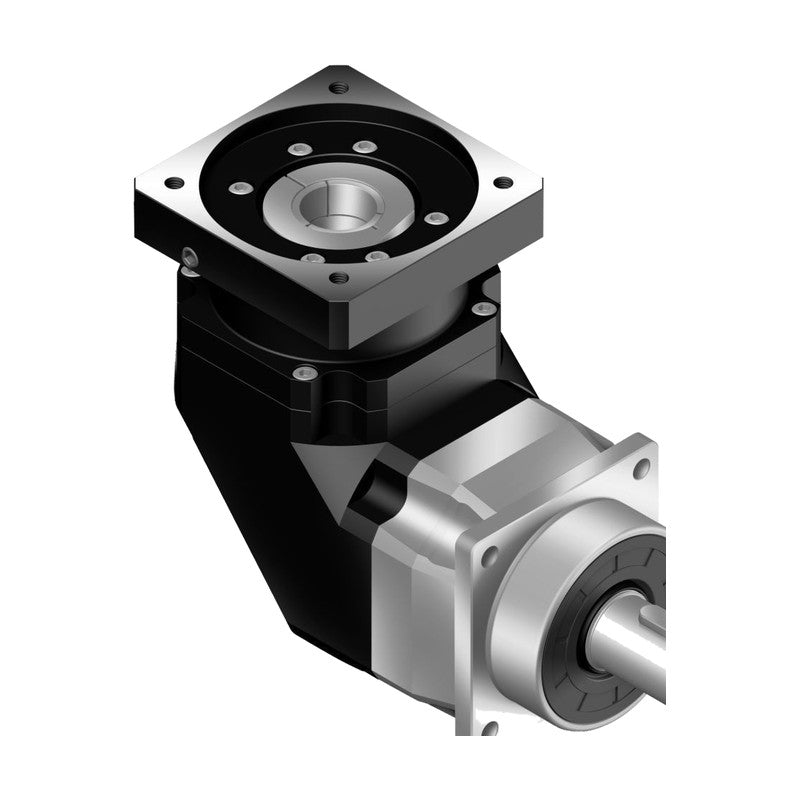

Apex Dynamics AFR Right-Angle Planetary Gearboxes (Frame 180-220)

Apex Dynamics AFR Right-Angle Planetary Gearboxes (Frame 180-220)

APEX Dynamics AFR series high precision, high speed right-angle planetary gearboxes for servo motors, frame sizes 180 to 220.

Key features

  • Full order code: size - 3-digit ratio - output shaft S1/S2/S3 - backlash P0/P1/P2, then / motor make and model
  • Ordering example AFR075-010-S1-P1 / SIEMENS 1FT6 041-4AF71; motor adapter is specified by motor model, not by code
  • Right-angle version of the AF series; single-stage ratios 3-20 and two-stage ratios 12-200 (per frame table)
  • Micro backlash P0 <=2/4 arcmin, P1 <=4/7 arcmin, P2 <=6/9 arcmin (1-stage/2-stage)
  • Output shafts: S1 smooth, S2 with key, S3 DIN 5480 spline (S3 not offered on AFR042)
  • IP67 protection, lubricated for life, any mounting position, emergency stop torque 3x nominal

Specifications

Gearbox type Right-angle planetary (bevel stage)
Efficiency 1-stage >=95%, 2-stage >=92%
Max. acceleration torque T2B 60% of emergency stop torque T2NOT
Emergency stop torque T2NOT 3x nominal output torque
Protection IP67
Operating temperature -10 to +90 C
Lubrication Lubricant, lubricated for life
Mounting position All directions
Motor input Specify motor make and model when ordering
Nominal input speed n1N 3,000 rpm (180), 2,000 rpm (220)
Torsional rigidity 145-225 Nm/arcmin
Source APEX Dynamics AF/AFR catalog, p. 2, 7-12
AFR180-003-S1-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AFR180-003-S1-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AFR180-003-S1-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AFR180-003-S2-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AFR180-003-S2-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AFR180-003-S2-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AFR180-003-S3-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AFR180-003-S3-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AFR180-003-S3-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AFR180-004-S1-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
AFR180-004-S1-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
AFR180-004-S1-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
AFR180-004-S2-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
AFR180-004-S2-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
AFR180-004-S2-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
AFR180-004-S3-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
AFR180-004-S3-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
AFR180-004-S3-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
AFR180-005-S1-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-005-S1-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-005-S1-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-005-S2-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-005-S2-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-005-S2-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-005-S3-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-005-S3-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-005-S3-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-006-S1-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-006-S1-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-006-S1-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-006-S2-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-006-S2-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-006-S2-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-006-S3-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-006-S3-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-006-S3-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-007-S1-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-007-S1-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-007-S1-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-007-S2-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-007-S2-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-007-S2-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-007-S3-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-007-S3-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-007-S3-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-008-S1-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-008-S1-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-008-S1-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-008-S2-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-008-S2-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-008-S2-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-008-S3-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-008-S3-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-008-S3-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-009-S1-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-009-S1-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-009-S1-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-009-S2-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-009-S2-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-009-S2-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-009-S3-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-009-S3-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-009-S3-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-010-S1-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-010-S1-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-010-S1-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-010-S2-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-010-S2-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-010-S2-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-010-S3-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-010-S3-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-010-S3-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-012-S1-P0 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-012-S1-P1 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-012-S1-P2 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-012-S2-P0 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-012-S2-P1 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-012-S2-P2 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-012-S3-P0 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-012-S3-P1 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-012-S3-P2 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-014-S1-P0 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-014-S1-P1 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-014-S1-P2 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-014-S2-P0 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-014-S2-P1 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-014-S2-P2 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-014-S3-P0 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-014-S3-P1 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-014-S3-P2 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-016-S1-P0 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-016-S1-P1 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-016-S1-P2 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-016-S2-P0 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-016-S2-P1 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-016-S2-P2 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-016-S3-P0 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-016-S3-P1 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-016-S3-P2 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-020-S1-P0 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-020-S1-P1 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-020-S1-P2 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-020-S2-P0 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-020-S2-P1 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-020-S2-P2 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-020-S3-P0 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-020-S3-P1 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-020-S3-P2 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-025-S1-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-025-S1-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-025-S1-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-025-S2-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-025-S2-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-025-S2-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-025-S3-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-025-S3-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-025-S3-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-028-S1-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-028-S1-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-028-S1-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-028-S2-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-028-S2-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-028-S2-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-028-S3-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-028-S3-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-028-S3-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-030-S1-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-030-S1-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-030-S1-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-030-S2-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-030-S2-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-030-S2-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-030-S3-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-030-S3-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-030-S3-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-032-S1-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-032-S1-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-032-S1-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-032-S2-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-032-S2-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-032-S2-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-032-S3-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-032-S3-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-032-S3-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-035-S1-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-035-S1-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-035-S1-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-035-S2-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-035-S2-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-035-S2-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-035-S3-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-035-S3-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-035-S3-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-040-S1-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-040-S1-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-040-S1-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-040-S2-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-040-S2-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-040-S2-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-040-S3-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-040-S3-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-040-S3-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-045-S1-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-045-S1-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-045-S1-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-045-S2-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-045-S2-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-045-S2-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-045-S3-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-045-S3-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-045-S3-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-048-S1-P0 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-048-S1-P1 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-048-S1-P2 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-048-S2-P0 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-048-S2-P1 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-048-S2-P2 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-048-S3-P0 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-048-S3-P1 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-048-S3-P2 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-050-S1-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-050-S1-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-050-S1-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-050-S2-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-050-S2-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-050-S2-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-050-S3-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-050-S3-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-050-S3-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-060-S1-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-060-S1-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-060-S1-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-060-S2-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-060-S2-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-060-S2-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-060-S3-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-060-S3-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-060-S3-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-064-S1-P0 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-064-S1-P1 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-064-S1-P2 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-064-S2-P0 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-064-S2-P1 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-064-S2-P2 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-064-S3-P0 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-064-S3-P1 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-064-S3-P2 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-070-S1-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-070-S1-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-070-S1-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-070-S2-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-070-S2-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-070-S2-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-070-S3-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-070-S3-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-070-S3-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-080-S1-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-080-S1-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-080-S1-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-080-S2-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-080-S2-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-080-S2-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-080-S3-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-080-S3-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-080-S3-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-090-S1-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-090-S1-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-090-S1-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-090-S2-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-090-S2-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-090-S2-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-090-S3-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-090-S3-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-090-S3-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-100-S1-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-100-S1-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-100-S1-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-100-S2-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-100-S2-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-100-S2-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-100-S3-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-100-S3-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-100-S3-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-120-S1-P0 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-120-S1-P1 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-120-S1-P2 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-120-S2-P0 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-120-S2-P1 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-120-S2-P2 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-120-S3-P0 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-120-S3-P1 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-120-S3-P2 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-140-S1-P0 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-140-S1-P1 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-140-S1-P2 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-140-S2-P0 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-140-S2-P1 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-140-S2-P2 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-140-S3-P0 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-140-S3-P1 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-140-S3-P2 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-160-S1-P0 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-160-S1-P1 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-160-S1-P2 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-160-S2-P0 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-160-S2-P1 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-160-S2-P2 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-160-S3-P0 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-160-S3-P1 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-160-S3-P2 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-180-S1-P0 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-180-S1-P1 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-180-S1-P2 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-180-S2-P0 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-180-S2-P1 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-180-S2-P2 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-180-S3-P0 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-180-S3-P1 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-180-S3-P2 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-200-S1-P0 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-200-S1-P1 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-200-S1-P2 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-200-S2-P0 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-200-S2-P1 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-200-S2-P2 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-200-S3-P0 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-200-S3-P1 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-200-S3-P2 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR220-003-S1-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AFR220-003-S1-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AFR220-003-S1-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AFR220-003-S2-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AFR220-003-S2-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AFR220-003-S2-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AFR220-003-S3-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AFR220-003-S3-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AFR220-003-S3-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AFR220-004-S1-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
AFR220-004-S1-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
AFR220-004-S1-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
AFR220-004-S2-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
AFR220-004-S2-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
AFR220-004-S2-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
AFR220-004-S3-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
AFR220-004-S3-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
AFR220-004-S3-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
AFR220-005-S1-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-005-S1-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-005-S1-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-005-S2-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-005-S2-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-005-S2-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-005-S3-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-005-S3-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-005-S3-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-006-S1-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-006-S1-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-006-S1-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-006-S2-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-006-S2-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-006-S2-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-006-S3-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-006-S3-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-006-S3-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-007-S1-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-007-S1-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-007-S1-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-007-S2-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-007-S2-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-007-S2-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-007-S3-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-007-S3-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-007-S3-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-008-S1-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-008-S1-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-008-S1-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-008-S2-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-008-S2-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-008-S2-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-008-S3-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-008-S3-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-008-S3-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-009-S1-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-009-S1-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-009-S1-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-009-S2-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-009-S2-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-009-S2-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-009-S3-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-009-S3-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-009-S3-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-010-S1-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-010-S1-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-010-S1-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-010-S2-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-010-S2-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-010-S2-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-010-S3-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-010-S3-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-010-S3-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-012-S1-P0 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-012-S1-P1 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-012-S1-P2 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-012-S2-P0 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-012-S2-P1 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-012-S2-P2 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-012-S3-P0 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-012-S3-P1 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-012-S3-P2 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-014-S1-P0 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-014-S1-P1 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-014-S1-P2 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-014-S2-P0 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-014-S2-P1 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-014-S2-P2 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-014-S3-P0 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-014-S3-P1 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-014-S3-P2 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-016-S1-P0 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-016-S1-P1 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-016-S1-P2 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-016-S2-P0 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-016-S2-P1 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-016-S2-P2 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-016-S3-P0 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-016-S3-P1 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-016-S3-P2 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-020-S1-P0 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-020-S1-P1 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-020-S1-P2 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-020-S2-P0 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-020-S2-P1 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-020-S2-P2 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-020-S3-P0 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-020-S3-P1 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-020-S3-P2 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-025-S1-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-025-S1-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-025-S1-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-025-S2-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-025-S2-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-025-S2-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-025-S3-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-025-S3-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-025-S3-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-028-S1-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-028-S1-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-028-S1-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-028-S2-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-028-S2-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-028-S2-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-028-S3-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-028-S3-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-028-S3-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-030-S1-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-030-S1-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-030-S1-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-030-S2-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-030-S2-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-030-S2-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-030-S3-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-030-S3-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-030-S3-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-032-S1-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-032-S1-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-032-S1-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-032-S2-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-032-S2-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-032-S2-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-032-S3-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-032-S3-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-032-S3-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-035-S1-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-035-S1-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-035-S1-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-035-S2-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-035-S2-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-035-S2-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-035-S3-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-035-S3-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-035-S3-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-040-S1-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-040-S1-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-040-S1-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-040-S2-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-040-S2-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-040-S2-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-040-S3-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-040-S3-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-040-S3-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-045-S1-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-045-S1-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-045-S1-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-045-S2-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-045-S2-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-045-S2-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-045-S3-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-045-S3-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-045-S3-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-048-S1-P0 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-048-S1-P1 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-048-S1-P2 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-048-S2-P0 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-048-S2-P1 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-048-S2-P2 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-048-S3-P0 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-048-S3-P1 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-048-S3-P2 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-050-S1-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-050-S1-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-050-S1-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-050-S2-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-050-S2-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-050-S2-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-050-S3-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-050-S3-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-050-S3-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-060-S1-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-060-S1-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-060-S1-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-060-S2-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-060-S2-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-060-S2-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-060-S3-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-060-S3-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-060-S3-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-064-S1-P0 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-064-S1-P1 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-064-S1-P2 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-064-S2-P0 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-064-S2-P1 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-064-S2-P2 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-064-S3-P0 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-064-S3-P1 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-064-S3-P2 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-070-S1-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-070-S1-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-070-S1-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-070-S2-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-070-S2-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-070-S2-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-070-S3-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-070-S3-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-070-S3-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-080-S1-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-080-S1-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-080-S1-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-080-S2-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-080-S2-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-080-S2-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-080-S3-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-080-S3-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-080-S3-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-090-S1-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-090-S1-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-090-S1-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-090-S2-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-090-S2-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-090-S2-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-090-S3-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-090-S3-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-090-S3-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-100-S1-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-100-S1-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-100-S1-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-100-S2-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-100-S2-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-100-S2-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-100-S3-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-100-S3-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-100-S3-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-120-S1-P0 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-120-S1-P1 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-120-S1-P2 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-120-S2-P0 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-120-S2-P1 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-120-S2-P2 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-120-S3-P0 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-120-S3-P1 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-120-S3-P2 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-140-S1-P0 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-140-S1-P1 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-140-S1-P2 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-140-S2-P0 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-140-S2-P1 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-140-S2-P2 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-140-S3-P0 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-140-S3-P1 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-140-S3-P2 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-160-S1-P0 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-160-S1-P1 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-160-S1-P2 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-160-S2-P0 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-160-S2-P1 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-160-S2-P2 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-160-S3-P0 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-160-S3-P1 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-160-S3-P2 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-180-S1-P0 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-180-S1-P1 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-180-S1-P2 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-180-S2-P0 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-180-S2-P1 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-180-S2-P2 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-180-S3-P0 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-180-S3-P1 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-180-S3-P2 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-200-S1-P0 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-200-S1-P1 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-200-S1-P2 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-200-S2-P0 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-200-S2-P1 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-200-S2-P2 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-200-S3-P0 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-200-S3-P1 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-200-S3-P2 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
Planetary GearboxesApex Dynamics
576 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics AFR Right-Angle Planetary Gearboxes (Frame 180-220)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (576)

AFR180-003-S1-P0, AFR180-003-S1-P1, AFR180-003-S1-P2, AFR180-003-S2-P0, AFR180-003-S2-P1, AFR180-003-S2-P2, AFR180-003-S3-P0, AFR180-003-S3-P1, AFR180-003-S3-P2, AFR180-004-S1-P0 + 566 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AFR180-003-S1-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AFR180-003-S1-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AFR180-003-S1-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AFR180-003-S2-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AFR180-003-S2-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AFR180-003-S2-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AFR180-003-S3-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AFR180-003-S3-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AFR180-003-S3-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AFR180-004-S1-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
AFR180-004-S1-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
AFR180-004-S1-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
AFR180-004-S2-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
AFR180-004-S2-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
AFR180-004-S2-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
AFR180-004-S3-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
AFR180-004-S3-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
AFR180-004-S3-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
AFR180-005-S1-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-005-S1-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-005-S1-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-005-S2-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-005-S2-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-005-S2-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-005-S3-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-005-S3-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-005-S3-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-006-S1-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-006-S1-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-006-S1-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-006-S2-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-006-S2-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-006-S2-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-006-S3-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-006-S3-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-006-S3-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-007-S1-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-007-S1-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-007-S1-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-007-S2-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-007-S2-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-007-S2-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-007-S3-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-007-S3-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-007-S3-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-008-S1-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-008-S1-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-008-S1-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-008-S2-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-008-S2-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-008-S2-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-008-S3-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-008-S3-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-008-S3-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-009-S1-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-009-S1-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-009-S1-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-009-S2-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-009-S2-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-009-S2-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-009-S3-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-009-S3-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-009-S3-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-010-S1-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-010-S1-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-010-S1-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-010-S2-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-010-S2-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-010-S2-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-010-S3-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-010-S3-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-010-S3-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-012-S1-P0Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-012-S1-P1Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-012-S1-P2Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-012-S2-P0Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-012-S2-P1Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-012-S2-P2Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-012-S3-P0Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-012-S3-P1Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-012-S3-P2Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-014-S1-P0Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-014-S1-P1Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-014-S1-P2Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-014-S2-P0Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-014-S2-P1Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-014-S2-P2Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-014-S3-P0Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-014-S3-P1Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-014-S3-P2Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-016-S1-P0Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-016-S1-P1Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-016-S1-P2Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-016-S2-P0Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-016-S2-P1Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-016-S2-P2Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-016-S3-P0Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-016-S3-P1Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-016-S3-P2Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-020-S1-P0Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-020-S1-P1Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-020-S1-P2Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-020-S2-P0Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-020-S2-P1Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-020-S2-P2Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-020-S3-P0Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-020-S3-P1Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-020-S3-P2Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-025-S1-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-025-S1-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-025-S1-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-025-S2-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-025-S2-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-025-S2-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-025-S3-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-025-S3-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-025-S3-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-028-S1-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-028-S1-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-028-S1-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-028-S2-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-028-S2-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-028-S2-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-028-S3-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-028-S3-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-028-S3-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-030-S1-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-030-S1-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-030-S1-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-030-S2-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-030-S2-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-030-S2-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-030-S3-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-030-S3-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-030-S3-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-032-S1-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-032-S1-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-032-S1-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-032-S2-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-032-S2-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-032-S2-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-032-S3-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-032-S3-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-032-S3-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-035-S1-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-035-S1-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-035-S1-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-035-S2-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-035-S2-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-035-S2-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-035-S3-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-035-S3-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-035-S3-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-040-S1-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-040-S1-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-040-S1-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-040-S2-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-040-S2-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-040-S2-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-040-S3-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-040-S3-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-040-S3-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-045-S1-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-045-S1-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-045-S1-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-045-S2-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-045-S2-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-045-S2-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-045-S3-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-045-S3-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-045-S3-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-048-S1-P0Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-048-S1-P1Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-048-S1-P2Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-048-S2-P0Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-048-S2-P1Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-048-S2-P2Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-048-S3-P0Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-048-S3-P1Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-048-S3-P2Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-050-S1-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-050-S1-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-050-S1-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-050-S2-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-050-S2-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-050-S2-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-050-S3-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-050-S3-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-050-S3-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-060-S1-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-060-S1-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-060-S1-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-060-S2-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-060-S2-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-060-S2-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-060-S3-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-060-S3-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-060-S3-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-064-S1-P0Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-064-S1-P1Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-064-S1-P2Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-064-S2-P0Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-064-S2-P1Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-064-S2-P2Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-064-S3-P0Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-064-S3-P1Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-064-S3-P2Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-070-S1-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-070-S1-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-070-S1-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-070-S2-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-070-S2-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-070-S2-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-070-S3-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-070-S3-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-070-S3-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-080-S1-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-080-S1-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-080-S1-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-080-S2-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-080-S2-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-080-S2-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-080-S3-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-080-S3-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-080-S3-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-090-S1-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-090-S1-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-090-S1-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-090-S2-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-090-S2-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-090-S2-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-090-S3-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-090-S3-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-090-S3-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-100-S1-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-100-S1-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-100-S1-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AFR180-100-S2-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-100-S2-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-100-S2-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AFR180-100-S3-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-100-S3-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-100-S3-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AFR180-120-S1-P0Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-120-S1-P1Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-120-S1-P2Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-120-S2-P0Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-120-S2-P1Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-120-S2-P2Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-120-S3-P0Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-120-S3-P1Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-120-S3-P2Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-140-S1-P0Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-140-S1-P1Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-140-S1-P2Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AFR180-140-S2-P0Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-140-S2-P1Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-140-S2-P2Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AFR180-140-S3-P0Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-140-S3-P1Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-140-S3-P2Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AFR180-160-S1-P0Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-160-S1-P1Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-160-S1-P2Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AFR180-160-S2-P0Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-160-S2-P1Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-160-S2-P2Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AFR180-160-S3-P0Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-160-S3-P1Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-160-S3-P2Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AFR180-180-S1-P0Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-180-S1-P1Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-180-S1-P2Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-180-S2-P0Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-180-S2-P1Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-180-S2-P2Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-180-S3-P0Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-180-S3-P1Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-180-S3-P2Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-200-S1-P0Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-200-S1-P1Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-200-S1-P2Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AFR180-200-S2-P0Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-200-S2-P1Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-200-S2-P2Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AFR180-200-S3-P0Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-200-S3-P1Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR180-200-S3-P2Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AFR220-003-S1-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AFR220-003-S1-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AFR220-003-S1-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AFR220-003-S2-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AFR220-003-S2-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AFR220-003-S2-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AFR220-003-S3-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AFR220-003-S3-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AFR220-003-S3-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AFR220-004-S1-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
AFR220-004-S1-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
AFR220-004-S1-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
AFR220-004-S2-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
AFR220-004-S2-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
AFR220-004-S2-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
AFR220-004-S3-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
AFR220-004-S3-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
AFR220-004-S3-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
AFR220-005-S1-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-005-S1-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-005-S1-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-005-S2-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-005-S2-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-005-S2-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-005-S3-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-005-S3-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-005-S3-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-006-S1-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-006-S1-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-006-S1-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-006-S2-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-006-S2-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-006-S2-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-006-S3-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-006-S3-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-006-S3-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-007-S1-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-007-S1-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-007-S1-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-007-S2-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-007-S2-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-007-S2-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-007-S3-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-007-S3-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-007-S3-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-008-S1-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-008-S1-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-008-S1-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-008-S2-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-008-S2-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-008-S2-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-008-S3-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-008-S3-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-008-S3-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-009-S1-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-009-S1-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-009-S1-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-009-S2-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-009-S2-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-009-S2-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-009-S3-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-009-S3-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-009-S3-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-010-S1-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-010-S1-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-010-S1-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-010-S2-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-010-S2-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-010-S2-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-010-S3-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-010-S3-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-010-S3-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-012-S1-P0Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-012-S1-P1Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-012-S1-P2Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-012-S2-P0Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-012-S2-P1Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-012-S2-P2Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-012-S3-P0Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-012-S3-P1Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-012-S3-P2Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-014-S1-P0Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-014-S1-P1Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-014-S1-P2Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-014-S2-P0Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-014-S2-P1Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-014-S2-P2Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-014-S3-P0Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-014-S3-P1Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-014-S3-P2Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-016-S1-P0Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-016-S1-P1Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-016-S1-P2Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-016-S2-P0Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-016-S2-P1Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-016-S2-P2Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-016-S3-P0Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-016-S3-P1Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-016-S3-P2Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-020-S1-P0Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-020-S1-P1Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-020-S1-P2Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-020-S2-P0Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-020-S2-P1Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-020-S2-P2Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-020-S3-P0Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-020-S3-P1Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-020-S3-P2Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-025-S1-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-025-S1-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-025-S1-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-025-S2-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-025-S2-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-025-S2-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-025-S3-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-025-S3-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-025-S3-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-028-S1-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-028-S1-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-028-S1-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-028-S2-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-028-S2-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-028-S2-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-028-S3-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-028-S3-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-028-S3-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-030-S1-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-030-S1-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-030-S1-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-030-S2-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-030-S2-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-030-S2-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-030-S3-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-030-S3-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-030-S3-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-032-S1-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-032-S1-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-032-S1-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-032-S2-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-032-S2-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-032-S2-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-032-S3-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-032-S3-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-032-S3-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-035-S1-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-035-S1-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-035-S1-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-035-S2-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-035-S2-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-035-S2-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-035-S3-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-035-S3-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-035-S3-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-040-S1-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-040-S1-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-040-S1-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-040-S2-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-040-S2-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-040-S2-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-040-S3-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-040-S3-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-040-S3-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-045-S1-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-045-S1-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-045-S1-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-045-S2-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-045-S2-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-045-S2-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-045-S3-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-045-S3-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-045-S3-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-048-S1-P0Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-048-S1-P1Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-048-S1-P2Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-048-S2-P0Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-048-S2-P1Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-048-S2-P2Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-048-S3-P0Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-048-S3-P1Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-048-S3-P2Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-050-S1-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-050-S1-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-050-S1-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-050-S2-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-050-S2-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-050-S2-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-050-S3-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-050-S3-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-050-S3-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-060-S1-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-060-S1-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-060-S1-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-060-S2-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-060-S2-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-060-S2-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-060-S3-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-060-S3-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-060-S3-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-064-S1-P0Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-064-S1-P1Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-064-S1-P2Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-064-S2-P0Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-064-S2-P1Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-064-S2-P2Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-064-S3-P0Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-064-S3-P1Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-064-S3-P2Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-070-S1-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-070-S1-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-070-S1-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-070-S2-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-070-S2-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-070-S2-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-070-S3-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-070-S3-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-070-S3-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-080-S1-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-080-S1-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-080-S1-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-080-S2-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-080-S2-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-080-S2-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-080-S3-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-080-S3-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-080-S3-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-090-S1-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-090-S1-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-090-S1-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-090-S2-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-090-S2-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-090-S2-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-090-S3-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-090-S3-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-090-S3-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-100-S1-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-100-S1-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-100-S1-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AFR220-100-S2-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-100-S2-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-100-S2-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AFR220-100-S3-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-100-S3-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-100-S3-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AFR220-120-S1-P0Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-120-S1-P1Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-120-S1-P2Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AFR220-120-S2-P0Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-120-S2-P1Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-120-S2-P2Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AFR220-120-S3-P0Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-120-S3-P1Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-120-S3-P2Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AFR220-140-S1-P0Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-140-S1-P1Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-140-S1-P2Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AFR220-140-S2-P0Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-140-S2-P1Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-140-S2-P2Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AFR220-140-S3-P0Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-140-S3-P1Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-140-S3-P2Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AFR220-160-S1-P0Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-160-S1-P1Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-160-S1-P2Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AFR220-160-S2-P0Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-160-S2-P1Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-160-S2-P2Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AFR220-160-S3-P0Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-160-S3-P1Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-160-S3-P2Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AFR220-180-S1-P0Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-180-S1-P1Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-180-S1-P2Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-180-S2-P0Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-180-S2-P1Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-180-S2-P2Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-180-S3-P0Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-180-S3-P1Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-180-S3-P2Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-200-S1-P0Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-200-S1-P1Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-200-S1-P2Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AFR220-200-S2-P0Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-200-S2-P1Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-200-S2-P2Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AFR220-200-S3-P0Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-200-S3-P1Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AFR220-200-S3-P2Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
