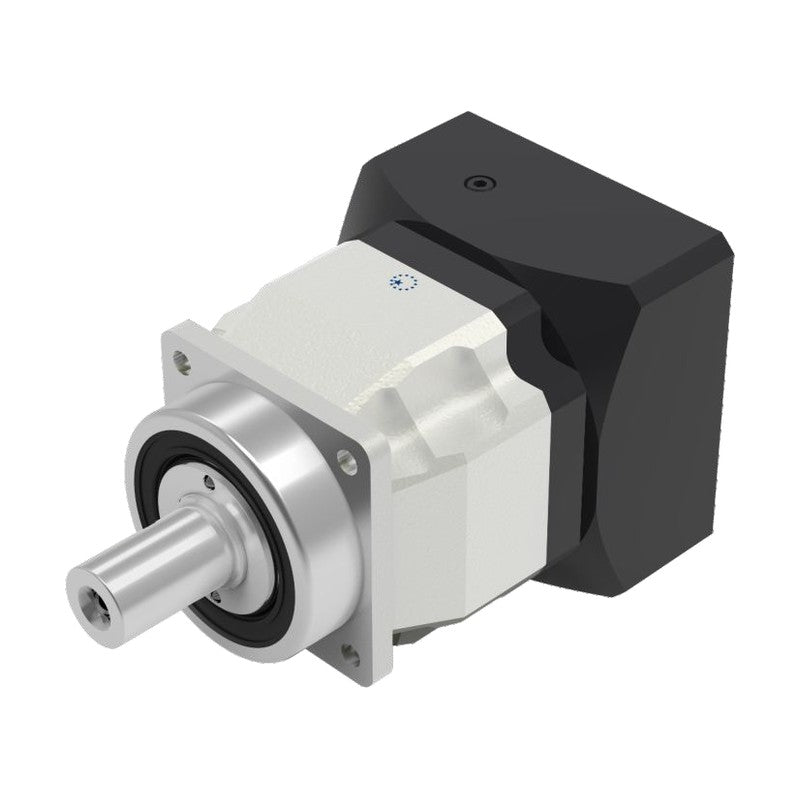

Apex Dynamics AFX Precision Planetary Gearboxes (Frame 100-180)

Apex Dynamics AFX Precision Planetary Gearboxes (Frame 100-180)

APEX Dynamics AFX high-precision helical planetary gearboxes, frame sizes 100, 100A, 140, 140A, 180, for servo motors in continuous-duty automation.

Key features

  • Ordering code: size - ratio - output shaft - backlash / motor, e.g. AFX075-005-S1-P1
  • Output shaft S1 smooth, S2 keyed or S3 DIN 5480 spline (S3 not offered on frame 042)
  • Backlash classes P0 micro, P1 reduced and P2 standard where listed for the size and stage
  • Suffix-A frames (060A-140A) are 2-stage versions with a larger motor input interface
  • High torque, low noise and limited temperature rise; designed for continuous operation

Specifications

Max. input speed n1B 8,000 rpm (100/100A), 6,000 rpm (140-180)
Torsional rigidity 25 (100/100A), 50 (140/140A), 145 (180) Nm/arcmin
Gear type Helical planetary, inline
Efficiency >=97% (1-stage), >=94% (2-stage)
Emergency stop torque T2NOT 3 x nominal output torque
Max. acceleration torque T2B 60% of T2NOT
Protection class IP67
Operating temperature -10 to +90 C
Lubrication Lubricated for life, any mounting position
Motor adapter Specify motor make and model when ordering (code suffix / MOTOR)
Source APEX Dynamics AFX catalog (AFX/AFXR), p. 3-8
AFX100-003-S1-P0 Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S1-P1 Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S1-P2 Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S2-P0 Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S2-P1 Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S2-P2 Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S3-P0 Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S3-P1 Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S3-P2 Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-004-S1-P0 Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S1-P1 Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S1-P2 Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S2-P0 Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S2-P1 Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S2-P2 Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S3-P0 Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S3-P1 Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S3-P2 Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-005-S1-P0 Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S1-P1 Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S1-P2 Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S2-P0 Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S2-P1 Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S2-P2 Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S3-P0 Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S3-P1 Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S3-P2 Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-006-S1-P0 Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S1-P1 Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S1-P2 Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S2-P0 Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S2-P1 Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S2-P2 Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S3-P0 Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S3-P1 Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S3-P2 Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-007-S1-P0 Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S1-P1 Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S1-P2 Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S2-P0 Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S2-P1 Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S2-P2 Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S3-P0 Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S3-P1 Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S3-P2 Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-008-S1-P0 Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S1-P1 Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S1-P2 Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S2-P0 Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S2-P1 Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S2-P2 Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S3-P0 Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S3-P1 Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S3-P2 Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-009-S1-P0 Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S1-P1 Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S1-P2 Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S2-P0 Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S2-P1 Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S2-P2 Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S3-P0 Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S3-P1 Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S3-P2 Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S1-P0 Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S1-P1 Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S1-P2 Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S2-P0 Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S2-P1 Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S2-P2 Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S3-P0 Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S3-P1 Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S3-P2 Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-012-S1-P0 Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S1-P1 Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S1-P2 Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S2-P0 Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S2-P1 Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S2-P2 Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S3-P0 Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S3-P1 Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S3-P2 Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-015-S1-P0 Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S1-P1 Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S1-P2 Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S2-P0 Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S2-P1 Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S2-P2 Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S3-P0 Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S3-P1 Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S3-P2 Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100-016-S1-P0 Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S1-P1 Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S1-P2 Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S2-P0 Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S2-P1 Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S2-P2 Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S3-P0 Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S3-P1 Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S3-P2 Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S1-P0 Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S1-P1 Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S1-P2 Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S2-P0 Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S2-P1 Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S2-P2 Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S3-P0 Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S3-P1 Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S3-P2 Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-025-S1-P0 Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S1-P1 Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S1-P2 Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S2-P0 Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S2-P1 Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S2-P2 Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S3-P0 Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S3-P1 Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S3-P2 Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-028-S1-P0 Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S1-P1 Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S1-P2 Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S2-P0 Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S2-P1 Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S2-P2 Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S3-P0 Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S3-P1 Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S3-P2 Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-030-S1-P0 Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S1-P1 Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S1-P2 Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S2-P0 Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S2-P1 Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S2-P2 Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S3-P0 Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S3-P1 Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S3-P2 Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-032-S1-P0 Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S1-P1 Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S1-P2 Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S2-P0 Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S2-P1 Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S2-P2 Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S3-P0 Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S3-P1 Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S3-P2 Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-035-S1-P0 Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S1-P1 Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S1-P2 Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S2-P0 Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S2-P1 Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S2-P2 Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S3-P0 Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S3-P1 Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S3-P2 Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-040-S1-P0 Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S1-P1 Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S1-P2 Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S2-P0 Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S2-P1 Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S2-P2 Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S3-P0 Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S3-P1 Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S3-P2 Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-045-S1-P0 Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S1-P1 Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S1-P2 Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S2-P0 Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S2-P1 Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S2-P2 Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S3-P0 Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S3-P1 Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S3-P2 Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-050-S1-P0 Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S1-P1 Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S1-P2 Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S2-P0 Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S2-P1 Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S2-P2 Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S3-P0 Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S3-P1 Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S3-P2 Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-060-S1-P0 Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S1-P1 Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S1-P2 Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S2-P0 Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S2-P1 Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S2-P2 Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S3-P0 Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S3-P1 Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S3-P2 Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-070-S1-P0 Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S1-P1 Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S1-P2 Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S2-P0 Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S2-P1 Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S2-P2 Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S3-P0 Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S3-P1 Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S3-P2 Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-080-S1-P0 Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S1-P1 Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S1-P2 Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S2-P0 Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S2-P1 Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S2-P2 Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S3-P0 Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S3-P1 Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S3-P2 Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-090-S1-P0 Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S1-P1 Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S1-P2 Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S2-P0 Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S2-P1 Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S2-P2 Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S3-P0 Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S3-P1 Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S3-P2 Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S1-P0 Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S1-P1 Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S1-P2 Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S2-P0 Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S2-P1 Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S2-P2 Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S3-P0 Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S3-P1 Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S3-P2 Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-012-S1-P0 Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S1-P1 Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S1-P2 Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S2-P0 Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S2-P1 Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S2-P2 Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S3-P0 Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S3-P1 Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S3-P2 Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-015-S1-P0 Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S1-P1 Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S1-P2 Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S2-P0 Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S2-P1 Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S2-P2 Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S3-P0 Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S3-P1 Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S3-P2 Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100A-016-S1-P0 Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S1-P1 Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S1-P2 Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S2-P0 Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S2-P1 Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S2-P2 Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S3-P0 Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S3-P1 Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S3-P2 Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S1-P0 Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S1-P1 Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S1-P2 Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S2-P0 Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S2-P1 Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S2-P2 Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S3-P0 Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S3-P1 Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S3-P2 Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-025-S1-P0 Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S1-P1 Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S1-P2 Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S2-P0 Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S2-P1 Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S2-P2 Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S3-P0 Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S3-P1 Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S3-P2 Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-028-S1-P0 Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S1-P1 Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S1-P2 Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S2-P0 Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S2-P1 Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S2-P2 Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S3-P0 Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S3-P1 Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S3-P2 Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-030-S1-P0 Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S1-P1 Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S1-P2 Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S2-P0 Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S2-P1 Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S2-P2 Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S3-P0 Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S3-P1 Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S3-P2 Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-032-S1-P0 Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S1-P1 Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S1-P2 Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S2-P0 Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S2-P1 Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S2-P2 Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S3-P0 Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S3-P1 Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S3-P2 Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-035-S1-P0 Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S1-P1 Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S1-P2 Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S2-P0 Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S2-P1 Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S2-P2 Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S3-P0 Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S3-P1 Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S3-P2 Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-040-S1-P0 Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S1-P1 Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S1-P2 Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S2-P0 Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S2-P1 Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S2-P2 Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S3-P0 Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S3-P1 Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S3-P2 Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-045-S1-P0 Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S1-P1 Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S1-P2 Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S2-P0 Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S2-P1 Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S2-P2 Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S3-P0 Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S3-P1 Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S3-P2 Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-050-S1-P0 Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S1-P1 Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S1-P2 Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S2-P0 Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S2-P1 Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S2-P2 Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S3-P0 Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S3-P1 Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S3-P2 Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-060-S1-P0 Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S1-P1 Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S1-P2 Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S2-P0 Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S2-P1 Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S2-P2 Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S3-P0 Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S3-P1 Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S3-P2 Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-070-S1-P0 Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S1-P1 Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S1-P2 Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S2-P0 Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S2-P1 Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S2-P2 Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S3-P0 Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S3-P1 Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S3-P2 Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-080-S1-P0 Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S1-P1 Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S1-P2 Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S2-P0 Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S2-P1 Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S2-P2 Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S3-P0 Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S3-P1 Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S3-P2 Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-090-S1-P0 Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S1-P1 Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S1-P2 Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S2-P0 Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S2-P1 Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S2-P2 Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S3-P0 Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S3-P1 Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S3-P2 Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S1-P0 Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S1-P1 Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S1-P2 Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S2-P0 Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S2-P1 Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S2-P2 Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S3-P0 Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S3-P1 Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S3-P2 Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX140-003-S1-P0 Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S1-P1 Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S1-P2 Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S2-P0 Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S2-P1 Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S2-P2 Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S3-P0 Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S3-P1 Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S3-P2 Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-004-S1-P0 Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S1-P1 Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S1-P2 Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S2-P0 Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S2-P1 Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S2-P2 Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S3-P0 Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S3-P1 Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S3-P2 Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-005-S1-P0 Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S1-P1 Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S1-P2 Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S2-P0 Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S2-P1 Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S2-P2 Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S3-P0 Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S3-P1 Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S3-P2 Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-006-S1-P0 Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S1-P1 Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S1-P2 Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S2-P0 Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S2-P1 Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S2-P2 Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S3-P0 Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S3-P1 Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S3-P2 Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-007-S1-P0 Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S1-P1 Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S1-P2 Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S2-P0 Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S2-P1 Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S2-P2 Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S3-P0 Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S3-P1 Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S3-P2 Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-008-S1-P0 Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S1-P1 Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S1-P2 Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S2-P0 Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S2-P1 Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S2-P2 Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S3-P0 Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S3-P1 Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S3-P2 Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-009-S1-P0 Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S1-P1 Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S1-P2 Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S2-P0 Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S2-P1 Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S2-P2 Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S3-P0 Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S3-P1 Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S3-P2 Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S1-P0 Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S1-P1 Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S1-P2 Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S2-P0 Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S2-P1 Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S2-P2 Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S3-P0 Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S3-P1 Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S3-P2 Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-012-S1-P0 Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S1-P1 Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S1-P2 Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S2-P0 Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S2-P1 Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S2-P2 Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S3-P0 Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S3-P1 Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S3-P2 Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-015-S1-P0 Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S1-P1 Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S1-P2 Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S2-P0 Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S2-P1 Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S2-P2 Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S3-P0 Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S3-P1 Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S3-P2 Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140-016-S1-P0 Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S1-P1 Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S1-P2 Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S2-P0 Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S2-P1 Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S2-P2 Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S3-P0 Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S3-P1 Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S3-P2 Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S1-P0 Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S1-P1 Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S1-P2 Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S2-P0 Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S2-P1 Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S2-P2 Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S3-P0 Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S3-P1 Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S3-P2 Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-025-S1-P0 Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S1-P1 Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S1-P2 Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S2-P0 Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S2-P1 Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S2-P2 Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S3-P0 Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S3-P1 Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S3-P2 Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-028-S1-P0 Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S1-P1 Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S1-P2 Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S2-P0 Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S2-P1 Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S2-P2 Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S3-P0 Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S3-P1 Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S3-P2 Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-030-S1-P0 Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S1-P1 Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S1-P2 Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S2-P0 Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S2-P1 Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S2-P2 Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S3-P0 Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S3-P1 Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S3-P2 Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-032-S1-P0 Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S1-P1 Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S1-P2 Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S2-P0 Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S2-P1 Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S2-P2 Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S3-P0 Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S3-P1 Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S3-P2 Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-035-S1-P0 Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S1-P1 Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S1-P2 Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S2-P0 Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S2-P1 Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S2-P2 Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S3-P0 Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S3-P1 Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S3-P2 Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-040-S1-P0 Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S1-P1 Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S1-P2 Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S2-P0 Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S2-P1 Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S2-P2 Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S3-P0 Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S3-P1 Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S3-P2 Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-045-S1-P0 Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S1-P1 Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S1-P2 Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S2-P0 Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S2-P1 Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S2-P2 Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S3-P0 Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S3-P1 Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S3-P2 Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-050-S1-P0 Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S1-P1 Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S1-P2 Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S2-P0 Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S2-P1 Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S2-P2 Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S3-P0 Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S3-P1 Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S3-P2 Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-060-S1-P0 Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S1-P1 Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S1-P2 Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S2-P0 Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S2-P1 Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S2-P2 Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S3-P0 Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S3-P1 Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S3-P2 Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-070-S1-P0 Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S1-P1 Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S1-P2 Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S2-P0 Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S2-P1 Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S2-P2 Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S3-P0 Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S3-P1 Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S3-P2 Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-080-S1-P0 Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S1-P1 Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S1-P2 Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S2-P0 Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S2-P1 Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S2-P2 Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S3-P0 Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S3-P1 Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S3-P2 Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-090-S1-P0 Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S1-P1 Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S1-P2 Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S2-P0 Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S2-P1 Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S2-P2 Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S3-P0 Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S3-P1 Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S3-P2 Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S1-P0 Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S1-P1 Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S1-P2 Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S2-P0 Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S2-P1 Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S2-P2 Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S3-P0 Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S3-P1 Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S3-P2 Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-012-S1-P0 Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S1-P1 Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S1-P2 Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S2-P0 Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S2-P1 Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S2-P2 Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S3-P0 Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S3-P1 Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S3-P2 Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-015-S1-P0 Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S1-P1 Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S1-P2 Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S2-P0 Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S2-P1 Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S2-P2 Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S3-P0 Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S3-P1 Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S3-P2 Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140A-016-S1-P0 Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S1-P1 Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S1-P2 Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S2-P0 Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S2-P1 Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S2-P2 Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S3-P0 Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S3-P1 Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S3-P2 Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S1-P0 Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S1-P1 Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S1-P2 Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S2-P0 Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S2-P1 Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S2-P2 Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S3-P0 Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S3-P1 Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S3-P2 Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-025-S1-P0 Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S1-P1 Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S1-P2 Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S2-P0 Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S2-P1 Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S2-P2 Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S3-P0 Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S3-P1 Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S3-P2 Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-028-S1-P0 Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S1-P1 Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S1-P2 Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S2-P0 Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S2-P1 Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S2-P2 Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S3-P0 Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S3-P1 Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S3-P2 Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-030-S1-P0 Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S1-P1 Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S1-P2 Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S2-P0 Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S2-P1 Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S2-P2 Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S3-P0 Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S3-P1 Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S3-P2 Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-032-S1-P0 Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S1-P1 Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S1-P2 Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S2-P0 Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S2-P1 Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S2-P2 Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S3-P0 Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S3-P1 Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S3-P2 Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-035-S1-P0 Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S1-P1 Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S1-P2 Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S2-P0 Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S2-P1 Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S2-P2 Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S3-P0 Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S3-P1 Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S3-P2 Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-040-S1-P0 Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S1-P1 Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S1-P2 Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S2-P0 Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S2-P1 Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S2-P2 Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S3-P0 Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S3-P1 Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S3-P2 Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-045-S1-P0 Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S1-P1 Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S1-P2 Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S2-P0 Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S2-P1 Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S2-P2 Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S3-P0 Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S3-P1 Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S3-P2 Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-050-S1-P0 Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S1-P1 Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S1-P2 Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S2-P0 Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S2-P1 Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S2-P2 Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S3-P0 Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S3-P1 Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S3-P2 Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-060-S1-P0 Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S1-P1 Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S1-P2 Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S2-P0 Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S2-P1 Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S2-P2 Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S3-P0 Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S3-P1 Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S3-P2 Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-070-S1-P0 Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S1-P1 Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S1-P2 Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S2-P0 Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S2-P1 Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S2-P2 Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S3-P0 Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S3-P1 Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S3-P2 Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-080-S1-P0 Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S1-P1 Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S1-P2 Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S2-P0 Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S2-P1 Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S2-P2 Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S3-P0 Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S3-P1 Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S3-P2 Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-090-S1-P0 Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S1-P1 Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S1-P2 Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S2-P0 Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S2-P1 Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S2-P2 Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S3-P0 Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S3-P1 Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S3-P2 Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S1-P0 Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S1-P1 Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S1-P2 Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S2-P0 Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S2-P1 Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S2-P2 Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S3-P0 Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S3-P1 Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S3-P2 Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX180-003-S1-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S1-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S1-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S2-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S2-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S2-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S3-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S3-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S3-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-004-S1-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S1-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S1-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S2-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S2-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S2-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S3-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S3-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S3-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-005-S1-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S1-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S1-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S2-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S2-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S2-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S3-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S3-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S3-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-006-S1-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S1-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S1-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S2-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S2-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S2-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S3-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S3-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S3-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S1-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S1-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S1-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S2-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S2-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S2-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S3-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S3-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S3-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-008-S1-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S1-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S1-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S2-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S2-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S2-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S3-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S3-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S3-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-009-S1-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S1-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S1-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S2-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S2-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S2-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S3-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S3-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S3-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S1-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S1-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S1-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S2-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S2-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S2-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S3-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S3-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S3-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-012-S1-P0 Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S1-P1 Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S1-P2 Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S2-P0 Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S2-P1 Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S2-P2 Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S3-P0 Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S3-P1 Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S3-P2 Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-015-S1-P0 Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S1-P1 Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S1-P2 Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S2-P0 Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S2-P1 Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S2-P2 Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S3-P0 Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S3-P1 Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S3-P2 Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 588 Nm
AFX180-016-S1-P0 Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S1-P1 Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S1-P2 Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S2-P0 Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S2-P1 Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S2-P2 Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S3-P0 Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S3-P1 Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S3-P2 Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S1-P0 Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S1-P1 Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S1-P2 Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S2-P0 Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S2-P1 Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S2-P2 Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S3-P0 Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S3-P1 Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S3-P2 Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-025-S1-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S1-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S1-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S2-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S2-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S2-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S3-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S3-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S3-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-028-S1-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S1-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S1-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S2-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S2-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S2-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S3-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S3-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S3-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S1-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S1-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S1-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S2-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S2-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S2-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S3-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S3-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S3-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-032-S1-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S1-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S1-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S2-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S2-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S2-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S3-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S3-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S3-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-035-S1-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S1-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S1-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S2-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S2-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S2-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S3-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S3-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S3-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-040-S1-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S1-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S1-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S2-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S2-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S2-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S3-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S3-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S3-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-045-S1-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S1-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S1-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S2-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S2-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S2-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S3-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S3-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S3-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-050-S1-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S1-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S1-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S2-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S2-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S2-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S3-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S3-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S3-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-060-S1-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S1-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S1-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S2-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S2-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S2-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S3-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S3-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S3-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S1-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S1-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S1-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S2-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S2-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S2-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S3-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S3-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S3-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-080-S1-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S1-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S1-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S2-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S2-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S2-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S3-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S3-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S3-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-090-S1-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S1-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S1-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S2-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S2-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S2-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S3-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S3-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S3-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S1-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S1-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S1-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S2-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S2-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S2-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S3-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S3-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S3-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
Planetary GearboxesApex Dynamics
981 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics AFX Precision Planetary Gearboxes (Frame 100-180)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (981)

AFX100-003-S1-P0, AFX100-003-S1-P1, AFX100-003-S1-P2, AFX100-003-S2-P0, AFX100-003-S2-P1, AFX100-003-S2-P2, AFX100-003-S3-P0, AFX100-003-S3-P1, AFX100-003-S3-P2, AFX100-004-S1-P0 + 971 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AFX100-003-S1-P0Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S1-P1Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S1-P2Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S2-P0Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S2-P1Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S2-P2Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S3-P0Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S3-P1Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-003-S3-P2Frame: 100 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-004-S1-P0Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S1-P1Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S1-P2Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S2-P0Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S2-P1Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S2-P2Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S3-P0Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S3-P1Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-004-S3-P2Frame: 100 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-005-S1-P0Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S1-P1Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S1-P2Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S2-P0Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S2-P1Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S2-P2Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S3-P0Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S3-P1Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-005-S3-P2Frame: 100 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-006-S1-P0Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S1-P1Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S1-P2Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S2-P0Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S2-P1Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S2-P2Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S3-P0Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S3-P1Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-006-S3-P2Frame: 100 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-007-S1-P0Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S1-P1Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S1-P2Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S2-P0Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S2-P1Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S2-P2Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S3-P0Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S3-P1Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-007-S3-P2Frame: 100 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-008-S1-P0Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S1-P1Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S1-P2Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S2-P0Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S2-P1Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S2-P2Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S3-P0Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S3-P1Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-008-S3-P2Frame: 100 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-009-S1-P0Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S1-P1Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S1-P2Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S2-P0Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S2-P1Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S2-P2Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S3-P0Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S3-P1Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-009-S3-P2Frame: 100 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S1-P0Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S1-P1Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S1-P2Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S2-P0Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S2-P1Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S2-P2Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S3-P0Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S3-P1Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-010-S3-P2Frame: 100 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-012-S1-P0Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S1-P1Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S1-P2Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S2-P0Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S2-P1Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S2-P2Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S3-P0Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S3-P1Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-012-S3-P2Frame: 100 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-015-S1-P0Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S1-P1Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S1-P2Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S2-P0Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S2-P1Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S2-P2Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S3-P0Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S3-P1Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100-015-S3-P2Frame: 100 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100-016-S1-P0Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S1-P1Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S1-P2Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S2-P0Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S2-P1Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S2-P2Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S3-P0Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S3-P1Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-016-S3-P2Frame: 100 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S1-P0Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S1-P1Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S1-P2Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S2-P0Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S2-P1Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S2-P2Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S3-P0Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S3-P1Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100-020-S3-P2Frame: 100 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100-025-S1-P0Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S1-P1Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S1-P2Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S2-P0Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S2-P1Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S2-P2Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S3-P0Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S3-P1Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-025-S3-P2Frame: 100 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-028-S1-P0Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S1-P1Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S1-P2Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S2-P0Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S2-P1Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S2-P2Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S3-P0Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S3-P1Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-028-S3-P2Frame: 100 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-030-S1-P0Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S1-P1Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S1-P2Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S2-P0Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S2-P1Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S2-P2Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S3-P0Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S3-P1Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-030-S3-P2Frame: 100 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-032-S1-P0Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S1-P1Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S1-P2Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S2-P0Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S2-P1Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S2-P2Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S3-P0Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S3-P1Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-032-S3-P2Frame: 100 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-035-S1-P0Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S1-P1Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S1-P2Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S2-P0Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S2-P1Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S2-P2Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S3-P0Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S3-P1Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-035-S3-P2Frame: 100 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-040-S1-P0Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S1-P1Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S1-P2Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S2-P0Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S2-P1Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S2-P2Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S3-P0Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S3-P1Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-040-S3-P2Frame: 100 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-045-S1-P0Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S1-P1Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S1-P2Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S2-P0Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S2-P1Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S2-P2Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S3-P0Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S3-P1Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-045-S3-P2Frame: 100 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-050-S1-P0Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S1-P1Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S1-P2Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S2-P0Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S2-P1Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S2-P2Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S3-P0Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S3-P1Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100-050-S3-P2Frame: 100 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100-060-S1-P0Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S1-P1Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S1-P2Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S2-P0Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S2-P1Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S2-P2Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S3-P0Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S3-P1Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100-060-S3-P2Frame: 100 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100-070-S1-P0Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S1-P1Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S1-P2Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S2-P0Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S2-P1Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S2-P2Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S3-P0Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S3-P1Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100-070-S3-P2Frame: 100 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100-080-S1-P0Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S1-P1Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S1-P2Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S2-P0Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S2-P1Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S2-P2Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S3-P0Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S3-P1Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100-080-S3-P2Frame: 100 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100-090-S1-P0Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S1-P1Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S1-P2Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S2-P0Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S2-P1Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S2-P2Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S3-P0Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S3-P1Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-090-S3-P2Frame: 100 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S1-P0Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S1-P1Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S1-P2Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S2-P0Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S2-P1Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S2-P2Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S3-P0Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S3-P1Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100-100-S3-P2Frame: 100 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-012-S1-P0Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S1-P1Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S1-P2Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S2-P0Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S2-P1Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S2-P2Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S3-P0Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S3-P1Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-012-S3-P2Frame: 100A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-015-S1-P0Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S1-P1Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S1-P2Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S2-P0Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S2-P1Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S2-P2Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S3-P0Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S3-P1Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 208 Nm
AFX100A-015-S3-P2Frame: 100A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 208 Nm
AFX100A-016-S1-P0Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S1-P1Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S1-P2Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S2-P0Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S2-P1Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S2-P2Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S3-P0Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S3-P1Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-016-S3-P2Frame: 100A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S1-P0Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S1-P1Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S1-P2Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S2-P0Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S2-P1Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S2-P2Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S3-P0Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S3-P1Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 290 Nm
AFX100A-020-S3-P2Frame: 100A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 290 Nm
AFX100A-025-S1-P0Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S1-P1Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S1-P2Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S2-P0Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S2-P1Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S2-P2Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S3-P0Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S3-P1Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-025-S3-P2Frame: 100A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-028-S1-P0Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S1-P1Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S1-P2Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S2-P0Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S2-P1Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S2-P2Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S3-P0Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S3-P1Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-028-S3-P2Frame: 100A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-030-S1-P0Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S1-P1Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S1-P2Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S2-P0Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S2-P1Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S2-P2Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S3-P0Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S3-P1Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-030-S3-P2Frame: 100A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-032-S1-P0Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S1-P1Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S1-P2Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S2-P0Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S2-P1Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S2-P2Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S3-P0Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S3-P1Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-032-S3-P2Frame: 100A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-035-S1-P0Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S1-P1Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S1-P2Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S2-P0Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S2-P1Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S2-P2Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S3-P0Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S3-P1Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-035-S3-P2Frame: 100A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-040-S1-P0Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S1-P1Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S1-P2Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S2-P0Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S2-P1Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S2-P2Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S3-P0Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S3-P1Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-040-S3-P2Frame: 100A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-045-S1-P0Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S1-P1Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S1-P2Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S2-P0Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S2-P1Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S2-P2Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S3-P0Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S3-P1Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-045-S3-P2Frame: 100A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-050-S1-P0Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S1-P1Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S1-P2Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S2-P0Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S2-P1Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S2-P2Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S3-P0Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S3-P1Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 330 Nm
AFX100A-050-S3-P2Frame: 100A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 330 Nm
AFX100A-060-S1-P0Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S1-P1Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S1-P2Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S2-P0Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S2-P1Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S2-P2Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S3-P0Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S3-P1Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 310 Nm
AFX100A-060-S3-P2Frame: 100A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 310 Nm
AFX100A-070-S1-P0Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S1-P1Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S1-P2Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S2-P0Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S2-P1Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S2-P2Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S3-P0Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S3-P1Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 300 Nm
AFX100A-070-S3-P2Frame: 100A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 300 Nm
AFX100A-080-S1-P0Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S1-P1Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S1-P2Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S2-P0Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S2-P1Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S2-P2Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S3-P0Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S3-P1Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 260 Nm
AFX100A-080-S3-P2Frame: 100A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 260 Nm
AFX100A-090-S1-P0Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S1-P1Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S1-P2Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S2-P0Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S2-P1Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S2-P2Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S3-P0Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S3-P1Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-090-S3-P2Frame: 100A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S1-P0Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S1-P1Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S1-P2Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S2-P0Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S2-P1Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S2-P2Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S3-P0Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S3-P1Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 230 Nm
AFX100A-100-S3-P2Frame: 100A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 230 Nm
AFX140-003-S1-P0Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S1-P1Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S1-P2Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S2-P0Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S2-P1Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S2-P2Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S3-P0Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S3-P1Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-003-S3-P2Frame: 140 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-004-S1-P0Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S1-P1Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S1-P2Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S2-P0Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S2-P1Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S2-P2Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S3-P0Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S3-P1Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-004-S3-P2Frame: 140 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-005-S1-P0Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S1-P1Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S1-P2Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S2-P0Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S2-P1Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S2-P2Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S3-P0Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S3-P1Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-005-S3-P2Frame: 140 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-006-S1-P0Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S1-P1Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S1-P2Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S2-P0Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S2-P1Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S2-P2Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S3-P0Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S3-P1Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-006-S3-P2Frame: 140 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-007-S1-P0Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S1-P1Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S1-P2Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S2-P0Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S2-P1Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S2-P2Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S3-P0Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S3-P1Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-007-S3-P2Frame: 140 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-008-S1-P0Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S1-P1Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S1-P2Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S2-P0Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S2-P1Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S2-P2Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S3-P0Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S3-P1Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-008-S3-P2Frame: 140 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-009-S1-P0Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S1-P1Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S1-P2Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S2-P0Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S2-P1Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S2-P2Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S3-P0Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S3-P1Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-009-S3-P2Frame: 140 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S1-P0Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S1-P1Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S1-P2Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S2-P0Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S2-P1Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S2-P2Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S3-P0Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S3-P1Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-010-S3-P2Frame: 140 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-012-S1-P0Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S1-P1Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S1-P2Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S2-P0Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S2-P1Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S2-P2Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S3-P0Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S3-P1Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-012-S3-P2Frame: 140 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-015-S1-P0Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S1-P1Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S1-P2Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S2-P0Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S2-P1Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S2-P2Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S3-P0Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S3-P1Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140-015-S3-P2Frame: 140 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140-016-S1-P0Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S1-P1Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S1-P2Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S2-P0Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S2-P1Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S2-P2Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S3-P0Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S3-P1Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-016-S3-P2Frame: 140 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S1-P0Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S1-P1Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S1-P2Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S2-P0Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S2-P1Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S2-P2Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S3-P0Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S3-P1Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140-020-S3-P2Frame: 140 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140-025-S1-P0Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S1-P1Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S1-P2Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S2-P0Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S2-P1Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S2-P2Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S3-P0Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S3-P1Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-025-S3-P2Frame: 140 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-028-S1-P0Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S1-P1Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S1-P2Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S2-P0Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S2-P1Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S2-P2Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S3-P0Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S3-P1Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-028-S3-P2Frame: 140 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-030-S1-P0Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S1-P1Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S1-P2Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S2-P0Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S2-P1Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S2-P2Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S3-P0Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S3-P1Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-030-S3-P2Frame: 140 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-032-S1-P0Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S1-P1Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S1-P2Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S2-P0Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S2-P1Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S2-P2Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S3-P0Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S3-P1Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-032-S3-P2Frame: 140 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-035-S1-P0Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S1-P1Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S1-P2Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S2-P0Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S2-P1Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S2-P2Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S3-P0Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S3-P1Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-035-S3-P2Frame: 140 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-040-S1-P0Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S1-P1Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S1-P2Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S2-P0Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S2-P1Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S2-P2Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S3-P0Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S3-P1Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-040-S3-P2Frame: 140 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-045-S1-P0Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S1-P1Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S1-P2Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S2-P0Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S2-P1Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S2-P2Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S3-P0Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S3-P1Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-045-S3-P2Frame: 140 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-050-S1-P0Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S1-P1Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S1-P2Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S2-P0Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S2-P1Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S2-P2Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S3-P0Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S3-P1Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140-050-S3-P2Frame: 140 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140-060-S1-P0Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S1-P1Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S1-P2Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S2-P0Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S2-P1Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S2-P2Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S3-P0Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S3-P1Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140-060-S3-P2Frame: 140 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140-070-S1-P0Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S1-P1Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S1-P2Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S2-P0Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S2-P1Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S2-P2Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S3-P0Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S3-P1Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140-070-S3-P2Frame: 140 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140-080-S1-P0Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S1-P1Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S1-P2Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S2-P0Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S2-P1Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S2-P2Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S3-P0Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S3-P1Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140-080-S3-P2Frame: 140 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140-090-S1-P0Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S1-P1Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S1-P2Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S2-P0Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S2-P1Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S2-P2Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S3-P0Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S3-P1Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-090-S3-P2Frame: 140 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S1-P0Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S1-P1Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S1-P2Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S2-P0Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S2-P1Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S2-P2Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S3-P0Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S3-P1Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140-100-S3-P2Frame: 140 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-012-S1-P0Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S1-P1Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S1-P2Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S2-P0Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S2-P1Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S2-P2Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S3-P0Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S3-P1Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-012-S3-P2Frame: 140A | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-015-S1-P0Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S1-P1Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S1-P2Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S2-P0Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S2-P1Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S2-P2Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S3-P0Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S3-P1Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 342 Nm
AFX140A-015-S3-P2Frame: 140A | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 342 Nm
AFX140A-016-S1-P0Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S1-P1Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S1-P2Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S2-P0Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S2-P1Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S2-P2Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S3-P0Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S3-P1Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-016-S3-P2Frame: 140A | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S1-P0Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S1-P1Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S1-P2Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S2-P0Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S2-P1Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S2-P2Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S3-P0Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S3-P1Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 542 Nm
AFX140A-020-S3-P2Frame: 140A | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 542 Nm
AFX140A-025-S1-P0Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S1-P1Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S1-P2Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S2-P0Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S2-P1Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S2-P2Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S3-P0Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S3-P1Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-025-S3-P2Frame: 140A | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-028-S1-P0Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S1-P1Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S1-P2Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S2-P0Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S2-P1Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S2-P2Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S3-P0Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S3-P1Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-028-S3-P2Frame: 140A | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-030-S1-P0Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S1-P1Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S1-P2Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S2-P0Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S2-P1Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S2-P2Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S3-P0Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S3-P1Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-030-S3-P2Frame: 140A | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-032-S1-P0Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S1-P1Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S1-P2Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S2-P0Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S2-P1Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S2-P2Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S3-P0Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S3-P1Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-032-S3-P2Frame: 140A | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-035-S1-P0Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S1-P1Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S1-P2Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S2-P0Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S2-P1Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S2-P2Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S3-P0Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S3-P1Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-035-S3-P2Frame: 140A | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-040-S1-P0Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S1-P1Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S1-P2Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S2-P0Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S2-P1Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S2-P2Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S3-P0Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S3-P1Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-040-S3-P2Frame: 140A | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-045-S1-P0Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S1-P1Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S1-P2Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S2-P0Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S2-P1Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S2-P2Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S3-P0Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S3-P1Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-045-S3-P2Frame: 140A | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-050-S1-P0Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S1-P1Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S1-P2Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S2-P0Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S2-P1Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S2-P2Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S3-P0Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S3-P1Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 650 Nm
AFX140A-050-S3-P2Frame: 140A | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 650 Nm
AFX140A-060-S1-P0Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S1-P1Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S1-P2Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S2-P0Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S2-P1Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S2-P2Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S3-P0Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S3-P1Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 600 Nm
AFX140A-060-S3-P2Frame: 140A | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 600 Nm
AFX140A-070-S1-P0Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S1-P1Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S1-P2Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S2-P0Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S2-P1Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S2-P2Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S3-P0Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S3-P1Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 550 Nm
AFX140A-070-S3-P2Frame: 140A | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 550 Nm
AFX140A-080-S1-P0Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S1-P1Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S1-P2Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S2-P0Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S2-P1Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S2-P2Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S3-P0Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S3-P1Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 500 Nm
AFX140A-080-S3-P2Frame: 140A | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 500 Nm
AFX140A-090-S1-P0Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S1-P1Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S1-P2Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S2-P0Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S2-P1Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S2-P2Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S3-P0Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S3-P1Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-090-S3-P2Frame: 140A | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S1-P0Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S1-P1Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S1-P2Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S2-P0Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S2-P1Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S2-P2Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S3-P0Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S3-P1Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 450 Nm
AFX140A-100-S3-P2Frame: 140A | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 450 Nm
AFX180-003-S1-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S1-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S1-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S2-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S2-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S2-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S3-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S3-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-003-S3-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-004-S1-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S1-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S1-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S2-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S2-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S2-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S3-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S3-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-004-S3-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-005-S1-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S1-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S1-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S2-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S2-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S2-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S3-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S3-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-005-S3-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-006-S1-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S1-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S1-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S2-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S2-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S2-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S3-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S3-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-006-S3-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S1-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S1-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S1-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S2-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S2-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S2-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S3-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S3-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-007-S3-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-008-S1-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S1-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S1-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S2-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S2-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S2-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S3-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S3-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-008-S3-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-009-S1-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S1-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S1-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S2-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S2-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S2-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S3-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S3-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-009-S3-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S1-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S1-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S1-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S2-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S2-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S2-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S3-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=1 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S3-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-010-S3-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-012-S1-P0Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S1-P1Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S1-P2Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S2-P0Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S2-P1Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S2-P2Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S3-P0Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S3-P1Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-012-S3-P2Frame: 180 | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-015-S1-P0Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S1-P1Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S1-P2Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S2-P0Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S2-P1Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S2-P2Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S3-P0Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S3-P1Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 588 Nm
AFX180-015-S3-P2Frame: 180 | Ratio i: 15 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 588 Nm
AFX180-016-S1-P0Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S1-P1Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S1-P2Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S2-P0Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S2-P1Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S2-P2Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S3-P0Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S3-P1Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-016-S3-P2Frame: 180 | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S1-P0Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S1-P1Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S1-P2Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S2-P0Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S2-P1Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S2-P2Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S3-P0Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S3-P1Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-020-S3-P2Frame: 180 | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,050 Nm
AFX180-025-S1-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S1-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S1-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S2-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S2-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S2-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S3-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S3-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-025-S3-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-028-S1-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S1-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S1-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S2-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S2-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S2-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S3-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S3-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-028-S3-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S1-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S1-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S1-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S2-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S2-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S2-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S3-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S3-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-030-S3-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-032-S1-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S1-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S1-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S2-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S2-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S2-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S3-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S3-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-032-S3-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-035-S1-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S1-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S1-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S2-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S2-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S2-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S3-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S3-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-035-S3-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-040-S1-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S1-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S1-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S2-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S2-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S2-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S3-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S3-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-040-S3-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-045-S1-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S1-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S1-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S2-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S2-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S2-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S3-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S3-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-045-S3-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-050-S1-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S1-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S1-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S2-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S2-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S2-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S3-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S3-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-050-S3-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,200 Nm
AFX180-060-S1-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S1-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S1-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S2-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S2-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S2-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S3-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S3-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-060-S3-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S1-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S1-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S1-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S2-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S2-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S2-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S3-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S3-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-070-S3-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,100 Nm
AFX180-080-S1-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S1-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S1-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S2-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S2-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S2-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S3-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S3-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-080-S3-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 1,000 Nm
AFX180-090-S1-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S1-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S1-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S2-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S2-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S2-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S3-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S3-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-090-S3-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S1-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S1-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S1-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S2-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S2-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S2-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S3-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P0 micro <=3 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S3-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P1 reduced <=5 arcmin | Nominal torque T2N: 900 Nm
AFX180-100-S3-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Backlash: P2 standard <=7 arcmin | Nominal torque T2N: 900 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
