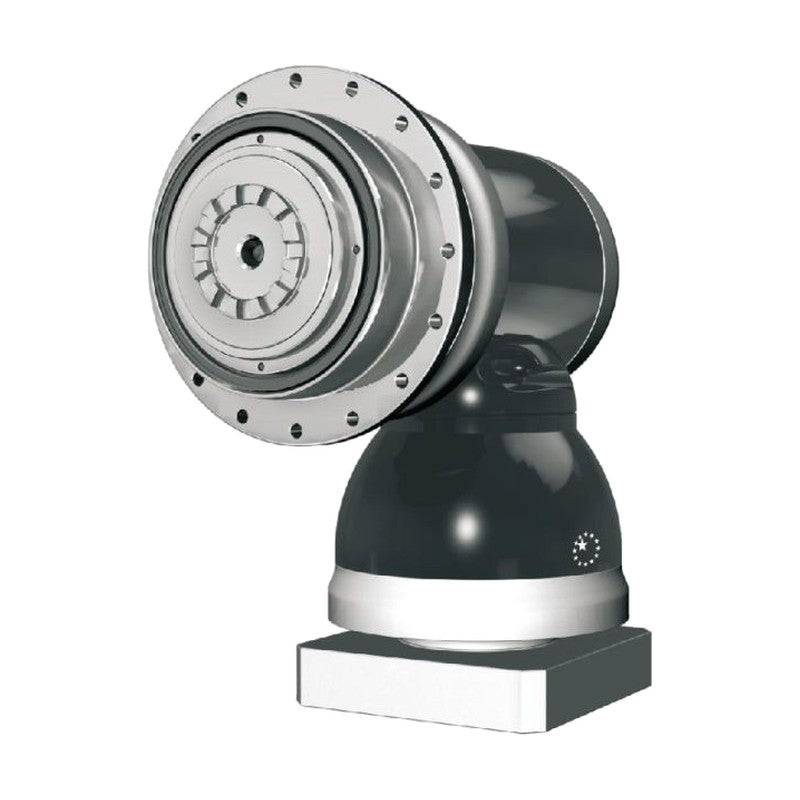

Apex Dynamics APCK Right-Angle Curvic Planetary Gearboxes (090-450)

Apex Dynamics APCK Right-Angle Curvic Planetary Gearboxes (090-450)

Apex Dynamics APCK series right-angle high-torque planetary gearboxes with a curvic coupling output interface, in 2-, 3- and 4-stage versions with ratios 4 to 5,500.

Key features

  • Curvic coupling output interface for all-teeth coupling between pinion and gearbox, with automatic concentricity
  • Right-angle input stage; same ratings as APK, nominal output torque up to 18,715 Nm
  • Backlash <=2 arcmin for all stages, measured at 2% of T2N
  • Max. axial load F2a 2,220 / 4,070 / 8,530 / 17,000 / 26,900 / 39,200 / 101,500 / 143,700 N and max. tilting moment M2K 280 / 480 / 1,310 / 3,530 / 5,920 / 9,230 / 29,100 / 63,300 Nm for frames 090-450
  • Efficiency >=95% (ratio 4-11), >=94% (16-55), >=92% (64-385), >=90% (400-5,500)
  • Motor adapter is part of the order code (APCK090-005.5 / MOTOR): specify motor make and model when ordering

Specifications

Gear type Planetary with right-angle input stage
Frame sizes 090, 110, 140, 200, 255, 285, 355, 450
Ratios 4-55 (2-stage), 64-385 (3-stage), 400-5,500 (4-stage)
Backlash <=2 arcmin
Output Curvic coupling interface
Max. acceleration torque T2B 1.5 x T2N
Emergency stop torque T2NOT 2 x T2N
Protection class IP67
Operating temperature -10 C to 90 C
Lubrication Synthetic lubrication grease, for life
Mounting position All directions
Source APEX Dynamics AP/APK catalog, p. 2-3, 8-9, 13-16, 18
APCK090-004 Frame: 090 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 75 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-005.5 Frame: 090 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 105 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-008 Frame: 090 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 150 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-011 Frame: 090 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 210 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-016 Frame: 090 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 255 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-020 Frame: 090 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 255 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-022 Frame: 090 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 245 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-027.5 Frame: 090 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 245 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-028 Frame: 090 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 240 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-038.5 Frame: 090 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 245 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-040 Frame: 090 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 192 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-055 Frame: 090 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 250 Nm | Torsional rigidity: 27 Nm/arcmin
APCK110-004 Frame: 110 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 510 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-005.5 Frame: 110 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 440 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-008 Frame: 110 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 525 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-011 Frame: 110 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 455 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-016 Frame: 110 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 528 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-020 Frame: 110 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 528 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-022 Frame: 110 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 465 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-027.5 Frame: 110 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 465 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-028 Frame: 110 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 480 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-038.5 Frame: 110 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 470 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-040 Frame: 110 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 408 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-055 Frame: 110 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 475 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-064 Frame: 110 | Ratio i: 64 | Stages: 3 | Nominal torque T2N: 565 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-088 Frame: 110 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 480 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-100 Frame: 110 | Ratio i: 100 | Stages: 3 | Nominal torque T2N: 565 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-110 Frame: 110 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 480 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-137.5 Frame: 110 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 480 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-140 Frame: 110 | Ratio i: 140 | Stages: 3 | Nominal torque T2N: 565 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-154 Frame: 110 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 485 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-160 Frame: 110 | Ratio i: 160 | Stages: 3 | Nominal torque T2N: 565 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-200 Frame: 110 | Ratio i: 200 | Stages: 3 | Nominal torque T2N: 565 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-220 Frame: 110 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 490 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-280 Frame: 110 | Ratio i: 280 | Stages: 3 | Nominal torque T2N: 540 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-385 Frame: 110 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 495 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-400 Frame: 110 | Ratio i: 400 | Stages: 4 | Nominal torque T2N: 565 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-440 Frame: 110 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 450 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-500 Frame: 110 | Ratio i: 500 | Stages: 4 | Nominal torque T2N: 565 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-550 Frame: 110 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 490 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-700 Frame: 110 | Ratio i: 700 | Stages: 4 | Nominal torque T2N: 590 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-770 Frame: 110 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 495 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-1000 Frame: 110 | Ratio i: 1000 | Stages: 4 | Nominal torque T2N: 565 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-1078 Frame: 110 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 500 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-1400 Frame: 110 | Ratio i: 1400 | Stages: 4 | Nominal torque T2N: 540 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-1540 Frame: 110 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 500 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-1600 Frame: 110 | Ratio i: 1600 | Stages: 4 | Nominal torque T2N: 565 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-2000 Frame: 110 | Ratio i: 2000 | Stages: 4 | Nominal torque T2N: 565 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-2695 Frame: 110 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 510 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-2800 Frame: 110 | Ratio i: 2800 | Stages: 4 | Nominal torque T2N: 540 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-3850 Frame: 110 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 510 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-4000 Frame: 110 | Ratio i: 4000 | Stages: 4 | Nominal torque T2N: 225 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-5500 Frame: 110 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 315 Nm | Torsional rigidity: 45 Nm/arcmin
APCK140-004 Frame: 140 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-005.5 Frame: 140 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 745 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-008 Frame: 140 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-011 Frame: 140 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 765 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-016 Frame: 140 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 848 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-020 Frame: 140 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 848 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-022 Frame: 140 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 780 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-027.5 Frame: 140 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 785 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-028 Frame: 140 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 848 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-038.5 Frame: 140 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 795 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-040 Frame: 140 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 816 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-055 Frame: 140 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 805 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-064 Frame: 140 | Ratio i: 64 | Stages: 3 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-088 Frame: 140 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 815 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-100 Frame: 140 | Ratio i: 100 | Stages: 3 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-110 Frame: 140 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 820 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-137.5 Frame: 140 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 825 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-140 Frame: 140 | Ratio i: 140 | Stages: 3 | Nominal torque T2N: 840 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-154 Frame: 140 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 825 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-160 Frame: 140 | Ratio i: 160 | Stages: 3 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-200 Frame: 140 | Ratio i: 200 | Stages: 3 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-220 Frame: 140 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 835 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-280 Frame: 140 | Ratio i: 280 | Stages: 3 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-385 Frame: 140 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 850 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-400 Frame: 140 | Ratio i: 400 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-440 Frame: 140 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 835 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-500 Frame: 140 | Ratio i: 500 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-550 Frame: 140 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-700 Frame: 140 | Ratio i: 700 | Stages: 4 | Nominal torque T2N: 995 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-770 Frame: 140 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 850 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-1000 Frame: 140 | Ratio i: 1000 | Stages: 4 | Nominal torque T2N: 810 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-1078 Frame: 140 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 860 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-1400 Frame: 140 | Ratio i: 1400 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-1540 Frame: 140 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 870 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-1600 Frame: 140 | Ratio i: 1600 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-2000 Frame: 140 | Ratio i: 2000 | Stages: 4 | Nominal torque T2N: 810 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-2695 Frame: 140 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 880 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-2800 Frame: 140 | Ratio i: 2800 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-3850 Frame: 140 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 980 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-4000 Frame: 140 | Ratio i: 4000 | Stages: 4 | Nominal torque T2N: 650 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-5500 Frame: 140 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 895 Nm | Torsional rigidity: 85 Nm/arcmin
APCK200-004 Frame: 200 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 1,728 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-005.5 Frame: 200 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 1,665 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-008 Frame: 200 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 1,584 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-011 Frame: 200 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 1,710 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-016 Frame: 200 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 1,800 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-020 Frame: 200 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 1,800 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-022 Frame: 200 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 1,740 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-027.5 Frame: 200 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 1,750 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-028 Frame: 200 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 1,800 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-038.5 Frame: 200 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 1,770 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-040 Frame: 200 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 1,725 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-055 Frame: 200 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 1,785 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-064 Frame: 200 | Ratio i: 64 | Stages: 3 | Nominal torque T2N: 2,080 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-088 Frame: 200 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 1,800 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-100 Frame: 200 | Ratio i: 100 | Stages: 3 | Nominal torque T2N: 2,105 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-110 Frame: 200 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 1,810 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-137.5 Frame: 200 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 1,820 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-140 Frame: 200 | Ratio i: 140 | Stages: 3 | Nominal torque T2N: 2,125 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-154 Frame: 200 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 1,825 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-160 Frame: 200 | Ratio i: 160 | Stages: 3 | Nominal torque T2N: 2,130 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-200 Frame: 200 | Ratio i: 200 | Stages: 3 | Nominal torque T2N: 2,145 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-220 Frame: 200 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 1,840 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-280 Frame: 200 | Ratio i: 280 | Stages: 3 | Nominal torque T2N: 2,160 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-385 Frame: 200 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 1,845 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-400 Frame: 200 | Ratio i: 400 | Stages: 4 | Nominal torque T2N: 2,155 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-440 Frame: 200 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 1,840 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-500 Frame: 200 | Ratio i: 500 | Stages: 4 | Nominal torque T2N: 2,165 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-550 Frame: 200 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 1,860 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-700 Frame: 200 | Ratio i: 700 | Stages: 4 | Nominal torque T2N: 2,185 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-770 Frame: 200 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 1,870 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-1000 Frame: 200 | Ratio i: 1000 | Stages: 4 | Nominal torque T2N: 2,205 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-1078 Frame: 200 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 1,890 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-1400 Frame: 200 | Ratio i: 1400 | Stages: 4 | Nominal torque T2N: 2,220 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-1540 Frame: 200 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 1,910 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-1600 Frame: 200 | Ratio i: 1600 | Stages: 4 | Nominal torque T2N: 2,225 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-2000 Frame: 200 | Ratio i: 2000 | Stages: 4 | Nominal torque T2N: 2,240 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-2695 Frame: 200 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 1,935 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-2800 Frame: 200 | Ratio i: 2800 | Stages: 4 | Nominal torque T2N: 2,225 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-3850 Frame: 200 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 1,610 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-4000 Frame: 200 | Ratio i: 4000 | Stages: 4 | Nominal torque T2N: 1,840 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-5500 Frame: 200 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 1,980 Nm | Torsional rigidity: 310 Nm/arcmin
APCK255-004 Frame: 255 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 2,805 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-005.5 Frame: 255 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 2,590 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-008 Frame: 255 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 2,610 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-011 Frame: 255 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 2,655 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-016 Frame: 255 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 2,015 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-020 Frame: 255 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 2,015 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-022 Frame: 255 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 2,685 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-027.5 Frame: 255 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 2,700 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-028 Frame: 255 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 1,872 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-038.5 Frame: 255 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 2,574 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-040 Frame: 255 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 1,728 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-055 Frame: 255 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 2,376 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-064 Frame: 255 | Ratio i: 64 | Stages: 3 | Nominal torque T2N: 3,220 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-088 Frame: 255 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 2,185 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-100 Frame: 255 | Ratio i: 100 | Stages: 3 | Nominal torque T2N: 3,260 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-110 Frame: 255 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 2,800 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-137.5 Frame: 255 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 2,815 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-140 Frame: 255 | Ratio i: 140 | Stages: 3 | Nominal torque T2N: 3,285 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-154 Frame: 255 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 2,820 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-160 Frame: 255 | Ratio i: 160 | Stages: 3 | Nominal torque T2N: 3,295 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-200 Frame: 255 | Ratio i: 200 | Stages: 3 | Nominal torque T2N: 3,315 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-220 Frame: 255 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 2,850 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-280 Frame: 255 | Ratio i: 280 | Stages: 3 | Nominal torque T2N: 3,345 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-385 Frame: 255 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 2,890 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-400 Frame: 255 | Ratio i: 400 | Stages: 4 | Nominal torque T2N: 3,320 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-440 Frame: 255 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 2,840 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-500 Frame: 255 | Ratio i: 500 | Stages: 4 | Nominal torque T2N: 3,340 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-550 Frame: 255 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 2,870 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-700 Frame: 255 | Ratio i: 700 | Stages: 4 | Nominal torque T2N: 3,370 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-770 Frame: 255 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 2,895 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-1000 Frame: 255 | Ratio i: 1000 | Stages: 4 | Nominal torque T2N: 3,400 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-1078 Frame: 255 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 2,920 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-1400 Frame: 255 | Ratio i: 1400 | Stages: 4 | Nominal torque T2N: 3,430 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-1540 Frame: 255 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 2,945 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-1600 Frame: 255 | Ratio i: 1600 | Stages: 4 | Nominal torque T2N: 3,435 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-2000 Frame: 255 | Ratio i: 2000 | Stages: 4 | Nominal torque T2N: 3,455 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-2695 Frame: 255 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 2,980 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-2800 Frame: 255 | Ratio i: 2800 | Stages: 4 | Nominal torque T2N: 3,480 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-3850 Frame: 255 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 2,995 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-4000 Frame: 255 | Ratio i: 4000 | Stages: 4 | Nominal torque T2N: 3,515 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-5500 Frame: 255 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 3,110 Nm | Torsional rigidity: 535 Nm/arcmin
APCK285-004 Frame: 285 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 5,545 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-005.5 Frame: 285 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 4,700 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-008 Frame: 285 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 5,680 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-011 Frame: 285 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 4,800 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-016 Frame: 285 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 3,935 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-020 Frame: 285 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 3,935 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-022 Frame: 285 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 4,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-027.5 Frame: 285 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 4,840 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-028 Frame: 285 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 3,600 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-038.5 Frame: 285 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 4,885 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-040 Frame: 285 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 2,880 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-055 Frame: 285 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 3,790 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-064 Frame: 285 | Ratio i: 64 | Stages: 3 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-088 Frame: 285 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 4,970 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-100 Frame: 285 | Ratio i: 100 | Stages: 3 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-110 Frame: 285 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 4,990 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-137.5 Frame: 285 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 5,020 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-140 Frame: 285 | Ratio i: 140 | Stages: 3 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-154 Frame: 285 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 5,035 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-160 Frame: 285 | Ratio i: 160 | Stages: 3 | Nominal torque T2N: 5,760 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-200 Frame: 285 | Ratio i: 200 | Stages: 3 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-220 Frame: 285 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 5,070 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-280 Frame: 285 | Ratio i: 280 | Stages: 3 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-385 Frame: 285 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 5,130 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-400 Frame: 285 | Ratio i: 400 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-440 Frame: 285 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 5,060 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-500 Frame: 285 | Ratio i: 500 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-550 Frame: 285 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 5,110 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-700 Frame: 285 | Ratio i: 700 | Stages: 4 | Nominal torque T2N: 6,195 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-770 Frame: 285 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 5,150 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-1000 Frame: 285 | Ratio i: 1000 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-1078 Frame: 285 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 5,180 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-1400 Frame: 285 | Ratio i: 1400 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-1540 Frame: 285 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 5,220 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-1600 Frame: 285 | Ratio i: 1600 | Stages: 4 | Nominal torque T2N: 5,760 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-2000 Frame: 285 | Ratio i: 2000 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-2695 Frame: 285 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 5,275 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-2800 Frame: 285 | Ratio i: 2800 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-3850 Frame: 285 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 5,365 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-4000 Frame: 285 | Ratio i: 4000 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-5500 Frame: 285 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 5,515 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK355-022 Frame: 355 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 8,670 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-027.5 Frame: 355 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 8,720 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-038.5 Frame: 355 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 8,795 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-055 Frame: 355 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 7,260 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-088 Frame: 355 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 8,910 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-110 Frame: 355 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 8,950 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-137.5 Frame: 355 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 8,995 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-154 Frame: 355 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 8,580 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-220 Frame: 355 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 7,920 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-385 Frame: 355 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 9,195 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-440 Frame: 355 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 9,070 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-550 Frame: 355 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 9,155 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-770 Frame: 355 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 9,225 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-1078 Frame: 355 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 8,580 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-1540 Frame: 355 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 7,920 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-2695 Frame: 355 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 9,440 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-3850 Frame: 355 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 9,585 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-5500 Frame: 355 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 9,825 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK450-088 Frame: 450 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 17,020 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-110 Frame: 450 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 17,105 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-137.5 Frame: 450 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 17,190 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-154 Frame: 450 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 16,500 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-220 Frame: 450 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 13,200 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-385 Frame: 450 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 17,565 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-440 Frame: 450 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 17,335 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-550 Frame: 450 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 17,485 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-770 Frame: 450 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 17,600 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-1078 Frame: 450 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 16,500 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-1540 Frame: 450 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 13,200 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-2695 Frame: 450 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 18,015 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-3850 Frame: 450 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 18,245 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-5500 Frame: 450 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 18,715 Nm | Torsional rigidity: 2,700 Nm/arcmin
Planetary GearboxesApex Dynamics
249 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics APCK Right-Angle Curvic Planetary Gearboxes (090-450)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (249)

APCK090-004, APCK090-005.5, APCK090-008, APCK090-011, APCK090-016, APCK090-020, APCK090-022, APCK090-027.5, APCK090-028, APCK090-038.5 + 239 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APCK090-004Frame: 090 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 75 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-005.5Frame: 090 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 105 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-008Frame: 090 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 150 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-011Frame: 090 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 210 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-016Frame: 090 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 255 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-020Frame: 090 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 255 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-022Frame: 090 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 245 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-027.5Frame: 090 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 245 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-028Frame: 090 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 240 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-038.5Frame: 090 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 245 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-040Frame: 090 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 192 Nm | Torsional rigidity: 27 Nm/arcmin
APCK090-055Frame: 090 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 250 Nm | Torsional rigidity: 27 Nm/arcmin
APCK110-004Frame: 110 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 510 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-005.5Frame: 110 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 440 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-008Frame: 110 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 525 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-011Frame: 110 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 455 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-016Frame: 110 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 528 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-020Frame: 110 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 528 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-022Frame: 110 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 465 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-027.5Frame: 110 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 465 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-028Frame: 110 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 480 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-038.5Frame: 110 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 470 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-040Frame: 110 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 408 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-055Frame: 110 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 475 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-064Frame: 110 | Ratio i: 64 | Stages: 3 | Nominal torque T2N: 565 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-088Frame: 110 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 480 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-100Frame: 110 | Ratio i: 100 | Stages: 3 | Nominal torque T2N: 565 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-110Frame: 110 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 480 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-137.5Frame: 110 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 480 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-140Frame: 110 | Ratio i: 140 | Stages: 3 | Nominal torque T2N: 565 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-154Frame: 110 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 485 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-160Frame: 110 | Ratio i: 160 | Stages: 3 | Nominal torque T2N: 565 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-200Frame: 110 | Ratio i: 200 | Stages: 3 | Nominal torque T2N: 565 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-220Frame: 110 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 490 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-280Frame: 110 | Ratio i: 280 | Stages: 3 | Nominal torque T2N: 540 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-385Frame: 110 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 495 Nm | Torsional rigidity: 56 Nm/arcmin
APCK110-400Frame: 110 | Ratio i: 400 | Stages: 4 | Nominal torque T2N: 565 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-440Frame: 110 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 450 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-500Frame: 110 | Ratio i: 500 | Stages: 4 | Nominal torque T2N: 565 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-550Frame: 110 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 490 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-700Frame: 110 | Ratio i: 700 | Stages: 4 | Nominal torque T2N: 590 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-770Frame: 110 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 495 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-1000Frame: 110 | Ratio i: 1000 | Stages: 4 | Nominal torque T2N: 565 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-1078Frame: 110 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 500 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-1400Frame: 110 | Ratio i: 1400 | Stages: 4 | Nominal torque T2N: 540 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-1540Frame: 110 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 500 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-1600Frame: 110 | Ratio i: 1600 | Stages: 4 | Nominal torque T2N: 565 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-2000Frame: 110 | Ratio i: 2000 | Stages: 4 | Nominal torque T2N: 565 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-2695Frame: 110 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 510 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-2800Frame: 110 | Ratio i: 2800 | Stages: 4 | Nominal torque T2N: 540 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-3850Frame: 110 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 510 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-4000Frame: 110 | Ratio i: 4000 | Stages: 4 | Nominal torque T2N: 225 Nm | Torsional rigidity: 45 Nm/arcmin
APCK110-5500Frame: 110 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 315 Nm | Torsional rigidity: 45 Nm/arcmin
APCK140-004Frame: 140 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-005.5Frame: 140 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 745 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-008Frame: 140 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-011Frame: 140 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 765 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-016Frame: 140 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 848 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-020Frame: 140 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 848 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-022Frame: 140 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 780 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-027.5Frame: 140 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 785 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-028Frame: 140 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 848 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-038.5Frame: 140 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 795 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-040Frame: 140 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 816 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-055Frame: 140 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 805 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-064Frame: 140 | Ratio i: 64 | Stages: 3 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-088Frame: 140 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 815 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-100Frame: 140 | Ratio i: 100 | Stages: 3 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-110Frame: 140 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 820 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-137.5Frame: 140 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 825 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-140Frame: 140 | Ratio i: 140 | Stages: 3 | Nominal torque T2N: 840 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-154Frame: 140 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 825 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-160Frame: 140 | Ratio i: 160 | Stages: 3 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-200Frame: 140 | Ratio i: 200 | Stages: 3 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-220Frame: 140 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 835 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-280Frame: 140 | Ratio i: 280 | Stages: 3 | Nominal torque T2N: 845 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-385Frame: 140 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 850 Nm | Torsional rigidity: 112 Nm/arcmin
APCK140-400Frame: 140 | Ratio i: 400 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-440Frame: 140 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 835 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-500Frame: 140 | Ratio i: 500 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-550Frame: 140 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-700Frame: 140 | Ratio i: 700 | Stages: 4 | Nominal torque T2N: 995 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-770Frame: 140 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 850 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-1000Frame: 140 | Ratio i: 1000 | Stages: 4 | Nominal torque T2N: 810 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-1078Frame: 140 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 860 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-1400Frame: 140 | Ratio i: 1400 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-1540Frame: 140 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 870 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-1600Frame: 140 | Ratio i: 1600 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-2000Frame: 140 | Ratio i: 2000 | Stages: 4 | Nominal torque T2N: 810 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-2695Frame: 140 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 880 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-2800Frame: 140 | Ratio i: 2800 | Stages: 4 | Nominal torque T2N: 845 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-3850Frame: 140 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 980 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-4000Frame: 140 | Ratio i: 4000 | Stages: 4 | Nominal torque T2N: 650 Nm | Torsional rigidity: 85 Nm/arcmin
APCK140-5500Frame: 140 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 895 Nm | Torsional rigidity: 85 Nm/arcmin
APCK200-004Frame: 200 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 1,728 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-005.5Frame: 200 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 1,665 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-008Frame: 200 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 1,584 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-011Frame: 200 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 1,710 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-016Frame: 200 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 1,800 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-020Frame: 200 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 1,800 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-022Frame: 200 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 1,740 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-027.5Frame: 200 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 1,750 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-028Frame: 200 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 1,800 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-038.5Frame: 200 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 1,770 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-040Frame: 200 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 1,725 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-055Frame: 200 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 1,785 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-064Frame: 200 | Ratio i: 64 | Stages: 3 | Nominal torque T2N: 2,080 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-088Frame: 200 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 1,800 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-100Frame: 200 | Ratio i: 100 | Stages: 3 | Nominal torque T2N: 2,105 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-110Frame: 200 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 1,810 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-137.5Frame: 200 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 1,820 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-140Frame: 200 | Ratio i: 140 | Stages: 3 | Nominal torque T2N: 2,125 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-154Frame: 200 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 1,825 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-160Frame: 200 | Ratio i: 160 | Stages: 3 | Nominal torque T2N: 2,130 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-200Frame: 200 | Ratio i: 200 | Stages: 3 | Nominal torque T2N: 2,145 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-220Frame: 200 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 1,840 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-280Frame: 200 | Ratio i: 280 | Stages: 3 | Nominal torque T2N: 2,160 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-385Frame: 200 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 1,845 Nm | Torsional rigidity: 389 Nm/arcmin
APCK200-400Frame: 200 | Ratio i: 400 | Stages: 4 | Nominal torque T2N: 2,155 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-440Frame: 200 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 1,840 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-500Frame: 200 | Ratio i: 500 | Stages: 4 | Nominal torque T2N: 2,165 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-550Frame: 200 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 1,860 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-700Frame: 200 | Ratio i: 700 | Stages: 4 | Nominal torque T2N: 2,185 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-770Frame: 200 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 1,870 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-1000Frame: 200 | Ratio i: 1000 | Stages: 4 | Nominal torque T2N: 2,205 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-1078Frame: 200 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 1,890 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-1400Frame: 200 | Ratio i: 1400 | Stages: 4 | Nominal torque T2N: 2,220 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-1540Frame: 200 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 1,910 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-1600Frame: 200 | Ratio i: 1600 | Stages: 4 | Nominal torque T2N: 2,225 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-2000Frame: 200 | Ratio i: 2000 | Stages: 4 | Nominal torque T2N: 2,240 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-2695Frame: 200 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 1,935 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-2800Frame: 200 | Ratio i: 2800 | Stages: 4 | Nominal torque T2N: 2,225 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-3850Frame: 200 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 1,610 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-4000Frame: 200 | Ratio i: 4000 | Stages: 4 | Nominal torque T2N: 1,840 Nm | Torsional rigidity: 310 Nm/arcmin
APCK200-5500Frame: 200 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 1,980 Nm | Torsional rigidity: 310 Nm/arcmin
APCK255-004Frame: 255 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 2,805 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-005.5Frame: 255 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 2,590 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-008Frame: 255 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 2,610 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-011Frame: 255 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 2,655 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-016Frame: 255 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 2,015 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-020Frame: 255 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 2,015 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-022Frame: 255 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 2,685 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-027.5Frame: 255 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 2,700 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-028Frame: 255 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 1,872 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-038.5Frame: 255 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 2,574 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-040Frame: 255 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 1,728 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-055Frame: 255 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 2,376 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-064Frame: 255 | Ratio i: 64 | Stages: 3 | Nominal torque T2N: 3,220 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-088Frame: 255 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 2,185 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-100Frame: 255 | Ratio i: 100 | Stages: 3 | Nominal torque T2N: 3,260 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-110Frame: 255 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 2,800 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-137.5Frame: 255 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 2,815 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-140Frame: 255 | Ratio i: 140 | Stages: 3 | Nominal torque T2N: 3,285 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-154Frame: 255 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 2,820 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-160Frame: 255 | Ratio i: 160 | Stages: 3 | Nominal torque T2N: 3,295 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-200Frame: 255 | Ratio i: 200 | Stages: 3 | Nominal torque T2N: 3,315 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-220Frame: 255 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 2,850 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-280Frame: 255 | Ratio i: 280 | Stages: 3 | Nominal torque T2N: 3,345 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-385Frame: 255 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 2,890 Nm | Torsional rigidity: 642 Nm/arcmin
APCK255-400Frame: 255 | Ratio i: 400 | Stages: 4 | Nominal torque T2N: 3,320 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-440Frame: 255 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 2,840 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-500Frame: 255 | Ratio i: 500 | Stages: 4 | Nominal torque T2N: 3,340 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-550Frame: 255 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 2,870 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-700Frame: 255 | Ratio i: 700 | Stages: 4 | Nominal torque T2N: 3,370 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-770Frame: 255 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 2,895 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-1000Frame: 255 | Ratio i: 1000 | Stages: 4 | Nominal torque T2N: 3,400 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-1078Frame: 255 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 2,920 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-1400Frame: 255 | Ratio i: 1400 | Stages: 4 | Nominal torque T2N: 3,430 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-1540Frame: 255 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 2,945 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-1600Frame: 255 | Ratio i: 1600 | Stages: 4 | Nominal torque T2N: 3,435 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-2000Frame: 255 | Ratio i: 2000 | Stages: 4 | Nominal torque T2N: 3,455 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-2695Frame: 255 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 2,980 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-2800Frame: 255 | Ratio i: 2800 | Stages: 4 | Nominal torque T2N: 3,480 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-3850Frame: 255 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 2,995 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-4000Frame: 255 | Ratio i: 4000 | Stages: 4 | Nominal torque T2N: 3,515 Nm | Torsional rigidity: 535 Nm/arcmin
APCK255-5500Frame: 255 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 3,110 Nm | Torsional rigidity: 535 Nm/arcmin
APCK285-004Frame: 285 | Ratio i: 4 | Stages: 2 | Nominal torque T2N: 5,545 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-005.5Frame: 285 | Ratio i: 5.5 | Stages: 2 | Nominal torque T2N: 4,700 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-008Frame: 285 | Ratio i: 8 | Stages: 2 | Nominal torque T2N: 5,680 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-011Frame: 285 | Ratio i: 11 | Stages: 2 | Nominal torque T2N: 4,800 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-016Frame: 285 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 3,935 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-020Frame: 285 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 3,935 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-022Frame: 285 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 4,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-027.5Frame: 285 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 4,840 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-028Frame: 285 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 3,600 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-038.5Frame: 285 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 4,885 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-040Frame: 285 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 2,880 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-055Frame: 285 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 3,790 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-064Frame: 285 | Ratio i: 64 | Stages: 3 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-088Frame: 285 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 4,970 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-100Frame: 285 | Ratio i: 100 | Stages: 3 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-110Frame: 285 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 4,990 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-137.5Frame: 285 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 5,020 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-140Frame: 285 | Ratio i: 140 | Stages: 3 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-154Frame: 285 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 5,035 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-160Frame: 285 | Ratio i: 160 | Stages: 3 | Nominal torque T2N: 5,760 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-200Frame: 285 | Ratio i: 200 | Stages: 3 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-220Frame: 285 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 5,070 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-280Frame: 285 | Ratio i: 280 | Stages: 3 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-385Frame: 285 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 5,130 Nm | Torsional rigidity: 1,275 Nm/arcmin
APCK285-400Frame: 285 | Ratio i: 400 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-440Frame: 285 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 5,060 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-500Frame: 285 | Ratio i: 500 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-550Frame: 285 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 5,110 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-700Frame: 285 | Ratio i: 700 | Stages: 4 | Nominal torque T2N: 6,195 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-770Frame: 285 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 5,150 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-1000Frame: 285 | Ratio i: 1000 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-1078Frame: 285 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 5,180 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-1400Frame: 285 | Ratio i: 1400 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-1540Frame: 285 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 5,220 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-1600Frame: 285 | Ratio i: 1600 | Stages: 4 | Nominal torque T2N: 5,760 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-2000Frame: 285 | Ratio i: 2000 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-2695Frame: 285 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 5,275 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-2800Frame: 285 | Ratio i: 2800 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-3850Frame: 285 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 5,365 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-4000Frame: 285 | Ratio i: 4000 | Stages: 4 | Nominal torque T2N: 5,815 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK285-5500Frame: 285 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 5,515 Nm | Torsional rigidity: 1,050 Nm/arcmin
APCK355-022Frame: 355 | Ratio i: 22 | Stages: 2 | Nominal torque T2N: 8,670 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-027.5Frame: 355 | Ratio i: 27.5 | Stages: 2 | Nominal torque T2N: 8,720 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-038.5Frame: 355 | Ratio i: 38.5 | Stages: 2 | Nominal torque T2N: 8,795 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-055Frame: 355 | Ratio i: 55 | Stages: 2 | Nominal torque T2N: 7,260 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-088Frame: 355 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 8,910 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-110Frame: 355 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 8,950 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-137.5Frame: 355 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 8,995 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-154Frame: 355 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 8,580 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-220Frame: 355 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 7,920 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-385Frame: 355 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 9,195 Nm | Torsional rigidity: 2,500 Nm/arcmin
APCK355-440Frame: 355 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 9,070 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-550Frame: 355 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 9,155 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-770Frame: 355 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 9,225 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-1078Frame: 355 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 8,580 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-1540Frame: 355 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 7,920 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-2695Frame: 355 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 9,440 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-3850Frame: 355 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 9,585 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK355-5500Frame: 355 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 9,825 Nm | Torsional rigidity: 1,700 Nm/arcmin
APCK450-088Frame: 450 | Ratio i: 88 | Stages: 3 | Nominal torque T2N: 17,020 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-110Frame: 450 | Ratio i: 110 | Stages: 3 | Nominal torque T2N: 17,105 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-137.5Frame: 450 | Ratio i: 137.5 | Stages: 3 | Nominal torque T2N: 17,190 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-154Frame: 450 | Ratio i: 154 | Stages: 3 | Nominal torque T2N: 16,500 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-220Frame: 450 | Ratio i: 220 | Stages: 3 | Nominal torque T2N: 13,200 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-385Frame: 450 | Ratio i: 385 | Stages: 3 | Nominal torque T2N: 17,565 Nm | Torsional rigidity: 5,100 Nm/arcmin
APCK450-440Frame: 450 | Ratio i: 440 | Stages: 4 | Nominal torque T2N: 17,335 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-550Frame: 450 | Ratio i: 550 | Stages: 4 | Nominal torque T2N: 17,485 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-770Frame: 450 | Ratio i: 770 | Stages: 4 | Nominal torque T2N: 17,600 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-1078Frame: 450 | Ratio i: 1078 | Stages: 4 | Nominal torque T2N: 16,500 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-1540Frame: 450 | Ratio i: 1540 | Stages: 4 | Nominal torque T2N: 13,200 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-2695Frame: 450 | Ratio i: 2695 | Stages: 4 | Nominal torque T2N: 18,015 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-3850Frame: 450 | Ratio i: 3850 | Stages: 4 | Nominal torque T2N: 18,245 Nm | Torsional rigidity: 2,700 Nm/arcmin
APCK450-5500Frame: 450 | Ratio i: 5500 | Stages: 4 | Nominal torque T2N: 18,715 Nm | Torsional rigidity: 2,700 Nm/arcmin

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
