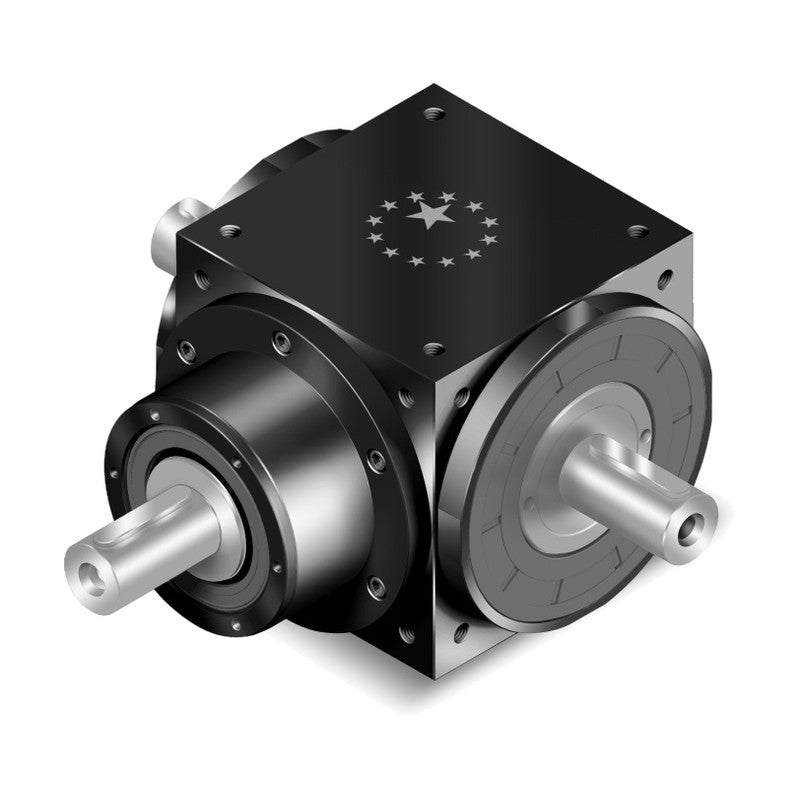

Apex Dynamics ATB Carbon Steel Spiral Bevel Gearboxes (Frames 140-280)

Apex Dynamics ATB Carbon Steel Spiral Bevel Gearboxes (Frames 140-280)

APEX Dynamics ATB series high-precision spiral bevel right-angle gearboxes with carbon steel housing, frames 140-280, in shaft-input and motor-flange versions.

Key features

  • High-precision spiral bevel right-angle gearbox with carbon steel housing
  • Shaft input types L, L1, R1, H, C, LM, RM, 4M (ratios 1-5; LM/RM/4M ratio 1 only)
  • Motor-flange types FL, FL1, FR1, FH, FC with 2-stage (7-50) and, from frame 110, 3-stage (75-500) ratios
  • Output options: solid shafts, keyed hollow shaft (H/FH) or hollow shaft with SSD shrink disc (C/FC)
  • Shaft option S1 smooth or S2 keyed (DIN 6885/1) on solid shafts (input shaft for H/C); none for FH/FC
  • Performance and dimensions of ATB carbon steel series identical to AT stainless series

Specifications

Gearbox design Spiral bevel gear, right-angle
Housing Carbon Steel (ATB series)
Frame sizes 140, 170, 210, 240, 280
Nominal output torque T2N 85-3,200 Nm
Max. acceleration torque T2B 1.5 x nominal output torque
Standard backlash 1-stage <=6, 2-stage <=8, 3-stage <=10 arcmin
Efficiency >=98% (1-stage), >=94% (2/3-stage)
Operating temperature -10 to +90 C
Lubrication Lubricant, maintenance free
Motor adapter Specify motor make and model when ordering
Source APEX Dynamics AT/ATB catalog, p. 1-25
ATB140-L-001-S1 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-L-001-S2 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-L-001.5-S1 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-L-001.5-S2 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-L-002-S1 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-L-002-S2 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-L-003-S1 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-L-003-S2 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-L-004-S1 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-L-004-S2 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-L-005-S1 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-L-005-S2 Frame: 140 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-L1-001-S1 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-L1-001-S2 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-L1-001.5-S1 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-L1-001.5-S2 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-L1-002-S1 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-L1-002-S2 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-L1-003-S1 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-L1-003-S2 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-L1-004-S1 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-L1-004-S2 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-L1-005-S1 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-L1-005-S2 Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-R1-001-S1 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-R1-001-S2 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-R1-001.5-S1 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-R1-001.5-S2 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-R1-002-S1 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-R1-002-S2 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-R1-003-S1 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-R1-003-S2 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-R1-004-S1 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-R1-004-S2 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-R1-005-S1 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-R1-005-S2 Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-H-001-S1 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 360 Nm
ATB140-H-001-S2 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 360 Nm
ATB140-H-001.5-S1 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 360 Nm
ATB140-H-001.5-S2 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 360 Nm
ATB140-H-002-S1 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 330 Nm
ATB140-H-002-S2 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 330 Nm
ATB140-H-003-S1 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 270 Nm
ATB140-H-003-S2 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 270 Nm
ATB140-H-004-S1 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 224 Nm
ATB140-H-004-S2 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 224 Nm
ATB140-H-005-S1 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 196 Nm
ATB140-H-005-S2 Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 196 Nm
ATB140-C-001-S1 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 360 Nm
ATB140-C-001-S2 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 360 Nm
ATB140-C-001.5-S1 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 360 Nm
ATB140-C-001.5-S2 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 360 Nm
ATB140-C-002-S1 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 330 Nm
ATB140-C-002-S2 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 330 Nm
ATB140-C-003-S1 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 270 Nm
ATB140-C-003-S2 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 270 Nm
ATB140-C-004-S1 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 224 Nm
ATB140-C-004-S2 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 224 Nm
ATB140-C-005-S1 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 196 Nm
ATB140-C-005-S2 Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 196 Nm
ATB140-LM-001-S1 Frame: 140 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-LM-001-S2 Frame: 140 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-RM-001-S1 Frame: 140 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-RM-001-S2 Frame: 140 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-4M-001-S1 Frame: 140 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-4M-001-S2 Frame: 140 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FL-001-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FL-001-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FL-001.5-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FL-001.5-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FL-002-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-FL-002-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-FL-003-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FL-003-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FL-004-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-004-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-005-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-005-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-007-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB140-FL-007-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB140-FL-010-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB140-FL-010-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB140-FL-015-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FL-015-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FL-020-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-020-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-025-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-025-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-035-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-035-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-050-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-050-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-075-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 210 Nm
ATB140-FL-075-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 210 Nm
ATB140-FL-100-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-100-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-125-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-125-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-150-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 135 Nm
ATB140-FL-150-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 135 Nm
ATB140-FL-200-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 180 Nm
ATB140-FL-200-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 180 Nm
ATB140-FL-250-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-250-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-350-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-350-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-500-S1 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-500-S2 Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-001-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FL1-001-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FL1-001.5-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FL1-001.5-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FL1-002-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-FL1-002-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-FL1-003-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FL1-003-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FL1-004-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-004-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-005-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-005-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-007-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB140-FL1-007-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB140-FL1-010-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB140-FL1-010-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB140-FL1-015-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FL1-015-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FL1-020-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-020-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-025-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-025-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-035-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-035-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-050-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-050-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-075-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 210 Nm
ATB140-FL1-075-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 210 Nm
ATB140-FL1-100-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-100-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-125-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-125-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-150-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 135 Nm
ATB140-FL1-150-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 135 Nm
ATB140-FL1-200-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 180 Nm
ATB140-FL1-200-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 180 Nm
ATB140-FL1-250-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-250-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-350-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-350-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-500-S1 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-500-S2 Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-001-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FR1-001-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FR1-001.5-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FR1-001.5-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FR1-002-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-FR1-002-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-FR1-003-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FR1-003-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FR1-004-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-004-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-005-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-005-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-007-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB140-FR1-007-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB140-FR1-010-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB140-FR1-010-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB140-FR1-015-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FR1-015-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FR1-020-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-020-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-025-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-025-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-035-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-035-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-050-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-050-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-075-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 210 Nm
ATB140-FR1-075-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 210 Nm
ATB140-FR1-100-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-100-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-125-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-125-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-150-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 135 Nm
ATB140-FR1-150-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 135 Nm
ATB140-FR1-200-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 180 Nm
ATB140-FR1-200-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 180 Nm
ATB140-FR1-250-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-250-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-350-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-350-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-500-S1 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-500-S2 Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FH-001 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 360 Nm
ATB140-FH-001.5 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 360 Nm
ATB140-FH-002 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 330 Nm
ATB140-FH-003 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 270 Nm
ATB140-FH-004 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FH-005 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-007 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 91 Nm
ATB140-FH-010 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 208 Nm
ATB140-FH-015 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 270 Nm
ATB140-FH-020 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FH-025 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-035 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-050 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-075 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 210 Nm
ATB140-FH-100 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FH-125 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-150 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 135 Nm
ATB140-FH-200 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 180 Nm
ATB140-FH-250 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-350 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-500 Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-001 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 360 Nm
ATB140-FC-001.5 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 360 Nm
ATB140-FC-002 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 330 Nm
ATB140-FC-003 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 270 Nm
ATB140-FC-004 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FC-005 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-007 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 91 Nm
ATB140-FC-010 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 208 Nm
ATB140-FC-015 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 270 Nm
ATB140-FC-020 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FC-025 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-035 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-050 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-075 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 210 Nm
ATB140-FC-100 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FC-125 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-150 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 135 Nm
ATB140-FC-200 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 180 Nm
ATB140-FC-250 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-350 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-500 Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB170-L-001-S1 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-L-001-S2 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-L-001.5-S1 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-L-001.5-S2 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-L-002-S1 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-L-002-S2 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-L-003-S1 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-L-003-S2 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-L-004-S1 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-L-004-S2 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-L-005-S1 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-L-005-S2 Frame: 170 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-L1-001-S1 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-L1-001-S2 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-L1-001.5-S1 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-L1-001.5-S2 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-L1-002-S1 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-L1-002-S2 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-L1-003-S1 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-L1-003-S2 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-L1-004-S1 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-L1-004-S2 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-L1-005-S1 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-L1-005-S2 Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-R1-001-S1 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-R1-001-S2 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-R1-001.5-S1 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-R1-001.5-S2 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-R1-002-S1 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-R1-002-S2 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-R1-003-S1 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-R1-003-S2 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-R1-004-S1 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-R1-004-S2 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-R1-005-S1 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-R1-005-S2 Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-H-001-S1 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 585 Nm
ATB170-H-001-S2 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 585 Nm
ATB170-H-001.5-S1 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 585 Nm
ATB170-H-001.5-S2 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 585 Nm
ATB170-H-002-S1 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 544 Nm
ATB170-H-002-S2 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 544 Nm
ATB170-H-003-S1 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 450 Nm
ATB170-H-003-S2 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 450 Nm
ATB170-H-004-S1 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 376 Nm
ATB170-H-004-S2 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 376 Nm
ATB170-H-005-S1 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 320 Nm
ATB170-H-005-S2 Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 320 Nm
ATB170-C-001-S1 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 585 Nm
ATB170-C-001-S2 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 585 Nm
ATB170-C-001.5-S1 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 585 Nm
ATB170-C-001.5-S2 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 585 Nm
ATB170-C-002-S1 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 544 Nm
ATB170-C-002-S2 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 544 Nm
ATB170-C-003-S1 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 450 Nm
ATB170-C-003-S2 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 450 Nm
ATB170-C-004-S1 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 376 Nm
ATB170-C-004-S2 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 376 Nm
ATB170-C-005-S1 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 320 Nm
ATB170-C-005-S2 Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 320 Nm
ATB170-LM-001-S1 Frame: 170 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-LM-001-S2 Frame: 170 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-RM-001-S1 Frame: 170 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-RM-001-S2 Frame: 170 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-4M-001-S1 Frame: 170 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-4M-001-S2 Frame: 170 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FL-001-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FL-001-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FL-001.5-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FL-001.5-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FL-002-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-FL-002-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-FL-003-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-FL-003-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-FL-004-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-004-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-005-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-005-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-007-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB170-FL-007-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB170-FL-010-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB170-FL-010-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB170-FL-015-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-015-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-020-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-020-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-025-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-025-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-035-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-035-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-050-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-050-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-075-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-075-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-100-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-100-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-125-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-125-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-150-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-150-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-200-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-200-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-250-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-250-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-350-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-350-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-500-S1 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-500-S2 Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-001-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FL1-001-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FL1-001.5-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FL1-001.5-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FL1-002-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-FL1-002-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-FL1-003-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-FL1-003-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-FL1-004-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-004-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-005-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-005-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-007-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB170-FL1-007-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB170-FL1-010-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB170-FL1-010-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB170-FL1-015-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-015-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-020-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-020-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-025-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-025-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-035-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-035-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-050-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-050-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-075-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-075-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-100-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-100-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-125-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-125-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-150-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-150-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-200-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-200-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-250-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-250-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-350-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-350-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-500-S1 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-500-S2 Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-001-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FR1-001-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FR1-001.5-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FR1-001.5-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FR1-002-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-FR1-002-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-FR1-003-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-FR1-003-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-FR1-004-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-004-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-005-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-005-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-007-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB170-FR1-007-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB170-FR1-010-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB170-FR1-010-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB170-FR1-015-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-015-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-020-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-020-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-025-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-025-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-035-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-035-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-050-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-050-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-075-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-075-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-100-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-100-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-125-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-125-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-150-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-150-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-200-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-200-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-250-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-250-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-350-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-350-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-500-S1 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-500-S2 Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FH-001 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB170-FH-001.5 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB170-FH-002 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 544 Nm
ATB170-FH-003 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 450 Nm
ATB170-FH-004 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FH-005 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-007 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 91 Nm
ATB170-FH-010 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 208 Nm
ATB170-FH-015 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FH-020 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FH-025 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-035 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-050 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-075 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FH-100 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FH-125 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-150 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FH-200 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FH-250 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-350 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-500 Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-001 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB170-FC-001.5 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB170-FC-002 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 544 Nm
ATB170-FC-003 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 450 Nm
ATB170-FC-004 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FC-005 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-007 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 91 Nm
ATB170-FC-010 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 208 Nm
ATB170-FC-015 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FC-020 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FC-025 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-035 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-050 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-075 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FC-100 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FC-125 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-150 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FC-200 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FC-250 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-350 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-500 Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB210-L-001-S1 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L-001-S2 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L-001.5-S1 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L-001.5-S2 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L-002-S1 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-L-002-S2 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-L-003-S1 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-L-003-S2 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-L-004-S1 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-L-004-S2 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-L-005-S1 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-L-005-S2 Frame: 210 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-L1-001-S1 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L1-001-S2 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L1-001.5-S1 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L1-001.5-S2 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L1-002-S1 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-L1-002-S2 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-L1-003-S1 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-L1-003-S2 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-L1-004-S1 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-L1-004-S2 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-L1-005-S1 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-L1-005-S2 Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-R1-001-S1 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-R1-001-S2 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-R1-001.5-S1 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-R1-001.5-S2 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-R1-002-S1 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-R1-002-S2 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-R1-003-S1 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-R1-003-S2 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-R1-004-S1 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-R1-004-S2 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-R1-005-S1 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-R1-005-S2 Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-H-001-S1 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,300 Nm
ATB210-H-001-S2 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,300 Nm
ATB210-H-001.5-S1 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,300 Nm
ATB210-H-001.5-S2 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,300 Nm
ATB210-H-002-S1 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,220 Nm
ATB210-H-002-S2 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,220 Nm
ATB210-H-003-S1 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,020 Nm
ATB210-H-003-S2 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,020 Nm
ATB210-H-004-S1 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 860 Nm
ATB210-H-004-S2 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 860 Nm
ATB210-H-005-S1 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 740 Nm
ATB210-H-005-S2 Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 740 Nm
ATB210-C-001-S1 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,300 Nm
ATB210-C-001-S2 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,300 Nm
ATB210-C-001.5-S1 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,300 Nm
ATB210-C-001.5-S2 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,300 Nm
ATB210-C-002-S1 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,220 Nm
ATB210-C-002-S2 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,220 Nm
ATB210-C-003-S1 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,020 Nm
ATB210-C-003-S2 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,020 Nm
ATB210-C-004-S1 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 860 Nm
ATB210-C-004-S2 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 860 Nm
ATB210-C-005-S1 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 740 Nm
ATB210-C-005-S2 Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 740 Nm
ATB210-LM-001-S1 Frame: 210 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-LM-001-S2 Frame: 210 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-RM-001-S1 Frame: 210 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-RM-001-S2 Frame: 210 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-4M-001-S1 Frame: 210 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-4M-001-S2 Frame: 210 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL-001-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL-001-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL-001.5-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL-001.5-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL-002-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FL-002-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FL-003-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FL-003-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FL-004-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FL-004-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FL-005-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-005-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-007-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 195 Nm
ATB210-FL-007-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 195 Nm
ATB210-FL-010-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 430 Nm
ATB210-FL-010-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 430 Nm
ATB210-FL-015-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 645 Nm
ATB210-FL-015-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 645 Nm
ATB210-FL-020-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FL-020-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FL-025-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-025-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-035-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-035-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-050-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-050-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-075-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB210-FL-075-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB210-FL-100-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 780 Nm
ATB210-FL-100-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 780 Nm
ATB210-FL-125-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-125-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-150-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 390 Nm
ATB210-FL-150-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 390 Nm
ATB210-FL-200-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 520 Nm
ATB210-FL-200-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 520 Nm
ATB210-FL-250-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 650 Nm
ATB210-FL-250-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 650 Nm
ATB210-FL-350-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-350-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-500-S1 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-500-S2 Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-001-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL1-001-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL1-001.5-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL1-001.5-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL1-002-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FL1-002-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FL1-003-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FL1-003-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FL1-004-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FL1-004-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FL1-005-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-005-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-007-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 195 Nm
ATB210-FL1-007-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 195 Nm
ATB210-FL1-010-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 430 Nm
ATB210-FL1-010-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 430 Nm
ATB210-FL1-015-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 645 Nm
ATB210-FL1-015-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 645 Nm
ATB210-FL1-020-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FL1-020-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FL1-025-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-025-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-035-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-035-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-050-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-050-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-075-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB210-FL1-075-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB210-FL1-100-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 780 Nm
ATB210-FL1-100-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 780 Nm
ATB210-FL1-125-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-125-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-150-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 390 Nm
ATB210-FL1-150-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 390 Nm
ATB210-FL1-200-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 520 Nm
ATB210-FL1-200-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 520 Nm
ATB210-FL1-250-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 650 Nm
ATB210-FL1-250-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 650 Nm
ATB210-FL1-350-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-350-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-500-S1 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-500-S2 Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-001-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FR1-001-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FR1-001.5-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FR1-001.5-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FR1-002-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FR1-002-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FR1-003-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FR1-003-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FR1-004-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FR1-004-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FR1-005-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-005-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-007-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 195 Nm
ATB210-FR1-007-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 195 Nm
ATB210-FR1-010-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 430 Nm
ATB210-FR1-010-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 430 Nm
ATB210-FR1-015-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 645 Nm
ATB210-FR1-015-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 645 Nm
ATB210-FR1-020-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FR1-020-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FR1-025-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-025-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-035-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-035-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-050-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-050-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-075-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB210-FR1-075-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB210-FR1-100-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 780 Nm
ATB210-FR1-100-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 780 Nm
ATB210-FR1-125-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-125-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-150-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 390 Nm
ATB210-FR1-150-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 390 Nm
ATB210-FR1-200-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 520 Nm
ATB210-FR1-200-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 520 Nm
ATB210-FR1-250-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 650 Nm
ATB210-FR1-250-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 650 Nm
ATB210-FR1-350-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-350-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-500-S1 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-500-S2 Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FH-001 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB210-FH-001.5 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB210-FH-002 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,220 Nm
ATB210-FH-003 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,020 Nm
ATB210-FH-004 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 860 Nm
ATB210-FH-005 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-007 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 195 Nm
ATB210-FH-010 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 430 Nm
ATB210-FH-015 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 645 Nm
ATB210-FH-020 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 860 Nm
ATB210-FH-025 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-035 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-050 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-075 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB210-FH-100 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 780 Nm
ATB210-FH-125 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-150 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 390 Nm
ATB210-FH-200 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 520 Nm
ATB210-FH-250 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 650 Nm
ATB210-FH-350 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-500 Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-001 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB210-FC-001.5 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB210-FC-002 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,220 Nm
ATB210-FC-003 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,020 Nm
ATB210-FC-004 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 860 Nm
ATB210-FC-005 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-007 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 195 Nm
ATB210-FC-010 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 430 Nm
ATB210-FC-015 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 645 Nm
ATB210-FC-020 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 860 Nm
ATB210-FC-025 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-035 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-050 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-075 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB210-FC-100 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 780 Nm
ATB210-FC-125 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-150 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 390 Nm
ATB210-FC-200 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 520 Nm
ATB210-FC-250 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 650 Nm
ATB210-FC-350 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-500 Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB240-L-001-S1 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L-001-S2 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L-001.5-S1 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L-001.5-S2 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L-002-S1 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-L-002-S2 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-L-003-S1 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-L-003-S2 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-L-004-S1 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-L-004-S2 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-L-005-S1 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-L-005-S2 Frame: 240 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-L1-001-S1 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L1-001-S2 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L1-001.5-S1 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L1-001.5-S2 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L1-002-S1 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-L1-002-S2 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-L1-003-S1 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-L1-003-S2 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-L1-004-S1 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-L1-004-S2 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-L1-005-S1 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-L1-005-S2 Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-R1-001-S1 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-R1-001-S2 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-R1-001.5-S1 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-R1-001.5-S2 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-R1-002-S1 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-R1-002-S2 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-R1-003-S1 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-R1-003-S2 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-R1-004-S1 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-R1-004-S2 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-R1-005-S1 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-R1-005-S2 Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-H-001-S1 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,150 Nm
ATB240-H-001-S2 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,150 Nm
ATB240-H-001.5-S1 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,150 Nm
ATB240-H-001.5-S2 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,150 Nm
ATB240-H-002-S1 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,010 Nm
ATB240-H-002-S2 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,010 Nm
ATB240-H-003-S1 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,650 Nm
ATB240-H-003-S2 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,650 Nm
ATB240-H-004-S1 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,410 Nm
ATB240-H-004-S2 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,410 Nm
ATB240-H-005-S1 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,210 Nm
ATB240-H-005-S2 Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,210 Nm
ATB240-C-001-S1 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,150 Nm
ATB240-C-001-S2 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,150 Nm
ATB240-C-001.5-S1 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,150 Nm
ATB240-C-001.5-S2 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,150 Nm
ATB240-C-002-S1 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,010 Nm
ATB240-C-002-S2 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,010 Nm
ATB240-C-003-S1 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,650 Nm
ATB240-C-003-S2 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,650 Nm
ATB240-C-004-S1 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,410 Nm
ATB240-C-004-S2 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,410 Nm
ATB240-C-005-S1 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,210 Nm
ATB240-C-005-S2 Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,210 Nm
ATB240-LM-001-S1 Frame: 240 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-LM-001-S2 Frame: 240 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-RM-001-S1 Frame: 240 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-RM-001-S2 Frame: 240 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-4M-001-S1 Frame: 240 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-4M-001-S2 Frame: 240 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL-001-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL-001-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL-001.5-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL-001.5-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL-002-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FL-002-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FL-003-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FL-003-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FL-004-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-004-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-005-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-005-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-007-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB240-FL-007-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB240-FL-010-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB240-FL-010-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB240-FL-015-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL-015-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL-020-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-020-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-025-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-025-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-035-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-035-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-050-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-050-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-075-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL-075-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL-100-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-100-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-125-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-125-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-150-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB240-FL-150-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB240-FL-200-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FL-200-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FL-250-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-250-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-350-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-350-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-500-S1 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-500-S2 Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-001-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL1-001-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL1-001.5-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL1-001.5-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL1-002-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FL1-002-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FL1-003-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FL1-003-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FL1-004-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-004-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-005-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-005-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-007-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB240-FL1-007-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB240-FL1-010-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB240-FL1-010-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB240-FL1-015-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL1-015-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL1-020-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-020-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-025-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-025-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-035-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-035-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-050-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-050-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-075-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL1-075-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL1-100-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-100-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-125-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-125-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-150-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB240-FL1-150-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB240-FL1-200-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FL1-200-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FL1-250-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-250-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-350-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-350-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-500-S1 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-500-S2 Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-001-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FR1-001-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FR1-001.5-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FR1-001.5-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FR1-002-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FR1-002-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FR1-003-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FR1-003-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FR1-004-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-004-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-005-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-005-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-007-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB240-FR1-007-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB240-FR1-010-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB240-FR1-010-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB240-FR1-015-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FR1-015-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FR1-020-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-020-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-025-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-025-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-035-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-035-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-050-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-050-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-075-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FR1-075-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FR1-100-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-100-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-125-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-125-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-150-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB240-FR1-150-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB240-FR1-200-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FR1-200-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FR1-250-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-250-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-350-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-350-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-500-S1 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-500-S2 Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FH-001 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,150 Nm
ATB240-FH-001.5 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,150 Nm
ATB240-FH-002 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,010 Nm
ATB240-FH-003 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,650 Nm
ATB240-FH-004 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FH-005 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-007 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 358 Nm
ATB240-FH-010 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 846 Nm
ATB240-FH-015 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB240-FH-020 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FH-025 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-035 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-050 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-075 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB240-FH-100 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FH-125 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-150 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 975 Nm
ATB240-FH-200 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB240-FH-250 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-350 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-500 Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-001 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,150 Nm
ATB240-FC-001.5 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,150 Nm
ATB240-FC-002 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,010 Nm
ATB240-FC-003 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,650 Nm
ATB240-FC-004 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FC-005 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-007 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 358 Nm
ATB240-FC-010 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 846 Nm
ATB240-FC-015 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB240-FC-020 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FC-025 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-035 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-050 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-075 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB240-FC-100 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FC-125 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-150 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 975 Nm
ATB240-FC-200 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB240-FC-250 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-350 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-500 Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB280-L-001-S1 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L-001-S2 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L-001.5-S1 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L-001.5-S2 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L-002-S1 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-L-002-S2 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-L-003-S1 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-L-003-S2 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-L-004-S1 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-L-004-S2 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-L-005-S1 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-L-005-S2 Frame: 280 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-L1-001-S1 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L1-001-S2 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L1-001.5-S1 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L1-001.5-S2 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L1-002-S1 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-L1-002-S2 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-L1-003-S1 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-L1-003-S2 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-L1-004-S1 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-L1-004-S2 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-L1-005-S1 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-L1-005-S2 Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-R1-001-S1 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-R1-001-S2 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-R1-001.5-S1 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-R1-001.5-S2 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-R1-002-S1 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-R1-002-S2 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-R1-003-S1 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-R1-003-S2 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-R1-004-S1 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-R1-004-S2 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-R1-005-S1 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-R1-005-S2 Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-H-001-S1 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,200 Nm
ATB280-H-001-S2 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,200 Nm
ATB280-H-001.5-S1 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,200 Nm
ATB280-H-001.5-S2 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,200 Nm
ATB280-H-002-S1 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,050 Nm
ATB280-H-002-S2 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,050 Nm
ATB280-H-003-S1 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,850 Nm
ATB280-H-003-S2 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,850 Nm
ATB280-H-004-S1 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,300 Nm
ATB280-H-004-S2 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,300 Nm
ATB280-H-005-S1 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,000 Nm
ATB280-H-005-S2 Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,000 Nm
ATB280-C-001-S1 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,200 Nm
ATB280-C-001-S2 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,200 Nm
ATB280-C-001.5-S1 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,200 Nm
ATB280-C-001.5-S2 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,200 Nm
ATB280-C-002-S1 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,050 Nm
ATB280-C-002-S2 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,050 Nm
ATB280-C-003-S1 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,850 Nm
ATB280-C-003-S2 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,850 Nm
ATB280-C-004-S1 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,300 Nm
ATB280-C-004-S2 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,300 Nm
ATB280-C-005-S1 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,000 Nm
ATB280-C-005-S2 Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,000 Nm
ATB280-LM-001-S1 Frame: 280 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-LM-001-S2 Frame: 280 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-RM-001-S1 Frame: 280 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-RM-001-S2 Frame: 280 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-4M-001-S1 Frame: 280 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-4M-001-S2 Frame: 280 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL-001-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL-001-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL-001.5-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL-001.5-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL-002-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FL-002-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FL-003-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FL-003-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FL-004-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FL-004-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FL-005-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-005-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-007-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB280-FL-007-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB280-FL-010-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB280-FL-010-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB280-FL-015-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL-015-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL-020-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL-020-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL-025-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-025-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-035-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL-035-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL-050-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL-050-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL-075-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL-075-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL-100-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL-100-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL-125-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-125-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-150-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB280-FL-150-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB280-FL-200-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FL-200-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FL-250-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FL-250-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FL-350-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL-350-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL-500-S1 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL-500-S2 Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL1-001-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL1-001-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL1-001.5-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL1-001.5-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL1-002-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FL1-002-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FL1-003-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FL1-003-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FL1-004-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FL1-004-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FL1-005-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-005-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-007-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB280-FL1-007-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB280-FL1-010-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB280-FL1-010-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB280-FL1-015-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL1-015-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL1-020-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL1-020-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL1-025-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-025-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-035-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL1-035-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL1-050-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL1-050-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL1-075-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL1-075-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL1-100-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL1-100-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL1-125-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-125-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-150-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB280-FL1-150-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB280-FL1-200-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FL1-200-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FL1-250-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FL1-250-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FL1-350-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL1-350-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL1-500-S1 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL1-500-S2 Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FR1-001-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FR1-001-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FR1-001.5-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FR1-001.5-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FR1-002-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FR1-002-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FR1-003-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FR1-003-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FR1-004-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FR1-004-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FR1-005-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-005-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-007-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB280-FR1-007-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB280-FR1-010-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB280-FR1-010-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB280-FR1-015-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FR1-015-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FR1-020-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FR1-020-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FR1-025-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-025-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-035-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FR1-035-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FR1-050-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FR1-050-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FR1-075-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FR1-075-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FR1-100-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FR1-100-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FR1-125-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-125-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-150-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB280-FR1-150-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB280-FR1-200-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FR1-200-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FR1-250-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FR1-250-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FR1-350-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FR1-350-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FR1-500-S1 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FR1-500-S2 Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FH-001 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,200 Nm
ATB280-FH-001.5 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,200 Nm
ATB280-FH-002 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,050 Nm
ATB280-FH-003 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,850 Nm
ATB280-FH-004 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,300 Nm
ATB280-FH-005 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FH-007 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 358 Nm
ATB280-FH-010 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 846 Nm
ATB280-FH-015 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB280-FH-020 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,692 Nm
ATB280-FH-025 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FH-035 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,790 Nm
ATB280-FH-050 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,465 Nm
ATB280-FH-075 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB280-FH-100 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,692 Nm
ATB280-FH-125 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FH-150 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 975 Nm
ATB280-FH-200 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB280-FH-250 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,625 Nm
ATB280-FH-350 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,790 Nm
ATB280-FH-500 Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,465 Nm
ATB280-FC-001 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,200 Nm
ATB280-FC-001.5 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,200 Nm
ATB280-FC-002 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,050 Nm
ATB280-FC-003 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,850 Nm
ATB280-FC-004 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,300 Nm
ATB280-FC-005 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FC-007 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 358 Nm
ATB280-FC-010 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 846 Nm
ATB280-FC-015 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB280-FC-020 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,692 Nm
ATB280-FC-025 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FC-035 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,790 Nm
ATB280-FC-050 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,465 Nm
ATB280-FC-075 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB280-FC-100 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,692 Nm
ATB280-FC-125 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FC-150 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 975 Nm
ATB280-FC-200 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB280-FC-250 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,625 Nm
ATB280-FC-350 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,790 Nm
ATB280-FC-500 Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,465 Nm
Planetary GearboxesApex Dynamics
1170 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics ATB Carbon Steel Spiral Bevel Gearboxes (Frames 140-280)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (1170)

ATB140-L-001-S1, ATB140-L-001-S2, ATB140-L-001.5-S1, ATB140-L-001.5-S2, ATB140-L-002-S1, ATB140-L-002-S2, ATB140-L-003-S1, ATB140-L-003-S2, ATB140-L-004-S1, ATB140-L-004-S2 + 1160 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ATB140-L-001-S1Frame: 140 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-L-001-S2Frame: 140 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-L-001.5-S1Frame: 140 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-L-001.5-S2Frame: 140 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-L-002-S1Frame: 140 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-L-002-S2Frame: 140 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-L-003-S1Frame: 140 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-L-003-S2Frame: 140 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-L-004-S1Frame: 140 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-L-004-S2Frame: 140 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-L-005-S1Frame: 140 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-L-005-S2Frame: 140 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-L1-001-S1Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-L1-001-S2Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-L1-001.5-S1Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-L1-001.5-S2Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-L1-002-S1Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-L1-002-S2Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-L1-003-S1Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-L1-003-S2Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-L1-004-S1Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-L1-004-S2Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-L1-005-S1Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-L1-005-S2Frame: 140 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-R1-001-S1Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-R1-001-S2Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-R1-001.5-S1Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-R1-001.5-S2Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-R1-002-S1Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-R1-002-S2Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-R1-003-S1Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-R1-003-S2Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-R1-004-S1Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-R1-004-S2Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-R1-005-S1Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-R1-005-S2Frame: 140 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-H-001-S1Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 360 Nm
ATB140-H-001-S2Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 360 Nm
ATB140-H-001.5-S1Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 360 Nm
ATB140-H-001.5-S2Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 360 Nm
ATB140-H-002-S1Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 330 Nm
ATB140-H-002-S2Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 330 Nm
ATB140-H-003-S1Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 270 Nm
ATB140-H-003-S2Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 270 Nm
ATB140-H-004-S1Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 224 Nm
ATB140-H-004-S2Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 224 Nm
ATB140-H-005-S1Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 196 Nm
ATB140-H-005-S2Frame: 140 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 196 Nm
ATB140-C-001-S1Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 360 Nm
ATB140-C-001-S2Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 360 Nm
ATB140-C-001.5-S1Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 360 Nm
ATB140-C-001.5-S2Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 360 Nm
ATB140-C-002-S1Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 330 Nm
ATB140-C-002-S2Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 330 Nm
ATB140-C-003-S1Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 270 Nm
ATB140-C-003-S2Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 270 Nm
ATB140-C-004-S1Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 224 Nm
ATB140-C-004-S2Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 224 Nm
ATB140-C-005-S1Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 196 Nm
ATB140-C-005-S2Frame: 140 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 196 Nm
ATB140-LM-001-S1Frame: 140 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-LM-001-S2Frame: 140 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-RM-001-S1Frame: 140 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-RM-001-S2Frame: 140 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-4M-001-S1Frame: 140 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-4M-001-S2Frame: 140 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FL-001-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FL-001-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FL-001.5-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FL-001.5-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FL-002-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-FL-002-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-FL-003-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FL-003-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FL-004-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-004-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-005-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-005-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-007-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB140-FL-007-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB140-FL-010-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB140-FL-010-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB140-FL-015-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FL-015-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FL-020-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-020-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-025-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-025-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-035-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-035-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-050-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-050-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-075-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 210 Nm
ATB140-FL-075-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 210 Nm
ATB140-FL-100-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-100-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL-125-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-125-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-150-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 135 Nm
ATB140-FL-150-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 135 Nm
ATB140-FL-200-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 180 Nm
ATB140-FL-200-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 180 Nm
ATB140-FL-250-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-250-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-350-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-350-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-500-S1Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL-500-S2Frame: 140 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-001-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FL1-001-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FL1-001.5-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FL1-001.5-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FL1-002-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-FL1-002-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-FL1-003-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FL1-003-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FL1-004-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-004-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-005-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-005-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-007-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB140-FL1-007-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB140-FL1-010-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB140-FL1-010-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB140-FL1-015-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FL1-015-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FL1-020-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-020-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-025-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-025-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-035-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-035-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-050-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-050-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-075-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 210 Nm
ATB140-FL1-075-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 210 Nm
ATB140-FL1-100-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-100-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FL1-125-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-125-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-150-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 135 Nm
ATB140-FL1-150-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 135 Nm
ATB140-FL1-200-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 180 Nm
ATB140-FL1-200-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 180 Nm
ATB140-FL1-250-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-250-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-350-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-350-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-500-S1Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FL1-500-S2Frame: 140 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-001-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FR1-001-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FR1-001.5-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 360 Nm
ATB140-FR1-001.5-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 360 Nm
ATB140-FR1-002-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 330 Nm
ATB140-FR1-002-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 330 Nm
ATB140-FR1-003-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FR1-003-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FR1-004-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-004-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-005-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-005-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-007-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB140-FR1-007-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB140-FR1-010-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB140-FR1-010-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB140-FR1-015-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 270 Nm
ATB140-FR1-015-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 270 Nm
ATB140-FR1-020-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-020-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-025-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-025-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-035-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-035-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-050-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-050-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-075-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 210 Nm
ATB140-FR1-075-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 210 Nm
ATB140-FR1-100-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-100-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 224 Nm
ATB140-FR1-125-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-125-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-150-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 135 Nm
ATB140-FR1-150-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 135 Nm
ATB140-FR1-200-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 180 Nm
ATB140-FR1-200-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 180 Nm
ATB140-FR1-250-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-250-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-350-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-350-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-500-S1Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 196 Nm
ATB140-FR1-500-S2Frame: 140 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 196 Nm
ATB140-FH-001Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 360 Nm
ATB140-FH-001.5Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 360 Nm
ATB140-FH-002Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 330 Nm
ATB140-FH-003Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 270 Nm
ATB140-FH-004Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FH-005Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-007Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 91 Nm
ATB140-FH-010Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 208 Nm
ATB140-FH-015Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 270 Nm
ATB140-FH-020Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FH-025Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-035Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-050Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-075Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 210 Nm
ATB140-FH-100Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FH-125Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-150Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 135 Nm
ATB140-FH-200Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 180 Nm
ATB140-FH-250Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-350Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FH-500Frame: 140 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-001Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 360 Nm
ATB140-FC-001.5Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 360 Nm
ATB140-FC-002Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 330 Nm
ATB140-FC-003Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 270 Nm
ATB140-FC-004Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FC-005Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-007Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 91 Nm
ATB140-FC-010Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 208 Nm
ATB140-FC-015Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 270 Nm
ATB140-FC-020Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FC-025Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-035Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-050Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-075Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 210 Nm
ATB140-FC-100Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 224 Nm
ATB140-FC-125Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-150Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 135 Nm
ATB140-FC-200Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 180 Nm
ATB140-FC-250Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-350Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB140-FC-500Frame: 140 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 196 Nm
ATB170-L-001-S1Frame: 170 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-L-001-S2Frame: 170 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-L-001.5-S1Frame: 170 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-L-001.5-S2Frame: 170 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-L-002-S1Frame: 170 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-L-002-S2Frame: 170 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-L-003-S1Frame: 170 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-L-003-S2Frame: 170 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-L-004-S1Frame: 170 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-L-004-S2Frame: 170 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-L-005-S1Frame: 170 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-L-005-S2Frame: 170 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-L1-001-S1Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-L1-001-S2Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-L1-001.5-S1Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-L1-001.5-S2Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-L1-002-S1Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-L1-002-S2Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-L1-003-S1Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-L1-003-S2Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-L1-004-S1Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-L1-004-S2Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-L1-005-S1Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-L1-005-S2Frame: 170 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-R1-001-S1Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-R1-001-S2Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-R1-001.5-S1Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-R1-001.5-S2Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-R1-002-S1Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-R1-002-S2Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-R1-003-S1Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-R1-003-S2Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-R1-004-S1Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-R1-004-S2Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-R1-005-S1Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-R1-005-S2Frame: 170 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-H-001-S1Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 585 Nm
ATB170-H-001-S2Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 585 Nm
ATB170-H-001.5-S1Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 585 Nm
ATB170-H-001.5-S2Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 585 Nm
ATB170-H-002-S1Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 544 Nm
ATB170-H-002-S2Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 544 Nm
ATB170-H-003-S1Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 450 Nm
ATB170-H-003-S2Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 450 Nm
ATB170-H-004-S1Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 376 Nm
ATB170-H-004-S2Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 376 Nm
ATB170-H-005-S1Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 320 Nm
ATB170-H-005-S2Frame: 170 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 320 Nm
ATB170-C-001-S1Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 585 Nm
ATB170-C-001-S2Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 585 Nm
ATB170-C-001.5-S1Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 585 Nm
ATB170-C-001.5-S2Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 585 Nm
ATB170-C-002-S1Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 544 Nm
ATB170-C-002-S2Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 544 Nm
ATB170-C-003-S1Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 450 Nm
ATB170-C-003-S2Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 450 Nm
ATB170-C-004-S1Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 376 Nm
ATB170-C-004-S2Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 376 Nm
ATB170-C-005-S1Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 320 Nm
ATB170-C-005-S2Frame: 170 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 320 Nm
ATB170-LM-001-S1Frame: 170 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-LM-001-S2Frame: 170 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-RM-001-S1Frame: 170 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-RM-001-S2Frame: 170 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-4M-001-S1Frame: 170 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-4M-001-S2Frame: 170 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FL-001-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FL-001-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FL-001.5-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FL-001.5-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FL-002-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-FL-002-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-FL-003-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-FL-003-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-FL-004-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-004-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-005-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-005-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-007-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB170-FL-007-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB170-FL-010-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB170-FL-010-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB170-FL-015-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-015-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-020-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-020-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-025-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-025-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-035-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-035-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-050-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-050-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-075-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-075-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-100-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-100-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-125-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-125-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-150-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-150-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL-200-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-200-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL-250-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-250-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-350-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-350-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-500-S1Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL-500-S2Frame: 170 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-001-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FL1-001-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FL1-001.5-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FL1-001.5-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FL1-002-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-FL1-002-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-FL1-003-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-FL1-003-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-FL1-004-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-004-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-005-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-005-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-007-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB170-FL1-007-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB170-FL1-010-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB170-FL1-010-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB170-FL1-015-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-015-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-020-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-020-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-025-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-025-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-035-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-035-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-050-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-050-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-075-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-075-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-100-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-100-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-125-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-125-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-150-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-150-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FL1-200-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-200-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FL1-250-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-250-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-350-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-350-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-500-S1Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FL1-500-S2Frame: 170 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-001-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FR1-001-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FR1-001.5-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB170-FR1-001.5-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB170-FR1-002-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 544 Nm
ATB170-FR1-002-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 544 Nm
ATB170-FR1-003-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 450 Nm
ATB170-FR1-003-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 450 Nm
ATB170-FR1-004-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-004-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-005-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-005-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-007-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 91 Nm
ATB170-FR1-007-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 91 Nm
ATB170-FR1-010-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 208 Nm
ATB170-FR1-010-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 208 Nm
ATB170-FR1-015-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-015-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-020-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-020-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-025-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-025-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-035-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-035-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-050-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-050-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-075-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-075-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-100-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-100-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-125-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-125-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-150-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-150-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 312 Nm
ATB170-FR1-200-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-200-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 376 Nm
ATB170-FR1-250-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-250-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-350-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-350-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-500-S1Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 320 Nm
ATB170-FR1-500-S2Frame: 170 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 320 Nm
ATB170-FH-001Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB170-FH-001.5Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB170-FH-002Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 544 Nm
ATB170-FH-003Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 450 Nm
ATB170-FH-004Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FH-005Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-007Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 91 Nm
ATB170-FH-010Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 208 Nm
ATB170-FH-015Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FH-020Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FH-025Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-035Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-050Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-075Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FH-100Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FH-125Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-150Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FH-200Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FH-250Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-350Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FH-500Frame: 170 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-001Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB170-FC-001.5Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB170-FC-002Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 544 Nm
ATB170-FC-003Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 450 Nm
ATB170-FC-004Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FC-005Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-007Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 91 Nm
ATB170-FC-010Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 208 Nm
ATB170-FC-015Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FC-020Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FC-025Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-035Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-050Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-075Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FC-100Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FC-125Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-150Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 312 Nm
ATB170-FC-200Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 376 Nm
ATB170-FC-250Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-350Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB170-FC-500Frame: 170 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 320 Nm
ATB210-L-001-S1Frame: 210 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L-001-S2Frame: 210 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L-001.5-S1Frame: 210 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L-001.5-S2Frame: 210 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L-002-S1Frame: 210 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-L-002-S2Frame: 210 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-L-003-S1Frame: 210 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-L-003-S2Frame: 210 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-L-004-S1Frame: 210 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-L-004-S2Frame: 210 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-L-005-S1Frame: 210 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-L-005-S2Frame: 210 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-L1-001-S1Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L1-001-S2Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L1-001.5-S1Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L1-001.5-S2Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-L1-002-S1Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-L1-002-S2Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-L1-003-S1Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-L1-003-S2Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-L1-004-S1Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-L1-004-S2Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-L1-005-S1Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-L1-005-S2Frame: 210 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-R1-001-S1Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-R1-001-S2Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-R1-001.5-S1Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-R1-001.5-S2Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-R1-002-S1Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-R1-002-S2Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-R1-003-S1Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-R1-003-S2Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-R1-004-S1Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-R1-004-S2Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-R1-005-S1Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-R1-005-S2Frame: 210 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-H-001-S1Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,300 Nm
ATB210-H-001-S2Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,300 Nm
ATB210-H-001.5-S1Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,300 Nm
ATB210-H-001.5-S2Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,300 Nm
ATB210-H-002-S1Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,220 Nm
ATB210-H-002-S2Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,220 Nm
ATB210-H-003-S1Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,020 Nm
ATB210-H-003-S2Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,020 Nm
ATB210-H-004-S1Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 860 Nm
ATB210-H-004-S2Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 860 Nm
ATB210-H-005-S1Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 740 Nm
ATB210-H-005-S2Frame: 210 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 740 Nm
ATB210-C-001-S1Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,300 Nm
ATB210-C-001-S2Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,300 Nm
ATB210-C-001.5-S1Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,300 Nm
ATB210-C-001.5-S2Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,300 Nm
ATB210-C-002-S1Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,220 Nm
ATB210-C-002-S2Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,220 Nm
ATB210-C-003-S1Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,020 Nm
ATB210-C-003-S2Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,020 Nm
ATB210-C-004-S1Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 860 Nm
ATB210-C-004-S2Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 860 Nm
ATB210-C-005-S1Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 740 Nm
ATB210-C-005-S2Frame: 210 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 740 Nm
ATB210-LM-001-S1Frame: 210 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-LM-001-S2Frame: 210 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-RM-001-S1Frame: 210 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-RM-001-S2Frame: 210 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-4M-001-S1Frame: 210 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-4M-001-S2Frame: 210 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL-001-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL-001-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL-001.5-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL-001.5-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL-002-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FL-002-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FL-003-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FL-003-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FL-004-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FL-004-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FL-005-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-005-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-007-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 195 Nm
ATB210-FL-007-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 195 Nm
ATB210-FL-010-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 430 Nm
ATB210-FL-010-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 430 Nm
ATB210-FL-015-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 645 Nm
ATB210-FL-015-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 645 Nm
ATB210-FL-020-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FL-020-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FL-025-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-025-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-035-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-035-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-050-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-050-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-075-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB210-FL-075-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB210-FL-100-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 780 Nm
ATB210-FL-100-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 780 Nm
ATB210-FL-125-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-125-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-150-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 390 Nm
ATB210-FL-150-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 390 Nm
ATB210-FL-200-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 520 Nm
ATB210-FL-200-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 520 Nm
ATB210-FL-250-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 650 Nm
ATB210-FL-250-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 650 Nm
ATB210-FL-350-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-350-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-500-S1Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL-500-S2Frame: 210 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-001-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL1-001-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL1-001.5-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL1-001.5-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FL1-002-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FL1-002-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FL1-003-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FL1-003-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FL1-004-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FL1-004-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FL1-005-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-005-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-007-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 195 Nm
ATB210-FL1-007-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 195 Nm
ATB210-FL1-010-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 430 Nm
ATB210-FL1-010-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 430 Nm
ATB210-FL1-015-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 645 Nm
ATB210-FL1-015-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 645 Nm
ATB210-FL1-020-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FL1-020-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FL1-025-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-025-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-035-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-035-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-050-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-050-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-075-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB210-FL1-075-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB210-FL1-100-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 780 Nm
ATB210-FL1-100-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 780 Nm
ATB210-FL1-125-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-125-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-150-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 390 Nm
ATB210-FL1-150-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 390 Nm
ATB210-FL1-200-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 520 Nm
ATB210-FL1-200-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 520 Nm
ATB210-FL1-250-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 650 Nm
ATB210-FL1-250-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 650 Nm
ATB210-FL1-350-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-350-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-500-S1Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FL1-500-S2Frame: 210 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-001-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FR1-001-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FR1-001.5-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FR1-001.5-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB210-FR1-002-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FR1-002-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,220 Nm
ATB210-FR1-003-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FR1-003-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,020 Nm
ATB210-FR1-004-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FR1-004-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FR1-005-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-005-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-007-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 195 Nm
ATB210-FR1-007-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 195 Nm
ATB210-FR1-010-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 430 Nm
ATB210-FR1-010-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 430 Nm
ATB210-FR1-015-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 645 Nm
ATB210-FR1-015-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 645 Nm
ATB210-FR1-020-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 860 Nm
ATB210-FR1-020-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 860 Nm
ATB210-FR1-025-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-025-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-035-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-035-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-050-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-050-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-075-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 585 Nm
ATB210-FR1-075-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 585 Nm
ATB210-FR1-100-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 780 Nm
ATB210-FR1-100-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 780 Nm
ATB210-FR1-125-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-125-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-150-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 390 Nm
ATB210-FR1-150-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 390 Nm
ATB210-FR1-200-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 520 Nm
ATB210-FR1-200-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 520 Nm
ATB210-FR1-250-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 650 Nm
ATB210-FR1-250-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 650 Nm
ATB210-FR1-350-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-350-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-500-S1Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 740 Nm
ATB210-FR1-500-S2Frame: 210 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 740 Nm
ATB210-FH-001Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB210-FH-001.5Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB210-FH-002Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,220 Nm
ATB210-FH-003Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,020 Nm
ATB210-FH-004Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 860 Nm
ATB210-FH-005Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-007Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 195 Nm
ATB210-FH-010Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 430 Nm
ATB210-FH-015Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 645 Nm
ATB210-FH-020Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 860 Nm
ATB210-FH-025Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-035Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-050Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-075Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB210-FH-100Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 780 Nm
ATB210-FH-125Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-150Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 390 Nm
ATB210-FH-200Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 520 Nm
ATB210-FH-250Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 650 Nm
ATB210-FH-350Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FH-500Frame: 210 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-001Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB210-FC-001.5Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB210-FC-002Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,220 Nm
ATB210-FC-003Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,020 Nm
ATB210-FC-004Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 860 Nm
ATB210-FC-005Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-007Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 195 Nm
ATB210-FC-010Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 430 Nm
ATB210-FC-015Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 645 Nm
ATB210-FC-020Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 860 Nm
ATB210-FC-025Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-035Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-050Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-075Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 585 Nm
ATB210-FC-100Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 780 Nm
ATB210-FC-125Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-150Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 390 Nm
ATB210-FC-200Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 520 Nm
ATB210-FC-250Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 650 Nm
ATB210-FC-350Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB210-FC-500Frame: 210 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 740 Nm
ATB240-L-001-S1Frame: 240 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L-001-S2Frame: 240 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L-001.5-S1Frame: 240 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L-001.5-S2Frame: 240 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L-002-S1Frame: 240 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-L-002-S2Frame: 240 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-L-003-S1Frame: 240 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-L-003-S2Frame: 240 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-L-004-S1Frame: 240 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-L-004-S2Frame: 240 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-L-005-S1Frame: 240 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-L-005-S2Frame: 240 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-L1-001-S1Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L1-001-S2Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L1-001.5-S1Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L1-001.5-S2Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-L1-002-S1Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-L1-002-S2Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-L1-003-S1Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-L1-003-S2Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-L1-004-S1Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-L1-004-S2Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-L1-005-S1Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-L1-005-S2Frame: 240 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-R1-001-S1Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-R1-001-S2Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-R1-001.5-S1Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-R1-001.5-S2Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-R1-002-S1Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-R1-002-S2Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-R1-003-S1Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-R1-003-S2Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-R1-004-S1Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-R1-004-S2Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-R1-005-S1Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-R1-005-S2Frame: 240 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-H-001-S1Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,150 Nm
ATB240-H-001-S2Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,150 Nm
ATB240-H-001.5-S1Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,150 Nm
ATB240-H-001.5-S2Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,150 Nm
ATB240-H-002-S1Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,010 Nm
ATB240-H-002-S2Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,010 Nm
ATB240-H-003-S1Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,650 Nm
ATB240-H-003-S2Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,650 Nm
ATB240-H-004-S1Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,410 Nm
ATB240-H-004-S2Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,410 Nm
ATB240-H-005-S1Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,210 Nm
ATB240-H-005-S2Frame: 240 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,210 Nm
ATB240-C-001-S1Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,150 Nm
ATB240-C-001-S2Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,150 Nm
ATB240-C-001.5-S1Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,150 Nm
ATB240-C-001.5-S2Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,150 Nm
ATB240-C-002-S1Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,010 Nm
ATB240-C-002-S2Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,010 Nm
ATB240-C-003-S1Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,650 Nm
ATB240-C-003-S2Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,650 Nm
ATB240-C-004-S1Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,410 Nm
ATB240-C-004-S2Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,410 Nm
ATB240-C-005-S1Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 1,210 Nm
ATB240-C-005-S2Frame: 240 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 1,210 Nm
ATB240-LM-001-S1Frame: 240 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-LM-001-S2Frame: 240 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-RM-001-S1Frame: 240 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-RM-001-S2Frame: 240 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-4M-001-S1Frame: 240 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-4M-001-S2Frame: 240 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL-001-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL-001-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL-001.5-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL-001.5-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL-002-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FL-002-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FL-003-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FL-003-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FL-004-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-004-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-005-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-005-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-007-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB240-FL-007-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB240-FL-010-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB240-FL-010-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB240-FL-015-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL-015-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL-020-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-020-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-025-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-025-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-035-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-035-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-050-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-050-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-075-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL-075-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL-100-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-100-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL-125-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-125-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-150-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB240-FL-150-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB240-FL-200-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FL-200-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FL-250-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-250-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-350-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-350-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-500-S1Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL-500-S2Frame: 240 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-001-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL1-001-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL1-001.5-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL1-001.5-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FL1-002-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FL1-002-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FL1-003-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FL1-003-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FL1-004-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-004-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-005-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-005-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-007-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB240-FL1-007-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB240-FL1-010-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB240-FL1-010-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB240-FL1-015-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL1-015-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL1-020-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-020-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-025-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-025-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-035-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-035-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-050-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-050-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-075-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL1-075-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FL1-100-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-100-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FL1-125-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-125-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-150-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB240-FL1-150-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB240-FL1-200-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FL1-200-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FL1-250-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-250-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-350-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-350-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-500-S1Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FL1-500-S2Frame: 240 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-001-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FR1-001-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FR1-001.5-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FR1-001.5-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,150 Nm
ATB240-FR1-002-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FR1-002-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,010 Nm
ATB240-FR1-003-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FR1-003-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,650 Nm
ATB240-FR1-004-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-004-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-005-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-005-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-007-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB240-FR1-007-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB240-FR1-010-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB240-FR1-010-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB240-FR1-015-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FR1-015-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FR1-020-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-020-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-025-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-025-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-035-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-035-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-050-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-050-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-075-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FR1-075-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB240-FR1-100-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-100-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,410 Nm
ATB240-FR1-125-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-125-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-150-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB240-FR1-150-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB240-FR1-200-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FR1-200-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB240-FR1-250-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-250-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-350-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-350-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-500-S1Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FR1-500-S2Frame: 240 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,210 Nm
ATB240-FH-001Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,150 Nm
ATB240-FH-001.5Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,150 Nm
ATB240-FH-002Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,010 Nm
ATB240-FH-003Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,650 Nm
ATB240-FH-004Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FH-005Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-007Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 358 Nm
ATB240-FH-010Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 846 Nm
ATB240-FH-015Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB240-FH-020Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FH-025Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-035Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-050Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-075Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB240-FH-100Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FH-125Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-150Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 975 Nm
ATB240-FH-200Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB240-FH-250Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-350Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FH-500Frame: 240 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-001Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,150 Nm
ATB240-FC-001.5Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,150 Nm
ATB240-FC-002Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,010 Nm
ATB240-FC-003Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,650 Nm
ATB240-FC-004Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FC-005Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-007Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 358 Nm
ATB240-FC-010Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 846 Nm
ATB240-FC-015Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB240-FC-020Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FC-025Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-035Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-050Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-075Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB240-FC-100Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,410 Nm
ATB240-FC-125Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-150Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 975 Nm
ATB240-FC-200Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB240-FC-250Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-350Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB240-FC-500Frame: 240 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,210 Nm
ATB280-L-001-S1Frame: 280 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L-001-S2Frame: 280 | Gearbox: L dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L-001.5-S1Frame: 280 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L-001.5-S2Frame: 280 | Gearbox: L dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L-002-S1Frame: 280 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-L-002-S2Frame: 280 | Gearbox: L dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-L-003-S1Frame: 280 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-L-003-S2Frame: 280 | Gearbox: L dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-L-004-S1Frame: 280 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-L-004-S2Frame: 280 | Gearbox: L dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-L-005-S1Frame: 280 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-L-005-S2Frame: 280 | Gearbox: L dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-L1-001-S1Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L1-001-S2Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L1-001.5-S1Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L1-001.5-S2Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-L1-002-S1Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-L1-002-S2Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-L1-003-S1Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-L1-003-S2Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-L1-004-S1Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-L1-004-S2Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-L1-005-S1Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-L1-005-S2Frame: 280 | Gearbox: L1 single output shaft, left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-R1-001-S1Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-R1-001-S2Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-R1-001.5-S1Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-R1-001.5-S2Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-R1-002-S1Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-R1-002-S2Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-R1-003-S1Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-R1-003-S2Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-R1-004-S1Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-R1-004-S2Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-R1-005-S1Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-R1-005-S2Frame: 280 | Gearbox: R1 single output shaft, right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-H-001-S1Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,200 Nm
ATB280-H-001-S2Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,200 Nm
ATB280-H-001.5-S1Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,200 Nm
ATB280-H-001.5-S2Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,200 Nm
ATB280-H-002-S1Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,050 Nm
ATB280-H-002-S2Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,050 Nm
ATB280-H-003-S1Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,850 Nm
ATB280-H-003-S2Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,850 Nm
ATB280-H-004-S1Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,300 Nm
ATB280-H-004-S2Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,300 Nm
ATB280-H-005-S1Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,000 Nm
ATB280-H-005-S2Frame: 280 | Gearbox: H keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,000 Nm
ATB280-C-001-S1Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,200 Nm
ATB280-C-001-S2Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,200 Nm
ATB280-C-001.5-S1Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,200 Nm
ATB280-C-001.5-S2Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,200 Nm
ATB280-C-002-S1Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 3,050 Nm
ATB280-C-002-S2Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 3,050 Nm
ATB280-C-003-S1Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,850 Nm
ATB280-C-003-S2Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,850 Nm
ATB280-C-004-S1Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,300 Nm
ATB280-C-004-S2Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,300 Nm
ATB280-C-005-S1Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth input shaft | Nominal torque T2N: 2,000 Nm
ATB280-C-005-S2Frame: 280 | Gearbox: C hollow output, shrink disc | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed input shaft | Nominal torque T2N: 2,000 Nm
ATB280-LM-001-S1Frame: 280 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-LM-001-S2Frame: 280 | Gearbox: LM through input, left output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-RM-001-S1Frame: 280 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-RM-001-S2Frame: 280 | Gearbox: RM through input, right output | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-4M-001-S1Frame: 280 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-4M-001-S2Frame: 280 | Gearbox: 4M four shafts (cross type) | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL-001-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL-001-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL-001.5-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL-001.5-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL-002-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FL-002-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FL-003-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FL-003-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FL-004-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FL-004-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FL-005-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-005-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-007-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB280-FL-007-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB280-FL-010-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB280-FL-010-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB280-FL-015-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL-015-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL-020-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL-020-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL-025-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-025-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-035-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL-035-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL-050-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL-050-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL-075-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL-075-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL-100-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL-100-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL-125-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-125-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL-150-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB280-FL-150-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB280-FL-200-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FL-200-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FL-250-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FL-250-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FL-350-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL-350-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL-500-S1Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL-500-S2Frame: 280 | Gearbox: FL motor flange, dual output shafts | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL1-001-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL1-001-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL1-001.5-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL1-001.5-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FL1-002-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FL1-002-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FL1-003-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FL1-003-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FL1-004-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FL1-004-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FL1-005-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-005-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-007-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB280-FL1-007-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB280-FL1-010-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB280-FL1-010-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB280-FL1-015-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL1-015-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL1-020-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL1-020-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL1-025-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-025-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-035-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL1-035-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL1-050-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL1-050-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL1-075-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL1-075-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FL1-100-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL1-100-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FL1-125-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-125-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FL1-150-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB280-FL1-150-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB280-FL1-200-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FL1-200-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FL1-250-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FL1-250-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FL1-350-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL1-350-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FL1-500-S1Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FL1-500-S2Frame: 280 | Gearbox: FL1 motor flange, single shaft left | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FR1-001-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FR1-001-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FR1-001.5-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FR1-001.5-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 1.5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,200 Nm
ATB280-FR1-002-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FR1-002-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 2 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 3,050 Nm
ATB280-FR1-003-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FR1-003-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 3 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,850 Nm
ATB280-FR1-004-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FR1-004-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 4 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,300 Nm
ATB280-FR1-005-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-005-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 5 | Stages: 1 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-007-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 358 Nm
ATB280-FR1-007-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 7 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 358 Nm
ATB280-FR1-010-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 846 Nm
ATB280-FR1-010-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 10 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 846 Nm
ATB280-FR1-015-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FR1-015-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 15 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FR1-020-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FR1-020-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 20 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FR1-025-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-025-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 25 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-035-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FR1-035-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 35 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FR1-050-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FR1-050-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 50 | Stages: 2 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FR1-075-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FR1-075-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 75 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,269 Nm
ATB280-FR1-100-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FR1-100-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 100 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,692 Nm
ATB280-FR1-125-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-125-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 125 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 2,000 Nm
ATB280-FR1-150-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 975 Nm
ATB280-FR1-150-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 150 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 975 Nm
ATB280-FR1-200-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FR1-200-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 200 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,300 Nm
ATB280-FR1-250-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FR1-250-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 250 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,625 Nm
ATB280-FR1-350-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FR1-350-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 350 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,790 Nm
ATB280-FR1-500-S1Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S1 smooth output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FR1-500-S2Frame: 280 | Gearbox: FR1 motor flange, single shaft right | Ratio i: 500 | Stages: 3 | Shaft option: S2 keyed output shaft | Nominal torque T2N: 1,465 Nm
ATB280-FH-001Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,200 Nm
ATB280-FH-001.5Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,200 Nm
ATB280-FH-002Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,050 Nm
ATB280-FH-003Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,850 Nm
ATB280-FH-004Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,300 Nm
ATB280-FH-005Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FH-007Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 358 Nm
ATB280-FH-010Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 846 Nm
ATB280-FH-015Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB280-FH-020Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,692 Nm
ATB280-FH-025Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FH-035Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,790 Nm
ATB280-FH-050Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,465 Nm
ATB280-FH-075Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB280-FH-100Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,692 Nm
ATB280-FH-125Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FH-150Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 975 Nm
ATB280-FH-200Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB280-FH-250Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,625 Nm
ATB280-FH-350Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,790 Nm
ATB280-FH-500Frame: 280 | Gearbox: FH motor flange, keyed hollow output | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,465 Nm
ATB280-FC-001Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,200 Nm
ATB280-FC-001.5Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 1.5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,200 Nm
ATB280-FC-002Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 2 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 3,050 Nm
ATB280-FC-003Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 3 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,850 Nm
ATB280-FC-004Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 4 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,300 Nm
ATB280-FC-005Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 5 | Stages: 1 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FC-007Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 7 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 358 Nm
ATB280-FC-010Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 10 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 846 Nm
ATB280-FC-015Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 15 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB280-FC-020Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 20 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,692 Nm
ATB280-FC-025Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 25 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FC-035Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 35 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,790 Nm
ATB280-FC-050Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 50 | Stages: 2 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,465 Nm
ATB280-FC-075Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 75 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,269 Nm
ATB280-FC-100Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 100 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,692 Nm
ATB280-FC-125Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 125 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 2,000 Nm
ATB280-FC-150Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 150 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 975 Nm
ATB280-FC-200Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 200 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,300 Nm
ATB280-FC-250Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 250 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,625 Nm
ATB280-FC-350Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 350 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,790 Nm
ATB280-FC-500Frame: 280 | Gearbox: FC motor flange, shrink disc hollow | Ratio i: 500 | Stages: 3 | Shaft option: none (no solid shaft) | Nominal torque T2N: 1,465 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
