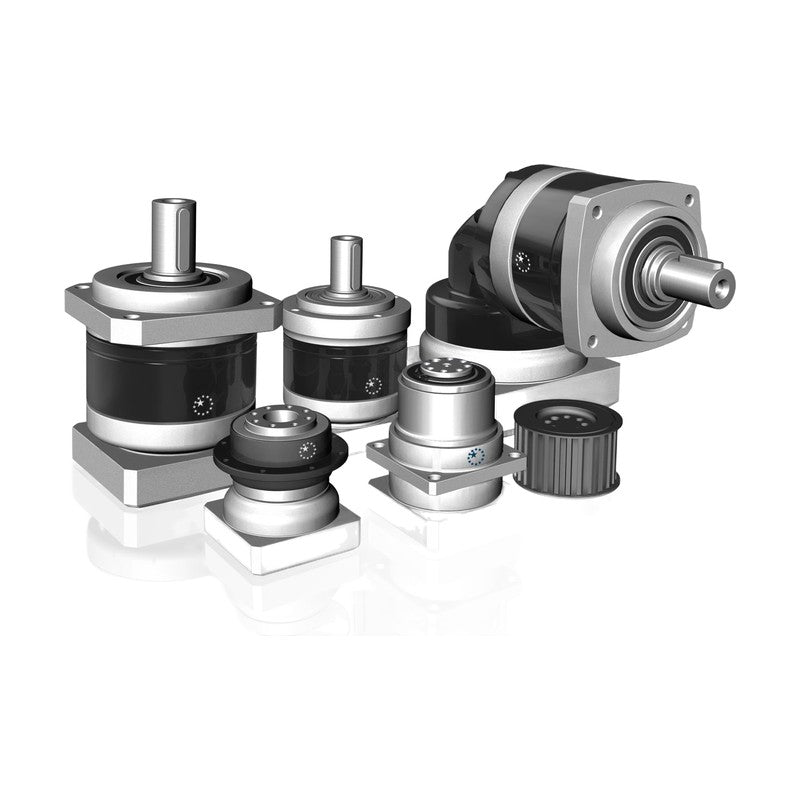

Apex Dynamics PDR Right-Angle Flange-Output Planetary Gearboxes

Apex Dynamics PDR Right-Angle Flange-Output Planetary Gearboxes

Apex Dynamics PDR right-angle planetary gearboxes with ISO-style output flange (no shaft), frame sizes 053-110, ratios 3-100.

Key features

  • New Generation P series: economic, high efficiency, low noise, reduced backlash, compact and light
  • Output flange with pilot and tapped holes for direct mounting of pinions, pulleys or arms
  • Frame sizes 053, 064, 090 and 110; nominal output torque 10-232 Nm
  • Ratios 3-10 (1-stage) and 12-100 (2-stage)
  • Motor adapter (input hub) matched to the servo motor; specify motor make and model when ordering
  • Right-angle input for space-saving installation

Specifications

Series PDR
Output Flange (h7 pilot)
Emergency stop torque T2NOT 3 x T2N
Max. acceleration torque T2B 60% of T2NOT
Nominal input speed n1N 4,500 (053) to 3,600 (110) rpm
Max. input speed n1B 8,000 (053) to 4,800 (110) rpm
Torsional rigidity 1.2 to 16.2 Nm/arcmin
Efficiency >=93% / >=90%
Protection IP65
Operating temperature 0 to +90 C
Source APEX Dynamics PII/PIIR catalog, p. 28-31
PDR053-003 Frame: 053 | Ratio i: 3 | Stages: 1 | Backlash: <=12 arcmin | Nominal torque T2N: 16 Nm
PDR053-004 Frame: 053 | Ratio i: 4 | Stages: 1 | Backlash: <=12 arcmin | Nominal torque T2N: 16 Nm
PDR053-005 Frame: 053 | Ratio i: 5 | Stages: 1 | Backlash: <=12 arcmin | Nominal torque T2N: 15 Nm
PDR053-007 Frame: 053 | Ratio i: 7 | Stages: 1 | Backlash: <=12 arcmin | Nominal torque T2N: 12 Nm
PDR053-010 Frame: 053 | Ratio i: 10 | Stages: 1 | Backlash: <=12 arcmin | Nominal torque T2N: 10 Nm
PDR053-012 Frame: 053 | Ratio i: 12 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 16 Nm
PDR053-015 Frame: 053 | Ratio i: 15 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 15 Nm
PDR053-016 Frame: 053 | Ratio i: 16 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 16 Nm
PDR053-020 Frame: 053 | Ratio i: 20 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 16 Nm
PDR053-025 Frame: 053 | Ratio i: 25 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 15 Nm
PDR053-030 Frame: 053 | Ratio i: 30 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 15 Nm
PDR053-035 Frame: 053 | Ratio i: 35 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 12 Nm
PDR053-040 Frame: 053 | Ratio i: 40 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 16 Nm
PDR053-050 Frame: 053 | Ratio i: 50 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 15 Nm
PDR053-070 Frame: 053 | Ratio i: 70 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 12 Nm
PDR053-100 Frame: 053 | Ratio i: 100 | Stages: 2 | Backlash: <=14 arcmin | Nominal torque T2N: 10 Nm
PDR064-003 Frame: 064 | Ratio i: 3 | Stages: 1 | Backlash: <=11 arcmin | Nominal torque T2N: 42 Nm
PDR064-004 Frame: 064 | Ratio i: 4 | Stages: 1 | Backlash: <=11 arcmin | Nominal torque T2N: 42 Nm
PDR064-005 Frame: 064 | Ratio i: 5 | Stages: 1 | Backlash: <=11 arcmin | Nominal torque T2N: 40 Nm
PDR064-007 Frame: 064 | Ratio i: 7 | Stages: 1 | Backlash: <=11 arcmin | Nominal torque T2N: 35 Nm
PDR064-010 Frame: 064 | Ratio i: 10 | Stages: 1 | Backlash: <=11 arcmin | Nominal torque T2N: 27 Nm
PDR064-012 Frame: 064 | Ratio i: 12 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 42 Nm
PDR064-015 Frame: 064 | Ratio i: 15 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 40 Nm
PDR064-016 Frame: 064 | Ratio i: 16 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 42 Nm
PDR064-020 Frame: 064 | Ratio i: 20 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 42 Nm
PDR064-025 Frame: 064 | Ratio i: 25 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 40 Nm
PDR064-030 Frame: 064 | Ratio i: 30 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 40 Nm
PDR064-035 Frame: 064 | Ratio i: 35 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 35 Nm
PDR064-040 Frame: 064 | Ratio i: 40 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 43 Nm
PDR064-050 Frame: 064 | Ratio i: 50 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 40 Nm
PDR064-070 Frame: 064 | Ratio i: 70 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 35 Nm
PDR064-100 Frame: 064 | Ratio i: 100 | Stages: 2 | Backlash: <=13 arcmin | Nominal torque T2N: 27 Nm
PDR090-003 Frame: 090 | Ratio i: 3 | Stages: 1 | Backlash: <=10 arcmin | Nominal torque T2N: 110 Nm
PDR090-004 Frame: 090 | Ratio i: 4 | Stages: 1 | Backlash: <=10 arcmin | Nominal torque T2N: 113 Nm
PDR090-005 Frame: 090 | Ratio i: 5 | Stages: 1 | Backlash: <=10 arcmin | Nominal torque T2N: 118 Nm
PDR090-007 Frame: 090 | Ratio i: 7 | Stages: 1 | Backlash: <=10 arcmin | Nominal torque T2N: 96 Nm
PDR090-010 Frame: 090 | Ratio i: 10 | Stages: 1 | Backlash: <=10 arcmin | Nominal torque T2N: 68 Nm
PDR090-012 Frame: 090 | Ratio i: 12 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 110 Nm
PDR090-015 Frame: 090 | Ratio i: 15 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 109 Nm
PDR090-016 Frame: 090 | Ratio i: 16 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 116 Nm
PDR090-020 Frame: 090 | Ratio i: 20 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 116 Nm
PDR090-025 Frame: 090 | Ratio i: 25 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 123 Nm
PDR090-030 Frame: 090 | Ratio i: 30 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 108 Nm
PDR090-035 Frame: 090 | Ratio i: 35 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 100 Nm
PDR090-040 Frame: 090 | Ratio i: 40 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 117 Nm
PDR090-050 Frame: 090 | Ratio i: 50 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 123 Nm
PDR090-070 Frame: 090 | Ratio i: 70 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 100 Nm
PDR090-100 Frame: 090 | Ratio i: 100 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 70 Nm
PDR110-003 Frame: 110 | Ratio i: 3 | Stages: 1 | Backlash: <=10 arcmin | Nominal torque T2N: 217 Nm
PDR110-004 Frame: 110 | Ratio i: 4 | Stages: 1 | Backlash: <=10 arcmin | Nominal torque T2N: 223 Nm
PDR110-005 Frame: 110 | Ratio i: 5 | Stages: 1 | Backlash: <=10 arcmin | Nominal torque T2N: 220 Nm
PDR110-007 Frame: 110 | Ratio i: 7 | Stages: 1 | Backlash: <=10 arcmin | Nominal torque T2N: 198 Nm
PDR110-010 Frame: 110 | Ratio i: 10 | Stages: 1 | Backlash: <=10 arcmin | Nominal torque T2N: 155 Nm
PDR110-012 Frame: 110 | Ratio i: 12 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 217 Nm
PDR110-015 Frame: 110 | Ratio i: 15 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 213 Nm
PDR110-016 Frame: 110 | Ratio i: 16 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 228 Nm
PDR110-020 Frame: 110 | Ratio i: 20 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 230 Nm
PDR110-025 Frame: 110 | Ratio i: 25 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 228 Nm
PDR110-030 Frame: 110 | Ratio i: 30 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 212 Nm
PDR110-035 Frame: 110 | Ratio i: 35 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 206 Nm
PDR110-040 Frame: 110 | Ratio i: 40 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 232 Nm
PDR110-050 Frame: 110 | Ratio i: 50 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 228 Nm
PDR110-070 Frame: 110 | Ratio i: 70 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 206 Nm
PDR110-100 Frame: 110 | Ratio i: 100 | Stages: 2 | Backlash: <=12 arcmin | Nominal torque T2N: 162 Nm
