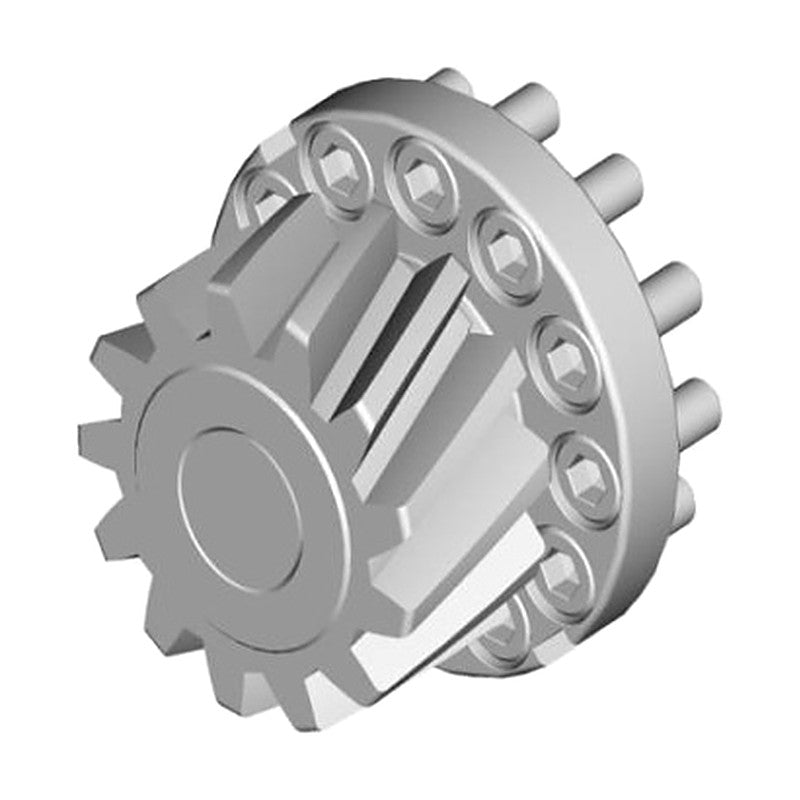

Apex Dynamics Helical Pinions - DIN 5480 Spline (Series D)

APEX Dynamics helical-teeth pinions with din 5480 spline interface for high-precision rack-and-pinion drives, module 1.5 to 5.

Key features

Helical teeth matched to APEX helical racks; left-hand helix pairs with right-hand helical racks
Interface: DIN 5480 spline
Carburized alloy steel, case hardened to about 60 HRC, teeth ground to reduce noise and wear
Max. permitted torque and feed force per rack quality given in the catalog torque tables
Backlash depends on center height; contact APEX for adjustment guidance

Specifications

Teeth	Left-hand helical 19°31'42"
Interface	DIN 5480 spline
Quality	DIN 5, Alloy Steel
Tooth thickness tolerance	e24
Heat treatment	Case hardened (carburized), approx. 60 HRC, teeth ground
Module range	1.5-5
Pinion series code	D
Order code	Series-Module-Teeth angle-Teeth no.-Fig-Size field, e.g. D02L15N16
Source	APEX Dynamics High Precision Rack and Pinion catalog, p. 50-50

D02L15N16		Module: 2 \| Teeth z: 15 \| Spline DIN 5480: N16x0.8x30x18x7H
D02L16N16		Module: 2 \| Teeth z: 16 \| Spline DIN 5480: N16x0.8x30x18x7H
D02L18N16		Module: 2 \| Teeth z: 18 \| Spline DIN 5480: N16x0.8x30x18x7H
D1JL38N22		Module: 1.5 \| Teeth z: 38 \| Spline DIN 5480: N22x1.25x30x16x7H
D02L18N22		Module: 2 \| Teeth z: 18 \| Spline DIN 5480: N22x1.25x30x16x7H
D02L20N22		Module: 2 \| Teeth z: 20 \| Spline DIN 5480: N22x1.25x30x16x7H
D02L22N22		Module: 2 \| Teeth z: 22 \| Spline DIN 5480: N22x1.25x30x16x7H
D02L25N22		Module: 2 \| Teeth z: 25 \| Spline DIN 5480: N22x1.25x30x16x7H
D02L23N32		Module: 2 \| Teeth z: 23 \| Spline DIN 5480: N32x1.25x30x24x7H
D02L25N32		Module: 2 \| Teeth z: 25 \| Spline DIN 5480: N32x1.25x30x24x7H
D02L27N32		Module: 2 \| Teeth z: 27 \| Spline DIN 5480: N32x1.25x30x24x7H
D03L20N40		Module: 3 \| Teeth z: 20 \| Spline DIN 5480: N40x2x30x18x7H
D03L22N40		Module: 3 \| Teeth z: 22 \| Spline DIN 5480: N40x2x30x18x7H
D03L24N40		Module: 3 \| Teeth z: 24 \| Spline DIN 5480: N40x2x30x18x7H
D04L20N55		Module: 4 \| Teeth z: 20 \| Spline DIN 5480: N55x2x30x26x7H
D04L25N70		Module: 4 \| Teeth z: 25 \| Spline DIN 5480: N70x2x30x34x7H
D05L24N80		Module: 5 \| Teeth z: 24 \| Spline DIN 5480: N80x2x30x38x7H
