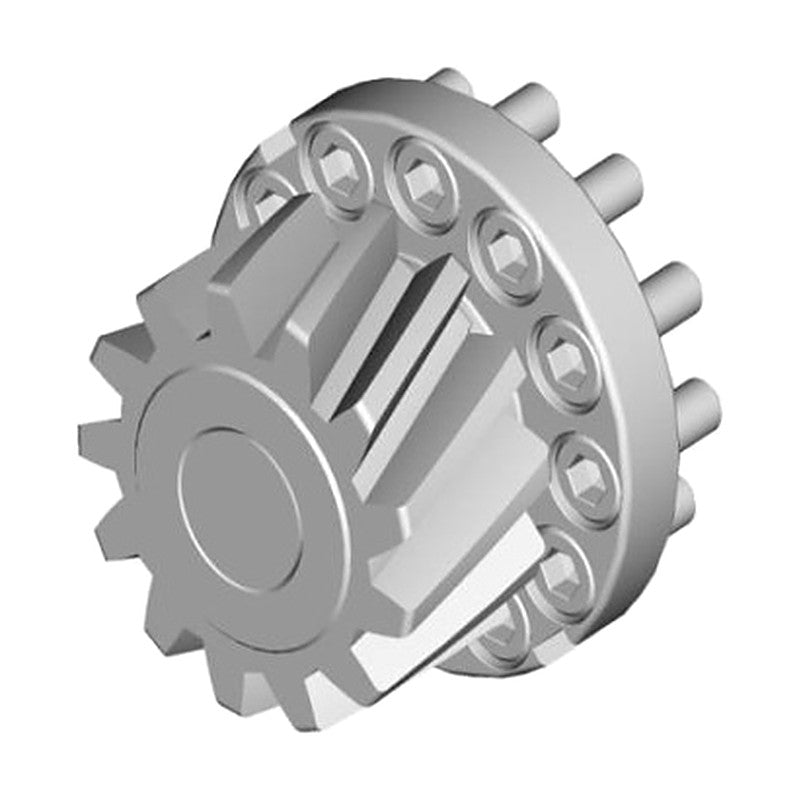

Apex Dynamics Helical Pinions - Keyway (Series F, Module 1-10)

Apex Dynamics Helical Pinions - Keyway (Series F, Module 1-10)

APEX Dynamics helical-teeth pinions with keyway interface for high-precision rack-and-pinion drives, module 1 to 10.

Key features

  • Helical teeth matched to APEX helical racks; left-hand helix pairs with right-hand helical racks
  • Interface: Keyway, with or without shrink disc
  • Carburized alloy steel, case hardened to about 60 HRC, teeth ground to reduce noise and wear
  • Max. permitted torque and feed force per rack quality given in the catalog torque tables
  • Backlash depends on center height; contact APEX for adjustment guidance
  • Fig. B versions are clamped with an SSD shrink disc (listed per row)

Specifications

Teeth Left-hand helical 19°31'42"
Interface Keyway, with or without shrink disc
Quality DIN 5, Alloy Steel
Tooth thickness tolerance e25
Heat treatment Case hardened (carburized), approx. 60 HRC, teeth ground
Module range 1-10
Pinion series code F
Order code Series-Module-Teeth angle-Teeth no.-Fig-Size field, e.g. F1JL20A11
Source APEX Dynamics High Precision Rack and Pinion catalog, p. 54-58
F1JL20A11 Module: 1.5 | Teeth z: 20 | Fig: A | Bore d1 H6: 11 mm | Shrink disc: None
F1JL20A14 Module: 1.5 | Teeth z: 20 | Fig: A | Bore d1 H6: 14 mm | Shrink disc: None
F1JL20A16 Module: 1.5 | Teeth z: 20 | Fig: A | Bore d1 H6: 16 mm | Shrink disc: None
F1JL21B16 Module: 1.5 | Teeth z: 21 | Fig: B | Bore d1 H6: 16 mm | Shrink disc: SSD-30
F02L18A16 Module: 2 | Teeth z: 18 | Fig: A | Bore d1 H6: 16 mm | Shrink disc: None
F02L20A19 Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02L20B19 Module: 2 | Teeth z: 20 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02L20A20 Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02L20A22 Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02L20B22 Module: 2 | Teeth z: 20 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02L21A16 Module: 2 | Teeth z: 21 | Fig: A | Bore d1 H6: 16 mm | Shrink disc: None
F02L21B22 Module: 2 | Teeth z: 21 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02L22A19 Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02L22B19 Module: 2 | Teeth z: 22 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02L22A22 Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02L22B22 Module: 2 | Teeth z: 22 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02L25A19 Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02L25B19 Module: 2 | Teeth z: 25 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02L25A20 Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02L25A22 Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02L25B22 Module: 2 | Teeth z: 25 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02L25A25 Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F01L30A12 Module: 1 | Teeth z: 30 | Fig: A | Bore d1 H6: 12 mm | Shrink disc: None
F01L30A13 Module: 1 | Teeth z: 30 | Fig: A | Bore d1 H6: 13 mm | Shrink disc: None
F02L28A19 Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02L28B19 Module: 2 | Teeth z: 28 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02L28A22 Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02L28B22 Module: 2 | Teeth z: 28 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02L28A35 Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02L30A16 Module: 2 | Teeth z: 30 | Fig: A | Bore d1 H6: 16 mm | Shrink disc: None
F02L30A20 Module: 2 | Teeth z: 30 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02L30B22 Module: 2 | Teeth z: 30 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02L30A25 Module: 2 | Teeth z: 30 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02L30A30 Module: 2 | Teeth z: 30 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02L30B30 Module: 2 | Teeth z: 30 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F02L30B32 Module: 2 | Teeth z: 30 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F02L32A20 Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02L32A22 Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02L32B22 Module: 2 | Teeth z: 32 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02L32A25 Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02L32A35 Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02L36A35 Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02L39B32 Module: 2 | Teeth z: 39 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F02L40A35 Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F2JL24A25 Module: 2.5 | Teeth z: 24 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F2JL24B25 Module: 2.5 | Teeth z: 24 | Fig: B | Bore d1 H6: 25 mm | Shrink disc: SSD-44
F03L20B22 Module: 3 | Teeth z: 20 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F03L20B25 Module: 3 | Teeth z: 20 | Fig: B | Bore d1 H6: 25 mm | Shrink disc: SSD-44
F03L20A30 Module: 3 | Teeth z: 20 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03L20B30 Module: 3 | Teeth z: 20 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F03L20B32 Module: 3 | Teeth z: 20 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03L20A35 Module: 3 | Teeth z: 20 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03L22A25 Module: 3 | Teeth z: 22 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03L22A30 Module: 3 | Teeth z: 22 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03L22B32 Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03L22A35 Module: 3 | Teeth z: 22 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03L22B40 Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03L25B22 Module: 3 | Teeth z: 25 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F03L25A25 Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03L25B25 Module: 3 | Teeth z: 25 | Fig: B | Bore d1 H6: 25 mm | Shrink disc: SSD-44
F03L25A30 Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03L25B30 Module: 3 | Teeth z: 25 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F03L25B32 Module: 3 | Teeth z: 25 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03L25A35 Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03L25B35 Module: 3 | Teeth z: 25 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F03L25B40 Module: 3 | Teeth z: 25 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03L25A40 Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 40 mm | Shrink disc: None
F03L28B32 Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03L28B40 Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03L32B32 Module: 3 | Teeth z: 32 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03L32B40 Module: 3 | Teeth z: 32 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F04L15A35 Module: 4 | Teeth z: 15 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04L18B32 Module: 4 | Teeth z: 18 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F04L20A35 Module: 4 | Teeth z: 20 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04L20A45 Module: 4 | Teeth z: 20 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04L21B32 Module: 4 | Teeth z: 21 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F04L21B35 Module: 4 | Teeth z: 21 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F04L21B40 Module: 4 | Teeth z: 21 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F04L21B45 Module: 4 | Teeth z: 21 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F04L22A35 Module: 4 | Teeth z: 22 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04L22A45 Module: 4 | Teeth z: 22 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04L24B32 Module: 4 | Teeth z: 24 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F04L24B35 Module: 4 | Teeth z: 24 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F04L24B40 Module: 4 | Teeth z: 24 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F04L24B45 Module: 4 | Teeth z: 24 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F04L24B55 Module: 4 | Teeth z: 24 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F04L25A35 Module: 4 | Teeth z: 25 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04L25A45 Module: 4 | Teeth z: 25 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04L25B55 Module: 4 | Teeth z: 25 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F05L18B45 Module: 5 | Teeth z: 18 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F05L24B45 Module: 5 | Teeth z: 24 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F05L24B55 Module: 5 | Teeth z: 24 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F05L24B75 Module: 5 | Teeth z: 24 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F06L20B55 Module: 6 | Teeth z: 20 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F06L20B75 Module: 6 | Teeth z: 20 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F06L25B55 Module: 6 | Teeth z: 25 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F06L25B75 Module: 6 | Teeth z: 25 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F10L20B85 Module: 10 | Teeth z: 20 | Fig: B | Bore d1 H6: 85 mm | Shrink disc: SSD-125
F08L18B75 Module: 8 | Teeth z: 18 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F08L20B85 Module: 8 | Teeth z: 20 | Fig: B | Bore d1 H6: 85 mm | Shrink disc: SSD-125
