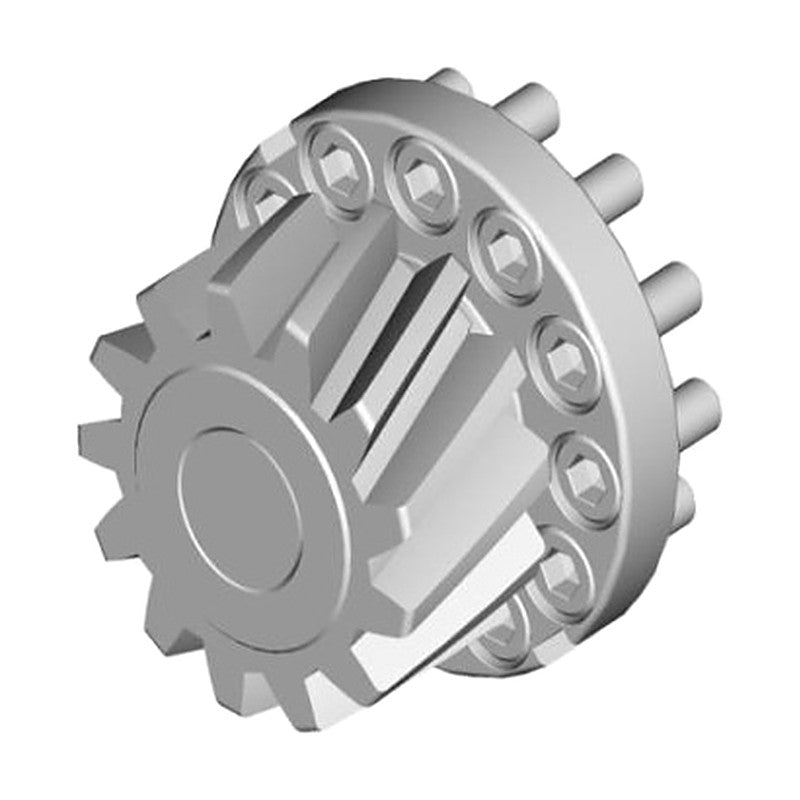

Apex Dynamics Helical Pinions - Teeth Plate (Series C, Module 2-5)

Apex Dynamics Helical Pinions - Teeth Plate (Series C, Module 2-5)

APEX Dynamics helical-teeth pinions with teeth plate / en iso 9409-1-a interface for high-precision rack-and-pinion drives, module 2 to 5.

Key features

  • Helical teeth matched to APEX helical racks; left-hand helix pairs with right-hand helical racks
  • Interface: Teeth plate / EN ISO 9409-1-A
  • Carburized alloy steel, case hardened to about 60 HRC, teeth ground to reduce noise and wear
  • Max. permitted torque and feed force per rack quality given in the catalog torque tables
  • Backlash depends on center height; contact APEX for adjustment guidance
  • Teeth-plate pinions can be combined with an extending flange (FA/FB codes listed per row); diamond friction foil raises torque about 30%

Specifications

Teeth Left-hand helical 19°31'42"
Interface Teeth plate / EN ISO 9409-1-A
Quality DIN 4, Alloy Steel
Tooth thickness tolerance e24
Heat treatment Case hardened (carburized), approx. 60 HRC, teeth ground
Module range 2-5
Pinion series code C
Order code Series-Module-Teeth angle-Teeth no.-Fig-Size field, e.g. C02L26A031
Source APEX Dynamics High Precision Rack and Pinion catalog, p. 45-47
C02L26A031 Module: 2 | Teeth z: 26 | Fig: A | Bolt circle: 31.5 mm | Flange: FA050 / FA063
C02L27A031 Module: 2 | Teeth z: 27 | Fig: A | Bolt circle: 31.5 mm | Flange: FA050 / FA063
C02L29A031 Module: 2 | Teeth z: 29 | Fig: A | Bolt circle: 31.5 mm | Flange: FA050 / FA063
C02L35A031 Module: 2 | Teeth z: 35 | Fig: A | Bolt circle: 31.5 mm | Flange: FA050 / FA063
C02L29A040 Module: 2 | Teeth z: 29 | Fig: A | Bolt circle: 40 mm | Flange: FB050
C02L33A050 Module: 2 | Teeth z: 33 | Fig: A | Bolt circle: 50 mm | Flange: FA080
C02L36A050 Module: 2 | Teeth z: 36 | Fig: A | Bolt circle: 50 mm | Flange: FA080
C02L37A050 Module: 2 | Teeth z: 37 | Fig: A | Bolt circle: 50 mm | Flange: FA080
C02L37B050 Module: 2 | Teeth z: 37 | Fig: B | Bolt circle: 50 mm | Flange: -
C02L40C063 Module: 2 | Teeth z: 40 | Fig: C | Bolt circle: 63 mm | Flange: -
C02L45C063 Module: 2 | Teeth z: 45 | Fig: C | Bolt circle: 63 mm | Flange: -
C03L30C063 Module: 3 | Teeth z: 30 | Fig: C | Bolt circle: 63 mm | Flange: -
C03L31A050 Module: 3 | Teeth z: 31 | Fig: A | Bolt circle: 50 mm | Flange: FA080
C03L35B080 Module: 3 | Teeth z: 35 | Fig: B | Bolt circle: 80 mm | Flange: FA125
C03L40B080 Module: 3 | Teeth z: 40 | Fig: B | Bolt circle: 80 mm | Flange: FA125
C04L30B080 Module: 4 | Teeth z: 30 | Fig: B | Bolt circle: 80 mm | Flange: FA125
C04L38B125 Module: 4 | Teeth z: 38 | Fig: B | Bolt circle: 125 mm | Flange: -
C05L21B080 Module: 5 | Teeth z: 21 | Fig: B | Bolt circle: 80 mm | Flange: FA125
C05L36B125 Module: 5 | Teeth z: 36 | Fig: B | Bolt circle: 125 mm | Flange: -
FA050 Module: - | Teeth z: - | Fig: - | Bolt circle: 50 mm | Flange: FA050 (extending flange, type A)
FA063 Module: - | Teeth z: - | Fig: - | Bolt circle: 63 mm | Flange: FA063 (extending flange, type A)
FB050 Module: - | Teeth z: - | Fig: - | Bolt circle: 50 mm | Flange: FB050 (extending flange, type B)
FA080 Module: - | Teeth z: - | Fig: - | Bolt circle: 80 mm | Flange: FA080 (extending flange, type A)
FA125 Module: - | Teeth z: - | Fig: - | Bolt circle: 125 mm | Flange: FA125 (extending flange, type A)
