APEX Dynamics straight-teeth pinions with keyway interface for high-precision rack-and-pinion drives, module 1 to 10.

Key features

  • Straight teeth matched to APEX straight racks; straight-cut for straight racks
  • Interface: Keyway, with or without shrink disc
  • Carburized alloy steel, case hardened to about 60 HRC, teeth ground to reduce noise and wear
  • Max. permitted torque and feed force per rack quality given in the catalog torque tables
  • Backlash depends on center height; contact APEX for adjustment guidance
  • Fig. B versions are clamped with an SSD shrink disc (listed per row)

Specifications

Teeth Straight
Interface Keyway, with or without shrink disc
Quality DIN 5, Alloy Steel
Tooth thickness tolerance e25
Heat treatment Case hardened (carburized), approx. 60 HRC, teeth ground
Module range 1-10
Pinion series code F
Order code Series-Module-Teeth angle-Teeth no.-Fig-Size field, e.g. F02116A15
Source APEX Dynamics High Precision Rack and Pinion catalog, p. 89-95
F02116A15 Module: 2 | Teeth z: 16 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02118A15 Module: 2 | Teeth z: 18 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02118A20 Module: 2 | Teeth z: 18 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02120A15 Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02120A19 Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02120B19 Module: 2 | Teeth z: 20 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02120A20 Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02120A22 Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02120B22 Module: 2 | Teeth z: 20 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02122A15 Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02122A19 Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02122B19 Module: 2 | Teeth z: 22 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02122A20 Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02122A22 Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02122B22 Module: 2 | Teeth z: 22 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02122A25 Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02125A15 Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02125B16 Module: 2 | Teeth z: 25 | Fig: B | Bore d1 H6: 16 mm | Shrink disc: SSD-30
F02125A19 Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02125B19 Module: 2 | Teeth z: 25 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02125A20 Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02125A22 Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02125B22 Module: 2 | Teeth z: 25 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02125A25 Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02125A30 Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02128A15 Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02128A19 Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02128B19 Module: 2 | Teeth z: 28 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02128A20 Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02128A22 Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02128B22 Module: 2 | Teeth z: 28 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02128A25 Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02128A30 Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02128B30 Module: 2 | Teeth z: 28 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F02128A35 Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F01130A12 Module: 1 | Teeth z: 30 | Fig: A | Bore d1 H6: 12 mm | Shrink disc: None
F01130A13 Module: 1 | Teeth z: 30 | Fig: A | Bore d1 H6: 13 mm | Shrink disc: None
F1J120A11 Module: 1.5 | Teeth z: 20 | Fig: A | Bore d1 H6: 11 mm | Shrink disc: None
F1J120A14 Module: 1.5 | Teeth z: 20 | Fig: A | Bore d1 H6: 14 mm | Shrink disc: None
F1J120A16 Module: 1.5 | Teeth z: 20 | Fig: A | Bore d1 H6: 16 mm | Shrink disc: None
F02132A15 Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02132B16 Module: 2 | Teeth z: 32 | Fig: B | Bore d1 H6: 16 mm | Shrink disc: SSD-30
F02132A20 Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02132A22 Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02132B22 Module: 2 | Teeth z: 32 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02132A25 Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02132A30 Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02132B30 Module: 2 | Teeth z: 32 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F02132B32 Module: 2 | Teeth z: 32 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F02132A35 Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02136A20 Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02136A25 Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02136A30 Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02136A35 Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02136B40 Module: 2 | Teeth z: 36 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F02136A45 Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F02140A15 Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02140A20 Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02140A25 Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02140A30 Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02140B32 Module: 2 | Teeth z: 40 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F02140A35 Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02140B40 Module: 2 | Teeth z: 40 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F02140A45 Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F02140B45 Module: 2 | Teeth z: 40 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F02145A20 Module: 2 | Teeth z: 45 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02145A25 Module: 2 | Teeth z: 45 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02145A35 Module: 2 | Teeth z: 45 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02145A45 Module: 2 | Teeth z: 45 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F02150A20 Module: 2 | Teeth z: 50 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02150A25 Module: 2 | Teeth z: 50 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02150A35 Module: 2 | Teeth z: 50 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02150A45 Module: 2 | Teeth z: 50 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F02150B45 Module: 2 | Teeth z: 50 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F02156A25 Module: 2 | Teeth z: 56 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02156A35 Module: 2 | Teeth z: 56 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02163A25 Module: 2 | Teeth z: 63 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02171A35 Module: 2 | Teeth z: 71 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02180A35 Module: 2 | Teeth z: 80 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02190A45 Module: 2 | Teeth z: 90 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03118A25 Module: 3 | Teeth z: 18 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03120A25 Module: 3 | Teeth z: 20 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03120A30 Module: 3 | Teeth z: 20 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03120A35 Module: 3 | Teeth z: 20 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03122B22 Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F03122A25 Module: 3 | Teeth z: 22 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03122B25 Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 25 mm | Shrink disc: SSD-44
F03122A30 Module: 3 | Teeth z: 22 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03122B30 Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F03122B32 Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03122A35 Module: 3 | Teeth z: 22 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03122B35 Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F03122B40 Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03125A25 Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03125A30 Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03125B32 Module: 3 | Teeth z: 25 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03125A35 Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03125B40 Module: 3 | Teeth z: 25 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03125A45 Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03128B22 Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F03128A25 Module: 3 | Teeth z: 28 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03128B25 Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 25 mm | Shrink disc: SSD-44
F03128A30 Module: 3 | Teeth z: 28 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03128B30 Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F03128B32 Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03128A35 Module: 3 | Teeth z: 28 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03128B35 Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F03128B40 Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03128A45 Module: 3 | Teeth z: 28 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03128B45 Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F03132A25 Module: 3 | Teeth z: 32 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03132A30 Module: 3 | Teeth z: 32 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03132B32 Module: 3 | Teeth z: 32 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03132A35 Module: 3 | Teeth z: 32 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03132B40 Module: 3 | Teeth z: 32 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03132A45 Module: 3 | Teeth z: 32 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03132A60 Module: 3 | Teeth z: 32 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F03136A25 Module: 3 | Teeth z: 36 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03136A35 Module: 3 | Teeth z: 36 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03136A45 Module: 3 | Teeth z: 36 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03136B45 Module: 3 | Teeth z: 36 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F03136A60 Module: 3 | Teeth z: 36 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F03140A25 Module: 3 | Teeth z: 40 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03140A35 Module: 3 | Teeth z: 40 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03140A45 Module: 3 | Teeth z: 40 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03140A60 Module: 3 | Teeth z: 40 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F03145A25 Module: 3 | Teeth z: 45 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03145A35 Module: 3 | Teeth z: 45 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03145A45 Module: 3 | Teeth z: 45 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03145A60 Module: 3 | Teeth z: 45 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F03150A35 Module: 3 | Teeth z: 50 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03150A45 Module: 3 | Teeth z: 50 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03156A45 Module: 3 | Teeth z: 56 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03163A45 Module: 3 | Teeth z: 63 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03163A60 Module: 3 | Teeth z: 63 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F04120B32 Module: 4 | Teeth z: 20 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F04120A35 Module: 4 | Teeth z: 20 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04120B35 Module: 4 | Teeth z: 20 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F04120B40 Module: 4 | Teeth z: 20 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F04120A45 Module: 4 | Teeth z: 20 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04122A35 Module: 4 | Teeth z: 22 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04122A45 Module: 4 | Teeth z: 22 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04122B45 Module: 4 | Teeth z: 22 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F04125B32 Module: 4 | Teeth z: 25 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F04125A35 Module: 4 | Teeth z: 25 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04125B35 Module: 4 | Teeth z: 25 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F04125B40 Module: 4 | Teeth z: 25 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F04125A45 Module: 4 | Teeth z: 25 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04125B55 Module: 4 | Teeth z: 25 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F04128A35 Module: 4 | Teeth z: 28 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04128A45 Module: 4 | Teeth z: 28 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04128B45 Module: 4 | Teeth z: 28 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F04132A35 Module: 4 | Teeth z: 32 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04132A45 Module: 4 | Teeth z: 32 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04132B55 Module: 4 | Teeth z: 32 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F04132B75 Module: 4 | Teeth z: 32 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F04140A45 Module: 4 | Teeth z: 40 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04140A60 Module: 4 | Teeth z: 40 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F04140B75 Module: 4 | Teeth z: 40 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F05121B45 Module: 5 | Teeth z: 21 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F05121B55 Module: 5 | Teeth z: 21 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F05125B45 Module: 5 | Teeth z: 25 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F05125B55 Module: 5 | Teeth z: 25 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F05125B75 Module: 5 | Teeth z: 25 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F06121B55 Module: 6 | Teeth z: 21 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F06121B75 Module: 6 | Teeth z: 21 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F06125B55 Module: 6 | Teeth z: 25 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F06125B75 Module: 6 | Teeth z: 25 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F08120B75 Module: 8 | Teeth z: 20 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F08120B85 Module: 8 | Teeth z: 20 | Fig: B | Bore d1 H6: 85 mm | Shrink disc: SSD-125
F10120B85 Module: 10 | Teeth z: 20 | Fig: B | Bore d1 H6: 85 mm | Shrink disc: SSD-125
Racks & PinionsApex Dynamics
171 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

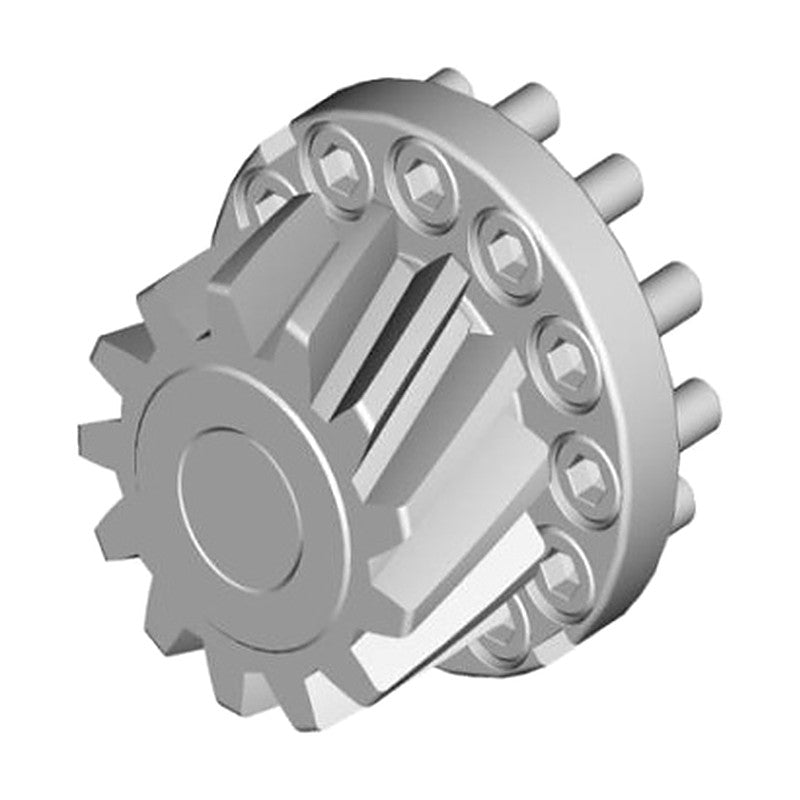

Apex Dynamics Straight Pinions - Keyway (Series F, Module 1-10)

Brand Apex Dynamics·Racks & Pinions

Available part numbers (171)

F02116A15, F02118A15, F02118A20, F02120A15, F02120A19, F02120B19, F02120A20, F02120A22, F02120B22, F02122A15 + 161 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F02116A15Module: 2 | Teeth z: 16 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02118A15Module: 2 | Teeth z: 18 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02118A20Module: 2 | Teeth z: 18 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02120A15Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02120A19Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02120B19Module: 2 | Teeth z: 20 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02120A20Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02120A22Module: 2 | Teeth z: 20 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02120B22Module: 2 | Teeth z: 20 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02122A15Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02122A19Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02122B19Module: 2 | Teeth z: 22 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02122A20Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02122A22Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02122B22Module: 2 | Teeth z: 22 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02122A25Module: 2 | Teeth z: 22 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02125A15Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02125B16Module: 2 | Teeth z: 25 | Fig: B | Bore d1 H6: 16 mm | Shrink disc: SSD-30
F02125A19Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02125B19Module: 2 | Teeth z: 25 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02125A20Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02125A22Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02125B22Module: 2 | Teeth z: 25 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02125A25Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02125A30Module: 2 | Teeth z: 25 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02128A15Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02128A19Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 19 mm | Shrink disc: None
F02128B19Module: 2 | Teeth z: 28 | Fig: B | Bore d1 H6: 19 mm | Shrink disc: SSD-30
F02128A20Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02128A22Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02128B22Module: 2 | Teeth z: 28 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02128A25Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02128A30Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02128B30Module: 2 | Teeth z: 28 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F02128A35Module: 2 | Teeth z: 28 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F01130A12Module: 1 | Teeth z: 30 | Fig: A | Bore d1 H6: 12 mm | Shrink disc: None
F01130A13Module: 1 | Teeth z: 30 | Fig: A | Bore d1 H6: 13 mm | Shrink disc: None
F1J120A11Module: 1.5 | Teeth z: 20 | Fig: A | Bore d1 H6: 11 mm | Shrink disc: None
F1J120A14Module: 1.5 | Teeth z: 20 | Fig: A | Bore d1 H6: 14 mm | Shrink disc: None
F1J120A16Module: 1.5 | Teeth z: 20 | Fig: A | Bore d1 H6: 16 mm | Shrink disc: None
F02132A15Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02132B16Module: 2 | Teeth z: 32 | Fig: B | Bore d1 H6: 16 mm | Shrink disc: SSD-30
F02132A20Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02132A22Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 22 mm | Shrink disc: None
F02132B22Module: 2 | Teeth z: 32 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F02132A25Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02132A30Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02132B30Module: 2 | Teeth z: 32 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F02132B32Module: 2 | Teeth z: 32 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F02132A35Module: 2 | Teeth z: 32 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02136A20Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02136A25Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02136A30Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02136A35Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02136B40Module: 2 | Teeth z: 36 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F02136A45Module: 2 | Teeth z: 36 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F02140A15Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 15 mm | Shrink disc: None
F02140A20Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02140A25Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02140A30Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F02140B32Module: 2 | Teeth z: 40 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F02140A35Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02140B40Module: 2 | Teeth z: 40 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F02140A45Module: 2 | Teeth z: 40 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F02140B45Module: 2 | Teeth z: 40 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F02145A20Module: 2 | Teeth z: 45 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02145A25Module: 2 | Teeth z: 45 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02145A35Module: 2 | Teeth z: 45 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02145A45Module: 2 | Teeth z: 45 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F02150A20Module: 2 | Teeth z: 50 | Fig: A | Bore d1 H6: 20 mm | Shrink disc: None
F02150A25Module: 2 | Teeth z: 50 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02150A35Module: 2 | Teeth z: 50 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02150A45Module: 2 | Teeth z: 50 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F02150B45Module: 2 | Teeth z: 50 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F02156A25Module: 2 | Teeth z: 56 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02156A35Module: 2 | Teeth z: 56 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02163A25Module: 2 | Teeth z: 63 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F02171A35Module: 2 | Teeth z: 71 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02180A35Module: 2 | Teeth z: 80 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F02190A45Module: 2 | Teeth z: 90 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03118A25Module: 3 | Teeth z: 18 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03120A25Module: 3 | Teeth z: 20 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03120A30Module: 3 | Teeth z: 20 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03120A35Module: 3 | Teeth z: 20 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03122B22Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F03122A25Module: 3 | Teeth z: 22 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03122B25Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 25 mm | Shrink disc: SSD-44
F03122A30Module: 3 | Teeth z: 22 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03122B30Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F03122B32Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03122A35Module: 3 | Teeth z: 22 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03122B35Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F03122B40Module: 3 | Teeth z: 22 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03125A25Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03125A30Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03125B32Module: 3 | Teeth z: 25 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03125A35Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03125B40Module: 3 | Teeth z: 25 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03125A45Module: 3 | Teeth z: 25 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03128B22Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 22 mm | Shrink disc: SSD-36
F03128A25Module: 3 | Teeth z: 28 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03128B25Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 25 mm | Shrink disc: SSD-44
F03128A30Module: 3 | Teeth z: 28 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03128B30Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 30 mm | Shrink disc: SSD-50
F03128B32Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03128A35Module: 3 | Teeth z: 28 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03128B35Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F03128B40Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03128A45Module: 3 | Teeth z: 28 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03128B45Module: 3 | Teeth z: 28 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F03132A25Module: 3 | Teeth z: 32 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03132A30Module: 3 | Teeth z: 32 | Fig: A | Bore d1 H6: 30 mm | Shrink disc: None
F03132B32Module: 3 | Teeth z: 32 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F03132A35Module: 3 | Teeth z: 32 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03132B40Module: 3 | Teeth z: 32 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F03132A45Module: 3 | Teeth z: 32 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03132A60Module: 3 | Teeth z: 32 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F03136A25Module: 3 | Teeth z: 36 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03136A35Module: 3 | Teeth z: 36 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03136A45Module: 3 | Teeth z: 36 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03136B45Module: 3 | Teeth z: 36 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F03136A60Module: 3 | Teeth z: 36 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F03140A25Module: 3 | Teeth z: 40 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03140A35Module: 3 | Teeth z: 40 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03140A45Module: 3 | Teeth z: 40 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03140A60Module: 3 | Teeth z: 40 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F03145A25Module: 3 | Teeth z: 45 | Fig: A | Bore d1 H6: 25 mm | Shrink disc: None
F03145A35Module: 3 | Teeth z: 45 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03145A45Module: 3 | Teeth z: 45 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03145A60Module: 3 | Teeth z: 45 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F03150A35Module: 3 | Teeth z: 50 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F03150A45Module: 3 | Teeth z: 50 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03156A45Module: 3 | Teeth z: 56 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03163A45Module: 3 | Teeth z: 63 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F03163A60Module: 3 | Teeth z: 63 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F04120B32Module: 4 | Teeth z: 20 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F04120A35Module: 4 | Teeth z: 20 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04120B35Module: 4 | Teeth z: 20 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F04120B40Module: 4 | Teeth z: 20 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F04120A45Module: 4 | Teeth z: 20 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04122A35Module: 4 | Teeth z: 22 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04122A45Module: 4 | Teeth z: 22 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04122B45Module: 4 | Teeth z: 22 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F04125B32Module: 4 | Teeth z: 25 | Fig: B | Bore d1 H6: 32 mm | Shrink disc: SSD-55
F04125A35Module: 4 | Teeth z: 25 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04125B35Module: 4 | Teeth z: 25 | Fig: B | Bore d1 H6: 35 mm | Shrink disc: SSD-55
F04125B40Module: 4 | Teeth z: 25 | Fig: B | Bore d1 H6: 40 mm | Shrink disc: SSD-62
F04125A45Module: 4 | Teeth z: 25 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04125B55Module: 4 | Teeth z: 25 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F04128A35Module: 4 | Teeth z: 28 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04128A45Module: 4 | Teeth z: 28 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04128B45Module: 4 | Teeth z: 28 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F04132A35Module: 4 | Teeth z: 32 | Fig: A | Bore d1 H6: 35 mm | Shrink disc: None
F04132A45Module: 4 | Teeth z: 32 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04132B55Module: 4 | Teeth z: 32 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F04132B75Module: 4 | Teeth z: 32 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F04140A45Module: 4 | Teeth z: 40 | Fig: A | Bore d1 H6: 45 mm | Shrink disc: None
F04140A60Module: 4 | Teeth z: 40 | Fig: A | Bore d1 H6: 60 mm | Shrink disc: None
F04140B75Module: 4 | Teeth z: 40 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F05121B45Module: 5 | Teeth z: 21 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F05121B55Module: 5 | Teeth z: 21 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F05125B45Module: 5 | Teeth z: 25 | Fig: B | Bore d1 H6: 45 mm | Shrink disc: SSD-68
F05125B55Module: 5 | Teeth z: 25 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F05125B75Module: 5 | Teeth z: 25 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F06121B55Module: 6 | Teeth z: 21 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F06121B75Module: 6 | Teeth z: 21 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F06125B55Module: 6 | Teeth z: 25 | Fig: B | Bore d1 H6: 55 mm | Shrink disc: SSD-80
F06125B75Module: 6 | Teeth z: 25 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F08120B75Module: 8 | Teeth z: 20 | Fig: B | Bore d1 H6: 75 mm | Shrink disc: SSD-110
F08120B85Module: 8 | Teeth z: 20 | Fig: B | Bore d1 H6: 85 mm | Shrink disc: SSD-125
F10120B85Module: 10 | Teeth z: 20 | Fig: B | Bore d1 H6: 85 mm | Shrink disc: SSD-125

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Power Transmission →
