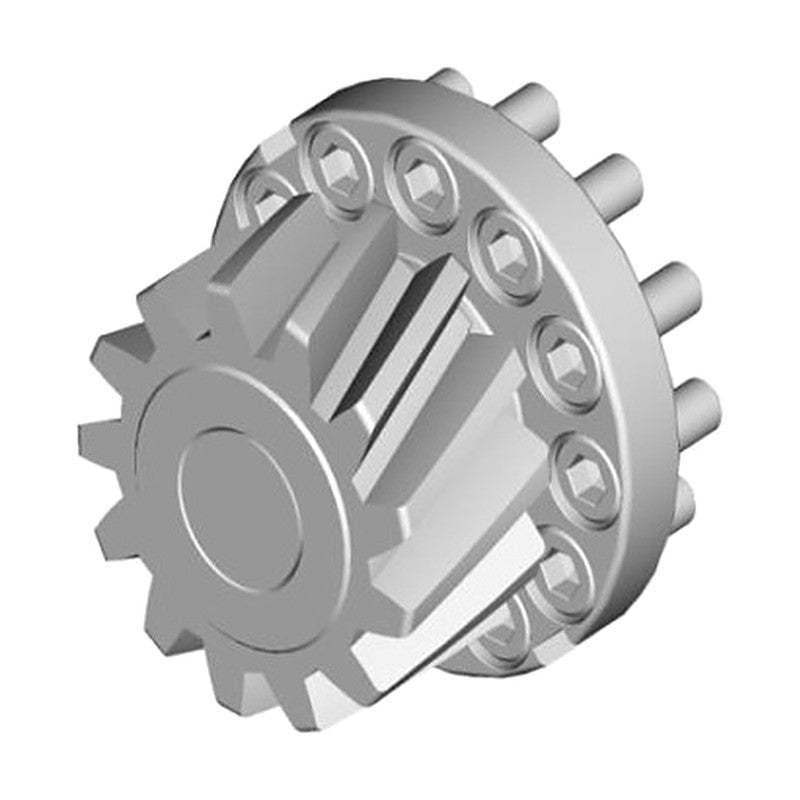

Apex Dynamics Straight Pinions - Welded Plate (Series B, Module 2-8)

Apex Dynamics Straight Pinions - Welded Plate (Series B, Module 2-8)

APEX Dynamics straight-teeth pinions with welded plate / en iso 9409-1-a interface for high-precision rack-and-pinion drives, module 2 to 8.

Key features

  • Straight teeth matched to APEX straight racks; straight-cut for straight racks
  • Interface: Welded plate / EN ISO 9409-1-A
  • Carburized alloy steel, case hardened to about 60 HRC, teeth ground to reduce noise and wear
  • Max. permitted torque and feed force per rack quality given in the catalog torque tables
  • Backlash depends on center height; contact APEX for adjustment guidance
  • Welded-plate versions are not offered for the German market

Specifications

Teeth Straight
Interface Welded plate / EN ISO 9409-1-A
Quality DIN 4, Alloy Steel
Tooth thickness tolerance e24
Heat treatment Case hardened (carburized), approx. 60 HRC, teeth ground
Module range 2-8
Pinion series code B
Order code Series-Module-Teeth angle-Teeth no.-Fig-Size field, e.g. B02113A050
Source APEX Dynamics High Precision Rack and Pinion catalog, p. 83-86
B02113A050 Module: 2 | Teeth z: 13 | Fig: A | Bolt circle: 50 mm
B02113D050 Module: 2 | Teeth z: 13 | Fig: D | Bolt circle: 50 mm
B02117A050 Module: 2 | Teeth z: 17 | Fig: A | Bolt circle: 50 mm
B02117D050 Module: 2 | Teeth z: 17 | Fig: D | Bolt circle: 50 mm
B02113A063 Module: 2 | Teeth z: 13 | Fig: A | Bolt circle: 63 mm
B02113D063 Module: 2 | Teeth z: 13 | Fig: D | Bolt circle: 63 mm
B02117A063 Module: 2 | Teeth z: 17 | Fig: A | Bolt circle: 63 mm
B02117D063 Module: 2 | Teeth z: 17 | Fig: D | Bolt circle: 63 mm
B02124A063 Module: 2 | Teeth z: 24 | Fig: A | Bolt circle: 63 mm
B03113A063 Module: 3 | Teeth z: 13 | Fig: A | Bolt circle: 63 mm
B03113D063 Module: 3 | Teeth z: 13 | Fig: D | Bolt circle: 63 mm
B03113A125 Module: 3 | Teeth z: 13 | Fig: A | Bolt circle: 125 mm
B03113C125 Module: 3 | Teeth z: 13 | Fig: C | Bolt circle: 125 mm
B03113D125 Module: 3 | Teeth z: 13 | Fig: D | Bolt circle: 125 mm
B03120A125 Module: 3 | Teeth z: 20 | Fig: A | Bolt circle: 125 mm
B03120C125 Module: 3 | Teeth z: 20 | Fig: C | Bolt circle: 125 mm
B03120D125 Module: 3 | Teeth z: 20 | Fig: D | Bolt circle: 125 mm
B03127C125 Module: 3 | Teeth z: 27 | Fig: C | Bolt circle: 125 mm
B03127D125 Module: 3 | Teeth z: 27 | Fig: D | Bolt circle: 125 mm
B03133D125 Module: 3 | Teeth z: 33 | Fig: D | Bolt circle: 125 mm
B04113A125 Module: 4 | Teeth z: 13 | Fig: A | Bolt circle: 125 mm
B04113C125 Module: 4 | Teeth z: 13 | Fig: C | Bolt circle: 125 mm
B04113D125 Module: 4 | Teeth z: 13 | Fig: D | Bolt circle: 125 mm
B04120A125 Module: 4 | Teeth z: 20 | Fig: A | Bolt circle: 125 mm
B04120C125 Module: 4 | Teeth z: 20 | Fig: C | Bolt circle: 125 mm
B04120D125 Module: 4 | Teeth z: 20 | Fig: D | Bolt circle: 125 mm
B03120A080 Module: 3 | Teeth z: 20 | Fig: A | Bolt circle: 80 mm
B03120D080 Module: 3 | Teeth z: 20 | Fig: D | Bolt circle: 80 mm
B02113A080 Module: 2 | Teeth z: 13 | Fig: A | Bolt circle: 80 mm
B02113D080 Module: 2 | Teeth z: 13 | Fig: D | Bolt circle: 80 mm
B02124A080 Module: 2 | Teeth z: 24 | Fig: A | Bolt circle: 80 mm
B02124D080 Module: 2 | Teeth z: 24 | Fig: D | Bolt circle: 80 mm
B03113A080 Module: 3 | Teeth z: 13 | Fig: A | Bolt circle: 80 mm
B03113D080 Module: 3 | Teeth z: 13 | Fig: D | Bolt circle: 80 mm
B04113A080 Module: 4 | Teeth z: 13 | Fig: A | Bolt circle: 80 mm
B04113D080 Module: 4 | Teeth z: 13 | Fig: D | Bolt circle: 80 mm
B04113A140 Module: 4 | Teeth z: 13 | Fig: A | Bolt circle: 140 mm
B04113B140 Module: 4 | Teeth z: 13 | Fig: B | Bolt circle: 140 mm
B04120A140 Module: 4 | Teeth z: 20 | Fig: A | Bolt circle: 140 mm
B04120B140 Module: 4 | Teeth z: 20 | Fig: B | Bolt circle: 140 mm
B04121A140 Module: 4 | Teeth z: 21 | Fig: A | Bolt circle: 140 mm
B04121B140 Module: 4 | Teeth z: 21 | Fig: B | Bolt circle: 140 mm
B05115A140 Module: 5 | Teeth z: 15 | Fig: A | Bolt circle: 140 mm
B05115B140 Module: 5 | Teeth z: 15 | Fig: B | Bolt circle: 140 mm
B05120A140 Module: 5 | Teeth z: 20 | Fig: A | Bolt circle: 140 mm
B05120B140 Module: 5 | Teeth z: 20 | Fig: B | Bolt circle: 140 mm
B06113A140 Module: 6 | Teeth z: 13 | Fig: A | Bolt circle: 140 mm
B06113B140 Module: 6 | Teeth z: 13 | Fig: B | Bolt circle: 140 mm
B06117A140 Module: 6 | Teeth z: 17 | Fig: A | Bolt circle: 140 mm
B06117B140 Module: 6 | Teeth z: 17 | Fig: B | Bolt circle: 140 mm
B05113A125 Module: 5 | Teeth z: 13 | Fig: A | Bolt circle: 125 mm
B05113C125 Module: 5 | Teeth z: 13 | Fig: C | Bolt circle: 125 mm
B05113D125 Module: 5 | Teeth z: 13 | Fig: D | Bolt circle: 125 mm
B05117C125 Module: 5 | Teeth z: 17 | Fig: C | Bolt circle: 125 mm
B05117D125 Module: 5 | Teeth z: 17 | Fig: D | Bolt circle: 125 mm
B05119A125 Module: 5 | Teeth z: 19 | Fig: A | Bolt circle: 125 mm
B05119C125 Module: 5 | Teeth z: 19 | Fig: C | Bolt circle: 125 mm
B05119D125 Module: 5 | Teeth z: 19 | Fig: D | Bolt circle: 125 mm
B06113A125 Module: 6 | Teeth z: 13 | Fig: A | Bolt circle: 125 mm
B06113C125 Module: 6 | Teeth z: 13 | Fig: C | Bolt circle: 125 mm
B06113D125 Module: 6 | Teeth z: 13 | Fig: D | Bolt circle: 125 mm
B06114A125 Module: 6 | Teeth z: 14 | Fig: A | Bolt circle: 125 mm
B06114D125 Module: 6 | Teeth z: 14 | Fig: D | Bolt circle: 125 mm
B04121A125 Module: 4 | Teeth z: 21 | Fig: A | Bolt circle: 125 mm
B04121C125 Module: 4 | Teeth z: 21 | Fig: C | Bolt circle: 125 mm
B04121D125 Module: 4 | Teeth z: 21 | Fig: D | Bolt circle: 125 mm
B04124A125 Module: 4 | Teeth z: 24 | Fig: A | Bolt circle: 125 mm
B04124C125 Module: 4 | Teeth z: 24 | Fig: C | Bolt circle: 125 mm
B04124D125 Module: 4 | Teeth z: 24 | Fig: D | Bolt circle: 125 mm
B06116A125 Module: 6 | Teeth z: 16 | Fig: A | Bolt circle: 125 mm
B06116D125 Module: 6 | Teeth z: 16 | Fig: D | Bolt circle: 125 mm
B06113A160 Module: 6 | Teeth z: 13 | Fig: A | Bolt circle: 160 mm
B06113B160 Module: 6 | Teeth z: 13 | Fig: B | Bolt circle: 160 mm
B06113D160 Module: 6 | Teeth z: 13 | Fig: D | Bolt circle: 160 mm
B06117A160 Module: 6 | Teeth z: 17 | Fig: A | Bolt circle: 160 mm
B06117B160 Module: 6 | Teeth z: 17 | Fig: B | Bolt circle: 160 mm
B06117D160 Module: 6 | Teeth z: 17 | Fig: D | Bolt circle: 160 mm
B06119A160 Module: 6 | Teeth z: 19 | Fig: A | Bolt circle: 160 mm
B06119B160 Module: 6 | Teeth z: 19 | Fig: B | Bolt circle: 160 mm
B08113A160 Module: 8 | Teeth z: 13 | Fig: A | Bolt circle: 160 mm
B08113B160 Module: 8 | Teeth z: 13 | Fig: B | Bolt circle: 160 mm
B05113A160 Module: 5 | Teeth z: 13 | Fig: A | Bolt circle: 160 mm
B05113B160 Module: 5 | Teeth z: 13 | Fig: B | Bolt circle: 160 mm
B05113D160 Module: 5 | Teeth z: 13 | Fig: D | Bolt circle: 160 mm
B05120A160 Module: 5 | Teeth z: 20 | Fig: A | Bolt circle: 160 mm
B05120B160 Module: 5 | Teeth z: 20 | Fig: B | Bolt circle: 160 mm
B05120D160 Module: 5 | Teeth z: 20 | Fig: D | Bolt circle: 160 mm
