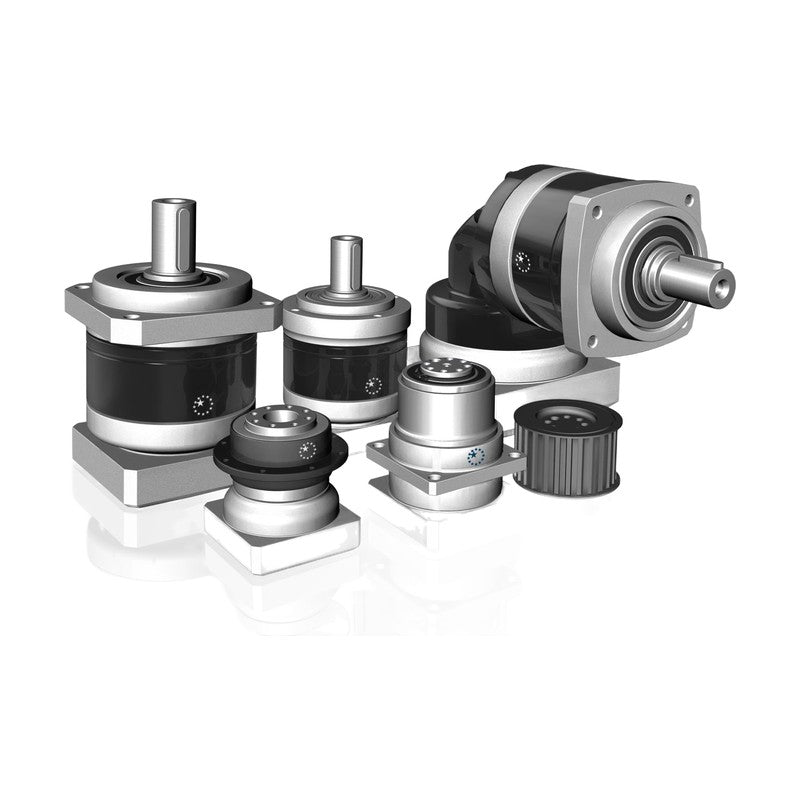

Apex Dynamics PNII Planetary Gearboxes (017-056)

Apex Dynamics PNII Planetary Gearboxes (017-056)

Apex Dynamics PNII inline servo planetary gearboxes with inch (NEMA-style) flange and shaft dimensions, frame sizes 017-056, ratios 3-100.

Key features

  • New Generation P series: economic, high efficiency, low noise, reduced backlash, compact and light
  • Inch-dimensioned output flange and keyed shaft (NEMA-style sizes 017-056)
  • Ratios 3-10 (1-stage) and 12-100 (2-stage); nominal output torque 10-459 Nm
  • Efficiency >=97% (1-stage) / >=94% (2-stage)
  • Motor adapter (input hub) matched to the servo motor; specify motor make and model when ordering
  • Input shaft version PNIIS available as an option instead of the input hub

Specifications

Series PNII
Output shaft S2 keyed, inch (standard)
Emergency stop torque T2NOT 3 x T2N
Max. acceleration torque T2B 60% of T2NOT
Nominal input speed n1N 4,500 (017) to 2,500 (056) rpm
Max. input speed n1B 8,000 (017) to 3,600 (056) rpm
Torsional rigidity 0.9 to 14 Nm/arcmin
Efficiency >=97% / >=94%
Protection IP65
Operating temperature 0 to +90 C
Source APEX Dynamics PII/PIIR catalog, p. 23-27
PNII017-003 Frame: 017 | Ratio i: 3 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 16 Nm
PNII017-004 Frame: 017 | Ratio i: 4 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 16 Nm
PNII017-005 Frame: 017 | Ratio i: 5 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 15 Nm
PNII017-007 Frame: 017 | Ratio i: 7 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 12 Nm
PNII017-010 Frame: 017 | Ratio i: 10 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 10 Nm
PNII017-012 Frame: 017 | Ratio i: 12 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 16 Nm
PNII017-015 Frame: 017 | Ratio i: 15 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 15 Nm
PNII017-016 Frame: 017 | Ratio i: 16 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 16 Nm
PNII017-020 Frame: 017 | Ratio i: 20 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 16 Nm
PNII017-025 Frame: 017 | Ratio i: 25 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 15 Nm
PNII017-030 Frame: 017 | Ratio i: 30 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 15 Nm
PNII017-035 Frame: 017 | Ratio i: 35 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 12 Nm
PNII017-040 Frame: 017 | Ratio i: 40 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 16 Nm
PNII017-050 Frame: 017 | Ratio i: 50 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 15 Nm
PNII017-070 Frame: 017 | Ratio i: 70 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 12 Nm
PNII017-100 Frame: 017 | Ratio i: 100 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 10 Nm
PNII023-003 Frame: 023 | Ratio i: 3 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 42 Nm
PNII023-004 Frame: 023 | Ratio i: 4 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 42 Nm
PNII023-005 Frame: 023 | Ratio i: 5 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 40 Nm
PNII023-007 Frame: 023 | Ratio i: 7 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 35 Nm
PNII023-010 Frame: 023 | Ratio i: 10 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 27 Nm
PNII023-012 Frame: 023 | Ratio i: 12 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 42 Nm
PNII023-015 Frame: 023 | Ratio i: 15 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 40 Nm
PNII023-016 Frame: 023 | Ratio i: 16 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 42 Nm
PNII023-020 Frame: 023 | Ratio i: 20 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 42 Nm
PNII023-025 Frame: 023 | Ratio i: 25 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 40 Nm
PNII023-030 Frame: 023 | Ratio i: 30 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 40 Nm
PNII023-035 Frame: 023 | Ratio i: 35 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 35 Nm
PNII023-040 Frame: 023 | Ratio i: 40 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 43 Nm
PNII023-050 Frame: 023 | Ratio i: 50 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 40 Nm
PNII023-070 Frame: 023 | Ratio i: 70 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 35 Nm
PNII023-100 Frame: 023 | Ratio i: 100 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 27 Nm
PNII034-003 Frame: 034 | Ratio i: 3 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 110 Nm
PNII034-004 Frame: 034 | Ratio i: 4 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 113 Nm
PNII034-005 Frame: 034 | Ratio i: 5 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 118 Nm
PNII034-007 Frame: 034 | Ratio i: 7 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 96 Nm
PNII034-010 Frame: 034 | Ratio i: 10 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 68 Nm
PNII034-012 Frame: 034 | Ratio i: 12 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 110 Nm
PNII034-015 Frame: 034 | Ratio i: 15 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 109 Nm
PNII034-016 Frame: 034 | Ratio i: 16 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 116 Nm
PNII034-020 Frame: 034 | Ratio i: 20 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 116 Nm
PNII034-025 Frame: 034 | Ratio i: 25 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 123 Nm
PNII034-030 Frame: 034 | Ratio i: 30 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 108 Nm
PNII034-035 Frame: 034 | Ratio i: 35 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 100 Nm
PNII034-040 Frame: 034 | Ratio i: 40 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 117 Nm
PNII034-050 Frame: 034 | Ratio i: 50 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 123 Nm
PNII034-070 Frame: 034 | Ratio i: 70 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 100 Nm
PNII034-100 Frame: 034 | Ratio i: 100 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 70 Nm
PNII042-003 Frame: 042 | Ratio i: 3 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 217 Nm
PNII042-004 Frame: 042 | Ratio i: 4 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 223 Nm
PNII042-005 Frame: 042 | Ratio i: 5 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 220 Nm
PNII042-007 Frame: 042 | Ratio i: 7 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 198 Nm
PNII042-010 Frame: 042 | Ratio i: 10 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 155 Nm
PNII042-012 Frame: 042 | Ratio i: 12 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 217 Nm
PNII042-015 Frame: 042 | Ratio i: 15 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 213 Nm
PNII042-016 Frame: 042 | Ratio i: 16 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 228 Nm
PNII042-020 Frame: 042 | Ratio i: 20 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 230 Nm
PNII042-025 Frame: 042 | Ratio i: 25 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 228 Nm
PNII042-030 Frame: 042 | Ratio i: 30 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 212 Nm
PNII042-035 Frame: 042 | Ratio i: 35 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 206 Nm
PNII042-040 Frame: 042 | Ratio i: 40 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 232 Nm
PNII042-050 Frame: 042 | Ratio i: 50 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 228 Nm
PNII042-070 Frame: 042 | Ratio i: 70 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 206 Nm
PNII042-100 Frame: 042 | Ratio i: 100 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 162 Nm
PNII056-003 Frame: 056 | Ratio i: 3 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 430 Nm
PNII056-004 Frame: 056 | Ratio i: 4 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 440 Nm
PNII056-005 Frame: 056 | Ratio i: 5 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 435 Nm
PNII056-007 Frame: 056 | Ratio i: 7 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 366 Nm
PNII056-010 Frame: 056 | Ratio i: 10 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 295 Nm
PNII056-012 Frame: 056 | Ratio i: 12 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 430 Nm
PNII056-015 Frame: 056 | Ratio i: 15 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 424 Nm
PNII056-016 Frame: 056 | Ratio i: 16 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 452 Nm
PNII056-020 Frame: 056 | Ratio i: 20 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 454 Nm
PNII056-025 Frame: 056 | Ratio i: 25 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 450 Nm
PNII056-030 Frame: 056 | Ratio i: 30 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 422 Nm
PNII056-035 Frame: 056 | Ratio i: 35 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 382 Nm
PNII056-040 Frame: 056 | Ratio i: 40 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 459 Nm
PNII056-050 Frame: 056 | Ratio i: 50 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 450 Nm
PNII056-070 Frame: 056 | Ratio i: 70 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 382 Nm
PNII056-100 Frame: 056 | Ratio i: 100 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 308 Nm
