Apex Dynamics PU Lubrication Pinions (Felt Gears, Module 1-12)

Apex Dynamics PU Lubrication Pinions (Felt Gears, Module 1-12)

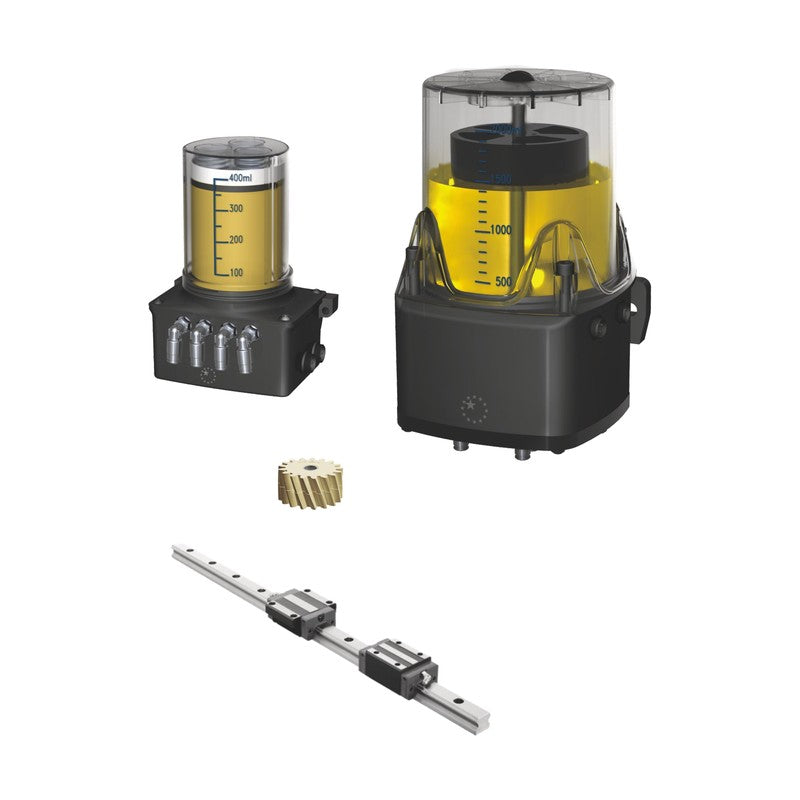

Apex Dynamics PU lubrication pinions are open-cell polyurethane foam gears with standard involute teeth that run in mesh with a rack or pinion and distribute lubricant fed by the LUG lubricator evenly over all tooth flanks.

Key features

  • Order code PU-<module>-<teeth><S/L/R>: S straight, L left-hand helical (meshes rack), R right-hand helical (meshes pinion)
  • Modules 1 to 12 plus circular-pitch sizes Pt 5, Pt 10 and Pt 13.33 (straight teeth)
  • Open-cell PU foam absorbs lubricant and lubricates without load or over-lubrication
  • Soak in lubricant before first use; feed rate set by module and speed via the controller
  • Mounted on AUX tightening shafts (right-angle or in-line) that carry the lubricant to the pinion
  • Central distance to pinion a = (d + dF)/2; to rack bottom A = h0 + dF/2

Specifications

Material Open-cell polyurethane foam
Tooth form Standard involute
Teeth versions Straight, left-hand helical, right-hand helical
Bore d1 12 mm (m1-4), 20 mm (m5-10), 25 mm (m12)
Feed rate guide Approx. 0.1-2.5 cm3/24 h by module and speed
Mounting AUX tightening shaft for PU pinion
Source APEX Dynamics Smart Lubrication System catalog, p. 7-8
PU-01-36S Module: 1 | Teeth Z: 36 | Teeth: Straight | Tip dia. da: 38 mm | Bore d1 x width b: 12 x 15 mm
PU-01-36L Module: 1 | Teeth Z: 36 | Teeth: LH helical (for rack) | Tip dia. da: 40.2 mm | Bore d1 x width b: 12 x 15 mm
PU-01-36R Module: 1 | Teeth Z: 36 | Teeth: RH helical (for pinion) | Tip dia. da: 40.2 mm | Bore d1 x width b: 12 x 15 mm
PU-1J-24S Module: 1.5 | Teeth Z: 24 | Teeth: Straight | Tip dia. da: 39 mm | Bore d1 x width b: 12 x 20 mm
PU-1J-24L Module: 1.5 | Teeth Z: 24 | Teeth: LH helical (for rack) | Tip dia. da: 41.2 mm | Bore d1 x width b: 12 x 20 mm
PU-1J-24R Module: 1.5 | Teeth Z: 24 | Teeth: RH helical (for pinion) | Tip dia. da: 41.2 mm | Bore d1 x width b: 12 x 20 mm
PU-02-17S Module: 2 | Teeth Z: 17 | Teeth: Straight | Tip dia. da: 38 mm | Bore d1 x width b: 12 x 25 mm
PU-02-17L Module: 2 | Teeth Z: 17 | Teeth: LH helical (for rack) | Tip dia. da: 40.1 mm | Bore d1 x width b: 12 x 25 mm
PU-02-17R Module: 2 | Teeth Z: 17 | Teeth: RH helical (for pinion) | Tip dia. da: 40.1 mm | Bore d1 x width b: 12 x 25 mm
PU-2J-17S Module: 2.5 | Teeth Z: 17 | Teeth: Straight | Tip dia. da: 47.5 mm | Bore d1 x width b: 12 x 25 mm
PU-2J-17L Module: 2.5 | Teeth Z: 17 | Teeth: LH helical (for rack) | Tip dia. da: 50.1 mm | Bore d1 x width b: 12 x 25 mm
PU-2J-17R Module: 2.5 | Teeth Z: 17 | Teeth: RH helical (for pinion) | Tip dia. da: 50.1 mm | Bore d1 x width b: 12 x 25 mm
PU-03-17S Module: 3 | Teeth Z: 17 | Teeth: Straight | Tip dia. da: 57 mm | Bore d1 x width b: 12 x 30 mm
PU-03-17L Module: 3 | Teeth Z: 17 | Teeth: LH helical (for rack) | Tip dia. da: 60.1 mm | Bore d1 x width b: 12 x 30 mm
PU-03-17R Module: 3 | Teeth Z: 17 | Teeth: RH helical (for pinion) | Tip dia. da: 60.1 mm | Bore d1 x width b: 12 x 30 mm
PU-04-17S Module: 4 | Teeth Z: 17 | Teeth: Straight | Tip dia. da: 76 mm | Bore d1 x width b: 12 x 40 mm
PU-04-17L Module: 4 | Teeth Z: 17 | Teeth: LH helical (for rack) | Tip dia. da: 80.2 mm | Bore d1 x width b: 12 x 40 mm
PU-04-17R Module: 4 | Teeth Z: 17 | Teeth: RH helical (for pinion) | Tip dia. da: 80.2 mm | Bore d1 x width b: 12 x 40 mm
PU-05-17S Module: 5 | Teeth Z: 17 | Teeth: Straight | Tip dia. da: 95 mm | Bore d1 x width b: 20 x 50 mm
PU-05-17L Module: 5 | Teeth Z: 17 | Teeth: LH helical (for rack) | Tip dia. da: 100.2 mm | Bore d1 x width b: 20 x 50 mm
PU-05-17R Module: 5 | Teeth Z: 17 | Teeth: RH helical (for pinion) | Tip dia. da: 100.2 mm | Bore d1 x width b: 20 x 50 mm
PU-06-17S Module: 6 | Teeth Z: 17 | Teeth: Straight | Tip dia. da: 114 mm | Bore d1 x width b: 20 x 60 mm
PU-06-17L Module: 6 | Teeth Z: 17 | Teeth: LH helical (for rack) | Tip dia. da: 120.2 mm | Bore d1 x width b: 20 x 60 mm
PU-06-17R Module: 6 | Teeth Z: 17 | Teeth: RH helical (for pinion) | Tip dia. da: 120.2 mm | Bore d1 x width b: 20 x 60 mm
PU-08-17S Module: 8 | Teeth Z: 17 | Teeth: Straight | Tip dia. da: 152 mm | Bore d1 x width b: 20 x 80 mm
PU-08-17L Module: 8 | Teeth Z: 17 | Teeth: LH helical (for rack) | Tip dia. da: 160.3 mm | Bore d1 x width b: 20 x 80 mm
PU-08-17R Module: 8 | Teeth Z: 17 | Teeth: RH helical (for pinion) | Tip dia. da: 160.3 mm | Bore d1 x width b: 20 x 80 mm
PU-10-17S Module: 10 | Teeth Z: 17 | Teeth: Straight | Tip dia. da: 190 mm | Bore d1 x width b: 20 x 100 mm
PU-10-17L Module: 10 | Teeth Z: 17 | Teeth: LH helical (for rack) | Tip dia. da: 200.4 mm | Bore d1 x width b: 20 x 100 mm
PU-10-17R Module: 10 | Teeth Z: 17 | Teeth: RH helical (for pinion) | Tip dia. da: 200.4 mm | Bore d1 x width b: 20 x 100 mm
PU-12-14S Module: 12 | Teeth Z: 14 | Teeth: Straight | Tip dia. da: 192 mm | Bore d1 x width b: 25 x 120 mm
PU-12-14L Module: 12 | Teeth Z: 14 | Teeth: LH helical (for rack) | Tip dia. da: 202.3 mm | Bore d1 x width b: 25 x 120 mm
PU-12-14R Module: 12 | Teeth Z: 14 | Teeth: RH helical (for pinion) | Tip dia. da: 202.3 mm | Bore d1 x width b: 25 x 120 mm
PU-1K-24S Module: 1.591 (Pt 5) | Teeth Z: 24 | Teeth: Straight | Tip dia. da: 41.4 mm | Bore d1 x width b: 12 x 20 mm
PU-3B-17S Module: 3.183 (Pt 10) | Teeth Z: 17 | Teeth: Straight | Tip dia. da: 60.5 mm | Bore d1 x width b: 12 x 30 mm
PU-4D-17S Module: 4.244 (Pt 13.33) | Teeth Z: 17 | Teeth: Straight | Tip dia. da: 80.6 mm | Bore d1 x width b: 12 x 40 mm
