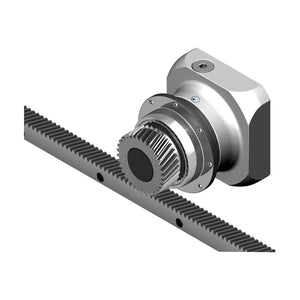

APEX Dynamics straight-teeth rack, quality Q10 for precision rack-and-pinion linear drives, supplied in standard lengths with module 1 to 12.

Key features

  • Straight teeth, DIN quality Q10, carbon steel
  • Geometric tolerances defined for straightness, parallelism and perpendicularity of all dimensions
  • Over-pin height, pressure angle and pitch error held to the quality class
  • Single pitch error fp and total pitch error Fp listed for every length
  • Racks without screw holes available: change the 2nd-last code position from 1 to 0
  • Coating option in the last code position: 0 none, N nickel, P phosphate film, B blackening

Specifications

Teeth Straight
Quality (DIN) Q10
Material Carbon steel
Tooth thickness tolerance -90 to 0 um
Module range 1-12
Teeth pitch Pt = module x pi
Manufacturing Teeth Induction Hardened
Typical application Lifting axes, automatic loading systems, robots, outdoor use
Order code Module-Quality-Angle-Length x0.1-Material-Screw holes-Coating, e.g. 01101100C10
Source APEX Dynamics High Precision Rack and Pinion catalog, p. 75-75
01101100C10 Module: 1 | Length L1: 999.03 mm | Teeth: 318 | Section B x H: 15 x 15 mm | Screw holes: Standard | Total pitch error Fp: 0.146 mm
01101200C10 Module: 1 | Length L1: 1998.05 mm | Teeth: 636 | Section B x H: 15 x 15 mm | Screw holes: Standard | Total pitch error Fp: 0.146 mm
1J101100C10 Module: 1.5 | Length L1: 999.03 mm | Teeth: 212 | Section B x H: 17 x 17 mm | Screw holes: Standard | Total pitch error Fp: 0.148 mm
1J101125C10 Module: 1.5 | Length L1: 1248.78 mm | Teeth: 265 | Section B x H: 17 x 17 mm | Screw holes: Standard | Total pitch error Fp: 0.148 mm
1J101150C10 Module: 1.5 | Length L1: 1498.54 mm | Teeth: 318 | Section B x H: 17 x 17 mm | Screw holes: Standard | Total pitch error Fp: 0.148 mm
1J101175C10 Module: 1.5 | Length L1: 1748.3 mm | Teeth: 371 | Section B x H: 17 x 17 mm | Screw holes: Standard | Total pitch error Fp: 0.148 mm
1J101200C10 Module: 1.5 | Length L1: 1998.05 mm | Teeth: 424 | Section B x H: 17 x 17 mm | Screw holes: Standard | Total pitch error Fp: 0.165 mm
02101100C10 Module: 2 | Length L1: 1005.31 mm | Teeth: 160 | Section B x H: 26 x 24 mm | Screw holes: Standard | Total pitch error Fp: 0.148 mm
02101125C10 Module: 2 | Length L1: 1256.64 mm | Teeth: 200 | Section B x H: 26 x 24 mm | Screw holes: Standard | Total pitch error Fp: 0.148 mm
02101150C10 Module: 2 | Length L1: 1507.96 mm | Teeth: 240 | Section B x H: 26 x 24 mm | Screw holes: Standard | Total pitch error Fp: 0.148 mm
02101175C10 Module: 2 | Length L1: 1759.29 mm | Teeth: 280 | Section B x H: 26 x 24 mm | Screw holes: Standard | Total pitch error Fp: 0.148 mm
02101200C10 Module: 2 | Length L1: 2010.62 mm | Teeth: 320 | Section B x H: 26 x 24 mm | Screw holes: Standard | Total pitch error Fp: 0.167 mm
03101100C10 Module: 3 | Length L1: 1017.88 mm | Teeth: 108 | Section B x H: 31 x 29 mm | Screw holes: Standard | Total pitch error Fp: 0.162 mm
03101125C10 Module: 3 | Length L1: 1272.35 mm | Teeth: 135 | Section B x H: 31 x 29 mm | Screw holes: Standard | Total pitch error Fp: 0.162 mm
03101150C10 Module: 3 | Length L1: 1526.81 mm | Teeth: 162 | Section B x H: 31 x 29 mm | Screw holes: Standard | Total pitch error Fp: 0.162 mm
03101175C10 Module: 3 | Length L1: 1781.28 mm | Teeth: 189 | Section B x H: 31 x 29 mm | Screw holes: Standard | Total pitch error Fp: 0.162 mm
03101200C10 Module: 3 | Length L1: 2035.75 mm | Teeth: 216 | Section B x H: 31 x 29 mm | Screw holes: Standard | Total pitch error Fp: 0.182 mm
04101100C10 Module: 4 | Length L1: 1005.31 mm | Teeth: 80 | Section B x H: 41 x 39 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
04101100CS0 Module: 4 | Length L1: 1005.31 mm | Teeth: 80 | Section B x H: 41 x 39 mm | Screw holes: Strong (S) | Total pitch error Fp: 0.175 mm
04101125C10 Module: 4 | Length L1: 1256.64 mm | Teeth: 100 | Section B x H: 41 x 39 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
04101150C10 Module: 4 | Length L1: 1507.96 mm | Teeth: 120 | Section B x H: 41 x 39 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
04101175C10 Module: 4 | Length L1: 1759.29 mm | Teeth: 140 | Section B x H: 41 x 39 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
04101200C10 Module: 4 | Length L1: 2010.62 mm | Teeth: 160 | Section B x H: 41 x 39 mm | Screw holes: Standard | Total pitch error Fp: 0.197 mm
04101200CS0 Module: 4 | Length L1: 2010.62 mm | Teeth: 160 | Section B x H: 41 x 39 mm | Screw holes: Strong (S) | Total pitch error Fp: 0.197 mm
05101100C10 Module: 5 | Length L1: 1005.31 mm | Teeth: 64 | Section B x H: 50 x 39 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
05101125C10 Module: 5 | Length L1: 1256.64 mm | Teeth: 80 | Section B x H: 50 x 39 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
05101150C10 Module: 5 | Length L1: 1507.96 mm | Teeth: 96 | Section B x H: 50 x 39 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
05101175C10 Module: 5 | Length L1: 1759.29 mm | Teeth: 112 | Section B x H: 50 x 39 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
05101200C10 Module: 5 | Length L1: 2010.62 mm | Teeth: 128 | Section B x H: 50 x 39 mm | Screw holes: Standard | Total pitch error Fp: 0.197 mm
06101100C10 Module: 6 | Length L1: 1017.88 mm | Teeth: 54 | Section B x H: 60 x 49 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
06101125C10 Module: 6 | Length L1: 1281.77 mm | Teeth: 68 | Section B x H: 60 x 49 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
06101150C10 Module: 6 | Length L1: 1526.81 mm | Teeth: 81 | Section B x H: 60 x 49 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
06101175C10 Module: 6 | Length L1: 1790.71 mm | Teeth: 95 | Section B x H: 60 x 49 mm | Screw holes: Standard | Total pitch error Fp: 0.175 mm
06101200C10 Module: 6 | Length L1: 2035.75 mm | Teeth: 108 | Section B x H: 60 x 49 mm | Screw holes: Standard | Total pitch error Fp: 0.197 mm
08101100C10 Module: 8 | Length L1: 1005.31 mm | Teeth: 40 | Section B x H: 81 x 79 mm | Screw holes: Standard | Total pitch error Fp: 0.188 mm
08101125C10 Module: 8 | Length L1: 1256.64 mm | Teeth: 50 | Section B x H: 81 x 79 mm | Screw holes: Standard | Total pitch error Fp: 0.188 mm
08101150C10 Module: 8 | Length L1: 1507.96 mm | Teeth: 60 | Section B x H: 81 x 79 mm | Screw holes: Standard | Total pitch error Fp: 0.188 mm
08101175C10 Module: 8 | Length L1: 1759.29 mm | Teeth: 70 | Section B x H: 81 x 79 mm | Screw holes: Standard | Total pitch error Fp: 0.188 mm
08101200C10 Module: 8 | Length L1: 2010.62 mm | Teeth: 80 | Section B x H: 81 x 79 mm | Screw holes: Standard | Total pitch error Fp: 0.212 mm
10101100C10 Module: 10 | Length L1: 1005.31 mm | Teeth: 32 | Section B x H: 100 x 99 mm | Screw holes: Standard | Total pitch error Fp: 0.188 mm
12101100C10 Module: 12 | Length L1: 1017.88 mm | Teeth: 27 | Section B x H: 120 x 120 mm | Screw holes: Standard | Total pitch error Fp: 0.202 mm
