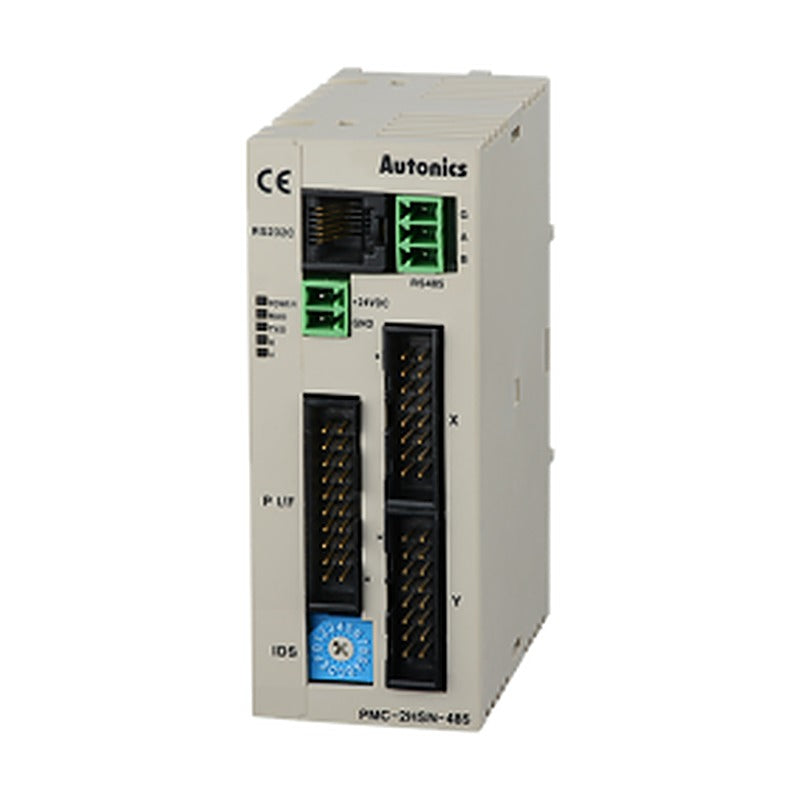

Autonics PMC-2HSN Series 2-Axis High-Speed Motion Controllers

General-purpose high-speed 2-axis programmable motion controllers for pulse-train stepper or servo drives. Same housing as the PMC-2HSP, without the interpolation functions.

Key features

Independent 2-axis control up to 4 Mpps
Jog, continuous, index and program modes
64 indexes and 200 program steps, power-on program start
4-step home search incl. Z-phase
Line-driver 1-pulse / 2-pulse output
USB or RS-485 communication versions

Specifications

Control axes	2
Power supply	24 VDC ±10 %
Power consumption	6 W max.
Position range	-8,388,608 to +8,388,607 pulses
Drive speed	1 pps to 4 Mpps
Pulse output	1-pulse / 2-pulse, line driver
Parallel I/F	13 inputs / 4 outputs
Axis I/O	8 in / 6 out per axis
Ambient temperature	0 to 45 °C
Source	Autonics PMC-2HSP/2HSN Series user manual

PMC-2HSN-USB		Axes: 2 \| Interface: USB \| Supply: 24 VDC
PMC-2HSN-485		Axes: 2 \| Interface: RS-485 \| Supply: 24 VDC

Motion ControllersAutonics

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics PMC-2HSN Series 2-Axis High-Speed Motion Controllers

Brand Autonics·Motion Controllers

Available part numbers (2)

PMC-2HSN-USB, PMC-2HSN-485

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
