• Autonics SPRM Series Multi-Channel Power Controllers
1 1

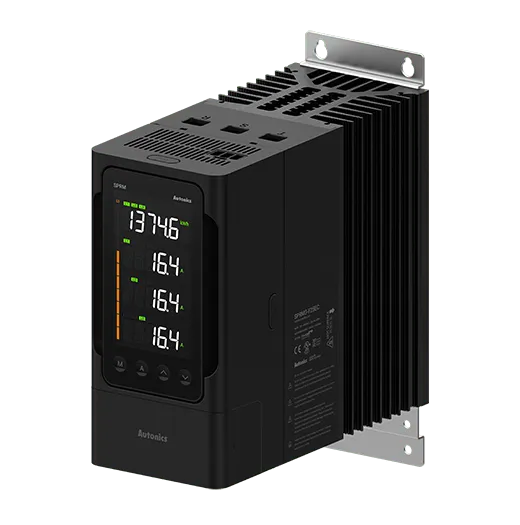

Autonics SPRM Series Multi-Channel Power Controllers

Autonics SPRM Series Multi-Channel Power Controllers

Multi-channel single-phase or 3-phase power controllers.

Key features

  • Wide rated voltage range 220-440 VAC
  • Multiple current ratings 25/40/55/70/90/110/160 A. 4-line LCD display for monitoring load current/voltage/output/resistance/heatsink temperature/power
  • Detachable display module
  • Auto control via 4-20 mA, 0-5/1-5/0-10 V, external adjuster, RS485, or EtherCAT
  • SCCR rating 100 kA (UL)
SPRM3-F025R Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 25 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F025EC Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 25 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F040R Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 40 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F040EC Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 40 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F055R Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 55 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F055EC Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 55 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F070R Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 70 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F070EC Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 70 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F090R Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 90 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F090EC Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 90 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F110R Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 10 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F110EC Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 10 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F160R Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 60 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F160EC Power controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 60 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
Power ControllerAutonics
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics SPRM Series Multi-Channel Power Controllers

Brand Autonics·Power Controller

Available part numbers (14)

SPRM3-F025R, SPRM3-F025EC, SPRM3-F040R, SPRM3-F040EC, SPRM3-F055R, SPRM3-F055EC, SPRM3-F070R, SPRM3-F070EC, SPRM3-F090R, SPRM3-F090EC + 4 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPRM3-F025RPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 25 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F025ECPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 25 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F040RPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 40 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F040ECPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 40 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F055RPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 55 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F055ECPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 55 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F070RPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 70 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F070ECPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 70 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F090RPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 90 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F090ECPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 90 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F110RPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 10 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F110ECPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 10 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
SPRM3-F160RPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 60 A load | RS485 | 220-440 VAC | Screw terminal | IP20 | multi-channel RS485
SPRM3-F160ECPower controller | SPRM Series | Multi-channel single-phase 3-ch or 3-phase | 60 A load | RS485 + EtherCAT | 220-440 VAC | Screw terminal | IP20 | multi-channel EtherCAT
