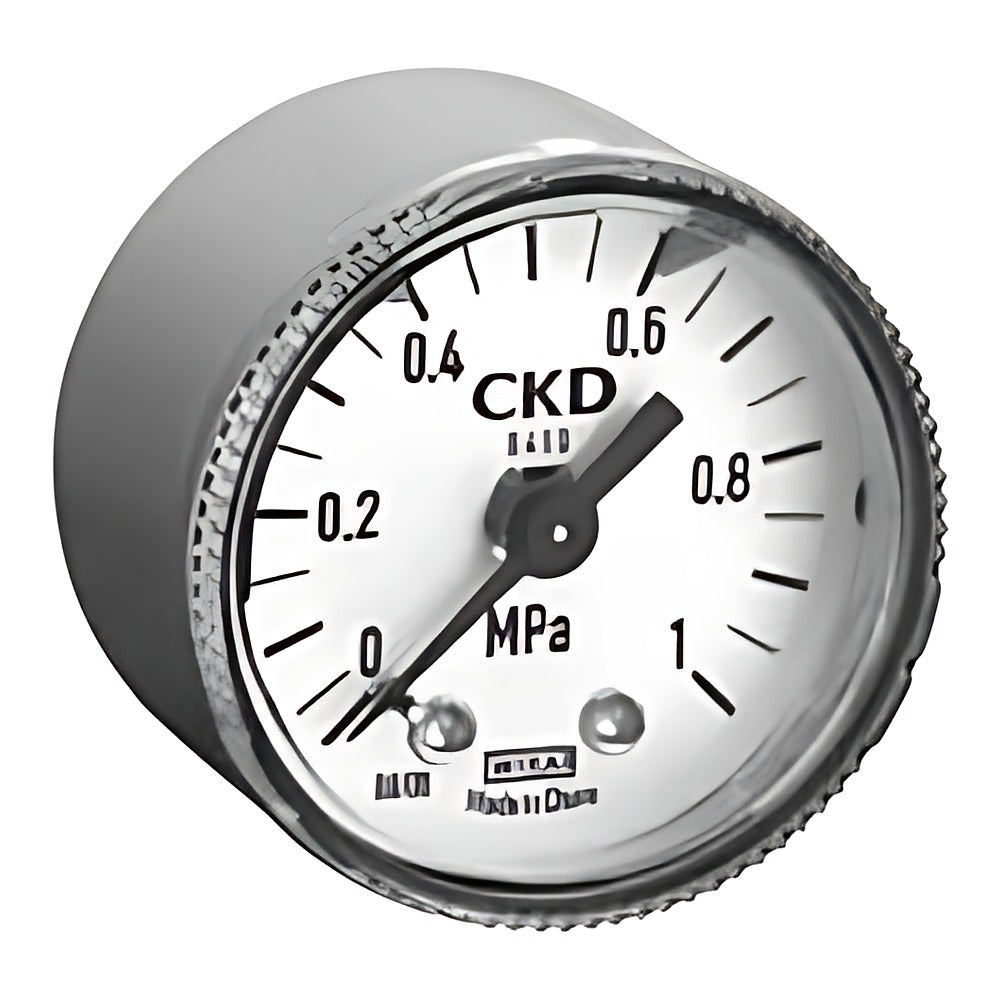

CKD G40D Pressure Gauge with Safety Color Zone (R1/8, R1/4)

CKD G40D Pressure Gauge with Safety Color Zone (R1/8, R1/4)

CKD G40D pressure gauge with adjustable green and red color zones for visual pressure control.

Key features

  • Green/red safety zone adjustable inside the transparent case
  • Safety mark setting range 0.15-1.0 MPa (P10) or 0.06-0.4 MPa (P04)
  • R1/4 connection recommended for SELEX F.R.L units
  • Secondary-battery version (-P4) per catalog CC-1226 not listed

Specifications

Fluid Compressed air
Ambient and fluid temperature 5 to 60 C
Accuracy Full scale +/-3%
Dial diameter 42.5 mm
Mass 85 g
Source CKD Korea catalog CB-024SK-9, p. 435-435
G40D-6-P10 Connection: R1/8 | Range: 0-1 MPa
G40D-6-P04 Connection: R1/8 | Range: 0-0.4 MPa
G40D-8-P10 Connection: R1/4 | Range: 0-1 MPa
G40D-8-P04 Connection: R1/4 | Range: 0-0.4 MPa
Pressure GaugesCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD G40D Pressure Gauge with Safety Color Zone (R1/8, R1/4)

Brand CKD·Pressure Gauges

Available part numbers (4)

G40D-6-P10, G40D-6-P04, G40D-8-P10, G40D-8-P04

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
G40D-6-P10Connection: R1/8 | Range: 0-1 MPa
G40D-6-P04Connection: R1/8 | Range: 0-0.4 MPa
G40D-8-P10Connection: R1/4 | Range: 0-1 MPa
G40D-8-P04Connection: R1/4 | Range: 0-0.4 MPa
