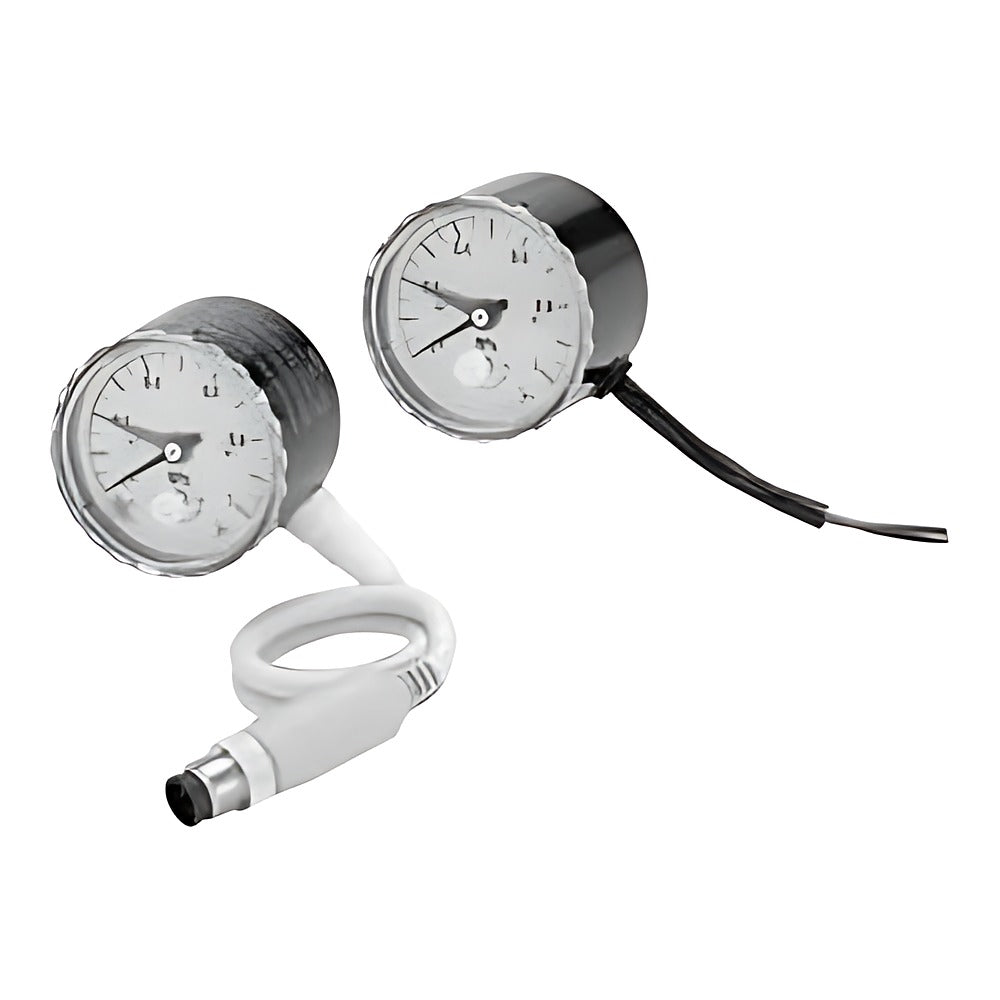

CKD G52D Pressure Gauge with Pressure Switch (R1/4)

CKD G52D analog pressure gauge with built-in micro-switch pressure switch function.

Key features

Switch setting range 0.1-0.8 MPa, differential 0.07 MPa
Without lamp: 1ab contact, 3-core lead wire 300 mm
With lamp (3N): 1a contact, LED, M12 4-pin connector, non-polar
Rating DC30V 0.1-2A / AC125V 0.1-5A

Specifications

Fluid	Compressed air
Fluid temperature	5 to 60 C
Ambient temperature	-5 to 60 C
Accuracy	Full scale +/-3%
Mass	150 g
Connection	R1/4
Range	0-1.0 MPa
Source	CKD Korea catalog CB-024SK-9, p. 442-443

G52D-8-P10		Lamp: None (lead wire 3-core)
G52D-8-P10-3N		Lamp: LED DC24V non-polar (M12)

Pressure GaugesCKD

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD G52D Pressure Gauge with Pressure Switch (R1/4)

Brand CKD·Pressure Gauges

Available part numbers (2)

G52D-8-P10, G52D-8-P10-3N
