SMC G46-SRA/SRB Pressure Gauge for Clean Regulators (SUS316)

SMC G46-SRA/SRB Pressure Gauge for Clean Regulators (SUS316)

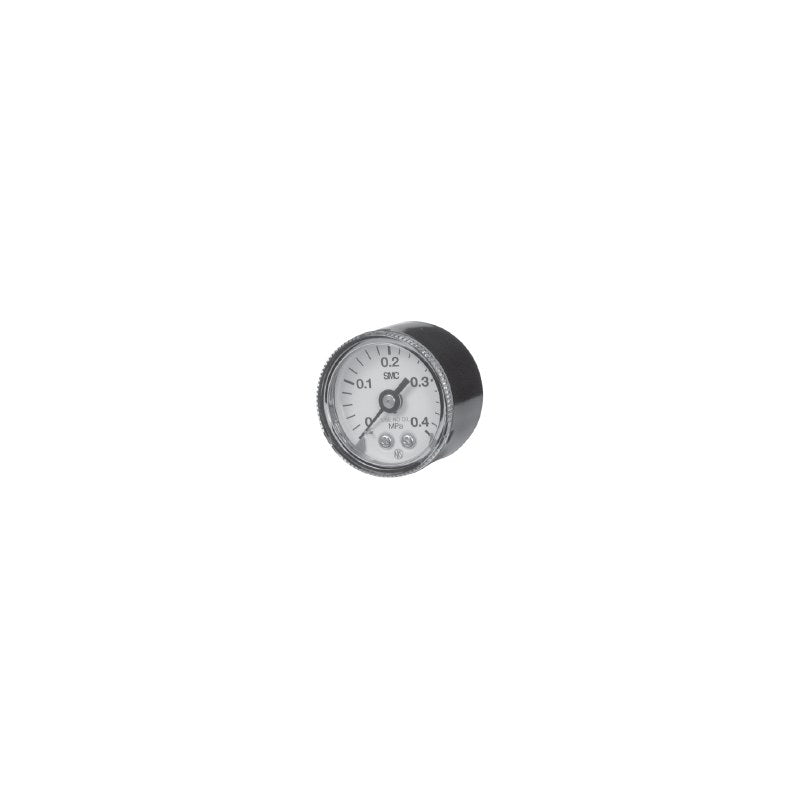

SMC G46-SRA/SRB pressure gauge with limit indicator and SUS316 wetted parts for clean regulators, usable with air or water.

Key features

  • SUS316 Bourdon tube and stud; wetted parts free of oil and water residue
  • SRA: precision-cleaned parts assembled in a clean room (M5.5, class 10000); SRB: degreased, general line
  • Ranges 0.2, 0.4, 0.7 and 1.0 MPa; R1/8 or R1/4, option M adds M5 female port
  • Panel mounting with covering ring C or C2
  • Internal movement (gears) is brass

Specifications

Mounting Rear thread
Fluid Air, water
Accuracy ±3% F.S.
Wetted parts Oil-free and water-free
Bourdon tube / stud Stainless steel SUS316
Case Stainless steel (black melamine)
Cover Polycarbonate, hard coated (G46-00-00-2)
Mass 0.085 kg
Packaging Polyethylene cap on stud, sealed in polyethylene bag
Source SMC Korea catalog G46-SRA,B (SMCKR_G46-SR_.pdf), p. 1293-1295 (PDF p. 1-3)
G46-2-01-SRA Max. pressure: 0.2 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Stock item
G46-2-01-SRA-C Max. pressure: 0.2 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-01-SRA-C2 Max. pressure: 0.2 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-2-01-SRB Max. pressure: 0.2 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: None | Availability: Stock item
G46-2-01-SRB-C Max. pressure: 0.2 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-01-SRB-C2 Max. pressure: 0.2 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-2-01M-SRA Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Made to order
G46-2-01M-SRA-C Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-01M-SRA-C2 Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-2-01M-SRB Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: None | Availability: Made to order
G46-2-01M-SRB-C Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-01M-SRB-C2 Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-2-02-SRA Max. pressure: 0.2 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Stock item
G46-2-02-SRA-C Max. pressure: 0.2 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-02-SRA-C2 Max. pressure: 0.2 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-2-02-SRB Max. pressure: 0.2 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: None | Availability: Stock item
G46-2-02-SRB-C Max. pressure: 0.2 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-02-SRB-C2 Max. pressure: 0.2 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-2-02M-SRA Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Made to order
G46-2-02M-SRA-C Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-02M-SRA-C2 Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-2-02M-SRB Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: None | Availability: Made to order
G46-2-02M-SRB-C Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-02M-SRB-C2 Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-01-SRA Max. pressure: 0.4 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Stock item
G46-4-01-SRA-C Max. pressure: 0.4 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-01-SRA-C2 Max. pressure: 0.4 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-01-SRB Max. pressure: 0.4 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: None | Availability: Stock item
G46-4-01-SRB-C Max. pressure: 0.4 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-01-SRB-C2 Max. pressure: 0.4 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-01M-SRA Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Made to order
G46-4-01M-SRA-C Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-01M-SRA-C2 Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-01M-SRB Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: None | Availability: Made to order
G46-4-01M-SRB-C Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-01M-SRB-C2 Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-02-SRA Max. pressure: 0.4 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Stock item
G46-4-02-SRA-C Max. pressure: 0.4 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-02-SRA-C2 Max. pressure: 0.4 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-02-SRB Max. pressure: 0.4 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: None | Availability: Stock item
G46-4-02-SRB-C Max. pressure: 0.4 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-02-SRB-C2 Max. pressure: 0.4 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-02M-SRA Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Made to order
G46-4-02M-SRA-C Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-02M-SRA-C2 Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-02M-SRB Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: None | Availability: Made to order
G46-4-02M-SRB-C Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-02M-SRB-C2 Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-01-SRA Max. pressure: 0.7 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Made to order
G46-7-01-SRA-C Max. pressure: 0.7 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-01-SRA-C2 Max. pressure: 0.7 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-01-SRB Max. pressure: 0.7 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: None | Availability: Made to order
G46-7-01-SRB-C Max. pressure: 0.7 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-01-SRB-C2 Max. pressure: 0.7 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-01M-SRA Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Made to order
G46-7-01M-SRA-C Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-01M-SRA-C2 Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-01M-SRB Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: None | Availability: Made to order
G46-7-01M-SRB-C Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-01M-SRB-C2 Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-02-SRA Max. pressure: 0.7 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Stock item
G46-7-02-SRA-C Max. pressure: 0.7 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-02-SRA-C2 Max. pressure: 0.7 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-02-SRB Max. pressure: 0.7 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: None | Availability: Stock item
G46-7-02-SRB-C Max. pressure: 0.7 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-02-SRB-C2 Max. pressure: 0.7 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-02M-SRA Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Made to order
G46-7-02M-SRA-C Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-02M-SRA-C2 Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-02M-SRB Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: None | Availability: Made to order
G46-7-02M-SRB-C Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-02M-SRB-C2 Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-01-SRA Max. pressure: 1.0 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Made to order
G46-10-01-SRA-C Max. pressure: 1.0 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-01-SRA-C2 Max. pressure: 1.0 MPa | Connection: R1/8 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-01-SRB Max. pressure: 1.0 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: None | Availability: Made to order
G46-10-01-SRB-C Max. pressure: 1.0 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-01-SRB-C2 Max. pressure: 1.0 MPa | Connection: R1/8 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-01M-SRA Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Made to order
G46-10-01M-SRA-C Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-01M-SRA-C2 Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-01M-SRB Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: None | Availability: Made to order
G46-10-01M-SRB-C Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-01M-SRB-C2 Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-02-SRA Max. pressure: 1.0 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Stock item
G46-10-02-SRA-C Max. pressure: 1.0 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-02-SRA-C2 Max. pressure: 1.0 MPa | Connection: R1/4 | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-02-SRB Max. pressure: 1.0 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: None | Availability: Stock item
G46-10-02-SRB-C Max. pressure: 1.0 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-02-SRB-C2 Max. pressure: 1.0 MPa | Connection: R1/4 | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-02M-SRA Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: None | Availability: Made to order
G46-10-02M-SRA-C Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-02M-SRA-C2 Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Grade: SRA precision cleaned, clean room | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-02M-SRB Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: None | Availability: Made to order
G46-10-02M-SRB-C Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-02M-SRB-C2 Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Grade: SRB degreased, general line | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
Pressure GaugesSMC
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC G46-SRA/SRB Pressure Gauge for Clean Regulators (SUS316)

Brand SMC·Pressure Gauges

Available part numbers (96)

G46-2-01-SRA, G46-2-01-SRA-C, G46-2-01-SRA-C2, G46-2-01-SRB, G46-2-01-SRB-C, G46-2-01-SRB-C2, G46-2-01M-SRA, G46-2-01M-SRA-C, G46-2-01M-SRA-C2, G46-2-01M-SRB + 86 more — see full table ↓
