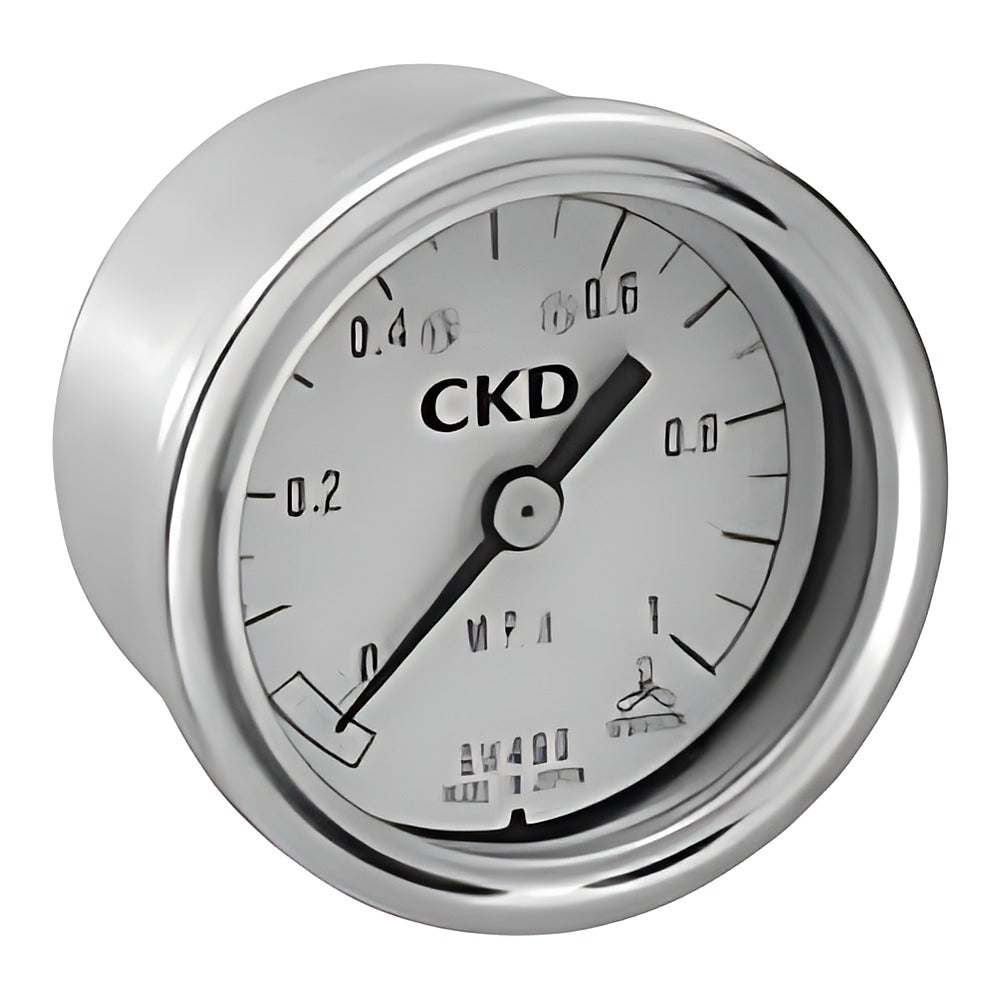

CKD GW49D Outdoor Pressure Gauge (R1/8, R1/4)

CKD GW49D outdoor pressure gauge with stainless housing for the outdoor F.R.L series.

Key features

Stainless steel housing, toughened glass lens
Ambient -10 to 60 C (no freezing)
Range 0-1.0 MPa; psi or bar on request
Supplied as GW49P attachment on outdoor regulators

Specifications

Fluid	Compressed air
Ambient temperature	-10 to 60 C
Accuracy	Full scale +/-3% (5-35 C)
Dial diameter	46.6 mm
Mass	100 g
Range	0-1.0 MPa
Source	CKD Korea catalog CB-024SK-9, p. 439-439

GW49D-6-P10		Connection: R1/8
GW49D-8-P10		Connection: R1/4

Pressure GaugesCKD

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GW49D Outdoor Pressure Gauge (R1/8, R1/4)

Brand CKD·Pressure Gauges

Available part numbers (2)

GW49D-6-P10, GW49D-8-P10
