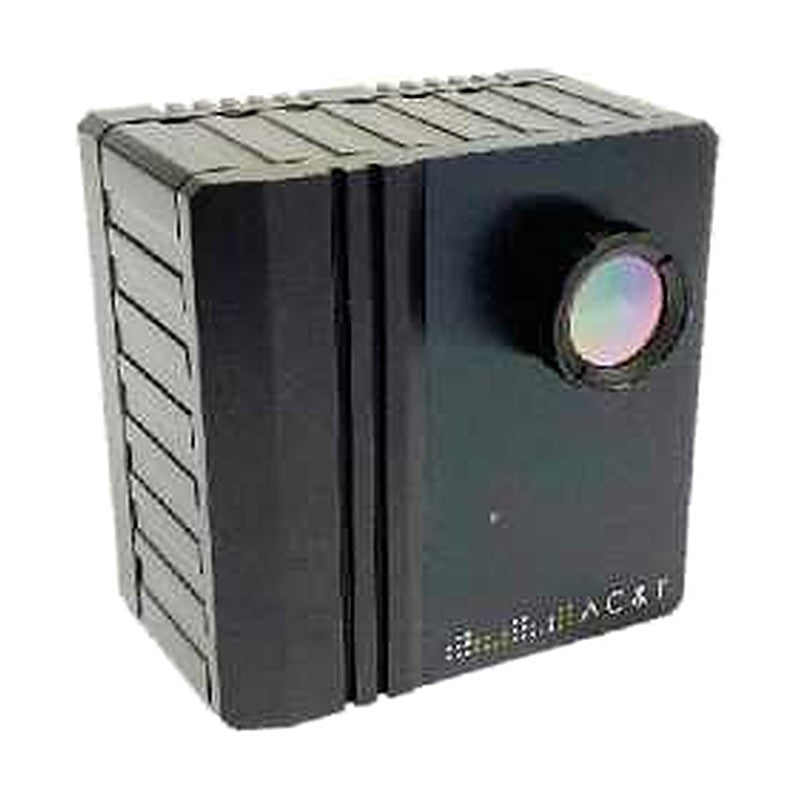

LS Electric DPS-TC High-Res Thermal Imaging Cameras (256x192-640x480)

LS Electric DPS-TC High-Res Thermal Imaging Cameras (256x192-640x480)

DPS-TC high-resolution uncooled VOx thermal imaging cameras (made by AC&T System) for substations, plants and tunnels: 256x192 and 384x288 models with built-in 2-port Gigabit switch, 256KP dual-image models, and CG320KP / CG640KP with interchangeable 4.8-250 mm lenses.

Key features

  • Uncooled VOx (vanadium oxide) microbolometer, 8-14 um
  • DPS-TC-256/384: 25 fps, built-in web server and 2-port 10/100/1000 Layer 2 switch for daisy-chaining
  • DPS-TC-256KP: thermal plus 1945 x 1109 visible image with IR-LED and high-temperature options
  • DPS-TC-CG320KP/CG640KP: 30 Hz, digital zoom 2x/4x, multi-point emissivity, 2 alarm outputs
  • High-temperature measurement options up to 400 C (256/384) or 650 C (CG series)
  • Integrates with RCS-DP-MCM monitoring HMI and EtherFOS RTUs

Specifications

Sensor Uncooled VOx microbolometer
Spectral range 8-14 um
Frame rate 25 fps (256/384); 30 Hz (CG)
NETD 60 mK (256/384); <40-50 mK (CG)
Accuracy +/-2 C or +/-2%
Ethernet 10/100/1000Base-T(X)
Power 12 VDC (256/384); 110-220 VAC or 12 VDC (CG)
Operating temperature -20 to +60 C (256/384)
Source LS Electric DPS-TC-256KP/384 and CG320/640 catalogs; Thermal Imaging Solutions catalog, p. 15-18
DPS-TC-256(25.5) Thermal: 256 x 192 | Visible camera: None | FOV (H): 25.5 deg | Options: None
DPS-TC-256(42.0) Thermal: 256 x 192 | Visible camera: None | FOV (H): 42.0 deg | Options: None
DPS-TC-256(90) Thermal: 256 x 192 | Visible camera: None | FOV (H): 90 deg | Options: None
DPS-TC-384(28.4) Thermal: 384 x 288 | Visible camera: None | FOV (H): 28.4 deg | Options: None
DPS-TC-384(51.3) Thermal: 384 x 288 | Visible camera: None | FOV (H): 51.3 deg | Options: None
DPS-TC-384(93) Thermal: 384 x 288 | Visible camera: None | FOV (H): 93 deg | Options: None
DPS-TC-256KP Thermal: 256 x 192 | Visible camera: 1945 x 1109 | FOV (H): Per lens | Options: None
DPS-TC-256KP-H Thermal: 256 x 192 | Visible camera: 1945 x 1109 | FOV (H): Per lens | Options: High temp (-10 to 275 C)
DPS-TC-256KP-IR Thermal: 256 x 192 | Visible camera: 1945 x 1109 | FOV (H): Per lens | Options: IR-LED
DPS-TC-256KP-IR-H Thermal: 256 x 192 | Visible camera: 1945 x 1109 | FOV (H): Per lens | Options: IR-LED, high temp
DPS-TC-CG320KP Thermal: 384 x 288 | Visible camera: None | FOV (H): Lens 4.8-250 mm (option) | Options: High temp to 650 C (option)
DPS-TC-CG640KP Thermal: 640 x 480 | Visible camera: None | FOV (H): Lens 4.8-250 mm (option) | Options: High temp to 650 C (option)
Thermal Imaging CamerasLS Electric
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric DPS-TC High-Res Thermal Imaging Cameras (256x192-640x480)

Brand LS Electric·Thermal Imaging Cameras

Available part numbers (12)

DPS-TC-256(25.5), DPS-TC-256(42.0), DPS-TC-256(90), DPS-TC-384(28.4), DPS-TC-384(51.3), DPS-TC-384(93), DPS-TC-256KP, DPS-TC-256KP-H, DPS-TC-256KP-IR, DPS-TC-256KP-IR-H + 2 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DPS-TC-256(25.5)Thermal: 256 x 192 | Visible camera: None | FOV (H): 25.5 deg | Options: None
DPS-TC-256(42.0)Thermal: 256 x 192 | Visible camera: None | FOV (H): 42.0 deg | Options: None
DPS-TC-256(90)Thermal: 256 x 192 | Visible camera: None | FOV (H): 90 deg | Options: None
DPS-TC-384(28.4)Thermal: 384 x 288 | Visible camera: None | FOV (H): 28.4 deg | Options: None
DPS-TC-384(51.3)Thermal: 384 x 288 | Visible camera: None | FOV (H): 51.3 deg | Options: None
DPS-TC-384(93)Thermal: 384 x 288 | Visible camera: None | FOV (H): 93 deg | Options: None
DPS-TC-256KPThermal: 256 x 192 | Visible camera: 1945 x 1109 | FOV (H): Per lens | Options: None
DPS-TC-256KP-HThermal: 256 x 192 | Visible camera: 1945 x 1109 | FOV (H): Per lens | Options: High temp (-10 to 275 C)
DPS-TC-256KP-IRThermal: 256 x 192 | Visible camera: 1945 x 1109 | FOV (H): Per lens | Options: IR-LED
DPS-TC-256KP-IR-HThermal: 256 x 192 | Visible camera: 1945 x 1109 | FOV (H): Per lens | Options: IR-LED, high temp
DPS-TC-CG320KPThermal: 384 x 288 | Visible camera: None | FOV (H): Lens 4.8-250 mm (option) | Options: High temp to 650 C (option)
DPS-TC-CG640KPThermal: 640 x 480 | Visible camera: None | FOV (H): Lens 4.8-250 mm (option) | Options: High temp to 650 C (option)
