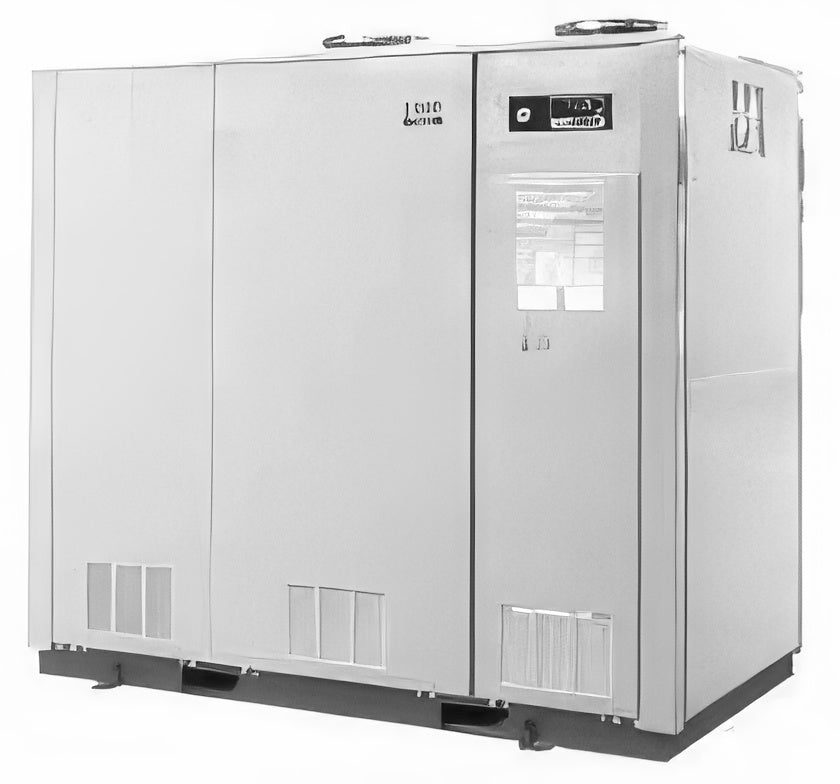

CKD Refrigerated Air Dryer Zero Aqua GT9000WV2 Series (Inverter-Controlled, Water-Cooled)

CKD Refrigerated Air Dryer Zero Aqua GT9000WV2 Series (Inverter-Controlled, Water-Cooled)

Inverter-controlled water-cooled refrigerated air dryer for very large compressors of 710 kW and 960 kW.

Key features

  • Outlet pressure dew point is switchable between 10 and 18 C (manual setting or linked to outdoor temperature). 8B flange connections, R-407C refrigerant

Specifications

Port Flange 8B
Refrigerant R-407C
Power supply 3-phase AC200 V 50/60 Hz
GT9710WV2 Applicable compressor (kW): 710 | Air flow (m3/min ANR): 139.1 | Cooling water (m3/h): 10.7 | Power consumption (kW): 14.8 | Mass (kg): 1330 | Port: Flange 8B | Refrigerant: R-407C | Power supply: 3-phase AC200 V 50/60 Hz
GT9960WV2 Applicable compressor (kW): 960 | Air flow (m3/min ANR): 184.2 | Cooling water (m3/h): 14.2 | Power consumption (kW): 19.6 | Mass (kg): 2200 | Port: Flange 8B | Refrigerant: R-407C | Power supply: 3-phase AC200 V 50/60 Hz
Air DryersCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Refrigerated Air Dryer Zero Aqua GT9000WV2 Series (Inverter-Controlled, Water-Cooled)

Brand CKD·Air Dryers

Available part numbers (2)

GT9710WV2, GT9960WV2

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GT9710WV2Applicable compressor (kW): 710 | Air flow (m3/min ANR): 139.1 | Cooling water (m3/h): 10.7 | Power consumption (kW): 14.8 | Mass (kg): 1330 | Port: Flange 8B | Refrigerant: R-407C | Power supply: 3-phase AC200 V 50/60 Hz
GT9960WV2Applicable compressor (kW): 960 | Air flow (m3/min ANR): 184.2 | Cooling water (m3/h): 14.2 | Power consumption (kW): 19.6 | Mass (kg): 2200 | Port: Flange 8B | Refrigerant: R-407C | Power supply: 3-phase AC200 V 50/60 Hz
