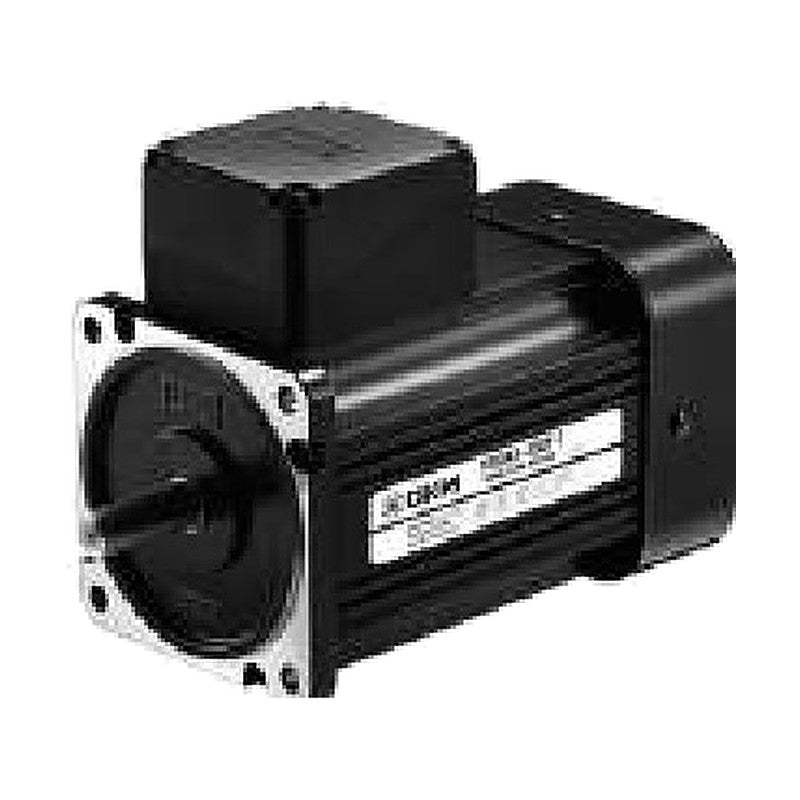

DKM 10BD-250F Electromagnetic Brake Motor 250W, 104 mm Frame
DKM 10BD-250F Electromagnetic Brake Motor 250W, 104 mm Frame
250 W single-phase AC motor with built-in power-off activated electromagnetic brake and 104 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
- Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
- Motor and brake use the same power supply
- Frequent start/stop and direction changes possible
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 250 W |
|---|---|
| Frame size | 104 mm square |
| Poles | 4 |
| Duty | 30 minutes (short-time rating) |
| Rated speed | 1250 / 1300 r/min (depends on voltage/frequency) |
| Rated torque | 1.874-1.948 N·m |
| Starting torque | 1.1-1.35 N·m |
| Shaft options | D-cut, key, gear type (U, HC) |
| Connection | Terminal box |
| Matching gearboxes | 10UBK□BH, 10HC□ (Helicross), 10WHD□-040 (□ = gear ratio) |
| Brake static friction torque | 2.0 N·m |
| Brake type | Power-off activated electromagnetic brake |
| 10BDDE-250F-T | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.874-1.948 N·m | Rated current: 2.17-2.29 A | Starting torque: 1.1-1.35 N·m | Capacitor: 13.0 µF / 450 VAC | Output shaft: D-cut (motor only) | |
| 10BDKE-250F-T | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.874-1.948 N·m | Rated current: 2.17-2.29 A | Starting torque: 1.1-1.35 N·m | Capacitor: 13.0 µF / 450 VAC | Output shaft: Key (motor only) | |
| 10BDGE-250FU-T | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.874-1.948 N·m | Rated current: 2.17-2.29 A | Starting torque: 1.1-1.35 N·m | Capacitor: 13.0 µF / 450 VAC | Output shaft: Gear type (U) for ultra-power box-type gearbox | |
| 10BDGE-250FHC-T | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.874-1.948 N·m | Rated current: 2.17-2.29 A | Starting torque: 1.1-1.35 N·m | Capacitor: 13.0 µF / 450 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox |
AC Brake MotorsDKM
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
DKM 10BD-250F Electromagnetic Brake Motor 250W, 104 mm Frame
Available part numbers (4)
10BDDE-250F-T, 10BDKE-250F-T, 10BDGE-250FU-T, 10BDGE-250FHC-T
How to order
Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
DKM
AC Brake Motors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 10BDDE-250F-T | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.874-1.948 N·m | Rated current: 2.17-2.29 A | Starting torque: 1.1-1.35 N·m | Capacitor: 13.0 µF / 450 VAC | Output shaft: D-cut (motor only) | ||
| 10BDKE-250F-T | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.874-1.948 N·m | Rated current: 2.17-2.29 A | Starting torque: 1.1-1.35 N·m | Capacitor: 13.0 µF / 450 VAC | Output shaft: Key (motor only) | ||
| 10BDGE-250FU-T | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.874-1.948 N·m | Rated current: 2.17-2.29 A | Starting torque: 1.1-1.35 N·m | Capacitor: 13.0 µF / 450 VAC | Output shaft: Gear type (U) for ultra-power box-type gearbox | ||
| 10BDGE-250FHC-T | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.874-1.948 N·m | Rated current: 2.17-2.29 A | Starting torque: 1.1-1.35 N·m | Capacitor: 13.0 µF / 450 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox |
Need a different model, or a part not listed here? Send us your parts list →
