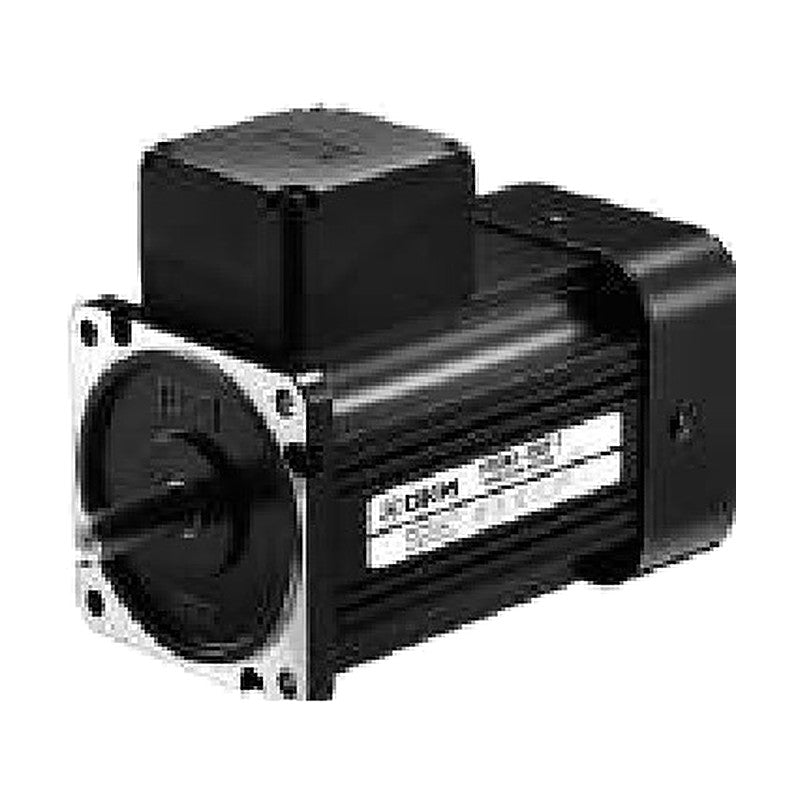

DKM 10ID-300F Induction Motor 300W, 104 mm Frame
DKM 10ID-300F Induction Motor 300W, 104 mm Frame
300 W single- and three-phase AC induction motor with 104 mm square frame for unidirectional continuous operation such as conveyors; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Suitable for unidirectional continuous operation such as conveyor systems
- Single-phase capacitor-run and three-phase versions
- Three-phase versions offer higher starting torque and can run directly from a three-phase supply
- Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only
Specifications
| Output | 300 W |
|---|---|
| Frame size | 104 mm square |
| Poles | 4 |
| Duty | Continuous |
| Rated speed | 1300 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 1.827-2.248 N·m |
| Starting torque | 1.36-4.793 N·m |
| Shaft options | D-cut, key, gear type (U, HC) |
| Connection | Terminal box |
| Matching gearboxes | 10UBK□BH, 10WHD□-040, 10HC□ (Helicross) (□ = gear ratio) |
| Insulation class | Class B (130 °C) |
| Insulation resistance | 100 MΩ min. at 500 VDC megger (windings to frame) |
| 10IDDD-300F-T | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.827 N·m | Rated current: 2.52 A | Starting torque: 1.36 N·m | Capacitor: 15.0 µF / 450 VAC | Output shaft: D-cut (motor only) | |
| 10IDKD-300F-T | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.827 N·m | Rated current: 2.52 A | Starting torque: 1.36 N·m | Capacitor: 15.0 µF / 450 VAC | Output shaft: Key (motor only) | |
| 10IDGD-300FU-T | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.827 N·m | Rated current: 2.52 A | Starting torque: 1.36 N·m | Capacitor: 15.0 µF / 450 VAC | Output shaft: Gear type (U) for ultra-power box-type gearbox | |
| 10IDGD-300FHC-T | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.827 N·m | Rated current: 2.52 A | Starting torque: 1.36 N·m | Capacitor: 15.0 µF / 450 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox | |
| 10IDD7-300F-T | Power supply: 3ø AC 230 / 400 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 1.01-1.7 A | Starting torque: 4.793 N·m | Output shaft: D-cut (motor only) | |
| 10IDK7-300F-T | Power supply: 3ø AC 230 / 400 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 1.01-1.7 A | Starting torque: 4.793 N·m | Output shaft: Key (motor only) | |
| 10IDG7-300FU-T | Power supply: 3ø AC 230 / 400 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 1.01-1.7 A | Starting torque: 4.793 N·m | Output shaft: Gear type (U) for ultra-power box-type gearbox | |
| 10IDG7-300FHC-T | Power supply: 3ø AC 230 / 400 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 1.01-1.7 A | Starting torque: 4.793 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | |
| 10IDD8-300F-T | Power supply: 3ø AC 440 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 0.88 A | Starting torque: 4.793 N·m | Output shaft: D-cut (motor only) | |
| 10IDK8-300F-T | Power supply: 3ø AC 440 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 0.88 A | Starting torque: 4.793 N·m | Output shaft: Key (motor only) | |
| 10IDG8-300FU-T | Power supply: 3ø AC 440 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 0.88 A | Starting torque: 4.793 N·m | Output shaft: Gear type (U) for ultra-power box-type gearbox | |
| 10IDG8-300FHC-T | Power supply: 3ø AC 440 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 0.88 A | Starting torque: 4.793 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox |
AC Induction MotorsDKM
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
DKM 10ID-300F Induction Motor 300W, 104 mm Frame
Available part numbers (12)
10IDDD-300F-T, 10IDKD-300F-T, 10IDGD-300FU-T, 10IDGD-300FHC-T, 10IDD7-300F-T, 10IDK7-300F-T, 10IDG7-300FU-T, 10IDG7-300FHC-T, 10IDD8-300F-T, 10IDK8-300F-T + 2 more — see full table ↓
How to order
Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
DKM
AC Induction Motors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 10IDDD-300F-T | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.827 N·m | Rated current: 2.52 A | Starting torque: 1.36 N·m | Capacitor: 15.0 µF / 450 VAC | Output shaft: D-cut (motor only) | ||
| 10IDKD-300F-T | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.827 N·m | Rated current: 2.52 A | Starting torque: 1.36 N·m | Capacitor: 15.0 µF / 450 VAC | Output shaft: Key (motor only) | ||
| 10IDGD-300FU-T | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.827 N·m | Rated current: 2.52 A | Starting torque: 1.36 N·m | Capacitor: 15.0 µF / 450 VAC | Output shaft: Gear type (U) for ultra-power box-type gearbox | ||
| 10IDGD-300FHC-T | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.827 N·m | Rated current: 2.52 A | Starting torque: 1.36 N·m | Capacitor: 15.0 µF / 450 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox | ||
| 10IDD7-300F-T | Power supply: 3ø AC 230 / 400 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 1.01-1.7 A | Starting torque: 4.793 N·m | Output shaft: D-cut (motor only) | ||
| 10IDK7-300F-T | Power supply: 3ø AC 230 / 400 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 1.01-1.7 A | Starting torque: 4.793 N·m | Output shaft: Key (motor only) | ||
| 10IDG7-300FU-T | Power supply: 3ø AC 230 / 400 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 1.01-1.7 A | Starting torque: 4.793 N·m | Output shaft: Gear type (U) for ultra-power box-type gearbox | ||
| 10IDG7-300FHC-T | Power supply: 3ø AC 230 / 400 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 1.01-1.7 A | Starting torque: 4.793 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | ||
| 10IDD8-300F-T | Power supply: 3ø AC 440 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 0.88 A | Starting torque: 4.793 N·m | Output shaft: D-cut (motor only) | ||
| 10IDK8-300F-T | Power supply: 3ø AC 440 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 0.88 A | Starting torque: 4.793 N·m | Output shaft: Key (motor only) | ||
| 10IDG8-300FU-T | Power supply: 3ø AC 440 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 0.88 A | Starting torque: 4.793 N·m | Output shaft: Gear type (U) for ultra-power box-type gearbox | ||
| 10IDG8-300FHC-T | Power supply: 3ø AC 440 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 2.248 N·m | Rated current: 0.88 A | Starting torque: 4.793 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox |
