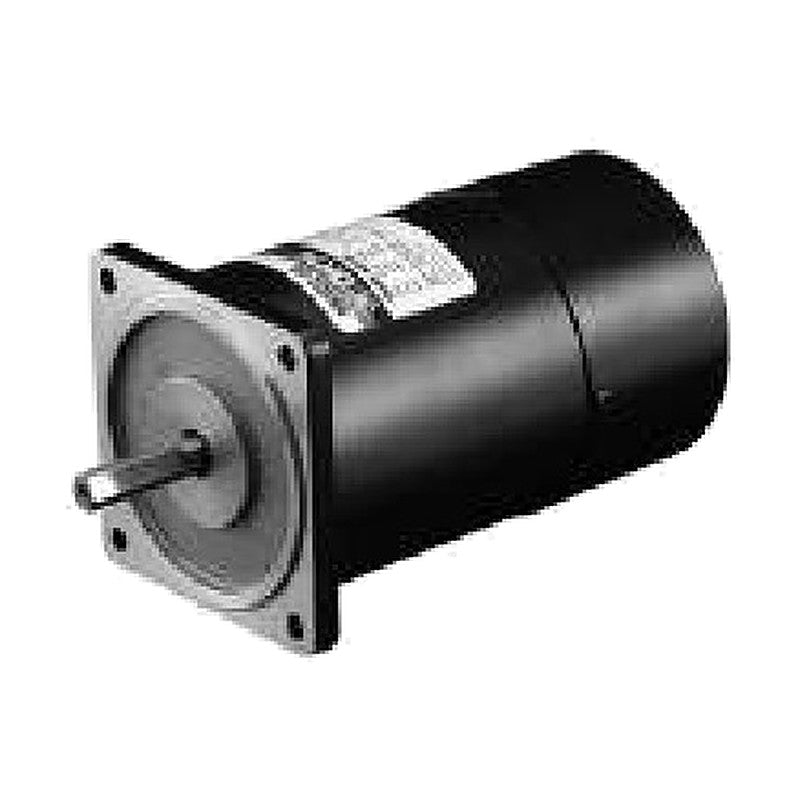

DKM 6BD-6 Electromagnetic Brake Motor 6W, 60 mm Frame
DKM 6BD-6 Electromagnetic Brake Motor 6W, 60 mm Frame
6 W single- and three-phase AC motor with built-in power-off activated electromagnetic brake and 60 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
- Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
- Motor and brake use the same power supply
- Frequent start/stop and direction changes possible
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 6 W |
|---|---|
| Frame size | 60 mm square |
| Poles | 4 |
| Duty | 30 minutes (single-phase) / continuous (three-phase); see each model |
| Rated speed | 1200 / 1250 / 1550 r/min (depends on voltage/frequency) |
| Rated torque | 0.038-0.049 N·m |
| Starting torque | 0.05-0.13 N·m |
| Shaft options | D-cut, gear type (G) |
| Connection | Lead wire |
| Matching gearboxes | 6GBD□MH (□ = gear ratio) |
| Brake static friction torque | 0.05 N·m |
| Brake type | Power-off activated electromagnetic brake |
| 6BDD1-6 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.25 A | Capacitor: 3.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: alternative printed code 6BDDA-6 | |
| 6BDG1-6G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.25 A | Capacitor: 3.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6BDGA-6G | |
| 6BDDB-6 | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.23-0.24 A | Capacitor: 3.5 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 6BDGB-6G | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.23-0.24 A | Capacitor: 3.5 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 6BDDC-6 | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.13-0.14 A | Capacitor: 1.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 6BDGC-6G | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.13-0.14 A | Capacitor: 1.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 6BDD2-6 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.15 A | Capacitor: 1.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: alternative printed code 6BDDD-6 | |
| 6BDG2-6G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.15 A | Capacitor: 1.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6BDGD-6G | |
| 6BDDE-6 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.049 N·m | Rated current: 0.1-0.11 A | Capacitor: 0.7 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 6BDGE-6G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.049 N·m | Rated current: 0.1-0.11 A | Capacitor: 0.7 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 6BDD3-6 | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11-0.14 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: alternative printed code 6BDDG-6 | |
| 6BDG3-6G | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11-0.14 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6BDGG-6G |
AC Brake MotorsDKM
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
DKM 6BD-6 Electromagnetic Brake Motor 6W, 60 mm Frame
Available part numbers (12)
6BDD1-6, 6BDG1-6G, 6BDDB-6, 6BDGB-6G, 6BDDC-6, 6BDGC-6G, 6BDD2-6, 6BDG2-6G, 6BDDE-6, 6BDGE-6G + 2 more — see full table ↓
How to order
Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
DKM
AC Brake Motors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 6BDD1-6 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.25 A | Capacitor: 3.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: alternative printed code 6BDDA-6 | ||
| 6BDG1-6G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.25 A | Capacitor: 3.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6BDGA-6G | ||
| 6BDDB-6 | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.23-0.24 A | Capacitor: 3.5 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | ||
| 6BDGB-6G | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.23-0.24 A | Capacitor: 3.5 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | ||
| 6BDDC-6 | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.13-0.14 A | Capacitor: 1.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | ||
| 6BDGC-6G | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.13-0.14 A | Capacitor: 1.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | ||
| 6BDD2-6 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.15 A | Capacitor: 1.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: alternative printed code 6BDDD-6 | ||
| 6BDG2-6G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.15 A | Capacitor: 1.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6BDGD-6G | ||
| 6BDDE-6 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.049 N·m | Rated current: 0.1-0.11 A | Capacitor: 0.7 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | ||
| 6BDGE-6G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.049 N·m | Rated current: 0.1-0.11 A | Capacitor: 0.7 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | ||
| 6BDD3-6 | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11-0.14 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: alternative printed code 6BDDG-6 | ||
| 6BDG3-6G | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11-0.14 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6BDGG-6G |
