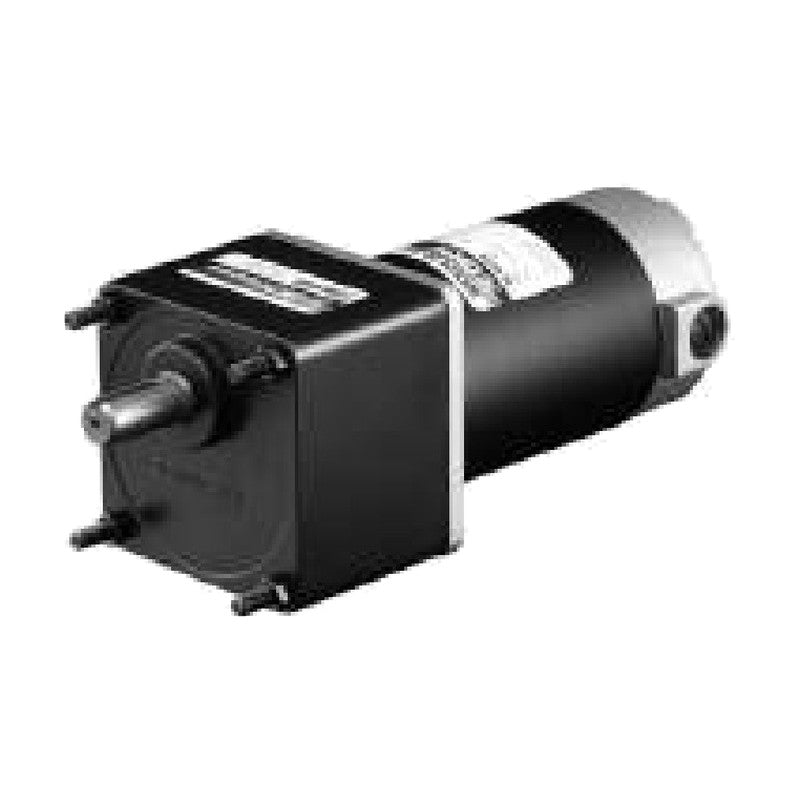

DKM 6DC DC Motor, 15 W, □60 mm Frame

DKM 6DC DC Motor, 15 W, □60 mm Frame

Permanent-magnet DC motor for 12 V, 24 V or 90 V supply, available with gear-type pinion for DKM gearboxes or with plain D-cut/key shaft.

Key features

  • Large starting torque and high efficiency
  • Easy speed control and direction reversal
  • Fast response to start and stop
  • Parallel and worm gearboxes can be attached (gear-type shaft)
  • 90 V models can be speed-controlled with the DKM DSD-90 controller

Specifications

Output 15 W
Frame size 60 mm square
Motor type Permanent-magnet DC motor
Voltage DC 12 V / 24 V / 90 V
Rated speed approx. 3000 r/min (2700-3000 r/min depending on voltage)
6DCG12-15-30 Voltage: DC 12 V | Shaft: Gear type pinion for general box gearbox | No-load speed: 3200 r/min | Rated speed: 3000 r/min | Rated current: 1.90 A | Rated torque: 0.049 N·m | Starting torque: 0.420 N·m
6DCG24-15-30 Voltage: DC 24 V | Shaft: Gear type pinion for general box gearbox | No-load speed: 3500 r/min | Rated speed: 3000 r/min | Rated current: 1.10 A | Rated torque: 0.049 N·m | Starting torque: 0.420 N·m
6DCG90-15-30 Voltage: DC 90 V | Shaft: Gear type pinion for general box gearbox | No-load speed: 3150 r/min | Rated speed: 3000 r/min | Rated current: 0.25 A | Rated torque: 0.049 N·m | Starting torque: 0.480 N·m
6DCD12-15-30 Voltage: DC 12 V | Shaft: D-cut shaft (motor only) | No-load speed: 3200 r/min | Rated speed: 3000 r/min | Rated current: 1.90 A | Rated torque: 0.049 N·m | Starting torque: 0.420 N·m
6DCD24-15-30 Voltage: DC 24 V | Shaft: D-cut shaft (motor only) | No-load speed: 3500 r/min | Rated speed: 3000 r/min | Rated current: 1.10 A | Rated torque: 0.049 N·m | Starting torque: 0.420 N·m
6DCD90-15-30 Voltage: DC 90 V | Shaft: D-cut shaft (motor only) | No-load speed: 3150 r/min | Rated speed: 3000 r/min | Rated current: 0.25 A | Rated torque: 0.049 N·m | Starting torque: 0.480 N·m
DC MotorsDKM
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 6DC DC Motor, 15 W, □60 mm Frame

Brand DKM·DC Motors

Available part numbers (6)

6DCG12-15-30, 6DCG24-15-30, 6DCG90-15-30, 6DCD12-15-30, 6DCD24-15-30, 6DCD90-15-30
