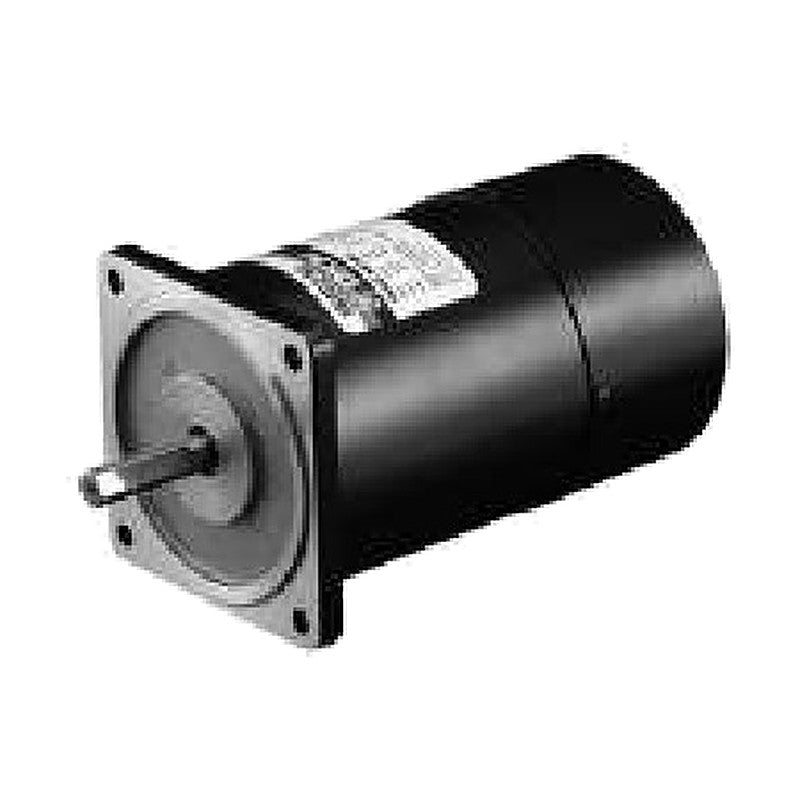

DKM 8BD-25 Electromagnetic Brake Motor 25W, 80 mm Frame
DKM 8BD-25 Electromagnetic Brake Motor 25W, 80 mm Frame
25 W single- and three-phase AC motor with built-in power-off activated electromagnetic brake and 80 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
- Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
- Motor and brake use the same power supply
- Frequent start/stop and direction changes possible
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 25 W |
|---|---|
| Frame size | 80 mm square |
| Poles | 4 |
| Duty | 30 minutes (single-phase) / continuous (three-phase); see each model |
| Rated speed | 1250 / 1300 / 1350 / 1550 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 0.152-0.195 N·m |
| Starting torque | 0.197-0.825 N·m |
| Shaft options | D-cut, gear type (G, W) |
| Connection | Lead wire |
| Matching gearboxes | 8GBK□BMH, 8WD□BL/BR/BRL (□ = gear ratio) |
| Brake static friction torque | 0.2 N·m |
| Brake type | Power-off activated electromagnetic brake |
| 8BDD1-25 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.74 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8BDDA-25 | |
| 8BDG1-25G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.74 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8BDGA-25G | |
| 8BDG1-25W | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.74 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8BDGA-25W | |
| 8BDDB-25 | Power supply: 1ø AC 100 V 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.62-0.68 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 8BDGB-25G | Power supply: 1ø AC 100 V 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.62-0.68 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 8BDGB-25W | Power supply: 1ø AC 100 V 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.62-0.68 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | |
| 8BDDC-25 | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.29-0.33 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 8BDGC-25G | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.29-0.33 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 8BDGC-25W | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.29-0.33 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | |
| 8BDD2-25 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.35 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8BDDD-25 | |
| 8BDG2-25G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.35 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8BDGD-25G | |
| 8BDG2-25W | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.35 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8BDGD-25W | |
| 8BDDE-25 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.195 N·m | Rated current: 0.28-0.31 A | Capacitor: 2.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 8BDGE-25G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.195 N·m | Rated current: 0.28-0.31 A | Capacitor: 2.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 8BDGE-25W | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.195 N·m | Rated current: 0.28-0.31 A | Capacitor: 2.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | |
| 8BDD3-25 | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.152-0.18 N·m | Rated current: 0.26-0.32 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8BDDG-25 | |
| 8BDG3-25G | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.152-0.18 N·m | Rated current: 0.26-0.32 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8BDGG-25G | |
| 8BDG3-25W | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.152-0.18 N·m | Rated current: 0.26-0.32 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8BDGG-25W | |
| 8BDDJ-25 | Power supply: 3ø AC 200-220 V 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.26-0.3 A | Duty: Continuous | Output shaft: D-cut (motor only) | |
| 8BDGJ-25G | Power supply: 3ø AC 200-220 V 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.26-0.3 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | |
| 8BDGJ-25W | Power supply: 3ø AC 200-220 V 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.26-0.3 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | |
| 8BDD4-25 | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.12-0.14 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8BDDK-25 | |
| 8BDG4-25G | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.12-0.14 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8BDGK-25G | |
| 8BDG4-25W | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.12-0.14 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8BDGK-25W | |
| 8BDD5-25 | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.13-0.16 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8BDDL-25 | |
| 8BDG5-25G | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.13-0.16 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8BDGL-25G | |
| 8BDG5-25W | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.13-0.16 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8BDGL-25W |
AC Brake MotorsDKM
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
DKM 8BD-25 Electromagnetic Brake Motor 25W, 80 mm Frame
Available part numbers (27)
8BDD1-25, 8BDG1-25G, 8BDG1-25W, 8BDDB-25, 8BDGB-25G, 8BDGB-25W, 8BDDC-25, 8BDGC-25G, 8BDGC-25W, 8BDD2-25 + 17 more — see full table ↓
How to order
Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
DKM
AC Brake Motors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 8BDD1-25 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.74 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8BDDA-25 | ||
| 8BDG1-25G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.74 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8BDGA-25G | ||
| 8BDG1-25W | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.74 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8BDGA-25W | ||
| 8BDDB-25 | Power supply: 1ø AC 100 V 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.62-0.68 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | ||
| 8BDGB-25G | Power supply: 1ø AC 100 V 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.62-0.68 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | ||
| 8BDGB-25W | Power supply: 1ø AC 100 V 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.62-0.68 A | Capacitor: 10.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | ||
| 8BDDC-25 | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.29-0.33 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | ||
| 8BDGC-25G | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.29-0.33 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | ||
| 8BDGC-25W | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.29-0.33 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | ||
| 8BDD2-25 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.35 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8BDDD-25 | ||
| 8BDG2-25G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.35 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8BDGD-25G | ||
| 8BDG2-25W | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.35 A | Capacitor: 2.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8BDGD-25W | ||
| 8BDDE-25 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.195 N·m | Rated current: 0.28-0.31 A | Capacitor: 2.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | ||
| 8BDGE-25G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.195 N·m | Rated current: 0.28-0.31 A | Capacitor: 2.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | ||
| 8BDGE-25W | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.195 N·m | Rated current: 0.28-0.31 A | Capacitor: 2.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | ||
| 8BDD3-25 | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.152-0.18 N·m | Rated current: 0.26-0.32 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8BDDG-25 | ||
| 8BDG3-25G | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.152-0.18 N·m | Rated current: 0.26-0.32 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8BDGG-25G | ||
| 8BDG3-25W | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.152-0.18 N·m | Rated current: 0.26-0.32 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8BDGG-25W | ||
| 8BDDJ-25 | Power supply: 3ø AC 200-220 V 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.26-0.3 A | Duty: Continuous | Output shaft: D-cut (motor only) | ||
| 8BDGJ-25G | Power supply: 3ø AC 200-220 V 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.26-0.3 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | ||
| 8BDGJ-25W | Power supply: 3ø AC 200-220 V 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.26-0.3 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | ||
| 8BDD4-25 | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.12-0.14 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8BDDK-25 | ||
| 8BDG4-25G | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.12-0.14 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8BDGK-25G | ||
| 8BDG4-25W | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.12-0.14 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8BDGK-25W | ||
| 8BDD5-25 | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.13-0.16 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8BDDL-25 | ||
| 8BDG5-25G | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.13-0.16 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8BDGL-25G | ||
| 8BDG5-25W | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.13-0.16 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8BDGL-25W |
