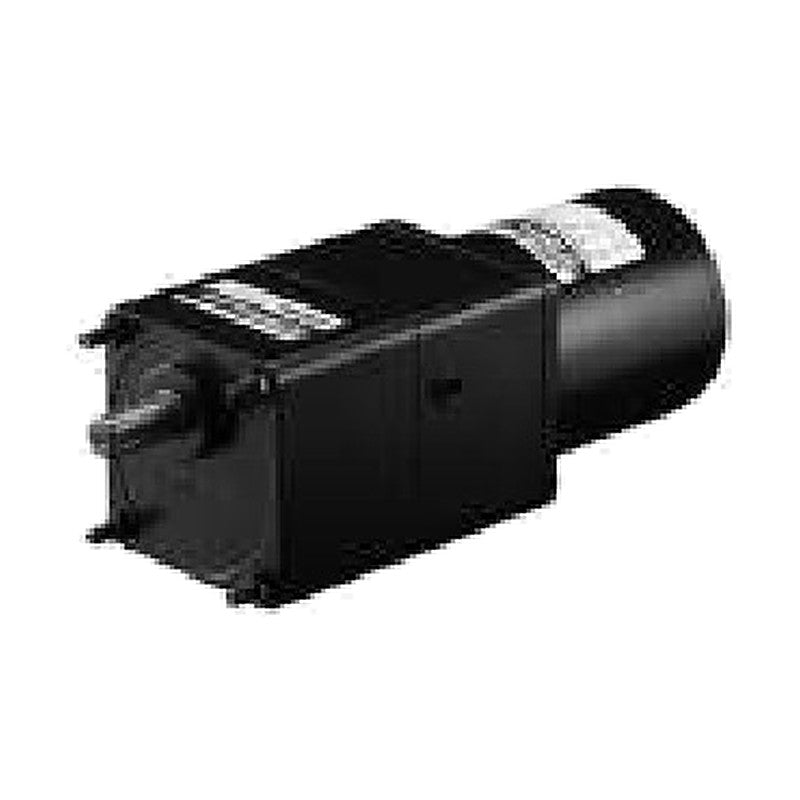

DKM 8CID-25 Clutch & Brake Motor 25W, 80 mm Frame

DKM 8CID-25 Clutch & Brake Motor 25W, 80 mm Frame

25 W single- and three-phase AC induction motor with built-in 24 VDC clutch & brake unit and 80 mm square frame, for frequent start/stop, positioning, indexing and incremental feeding; gear-type output shaft for direct mounting of a DKM gearbox.

Key features

  • Internal clutch & brake mechanism between a continuously running induction motor and the gearbox
  • Run/stop operation up to 100 times per minute
  • Output shaft stops without influence of motor inertia; motor keeps rotating
  • For unidirectional motion (not for frequent bi-directional start/stop)
  • Clutch and brake coils: 24 VDC

Specifications

Output 25 W
Frame size 80 mm square
Poles 4
Duty Continuous
Rated speed 1250 / 1300 / 1350 / 1550 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.152-0.195 N·m
Starting torque 0.135-0.825 N·m
Shaft options Gear type (G) only
Connection Lead wire
Matching gearboxes 8GBK□BMH (□ = gear ratio)
Clutch/brake coil 24 VDC (clutch 0.354 A, brake 0.253 A)
Insulation class Class B (130 °C)
8CIDG1-25G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.55 A | Starting torque: 0.163 N·m | Capacitor: 6.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGA-25G
8CIDGB-25G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.157-0.195 N·m | Rated current: 0.55-0.62 A | Starting torque: 0.135-0.145 N·m | Capacitor: 6.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDGC-25G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.157-0.195 N·m | Rated current: 0.25-0.26 A | Starting torque: 0.14-0.145 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDG2-25G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.157 N·m | Rated current: 0.27 A | Starting torque: 0.159 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGD-25G
8CIDGE-25G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.195 N·m | Rated current: 0.23-0.25 A | Starting torque: 0.157-0.187 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDG3-25G Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.152-0.18 N·m | Rated current: 0.26-0.32 A | Starting torque: 0.615-0.825 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGG-25G
8CIDGJ-25G Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.26-0.3 A | Starting torque: 0.595-0.761 N·m | Output shaft: Gear type (G) for general box-type gearbox
8CIDG4-25G Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.12-0.14 A | Starting torque: 0.453-0.626 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGK-25G
8CIDG5-25G Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.13-0.16 A | Starting torque: 0.54-0.739 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGL-25G
AC Clutch & Brake MotorsDKM
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 8CID-25 Clutch & Brake Motor 25W, 80 mm Frame

Brand DKM·AC Clutch & Brake Motors

Available part numbers (9)

8CIDG1-25G, 8CIDGB-25G, 8CIDGC-25G, 8CIDG2-25G, 8CIDGE-25G, 8CIDG3-25G, 8CIDGJ-25G, 8CIDG4-25G, 8CIDG5-25G

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8CIDG1-25GPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.152 N·m | Rated current: 0.55 A | Starting torque: 0.163 N·m | Capacitor: 6.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGA-25G
8CIDGB-25GPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.157-0.195 N·m | Rated current: 0.55-0.62 A | Starting torque: 0.135-0.145 N·m | Capacitor: 6.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDGC-25GPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.157-0.195 N·m | Rated current: 0.25-0.26 A | Starting torque: 0.14-0.145 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDG2-25GPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.157 N·m | Rated current: 0.27 A | Starting torque: 0.159 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGD-25G
8CIDGE-25GPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.195 N·m | Rated current: 0.23-0.25 A | Starting torque: 0.157-0.187 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDG3-25GPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.152-0.18 N·m | Rated current: 0.26-0.32 A | Starting torque: 0.615-0.825 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGG-25G
8CIDGJ-25GPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.152-0.187 N·m | Rated current: 0.26-0.3 A | Starting torque: 0.595-0.761 N·m | Output shaft: Gear type (G) for general box-type gearbox
8CIDG4-25GPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.12-0.14 A | Starting torque: 0.453-0.626 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGK-25G
8CIDG5-25GPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.157-0.187 N·m | Rated current: 0.13-0.16 A | Starting torque: 0.54-0.739 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGL-25G
