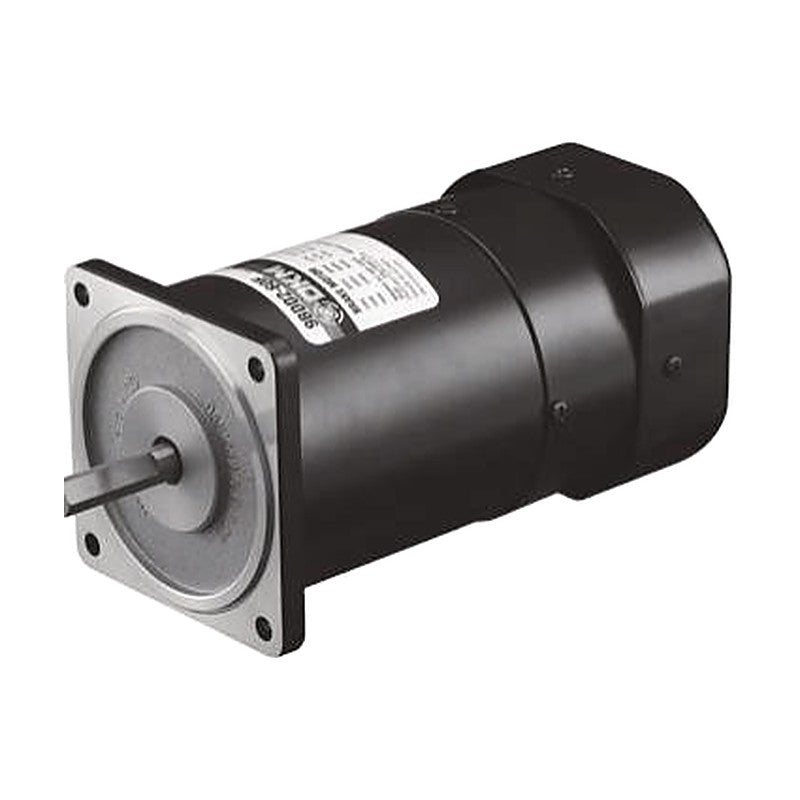

DKM 9BD-120F Electromagnetic Brake Motor 120W, 90 mm Frame
DKM 9BD-120F Electromagnetic Brake Motor 120W, 90 mm Frame
120 W single- and three-phase AC motor with built-in power-off activated electromagnetic brake and 90 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
- Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
- Motor and brake use the same power supply
- Frequent start/stop and direction changes possible
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 120 W |
|---|---|
| Frame size | 90 mm square |
| Poles | 4 |
| Duty | 30 minutes (single-phase) / continuous (three-phase); see each model |
| Rated speed | 1250 / 1300 / 1350 / 1550 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 0.731-0.935 N·m |
| Starting torque | 0.628-2.75 N·m |
| Shaft options | D-cut, key, gear type (P, H, W, HC, WH) |
| Connection | Lead wire |
| Matching gearboxes | 9PBK□BH, 9PFK□BH, 9HBK□BH, 9HFK□BH, 9WD□BL/BR/BRL, 9HC□ (Helicross), 9WHD□-030 (□ = gear ratio) |
| Brake static friction torque | 1.0 N·m |
| Brake type | Power-off activated electromagnetic brake |
| 9BDD1-120F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDA-120F | |
| 9BDK1-120F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKA-120F | |
| 9BDG1-120FP | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGA-120FP | |
| 9BDG1-120FH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGA-120FH | |
| 9BDG1-120FW | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGA-120FW | |
| 9BDG1-120FHC | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGA-120FHC | |
| 9BDG1-120FWH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGA-120FWH | |
| 9BDD2-120F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDD-120F | |
| 9BDK2-120F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKD-120F | |
| 9BDG2-120FP | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGD-120FP | |
| 9BDG2-120FH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGD-120FH | |
| 9BDG2-120FW | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGD-120FW | |
| 9BDG2-120FHC | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGD-120FHC | |
| 9BDG2-120FWH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGD-120FWH | |
| 9BDDE-120F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 9BDKE-120F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | |
| 9BDGE-120FP | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | |
| 9BDGE-120FH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | |
| 9BDGE-120FW | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | |
| 9BDGE-120FHC | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (HC) for Helicross right-angle gearbox | |
| 9BDGE-120FWH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | |
| 9BDD3-120F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDG-120F | |
| 9BDK3-120F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKG-120F | |
| 9BDG3-120FP | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGG-120FP | |
| 9BDG3-120FH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGG-120FH | |
| 9BDG3-120FW | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGG-120FW | |
| 9BDG3-120FHC | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGG-120FHC | |
| 9BDG3-120FWH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGG-120FWH | |
| 9BDD4-120F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDK-120F | |
| 9BDK4-120F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKK-120F | |
| 9BDG4-120FP | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGK-120FP | |
| 9BDG4-120FH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGK-120FH | |
| 9BDG4-120FW | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGK-120FW | |
| 9BDG4-120FHC | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGK-120FHC | |
| 9BDG4-120FWH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGK-120FWH | |
| 9BDD5-120F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDL-120F | |
| 9BDK5-120F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKL-120F | |
| 9BDG5-120FP | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGL-120FP | |
| 9BDG5-120FH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGL-120FH | |
| 9BDG5-120FW | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGL-120FW | |
| 9BDG5-120FHC | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGL-120FHC | |
| 9BDG5-120FWH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGL-120FWH |
AC Brake MotorsDKM
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
DKM 9BD-120F Electromagnetic Brake Motor 120W, 90 mm Frame
Available part numbers (42)
9BDD1-120F, 9BDK1-120F, 9BDG1-120FP, 9BDG1-120FH, 9BDG1-120FW, 9BDG1-120FHC, 9BDG1-120FWH, 9BDD2-120F, 9BDK2-120F, 9BDG2-120FP + 32 more — see full table ↓
How to order
Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
DKM
AC Brake Motors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 9BDD1-120F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDA-120F | ||
| 9BDK1-120F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKA-120F | ||
| 9BDG1-120FP | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGA-120FP | ||
| 9BDG1-120FH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGA-120FH | ||
| 9BDG1-120FW | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGA-120FW | ||
| 9BDG1-120FHC | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGA-120FHC | ||
| 9BDG1-120FWH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.754 N·m | Rated current: 2.5 A | Capacitor: 30.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGA-120FWH | ||
| 9BDD2-120F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDD-120F | ||
| 9BDK2-120F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKD-120F | ||
| 9BDG2-120FP | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGD-120FP | ||
| 9BDG2-120FH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGD-120FH | ||
| 9BDG2-120FW | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGD-120FW | ||
| 9BDG2-120FHC | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGD-120FHC | ||
| 9BDG2-120FWH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.08 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGD-120FWH | ||
| 9BDDE-120F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | ||
| 9BDKE-120F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | ||
| 9BDGE-120FP | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | ||
| 9BDGE-120FH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | ||
| 9BDGE-120FW | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | ||
| 9BDGE-120FHC | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (HC) for Helicross right-angle gearbox | ||
| 9BDGE-120FWH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 1.1-1.21 A | Capacitor: 6.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | ||
| 9BDD3-120F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDG-120F | ||
| 9BDK3-120F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKG-120F | ||
| 9BDG3-120FP | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGG-120FP | ||
| 9BDG3-120FH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGG-120FH | ||
| 9BDG3-120FW | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGG-120FW | ||
| 9BDG3-120FHC | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGG-120FHC | ||
| 9BDG3-120FWH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Duty: Continuous | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGG-120FWH | ||
| 9BDD4-120F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDK-120F | ||
| 9BDK4-120F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKK-120F | ||
| 9BDG4-120FP | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGK-120FP | ||
| 9BDG4-120FH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGK-120FH | ||
| 9BDG4-120FW | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGK-120FW | ||
| 9BDG4-120FHC | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGK-120FHC | ||
| 9BDG4-120FWH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Duty: Continuous | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGK-120FWH | ||
| 9BDD5-120F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDL-120F | ||
| 9BDK5-120F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKL-120F | ||
| 9BDG5-120FP | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGL-120FP | ||
| 9BDG5-120FH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGL-120FH | ||
| 9BDG5-120FW | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGL-120FW | ||
| 9BDG5-120FHC | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGL-120FHC | ||
| 9BDG5-120FWH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Duty: Continuous | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGL-120FWH |
