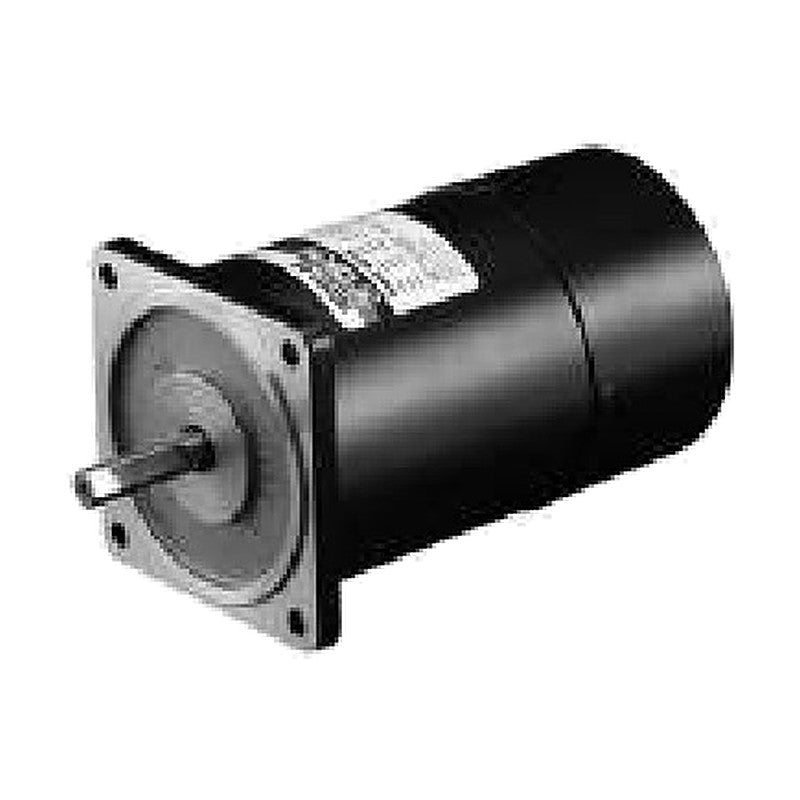

DKM 9BD-40 Electromagnetic Brake Motor 40W, 90 mm Frame
DKM 9BD-40 Electromagnetic Brake Motor 40W, 90 mm Frame
40 W single- and three-phase AC motor with built-in power-off activated electromagnetic brake and 90 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
- Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
- Motor and brake use the same power supply
- Frequent start/stop and direction changes possible
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 40 W |
|---|---|
| Frame size | 90 mm square |
| Poles | 4 |
| Duty | 30 minutes (single-phase) / continuous (three-phase); see each model |
| Rated speed | 1300 / 1350 / 1550 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 0.244-0.3 N·m |
| Starting torque | 0.32-1.11 N·m |
| Shaft options | D-cut, key, gear type (G, P, W) |
| Connection | Lead wire |
| Matching gearboxes | 9GBK□BMH, 9PBK□BH, 9PFK□BH, 9WD□BL/BR/BRL (□ = gear ratio) |
| Brake static friction torque | 0.5 N·m |
| Brake type | Power-off activated electromagnetic brake |
| 9BDD1-40 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDA-40 | |
| 9BDK1-40 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKA-40 | |
| 9BDG1-40G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9BDGA-40G | |
| 9BDG1-40P | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGA-40P | |
| 9BDG1-40W | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGA-40W | |
| 9BDDB-40 | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 9BDKB-40 | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Key (motor only) | |
| 9BDGB-40G | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 9BDGB-40P | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | |
| 9BDGB-40W | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | |
| 9BDDC-40 | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 9BDKC-40 | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | |
| 9BDGC-40G | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 9BDGC-40P | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | |
| 9BDGC-40W | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | |
| 9BDD2-40 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDD-40 | |
| 9BDK2-40 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKD-40 | |
| 9BDG2-40G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9BDGD-40G | |
| 9BDG2-40P | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGD-40P | |
| 9BDG2-40W | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGD-40W | |
| 9BDDE-40 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Capacitor: 3.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 9BDKE-40 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Capacitor: 3.0 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | |
| 9BDGE-40G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Capacitor: 3.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 9BDGE-40P | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Capacitor: 3.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | |
| 9BDGE-40W | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Capacitor: 3.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | |
| 9BDD3-40 | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDG-40 | |
| 9BDK3-40 | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKG-40 | |
| 9BDG3-40G | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9BDGG-40G | |
| 9BDG3-40P | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGG-40P | |
| 9BDG3-40W | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGG-40W | |
| 9BDDJ-40 | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Duty: Continuous | Output shaft: D-cut (motor only) | |
| 9BDKJ-40 | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Duty: Continuous | Output shaft: Key (motor only) | |
| 9BDGJ-40G | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | |
| 9BDGJ-40P | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | |
| 9BDGJ-40W | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | |
| 9BDD4-40 | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDK-40 | |
| 9BDK4-40 | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKK-40 | |
| 9BDG4-40G | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9BDGK-40G | |
| 9BDG4-40P | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGK-40P | |
| 9BDG4-40W | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGK-40W | |
| 9BDD5-40 | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDL-40 | |
| 9BDK5-40 | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKL-40 | |
| 9BDG5-40G | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9BDGL-40G | |
| 9BDG5-40P | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGL-40P | |
| 9BDG5-40W | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGL-40W |
AC Brake MotorsDKM
45 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
DKM 9BD-40 Electromagnetic Brake Motor 40W, 90 mm Frame
Available part numbers (45)
9BDD1-40, 9BDK1-40, 9BDG1-40G, 9BDG1-40P, 9BDG1-40W, 9BDDB-40, 9BDKB-40, 9BDGB-40G, 9BDGB-40P, 9BDGB-40W + 35 more — see full table ↓
How to order
Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
DKM
AC Brake Motors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 9BDD1-40 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDA-40 | ||
| 9BDK1-40 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKA-40 | ||
| 9BDG1-40G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9BDGA-40G | ||
| 9BDG1-40P | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGA-40P | ||
| 9BDG1-40W | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGA-40W | ||
| 9BDDB-40 | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | ||
| 9BDKB-40 | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Key (motor only) | ||
| 9BDGB-40G | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | ||
| 9BDGB-40P | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | ||
| 9BDGB-40W | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Capacitor: 16.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | ||
| 9BDDC-40 | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | ||
| 9BDKC-40 | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | ||
| 9BDGC-40G | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | ||
| 9BDGC-40P | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | ||
| 9BDGC-40W | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | ||
| 9BDD2-40 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDD-40 | ||
| 9BDK2-40 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKD-40 | ||
| 9BDG2-40G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9BDGD-40G | ||
| 9BDG2-40P | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGD-40P | ||
| 9BDG2-40W | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Capacitor: 4.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGD-40W | ||
| 9BDDE-40 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Capacitor: 3.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | ||
| 9BDKE-40 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Capacitor: 3.0 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | ||
| 9BDGE-40G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Capacitor: 3.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | ||
| 9BDGE-40P | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Capacitor: 3.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | ||
| 9BDGE-40W | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Capacitor: 3.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | ||
| 9BDD3-40 | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDG-40 | ||
| 9BDK3-40 | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKG-40 | ||
| 9BDG3-40G | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9BDGG-40G | ||
| 9BDG3-40P | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGG-40P | ||
| 9BDG3-40W | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGG-40W | ||
| 9BDDJ-40 | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Duty: Continuous | Output shaft: D-cut (motor only) | ||
| 9BDKJ-40 | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Duty: Continuous | Output shaft: Key (motor only) | ||
| 9BDGJ-40G | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | ||
| 9BDGJ-40P | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | ||
| 9BDGJ-40W | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | ||
| 9BDD4-40 | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDK-40 | ||
| 9BDK4-40 | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKK-40 | ||
| 9BDG4-40G | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9BDGK-40G | ||
| 9BDG4-40P | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGK-40P | ||
| 9BDG4-40W | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGK-40W | ||
| 9BDD5-40 | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDL-40 | ||
| 9BDK5-40 | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKL-40 | ||
| 9BDG5-40G | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9BDGL-40G | ||
| 9BDG5-40P | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGL-40P | ||
| 9BDG5-40W | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGL-40W |
Need a different model, or a part not listed here? Send us your parts list →
