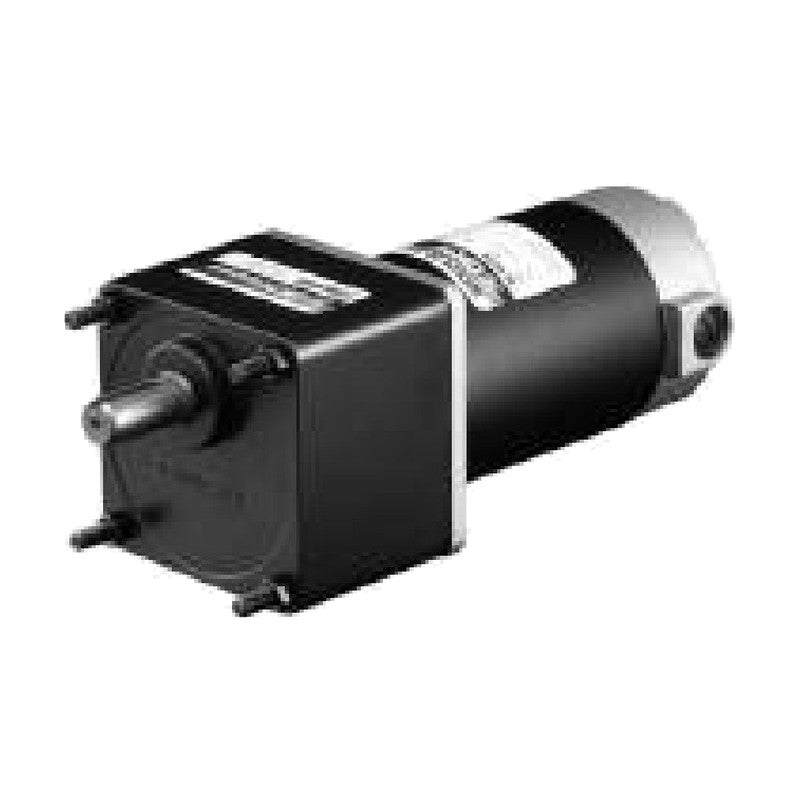

DKM 9DC DC Motor, 120 W, □90 mm Frame

DKM 9DC DC Motor, 120 W, □90 mm Frame

Permanent-magnet DC motor for 12 V, 24 V or 90 V supply, available with gear-type pinion for DKM gearboxes or with plain D-cut/key shaft.

Key features

  • Large starting torque and high efficiency
  • Easy speed control and direction reversal
  • Fast response to start and stop
  • Parallel and worm gearboxes can be attached (gear-type shaft)
  • 90 V models can be speed-controlled with the DKM DSD-90 controller

Specifications

Output 120 W
Frame size 90 mm square
Motor type Permanent-magnet DC motor
Voltage DC 12 V / 24 V / 90 V
Rated speed approx. 3000 r/min (2700-3000 r/min depending on voltage)
9DCP12-120-30 Voltage: DC 12 V | Shaft: Gear type pinion for powerful gearbox 9PBK□BH / 9PFK□BH | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 15.00 A | Rated torque: 0.390 N·m | Starting torque: 2.500 N·m
9DCP24-120-30 Voltage: DC 24 V | Shaft: Gear type pinion for powerful gearbox 9PBK□BH / 9PFK□BH | No-load speed: 3050 r/min | Rated speed: 2800 r/min | Rated current: 7.20 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCP90-120-30 Voltage: DC 90 V | Shaft: Gear type pinion for powerful gearbox 9PBK□BH / 9PFK□BH | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 2.00 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCW12-120-30 Voltage: DC 12 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 15.00 A | Rated torque: 0.390 N·m | Starting torque: 2.500 N·m
9DCW24-120-30 Voltage: DC 24 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3050 r/min | Rated speed: 2800 r/min | Rated current: 7.20 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCW90-120-30 Voltage: DC 90 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 2.00 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCD12-120-30 Voltage: DC 12 V | Shaft: D-cut shaft (motor only) | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 15.00 A | Rated torque: 0.390 N·m | Starting torque: 2.500 N·m
9DCD24-120-30 Voltage: DC 24 V | Shaft: D-cut shaft (motor only) | No-load speed: 3050 r/min | Rated speed: 2800 r/min | Rated current: 7.20 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCD90-120-30 Voltage: DC 90 V | Shaft: D-cut shaft (motor only) | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 2.00 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCK12-120-30 Voltage: DC 12 V | Shaft: Key shaft (motor only) | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 15.00 A | Rated torque: 0.390 N·m | Starting torque: 2.500 N·m
9DCK24-120-30 Voltage: DC 24 V | Shaft: Key shaft (motor only) | No-load speed: 3050 r/min | Rated speed: 2800 r/min | Rated current: 7.20 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCK90-120-30 Voltage: DC 90 V | Shaft: Key shaft (motor only) | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 2.00 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
DC MotorsDKM
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9DC DC Motor, 120 W, □90 mm Frame

Brand DKM·DC Motors

Available part numbers (12)

9DCP12-120-30, 9DCP24-120-30, 9DCP90-120-30, 9DCW12-120-30, 9DCW24-120-30, 9DCW90-120-30, 9DCD12-120-30, 9DCD24-120-30, 9DCD90-120-30, 9DCK12-120-30 + 2 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9DCP12-120-30Voltage: DC 12 V | Shaft: Gear type pinion for powerful gearbox 9PBK□BH / 9PFK□BH | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 15.00 A | Rated torque: 0.390 N·m | Starting torque: 2.500 N·m
9DCP24-120-30Voltage: DC 24 V | Shaft: Gear type pinion for powerful gearbox 9PBK□BH / 9PFK□BH | No-load speed: 3050 r/min | Rated speed: 2800 r/min | Rated current: 7.20 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCP90-120-30Voltage: DC 90 V | Shaft: Gear type pinion for powerful gearbox 9PBK□BH / 9PFK□BH | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 2.00 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCW12-120-30Voltage: DC 12 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 15.00 A | Rated torque: 0.390 N·m | Starting torque: 2.500 N·m
9DCW24-120-30Voltage: DC 24 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3050 r/min | Rated speed: 2800 r/min | Rated current: 7.20 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCW90-120-30Voltage: DC 90 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 2.00 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCD12-120-30Voltage: DC 12 V | Shaft: D-cut shaft (motor only) | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 15.00 A | Rated torque: 0.390 N·m | Starting torque: 2.500 N·m
9DCD24-120-30Voltage: DC 24 V | Shaft: D-cut shaft (motor only) | No-load speed: 3050 r/min | Rated speed: 2800 r/min | Rated current: 7.20 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCD90-120-30Voltage: DC 90 V | Shaft: D-cut shaft (motor only) | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 2.00 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCK12-120-30Voltage: DC 12 V | Shaft: Key shaft (motor only) | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 15.00 A | Rated torque: 0.390 N·m | Starting torque: 2.500 N·m
9DCK24-120-30Voltage: DC 24 V | Shaft: Key shaft (motor only) | No-load speed: 3050 r/min | Rated speed: 2800 r/min | Rated current: 7.20 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
9DCK90-120-30Voltage: DC 90 V | Shaft: Key shaft (motor only) | No-load speed: 3400 r/min | Rated speed: 3000 r/min | Rated current: 2.00 A | Rated torque: 0.390 N·m | Starting torque: 3.400 N·m
